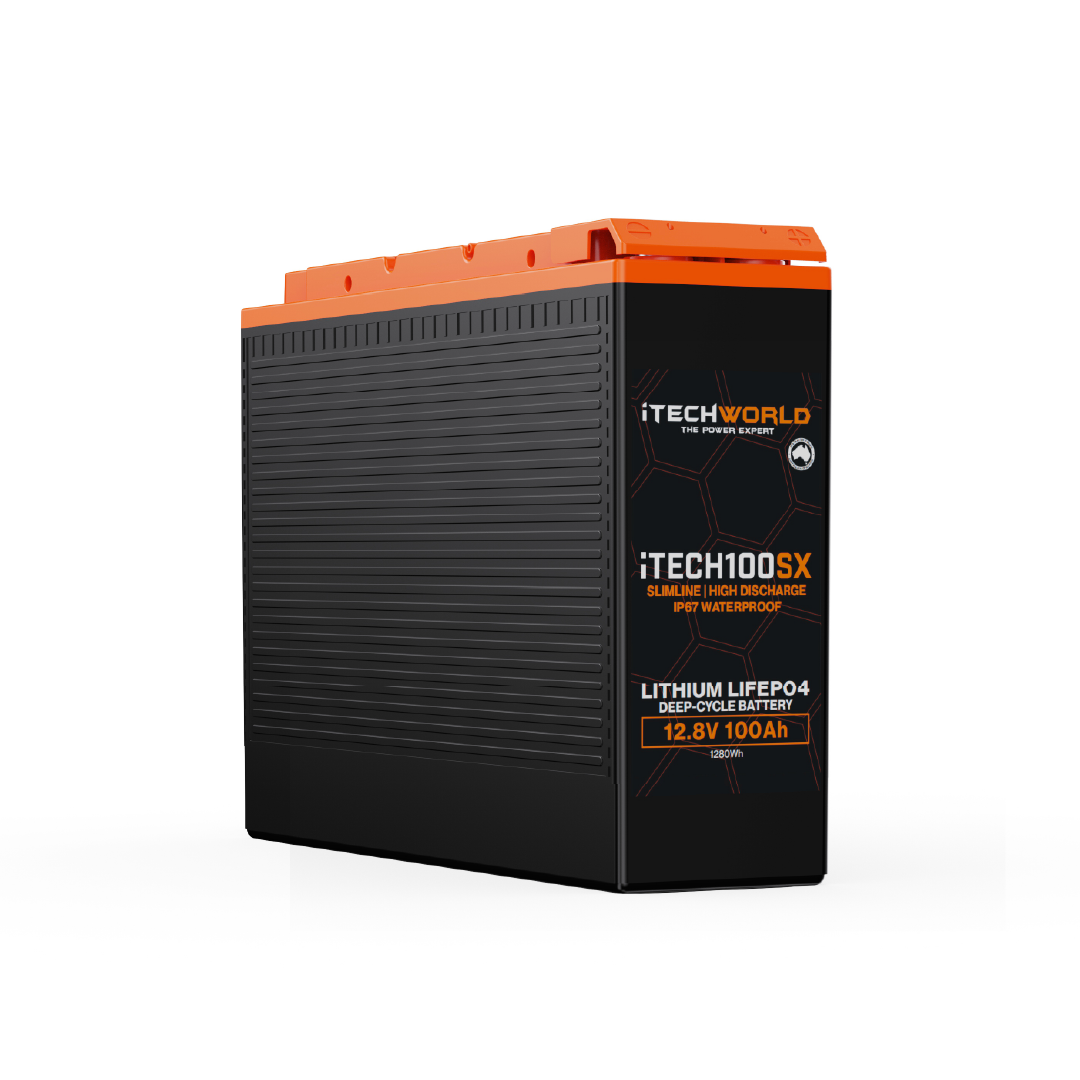

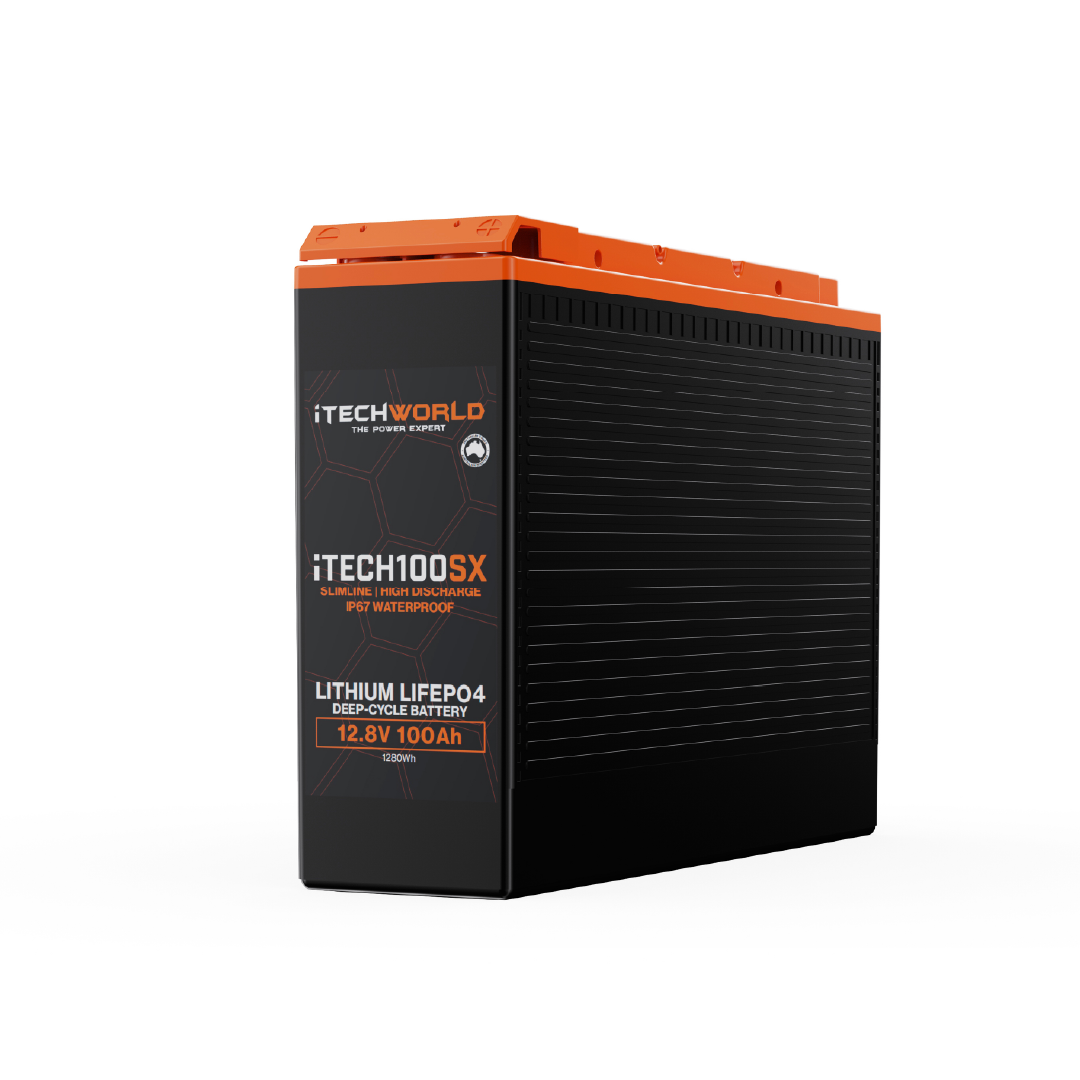

iTECH100SX
Lithium Deep Cycle Slim Battery
LiFePO4 100Ah
-
Lightweight at 10.9kg
-
Capacity 100Ah
- Regular price
- $599
- Sale price
- $599
- Regular price
-
$899
Tax included.
Shipping calculated at checkout.
33% OFF
or 4 x $149.75
Australian Family Owned & Operated
Established in 2006, powering Aussies since.
LEGENDARY SUPPORT
Need help? Speak to an Aussie Power Expert.
Need Help Deciding?
Pickup not available
Product Features
Overview

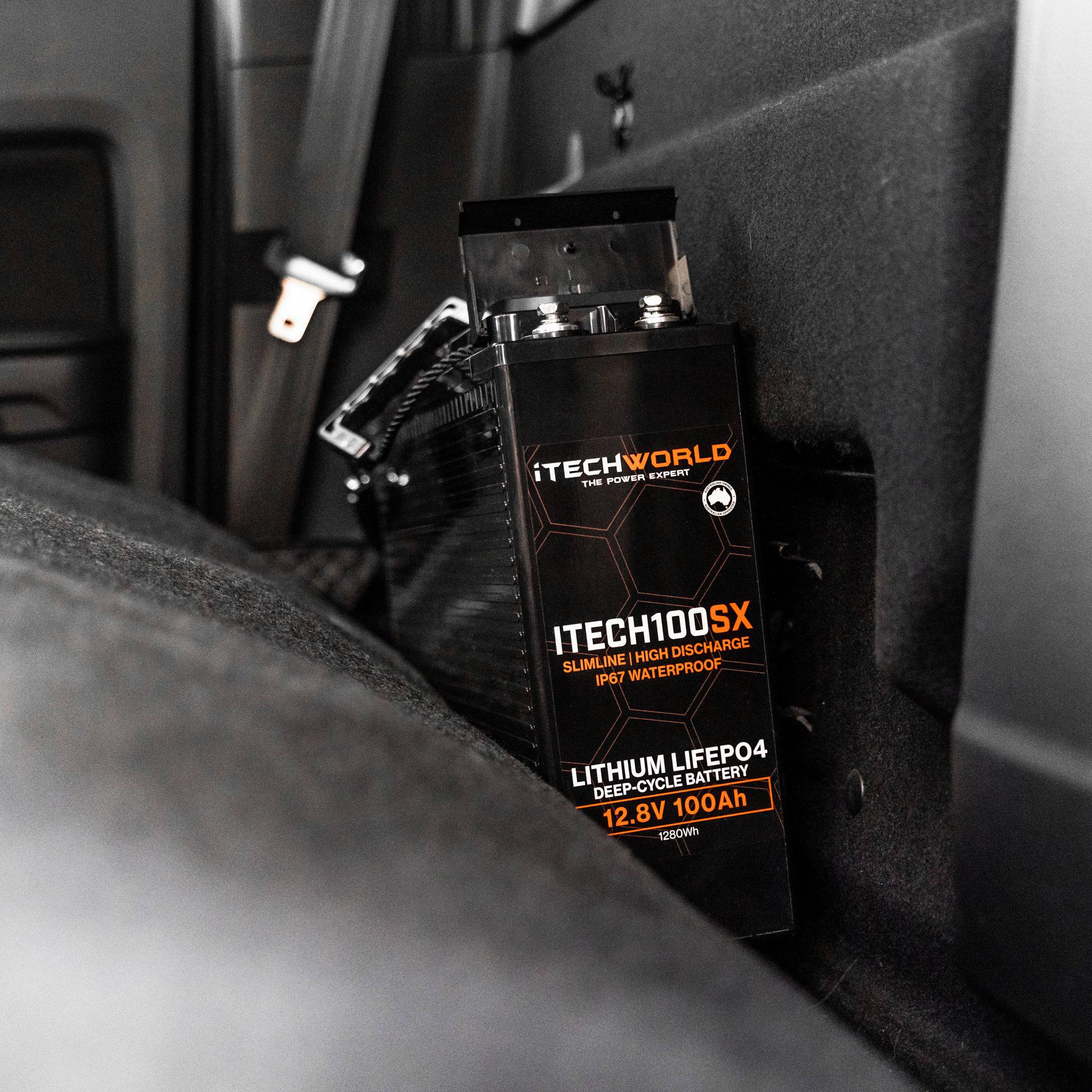

The iTECH100SX 100Ah Slimline Lithium Battery has been designed and developed from the ground up to be the ultimate lithium battery for all canopy setups and Dual/Single Cab utes! Although the iTECH100SX is only 110mm wide and weighs 10.9kg, the iTECH100SX packs a serious punch for a battery of its size.
The iTECH100SX 100Ah Slimline Lithium Battery has been designed and developed from the ground up to be the ultimate lithium battery for all canopy setups and Dual/Single Cab utes! Although the iTECH100SX is only 110mm wide and weighs 10.9kg, the iTECH100SX packs a serious punch for a battery of its size.
Taking the lead in the lithium battery industry, iTechworld have enabled the iTECH100SX to have a true 100% useable capacity meaning you have access to 100Ah of lithium LiFePO4 power! In stark contrast, your old lead acid battery only gives you 50% useable capacity, meaning one iTECH100SX is equivalent to two 100Ah lead acid batteries!
Thanks to the specifically designed internal BMS (Battery Management System), the iTECH100SX has a maximum discharge current of 270 Amps. In real-world terms, a single iTECH100SX will run a 2000W Pure Sine Wave Inverter allowing for hot coffee from a coffee machine or scrambled eggs cooked from an induction cooktop whilst off-grid.
Utilising A-grade prismatic lithium LiFePO4 cells, the iTECH100SX offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.

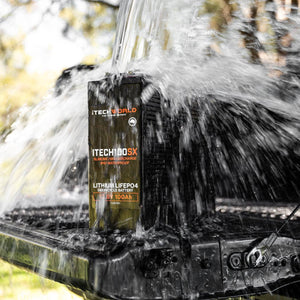

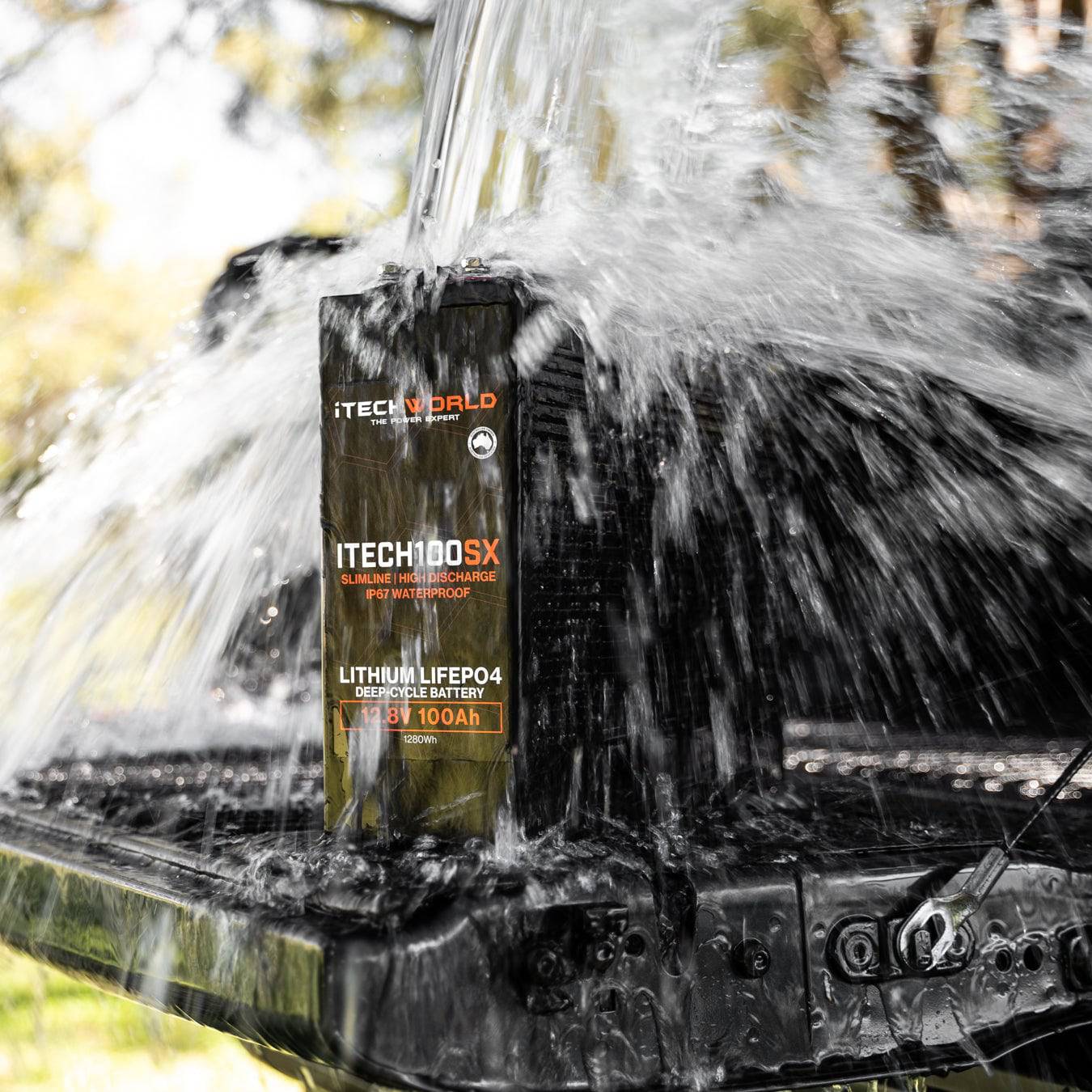

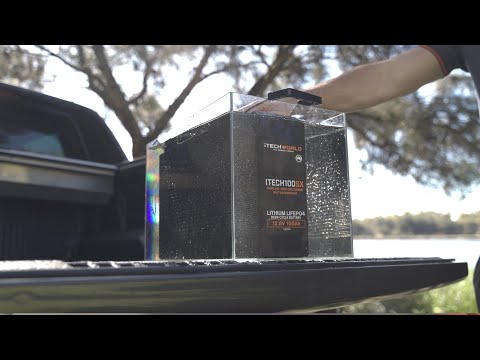

Just like our flagship, the iTECH120X, the all-new iTECH100SX is IP67 Waterproof and offers extreme vibration resistance to combat corrugated roads thanks to iTechworld's exclusive vibration-dampening technology. If you mount your batteries on the exterior of your vehicle, boat or caravan, you no longer have to worry about water damage with the iTECH100SX.
Designed and developed in Australia, the new iTECH100SX Slimline Battery is suited to thrive in our tough Australian conditions. The iTECH100SX includes a five-year Australian warranty with the confidence of an Australian company backing their products.
PACKAGE CONTENTS:
- 1 x iTECH100SX Slim 12v Lithium Battery
- 1 x User Guide
As part of the X Range, the iTECH100SX warranty is 5 years (3 years full replacement 2 years pro-rata).
Product Info
- Max Discharge Rate (5 seconds)430 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian warranty
- Safety certificationsIncluding IEC:62619
- Lightweight at 11.3kgEquivalent AGM weighs approx. 60kg
| General | |
|---|---|
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| C20 rating usable Amps: | 100Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | 5°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage: | 14.4V |
| Maximum charge current: | 100A |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 10.5V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 80% depth of discharge: | 5,000+ |
| Life cycles @ 40% depth of discharge: | 10,000+ |
| Continuous Discharge: | 150A |
| Maximum Discharge Rate (5 Seconds): | 430A |
| Dimensions (LxWxH): | 394 x 110 x 286mm |
| Weight: | 10.9kg |

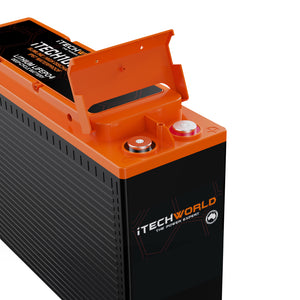

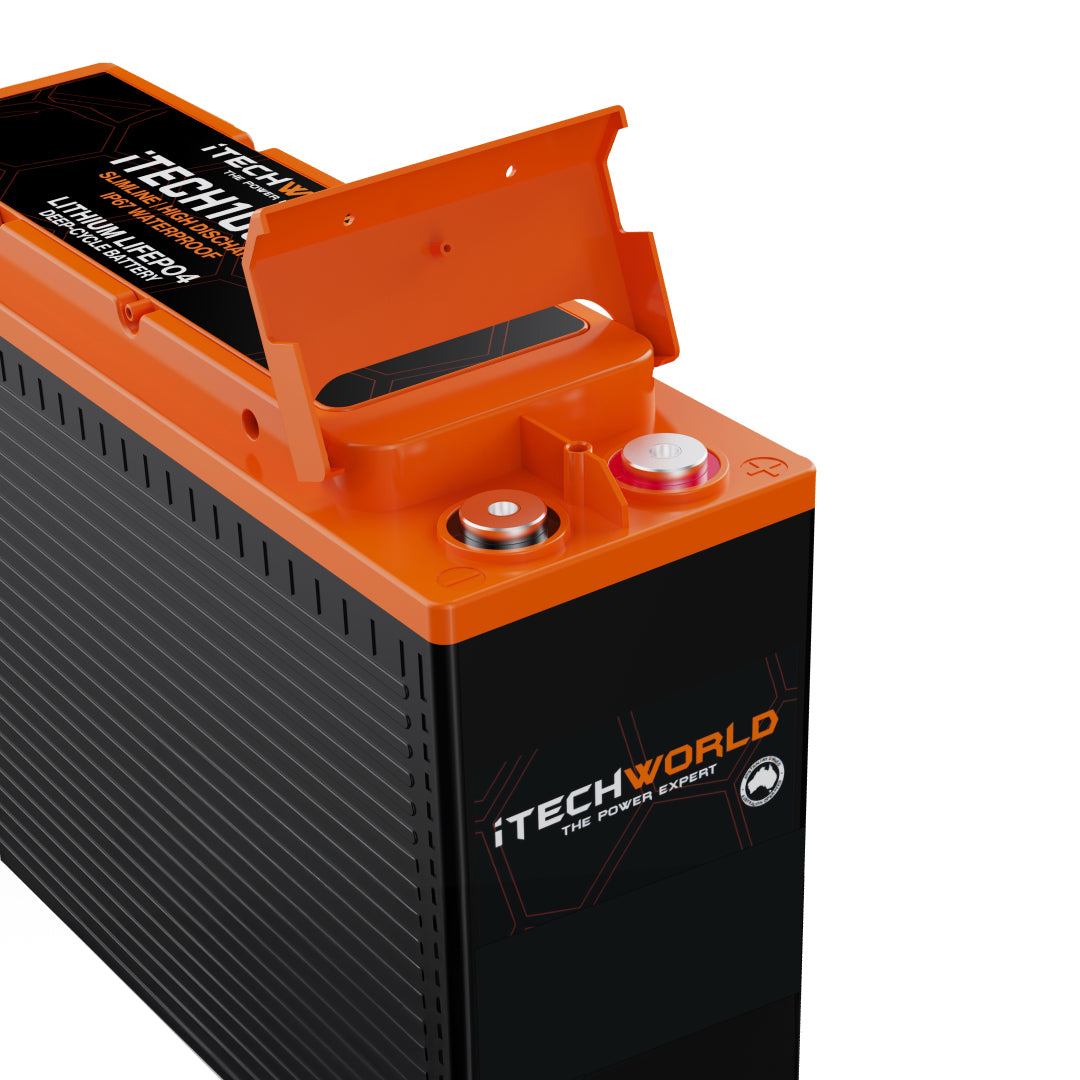

| Terminal type: | M8 |
| Case material: | ABS |
- A: Width: 110mm
- B: Length: 394mm
- C: Height: 286mm
Frequently asked questions about the iTECH100SX Lithium Deep Cycle Slim Battery LiFePO4 100Ah
What is the impact of using the iTECH100SX battery in extremely cold environments, below the optimum temperature range?
How does the iTECH100SX handle overcharging or being charged at a voltage higher than the recommended 14.4V?
Can the iTECH100SX battery be mounted in any orientation, given its slimline design and prismatic cells?
What specific advantages do prismatic cells offer over cylindrical or pouch cells in the iTECH100SX?
How does the vibration-dampening technology in the iTECH100SX differ from other batteries in the market?
Is there any performance difference when the iTECH100SX is used in applications other than canopy setups and Dual/Single Cab utes?
What are the practical implications of the iTECH100SX's IP67 waterproof rating for users frequently traveling in wet conditions?
Does the BMS in the iTECH100SX offer any specific features for balancing the cells during discharge or recharge cycles?
How does the iTECH100SX battery's weight compare to other lithium batteries with similar capacity, and what are the benefits?
What type of maintenance, if any, is required to ensure the longevity and optimal performance of the iTECH100SX?
How does the iTECH100SX's ability to connect in series up to 48V enhance its versatility for larger setups?
What are the benefits of the iTECH100SX's M8 terminal type in terms of installation and connectivity options?
