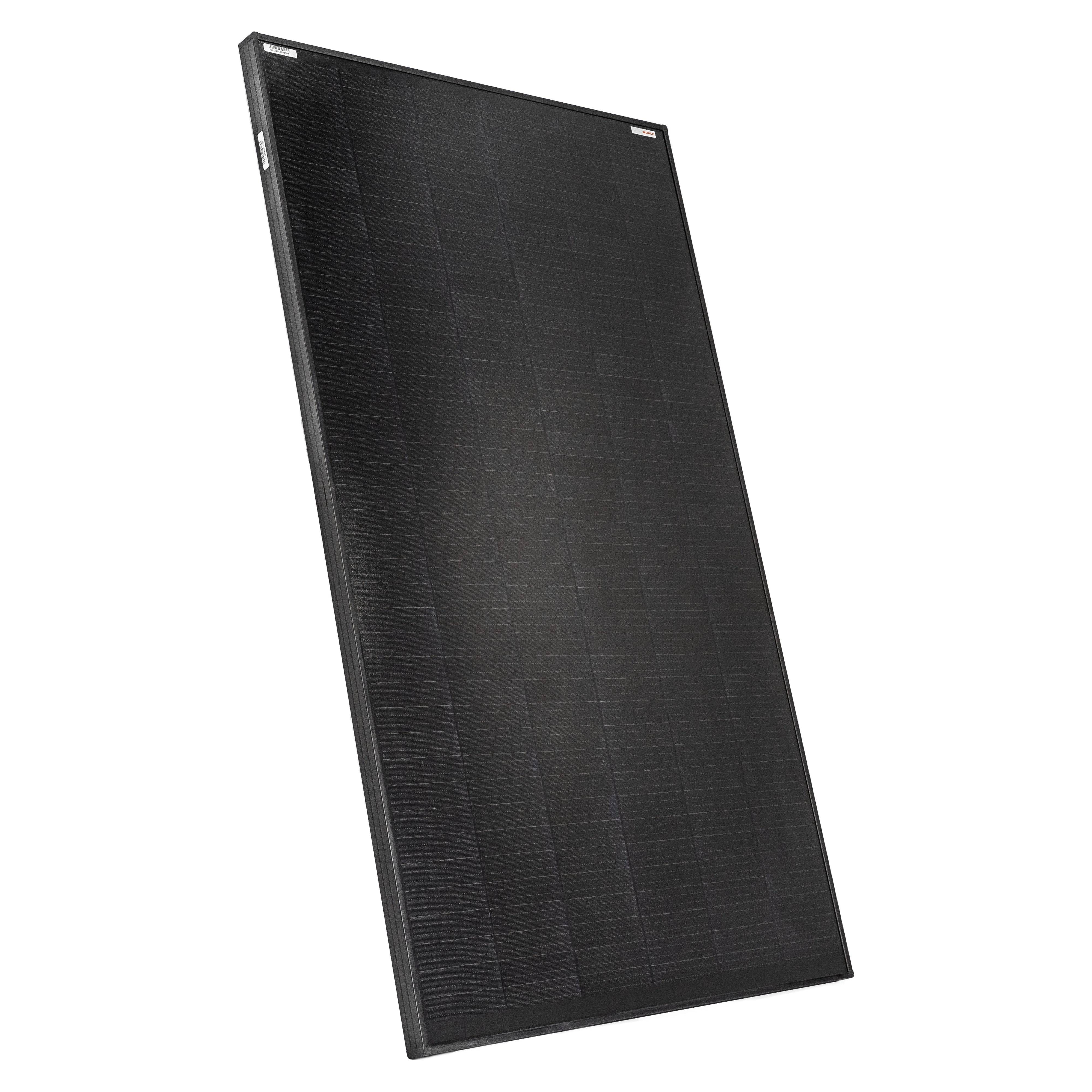

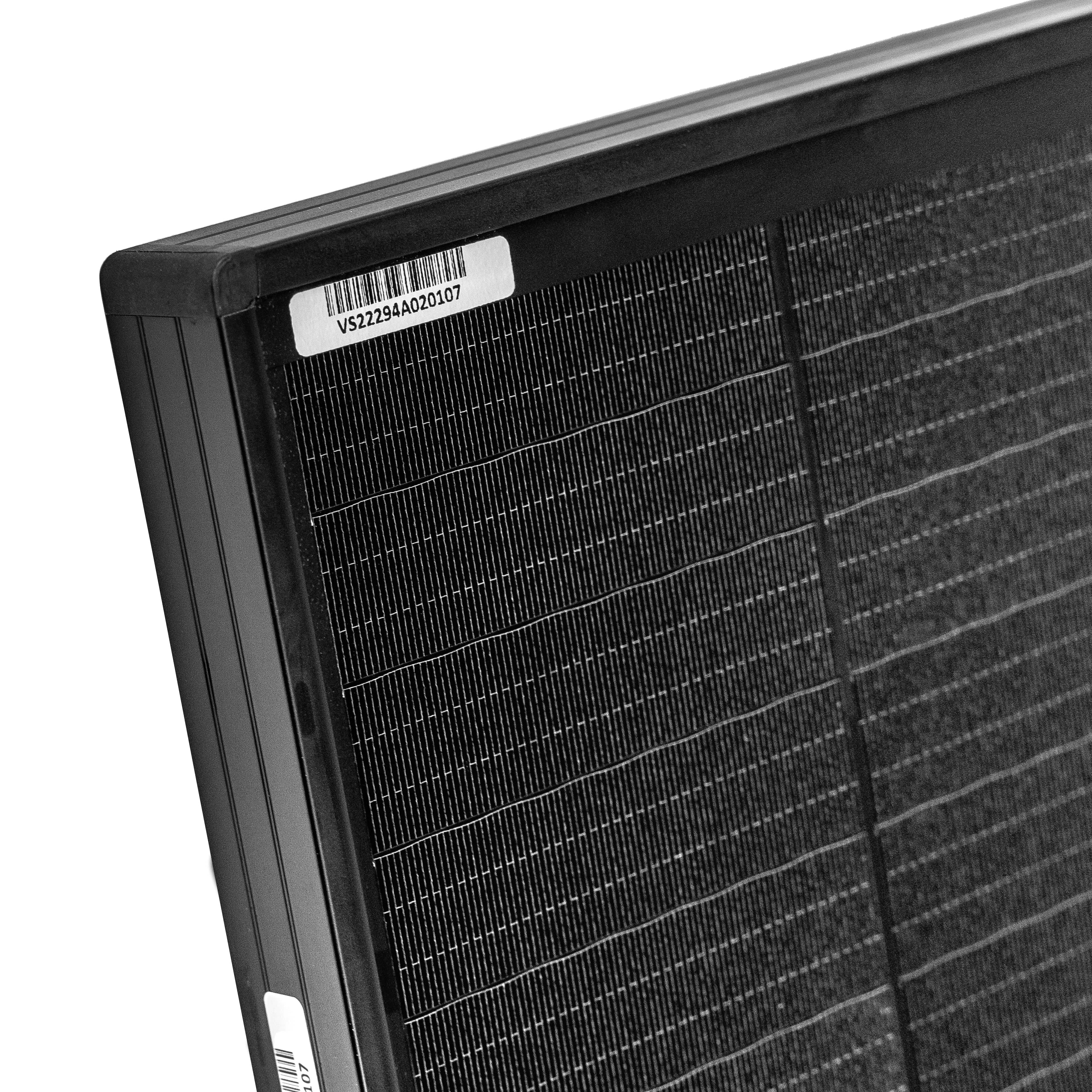

Our all-new 42V HIGH VOLTAGE 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising Shingle Solar Cells, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics.
Please note: This 42V Solar Panel will not work with our DCDC chargers as the solar input is a max of 32V. If you want a hard-frame solar panel to work with our DCDC charger, please view the 22V model.

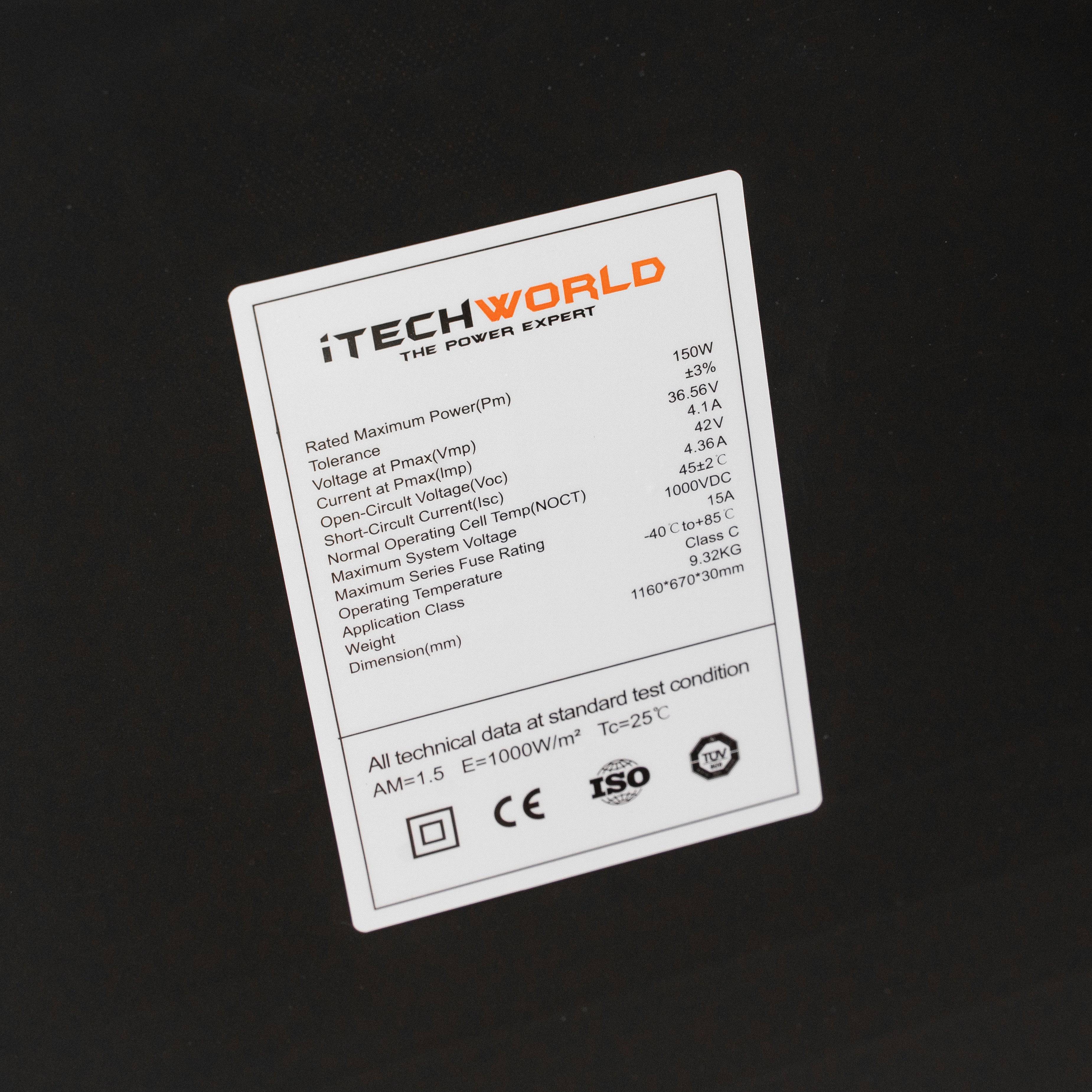

SPECIFICATIONS
|
Rated Maximum Power(Pm) |
150W |
|
Tolerance |
‡3% |
|
Voltage at Pmax(Vmp) |
36.56V |
|
Current at Pmax(Imp) |
4.1A |
|
Open-Circult Voltage(Voc) |
42V |
|
Short-Circult Current(|sc) |
4.36A |
|
Normal Operating Cell Temp(NOCT) |
45+2°C |
|
Maximum System Voltage |
1000VDC |
|
Maximum Series Fuse Rating |
15A |
|
Operating Temperature |
-40 Cto+85 C |
|
Weight |
9.32KG |
|
Dimension(mm) |
1160x670x30mm |
