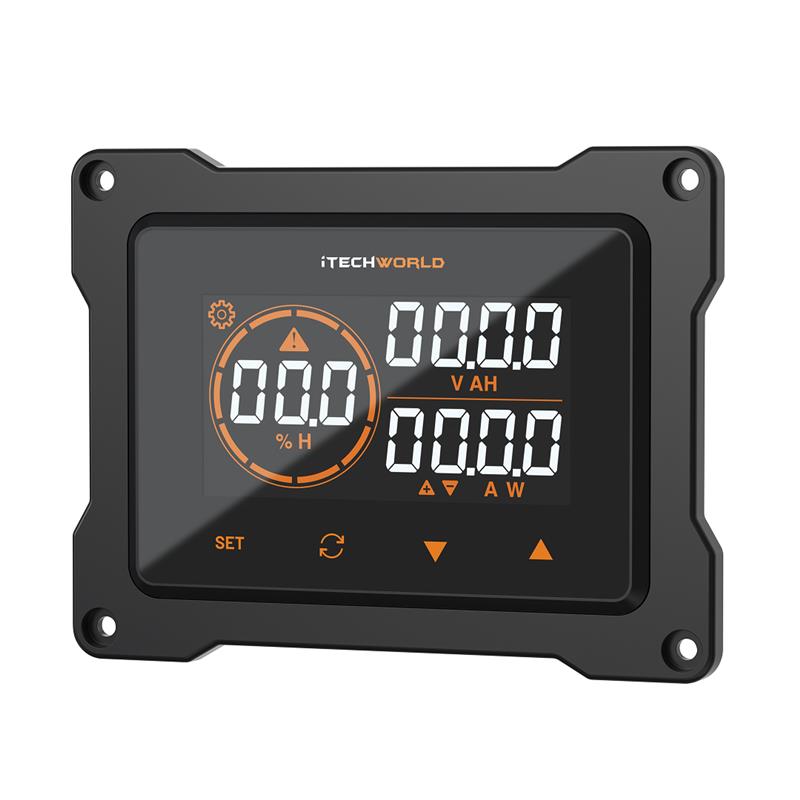

iTECHBM500 - 500Amp Battery Monitor with Shunt

Product Details

The iTECHBM500 is a high-precision battery monitor that captures instantaneous and integrated values in real-time. The iTECHBM500 utilises a 500A current shunt, the iTECHBM500 measures the discharge/ recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. The monitor provides real-time, high-precision voltage measurements through a field-installed sense wire. It is compatible with Lithium-ion, lead-acid, and nickel-metal hydride batteries.

Install the BM500 Into

Caravans & RVs
4WD & Canopy Setups
Marine & Boats
Golf Carts
Utility Vehicles
Battery Systems
Solar Energy Storage Systems
Suitable for all battery types including but not limited to GEL, LiFePO4, AGM, Lead-acid, Lithium-ion, Wet, and Calcium.

Package Contents

1 x iTECHBM500 Battery Monitor
1 x Shielded wire (8m)
1 x 500 Amp Shunt
1 x Plastic bracket
4 x Screws
1 x Shunt holder
1 x B+ Sense wire 22AWG (1m)
1 x Instructions

Support

iTECHBM500 Wiring Diagram

Download the User Guide

SPECIFICATIONS

Digital LCD display
Rear mount dimensions: 94mm x 57mm
Cable Length: 8m
Standby current: 0.6mA
Battery percentage indicator
Battery voltage indicator
Voltage Range: 8-80V
Reverse polarity protection
PVC screen protector, waterproof surface
Suitable for lead-acid 12V, 24V, 36V, 48V
Suitable for iTechworld lithium batteries
Easy to use and install
