iTECHBC20-24 Battery Charger 20 Amp 24V AC-DC - iTechworld

iTECHBC20-24

Intelligent Battery Charger

24V 20A ACDC

Name: iTECHBC20-24 | Intelligent Battery Charger | 24V 20A ACDC
Brand: iTechworld
SKU: 24VBC20
Price: 299.0 AUD
Availability: OutOfStock
Rating: 5.0 (3 reviews)

5.0

Boost charge feature
Charges from 240V mains power

Regular price: $299
Sale price: $299
Regular price: ~~$449~~

Tax included. Shipping calculated at checkout.

33% OFF

or 4 x $74.75

Product variants:

Australian Family Owned & Operated

Established in 2006, powering Aussies since.

LEGENDARY SUPPORT

Need help? Speak to an Aussie Power Expert.

Need Help Deciding?

1300 483 249 Email

Product Features

BOOST CHARGE

FEATURE

95%

CHARGE EFFICIENCY

CUSTOM

CHARGING ALGORITHM

VIBRATION-PROOF HEAT-DISPERSING DESIGN

CONSTANT

REGULATED OUTPUT

SOFT-START

FUNCTION

Overview

The iTECHBC20-24 Battery Charger is a 24V smart multi-stage lithium charger. This charger uses the latest switch-mode battery charging technology to ensure fast and efficient charging of your LiFePO4 battery.

The multi-stage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. The iTECHBC20-24 will prolong the longevity of the battery cells and prevents premature battery failure.

The iTECHBC20-24 battery charger also features an innovative boost-charge feature which helps activate a battery with low-voltage. The boost-charge feature will "wake up" a weak or flat battery to a suitable recharging voltage.

Designed and developed in Australia, the iTECHBC20-24 is built for the harsh Australian climate. The iTECHBC20-24 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.

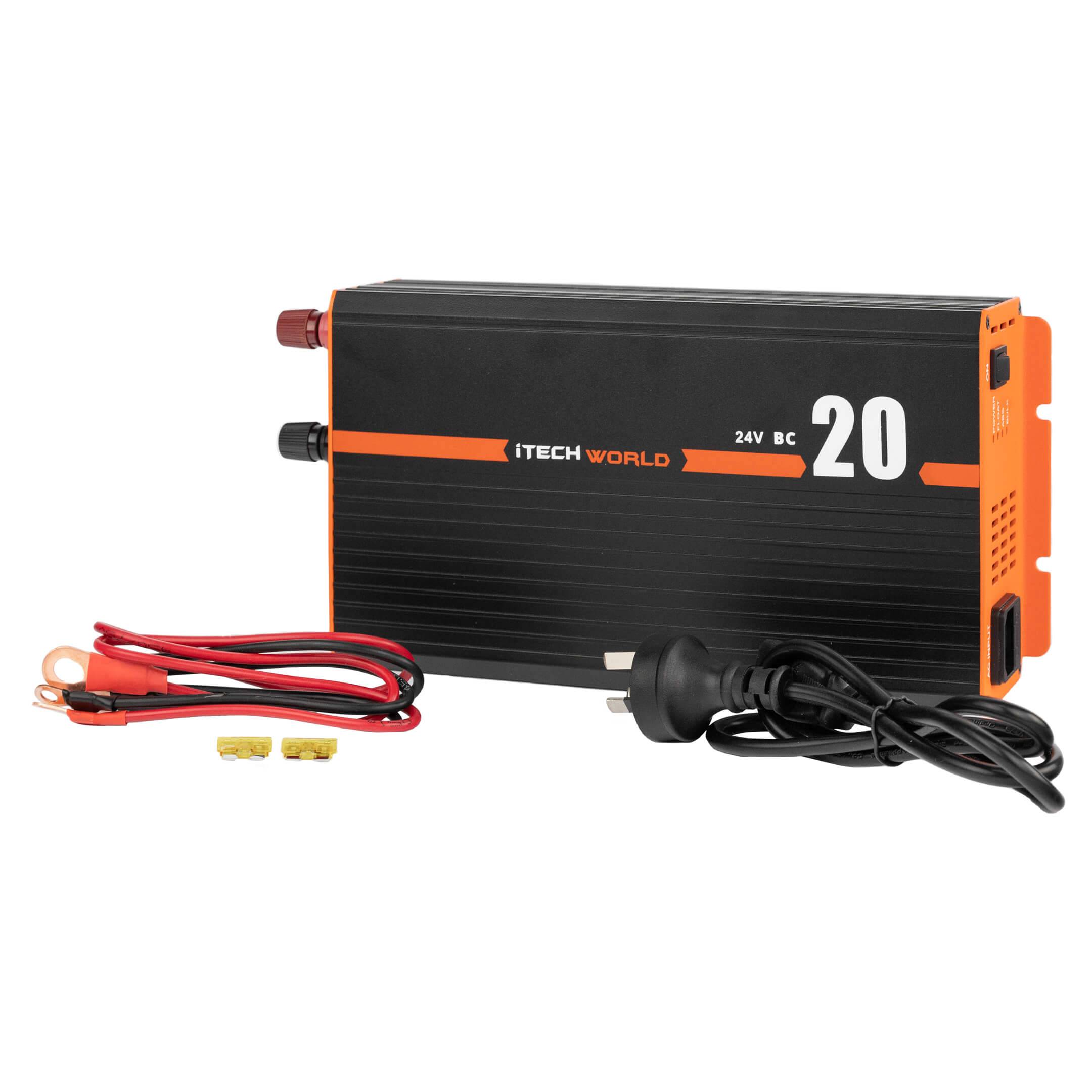

Package Contents

1x iTechworld iTECHBC20-24 20 Amp Battery Charger
1x Power lead
1x Set of 12v 800mm heavy duty battery leads with M8 eyelets/ring terminals

Multistage chargingFully automatic multistage battery charger
Inbuilt protection featuresLow-voltage, over-voltage, over-temperature and reverse polarity
Additional featuresAdjustable float voltage, switch mode charging, boost charge
Warranty2 years

General
Output voltage:	28.8V DC
Input voltage:	200-260V
Input current:	Approximately 2.8A
Output current:	0.5-40A
Continuous power:	120-480W
Dimensions (LxWxH):	310 x 150 x 72mm
Weight:	3kg

iTECHBC20-24 | Intelligent Battery Charger | 24V 20A ACDC

A: Length: 310mm
B: Width: 150mm
C: Depth: 72mm

FAQs

What is the maximum ambient temperature the iTECHBC20-24 20 Amp battery charger can operate in without risk of overheating?

The iTECHBC20-24 20 Amp battery charger is engineered to handle high ambient temperatures of up to approximately 50°C. Inside there’s a thermally activated cooling fan that automatically engages when the temperature rises.

How does the boost-charge feature differ from a standard charging process in terms of time and energy consumption?

Unlike standard chargers, the iTECHBC20-24 20 Amp battery charger comes complete with a boost-charge mode that delivers a short, high-voltage pulse to “wake up” low-voltage or flat lithium batteries. This is just another way of getting a little extra from your power system.

Can the iTECHBC20-24 20 Amp battery charger be safely used with other battery types, such as lead-acid or AGM, and if so, are there specific settings required?

Yes. It’s optimised for LiFePO4 batteries, but our 20 Amp battery charger also safely charges your AGM and lead-acid batteries if you need it to. Just confirm the correct voltage and follow any manufacturer guidelines to keep your system safe.

Is there any risk of overcharging a battery if the iTECHBC20-24 20 Amp battery charger is left connected after the battery is fully charged?

No. The charger’s smart three-stage algorithm will automatically switch to float mode after it’s fully charged. This keeps your battery at safe levels with no risk of overcharging or cell damage.

How does the iTECHBC20-24 20 Amp battery charger manage charging in extremely cold environments, and is there a minimum operating temperature?

This charger will keep going in temperatures as low as 0°C. Anything less than this and it’s normal for charging to slow slightly to protect the cells. If you're expecting extreme cold on your travels, use an insulated compartment or warm the battery before charging for even better performance.

Does the iTECHBC20-24 20 Amp battery charger require any specific maintenance to ensure longevity and performance in harsh weather conditions?

Minimal work is needed to keep your 20 Amp battery charger running at its best. Keep the charger’s vents clear, store it in a dry environment when it’s not being used, and check over the cables every so often for any corrosion or dust.

How quickly can the iTECHBC20-24 20 Amp battery charger bring a fully discharged 24V LiFePO4 battery back to full charge using the boost-charge feature?

Charging time all comes down to battery capacity. For example, a 24V 100Ah battery will usually take about 5–6 hours to fully recharge. The boost-charge mode accelerates recovery for flat batteries before normal charging starts.

What indicators or alerts does the iTECHBC20-24 20 Amp battery charger provide to notify the user of the charging status or any potential issues?

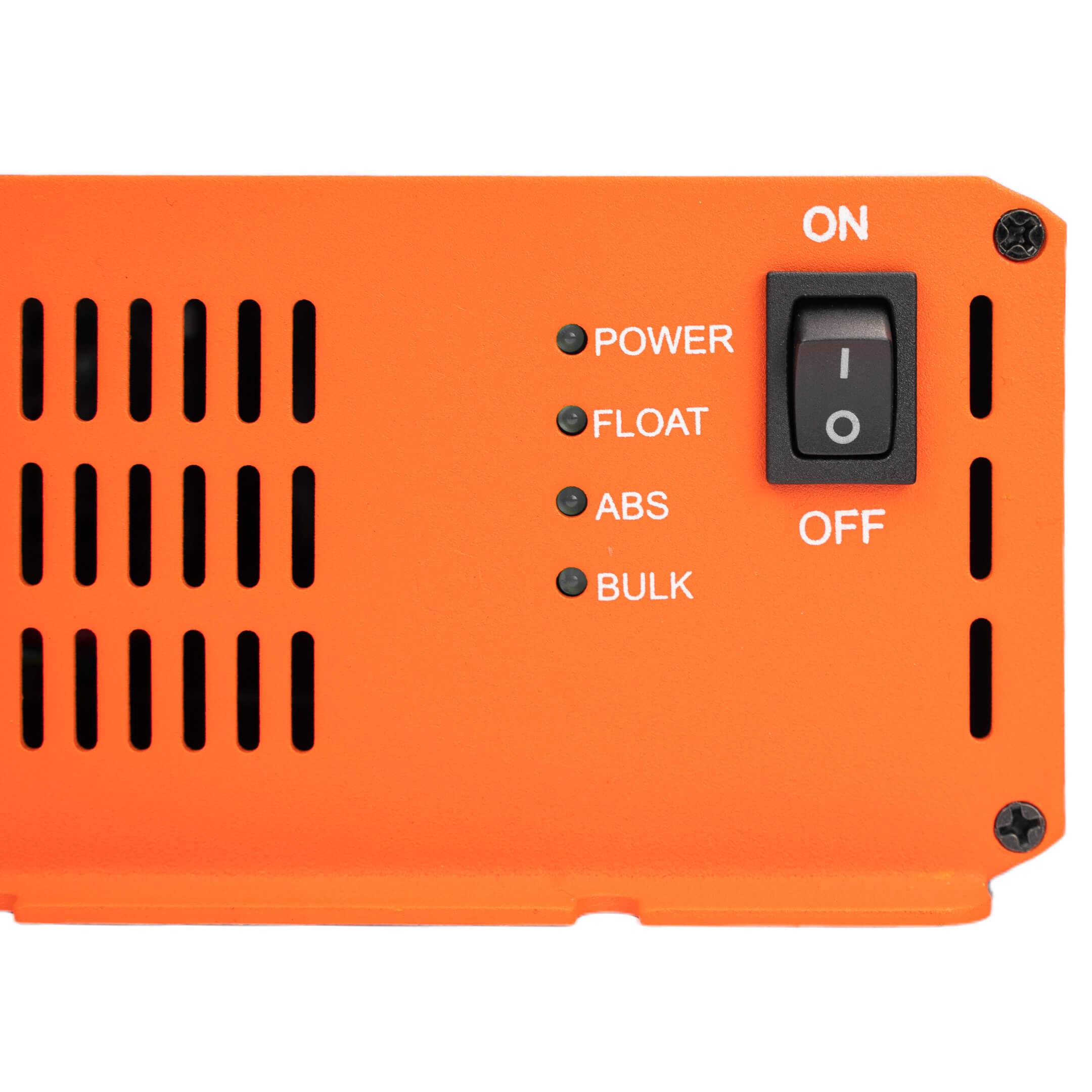

The charger comes with handy LED indicators to show active charging, full charge, and fault alerts. In the case of over-voltage, temperature issues, or poor connections, charging stops and the relevant warning light signals.

Is the iTECHBC20-24 20 Amp battery charger compatible with solar power systems, and if so, what additional equipment might be required?

Yes, it slots in easily into your solar setups. Pair it with a solar charge controller or DCDC charger for mains and solar inputs that promise safe, optimal charging.

Can the iTECHBC20-24 20 Amp battery charger be used for charging batteries of different capacities, and are there any recommended capacity limits?

This charger is best suited for 24V batteries between 50Ah and 200Ah. It has what it takes to charge larger or smaller batteries, though charge times may vary. Just always make sure to match the charger output to battery size.

How does the thermally cooling fan in the iTECHBC20-24 20 Amp battery charger affect the overall energy efficiency of the charging process?

The cooling fan activates only when it needs to. Energy won’t be wasted as the fan will turn on when a certain temperature threshold is hit.

What safety features are integrated into the iTECHBC20-24 20 Amp battery charger to protect both the charger and the battery during power surges or electrical faults?

The iTECHBC20-24 comes with a full range of protections to keep your adventure safe. That includes over-voltage, over-current, reverse polarity, short circuit, and over-temperature safeguard.

REVIEWS

5.0

Rated 5.0 out of 5 stars

Based on 3 reviews

Write a Review (Opens in a new tab)

3 reviews

Sort

Rated 5 out of 5 stars
1 year ago
Solide reliable charger
Had this installed in camper trailer for 18 months. Always worked as it should and never let me down.
Aidan
Verified Reviewer
Was this helpful?
Rated 5 out of 5 stars
1 year ago
ITechBC20-24
I thought I bought a portable battery charger,I think this one might be to fix permanently!!!!
It will do the job though.
Bart L.
Verified Buyer
Was this helpful?
Rated 5 out of 5 stars
2 years ago
5 Stars
Charger charges really fast and keeps the battery at 100% charged 👌👌
Scott L.
Verified Buyer
Was this helpful?
