iTECHBM500 | Battery Monitor with Shunt | 500A - iTechworld

4.8

iTECHBM500

Battery Monitor with Shunt

500A

Name: iTECHBM500 | Battery Monitor with Shunt | 500A
Brand: iTechworld
Price: 149.0 AUD
Availability: InStock
Rating: 4.8 (583 reviews)

Regular price: $149
Sale price: $149
Regular price

Tax included. Shipping calculated at checkout.

Compatible with all battery types
500A current shunt

Product variants:

REAL-TIME

PRECISION MONITORING

500A

CURRENT SHUNT

SIMPLE

INSTALLATION

Compatible with all
battery types

DIGITAL LCD

DISPLAY

ACCESSORIES

INCLUDED

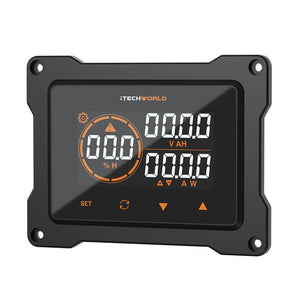

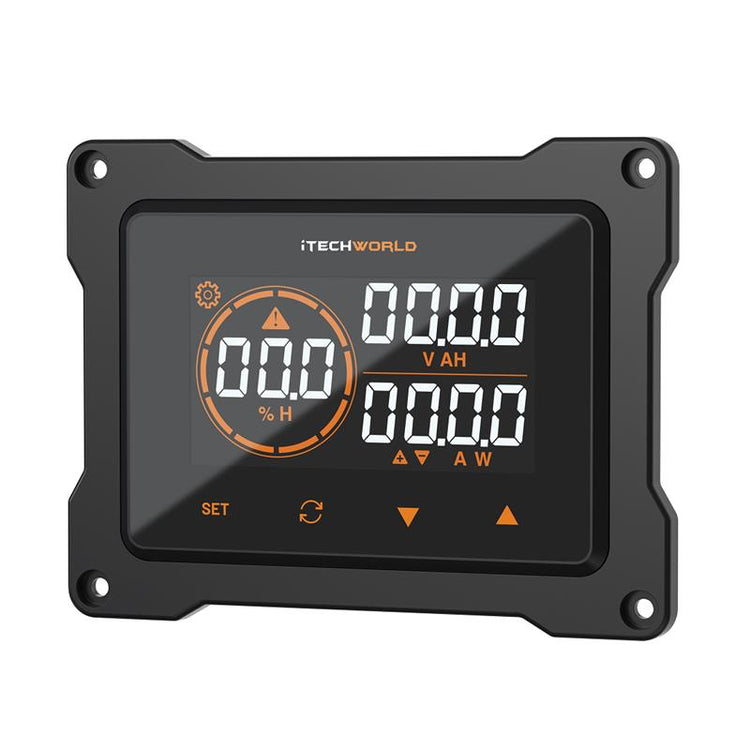

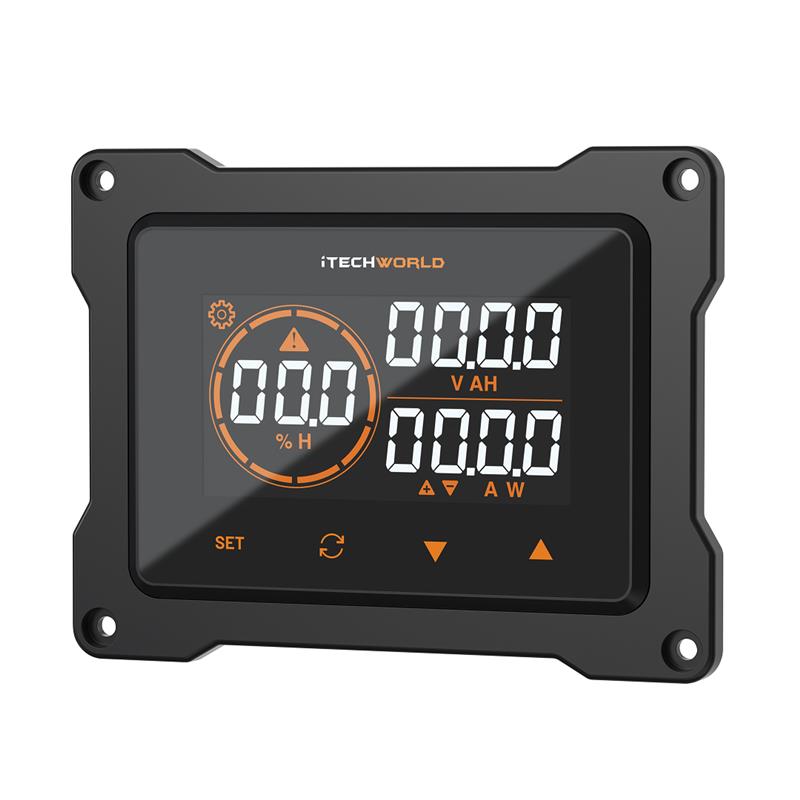

The iTECHBM500 Battery Monitor delivers real-time, high-precision insights into your battery’s performance. Using a 500A current shunt, it accurately tracks both charging and discharging currents, calculating Amp-hours (Ah) flowing in and out of the battery. A field-installed sense wire enables precise, live voltage readings. Designed for versatility, the iTECHBM500 is compatible with lithium, lead-acid, and nickel-metal hydride batteries.

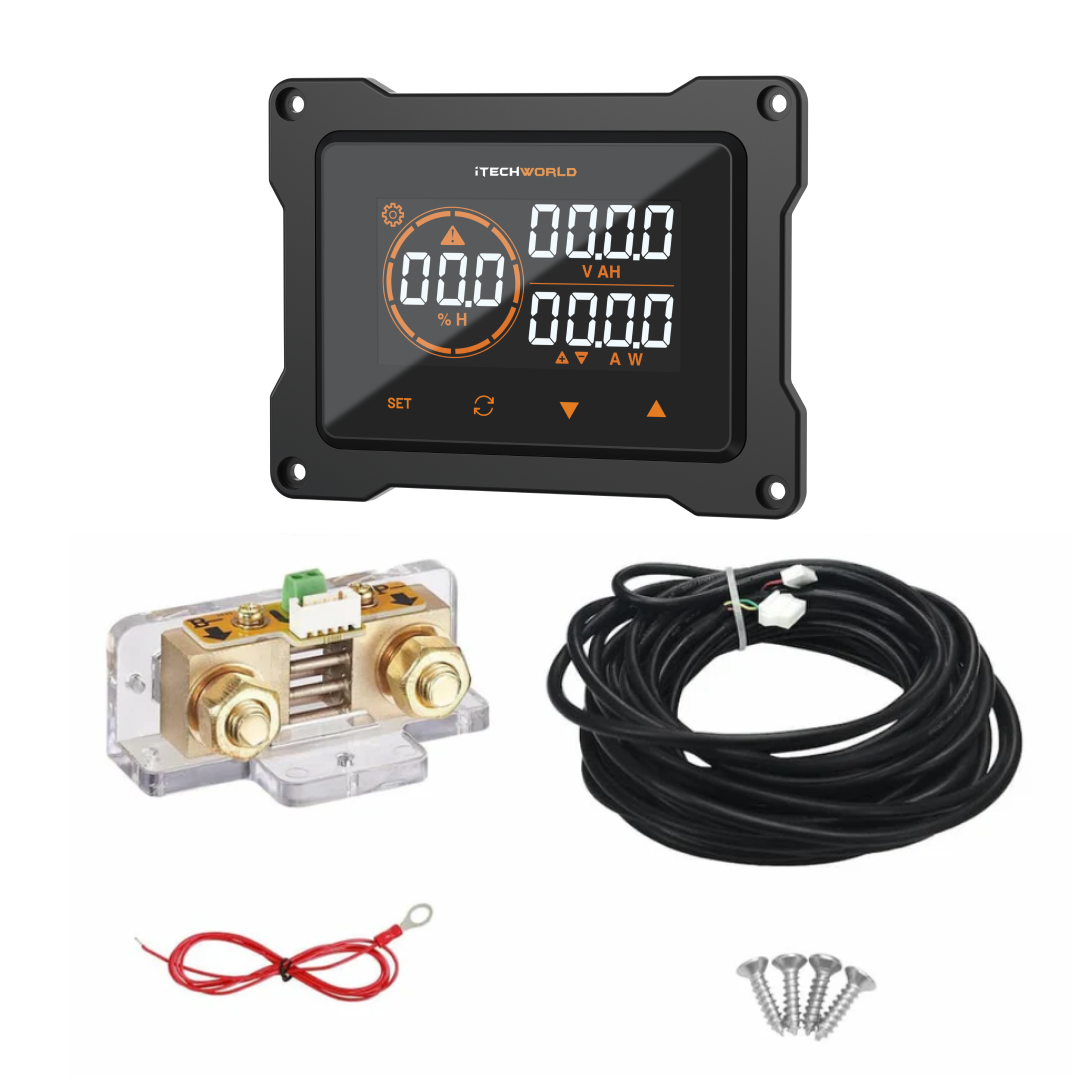

Package Contents

1 x iTECHBM500 Battery Monitor
1 x Shielded wire (3m)
1 x 500A shunt
1 x Plastic bracket
4 x Screws
1 x Shunt holder
1 x B+ Sense wire 22AWG (1m)
1 x Instructions

Support

iTECHBM500 Wiring Diagram

Download the User Guide

General
Supply voltage:	10-100V
Battery capacity:	10-999Ah
Maximum measured current:	500A
Power consumption (screen off):	<2mA
Power consumption (screen brightness @ 10%):	<20mA
Power consumption (screen brightness @ 100%):	<60mA
Voltage accuracy:	±1%
Current accuracy:	±1%
Operating temperature:	-20°C ~ 80°C
Exterior bracket dimensions (LxWxH):	106 x 81 x 18mm
Mounting bracket points (LxW):	95 x 70mm
Monitor backing dimensions (LxWxH):	80 x 59 x 16mm
IP rating:	IP20

quick stats

Warranty1 year

product dimensions

A: Length: 106mm
B: Width: 81mm
C: Height: 18mm

BM500 User Guide

iTECHBM500 User Guide

download

Australian Family Owned

Established in 2006, powering Aussies since.

Free 30-day returns

Shop risk-free with easy returns.
