iTechworld Generator Pure Sine Wave Inverter

Determine which items you consider essential to have access to when you are the road. Consider such items as fridges, microwaves, air con units or fans, lights and other small appliances as well as medical devices such as oxygen machines.
  • Determine the wattage you will need to power the items you wish to access simultaneously. This is the continuous watts. This will determine the size of generator needed. For example, a 3000 continuous wattage generator will power a fridge, small air con units, microwaves and household items.

Place your generator outside in an open area. It should be located away from doors or windows to prevent carbon monoxide from entering your living area. Make sure the area is dry. If using during rainy weather, place it under a canopy or other covering.
  • Consider that generators will make noise. You may want to experiment with different locations. 7-10 meters away is usually a good starting point.

Follow manufacturers' instructions for recommended fuel and oil and for starting and running instructions. A typical 3000-watt generator will hold 6-7L of fuel and will run for approximately 6 hours.

Plug appliances and other items into the generator using a heavy-duty outdoor extension cord that is grounded. You can then plug power boards into the extension cord indoors. Charge your caravan batteries using generator power via the battery charging cables provided.


  • Shut generator down and let cool before refuelling.
  • Use only the oil listed in the instructions.
  • Store fuel in an approved container in a locked shed or another safe area.
  • Seek advice from iTechworld if you are unsure of wattage needs.
  • Consider starting wattage as well as running wattage when purchasing a generator. Appliances require greater power on initial startup. Check appliances for wattage info.
  • Note that Watts/KiloWatts is different from KVA.
  • To prevent theft, consider running a metal ring into the ground and secure the generator with a chain.
  • Make sure fuel is clean and no water or other liquids have been kept in the jerrycan.



Read iTechworld Generator Reviews HERE

Read how to avoid a drained battery HERE

Read about light weight Solar Panels HERE

Read 5 great tips to get the most out of your Solar Panels HERE

Read our comprehensive guide on Inverters HERE

Read about the benefits of travelling with Solar Power HERE

Article author


[email protected]

Read more +

Avoid a Drained Battery

From the Kimberly to Fraser Island, it doesn't matter if you're long range touring, or taking a weekend break, a flat or deeply discharged battery will ruin your plans and hit your back pocket.

By monitoring your power use you can easily avoid the hassle of a drained battery. From simple and inexpensive DC 12V Meters to Volt/Amp Meters or a battery monitor with all the bells and whistles, there's plenty of options to suit your needs and price tag.

iTechworld has an Amp Meter that is multi functional in the sense that it can tell you how much power you are putting into your battery from your solar panel and it can also tell you how much power you are taking out of your battery from your load.

The iTechworld Amp Meter will give you an accurate reading of the current voltage on your battery. If you want an inexpensive, easy-to-install option, this is the one to choose. The iTechworld Amp Meter offers a big and easy-to-read LED display. This means you will have no dramas monitoring how much your load is pulling out of your battery and also how much your Solar Panel is putting in.

There are a lot of regulators on the market, most of them do the same thing. If you are looking to run a smooth operation with your power then the iTechworld intelligent regulator is the controller that will help you achieve your goals.

With one touch of a button the iTechworld intelligent regulator can tell you how many amps your solar panel is putting in, how much amps you are taking out, temperature, amp hours and voltage. You can run your load directly through the controller and it will show you exactly what you are drawing from your battery right down to .0 of an amp. In the past this time of controller would cost hundreds of dollars but it is now available for just $99 via the iTechworld website.


Amp Meter Here

Intelligent Regulator Here

Learn about which Generator to choose HERE

5 tips to get the most out of your Solar Panels HERE

Learn about light weight Solar Panels HERE

Full comprehensive guide on Inverters HERE

Detailed explanation on the benefits of tavelling with Solar Power HERE


Article author


[email protected]

Read more +

Optus C1 Satellite Location

Find Optus C1

This is a Step-By-Step Beginners Guide to setting up a portable satellite TV system for motor homers and caravaners. This blog will help you find Optus C1.



Setting up a portable satellite TV dish is simple and quick … if you know exactly how to do it and you have done it 10 times before. For those who have never been shown the basic principles or who have only undertaken the task a few times, it can be the most frustrating thing in the world. We regularly find people who are so annoyed with their new satellite TV system, that they are ready to toss the whole set-up into the sea. Imagine setting up a satellite a bit like the first time you tried to ride a push bike, its pretty hard to start with but becomes really easy with practice.

FIRST OF ALL – don’t despair! You are not the first person to find it hard (or near impossible) to set up your new system. This guide aims to help ease the pressure giving you the basic knowledge and tools to get the system operational.



Some technical stuff


  • The satellite that your TV signal comes from is called “Optus C1”. Optus C1 orbits the earth at 156 degrees, in a geo-stationary position 35,000 km’s above Paupa New Guinea (geo-stationary means that the satellite orbits the earth at the same speed as the earth rotates – it therefore seems to be stationary from our view-point).


  • When we move from place to place the satellites apparent position in the sky changes.



  • There are hundreds of other satellites up there with C1 – and three of these are annoyingly close to our Optus C1. Your satellite finder can tell you when your dish is pointing at a satellite – it cannot tell which satellite you are pointing at.



  • The ‘signal level’ reading on your decoder is of very little use – the ‘quality’ is the only useful indicator. Try pointing the dish at the ground – you will often get a high ‘signal level’ reading (but low or no quality and no picture of course).



  • The dish reflects the signal from the satellite into the ‘LNB’ – this is the part on the end of the dish arm where the coax cable attaches. LNB stands for Low-Noise-Block. The LNB’s function is to catch the signal reflected from the dish and translate it into a form that the decoder can understand.



  • The signal strength is not the same all over Australia – some areas are strong (particularly in capital cities) and other areas are very weak.



The first few times

Here a few important hints for setting up the dish for the first time…For the first few times that you set up your dish, plan to do it in daylight – it is much easier to follow instructions, find tools and read a satellite finder when it is not pitch black outside.


  • Don’t start under pressure! 5 minutes before the beginning of the grand final is not the time to start setting up the system. For the first few times allow lots of time.



  • If you can, get a helping hand. Your wife or husband watching the TV screen can save a lot of running around (do try not to take it out on them if things don’t go quite as planned).



  • Do it yourself. It can be very tempting to accept help from the person parked next door. You will never become better at something you let others do for you.



  • The dish is not pointing where you think it is. If your dish is of the off-set type (almost all are) the dish is pointing 5 to 15 degrees above where the arm is pointing.



Stage one – Pre-Setup 1

  1. Use the charts or the table provided to determine the correct elevation and direction for your current location – write these down on a piece of paper. Please note that this is just your starting point with the ground mounted dishes and the elevation used to gain a signal can be 5 - 10 degrees higher than what is stated in the instructions.
  2. Select a location for your dish… A. Avoid trees and other obstacles – you need a clear view of the sky in the direction of the satellite. Remember, the signal arrives 5 – 15 degrees above where the dish arm is pointing (depending on your dish design). B. Make sure your cable will be long enough to reach the decoder.
  3. Make sure the stand is as plumb as it can be – the vertical support needs to be as close to vertical as it can be. Use a level if you have to.
  4. Peg the stand down. It is difficult to adjust a dish on a stand that is wobbling around. Most people drill holes in the legs of their stands and drive steel tent pegs through these holes to hold the stand firm.
  5. Place the dish as low to the ground as you can. A dish that sits high on the stand is more prone to being moved or even blown over by the wind; it is much easier to adjust a dish that is lower to the ground.
  6. Leave the decoder turned off while you connect the coax cable to the finder and the LNB. Make sure that you have the finder connected the correct way around – the connection marked ‘to LNB’ must be connected to the small cable leading to the LNB.

Stage Two

Finding the satellite

  1. Set the dish elevation according to the iTechworld instructions. Remember this can be 5 – 10 degrees out.
  2. Turn the VAST decoder on.
  3. Turn the volume on the TV up loud – the VAST 800 tuning channel has a distinctive music to let you know you have locked on.
  4. Check that the finder is working by turning the sensitivity adjustment up until the finder makes a noise (if there is no noise – check your connections and that the decoder is switched on).
  5. Stand behind the dish and keep the sat finder at eye level.
  6. Point the dish well away from the correct direction and adjust the finder until the needle is pointing half scale. We usually point it due North.
  7. Rotate the dish back close to the correct direction (use the compass provided).
  8. Slowly rotate the dish until you see and hear a change in the finder – the finder needle will rise.
  9. IMPORTANT – our aim is to get the needle to go “off the scale”.
  10. Once the needle goes off the scale it should be a Optus C1. Check the TV to see if channel 800 is there.
  11. If 800 is not on the screen, wind the needle back to 8 and adjust the dish position and elevation until the needle spikes again. Repeat this process until you have channel 800 on the TV screen.
  12. Channel 800 is on the screen HOORAY! Pat yourself on the back – you have done it!


Wrong Satellite

If after following all of the instructions above you find that you still have no pictures, the most likely cause is that you have found the wrong satellite!

From the diagram above you can see that there are four satellites grouped quite closely together … B3, C1, D1 and Pas8 (The actual elevation above the horizon is different for different locations throughout Australia). Optus C1 is the satellite that we need the dish to be pointing at. If you have found the wrong satellite, it is most likely that your dish is mistakenly pointing at Optus B3. Adjust the dish down a few degrees. Set the finder at half scale. Slowly rotate the dish to the right – the needle on the finder will again start to rise. Follow steps 8 to 18 above (in the finding the satellite section) until you are locked onto Optus C1.


LNB Skew

Aside from the elevation and direction, one other thing changes slightly as you move around the country. The third dish parameter that changes is called the skew or LNB rotation. You should only need to adjust this after moving 200 – 300 kilometers. Please note this is only a fine tune used after you have picked up the signal to gain a little extra quality.

  1. Make sure the dish is fully set up and you have the best alignment you can get. Be sure it is firmly locked in place.
  2. Have the decoder switched on and make sure you have a good picture.
  3. Using the remote control, find the signal level and quality bar graphs on the decoder.
  4. You are only interested in the quality graph.
  5. Note the value of the quality on the graph.
  6. Rotate the LNB a few degrees clockwise (be careful not to move the dish).
  7. Make sure you are well out of the way of the dish and again check the quality graph.
  8. If the quality is higher – you are going in the correct direction.
  9. If the quality is lower – you are going in the wrong direction. Rotate the LNB a few degrees counter-clockwise.
  10. Keep rotating the LNB (in very small amounts) until you cannot get the quality bar to go any higher – you now have the optimum skew setting.


Packing the dish away

Before you pack the dish away take 1 minute to make a small pen mark on the elevation bracket at the current position. This will be your starting point next time you set up the dish (assuming you have not traveled thousands of kilometers). This mark will only be useful if you always have the stand sitting level. Both the dish and the arm are extremely delicate – any distortion in the dish or slight bend in the arm will make it very difficult or impossible to align the dish. Pack it carefully. Do not consider cutting or hinging the arm – it may still work in high signal areas, but it will not function in the lower signal areas.

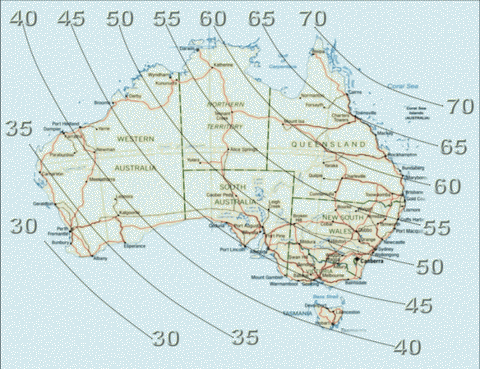

Elevation to Optus C1 from all parts of Australia



Direction to Optus C1 from all parts of Australia.


There is a new Satellite Finder available, it pretty much does all the hard work for you. Its called the D4 "Marriage Saver" Satellite Finder. If you are looking for the quick and easy way to set up Satellite TV first time every time then you will want to read more about the Marriage Saver HERE
