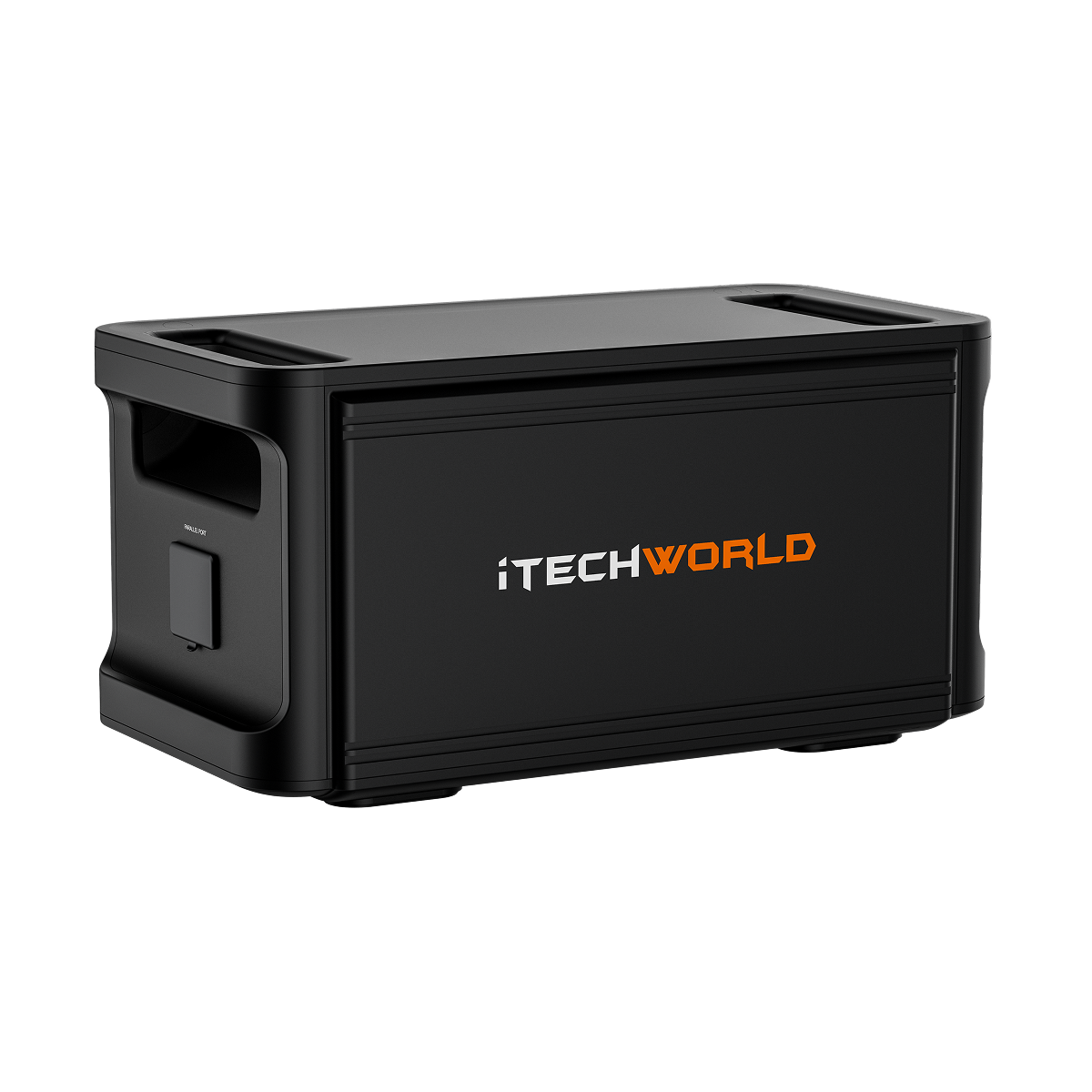

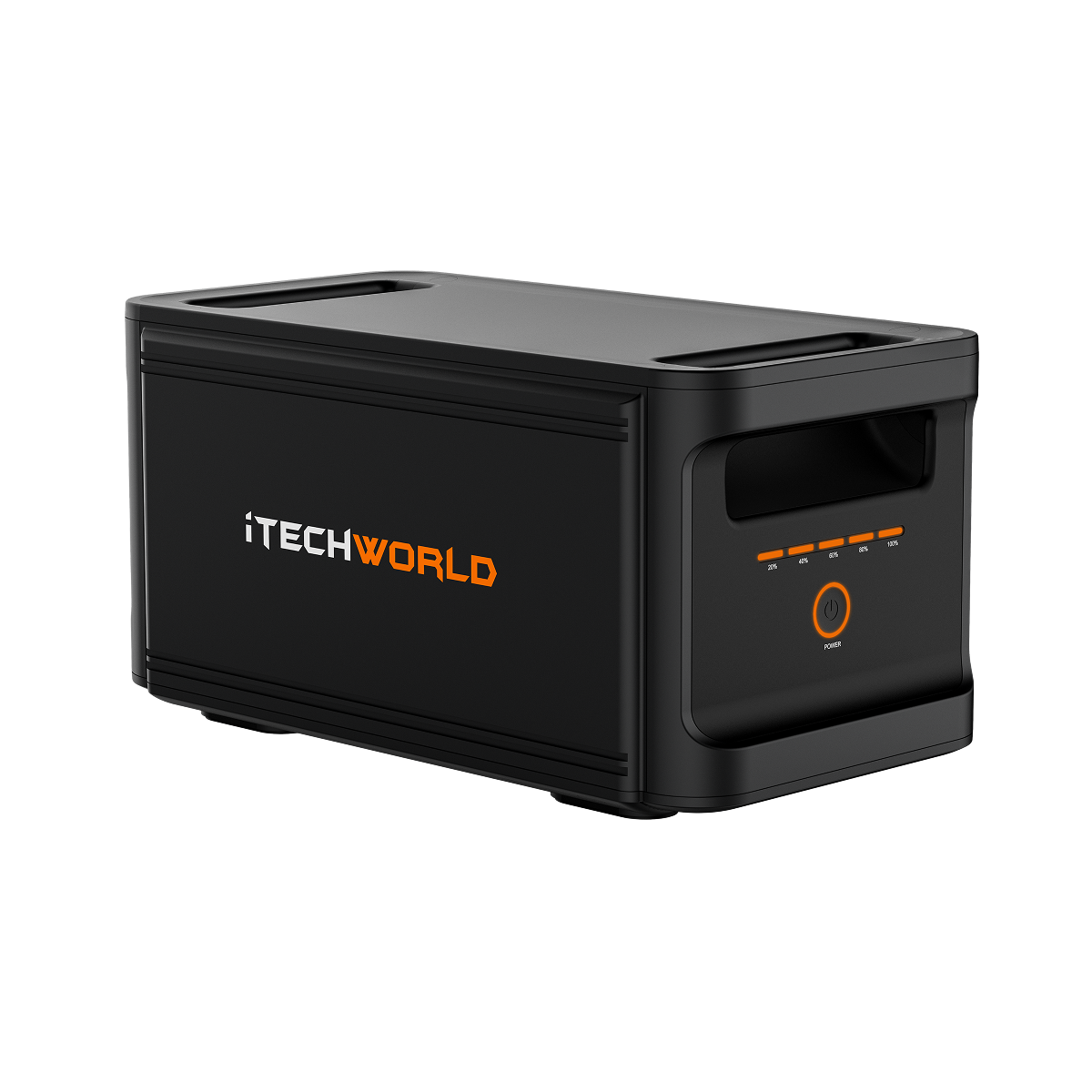

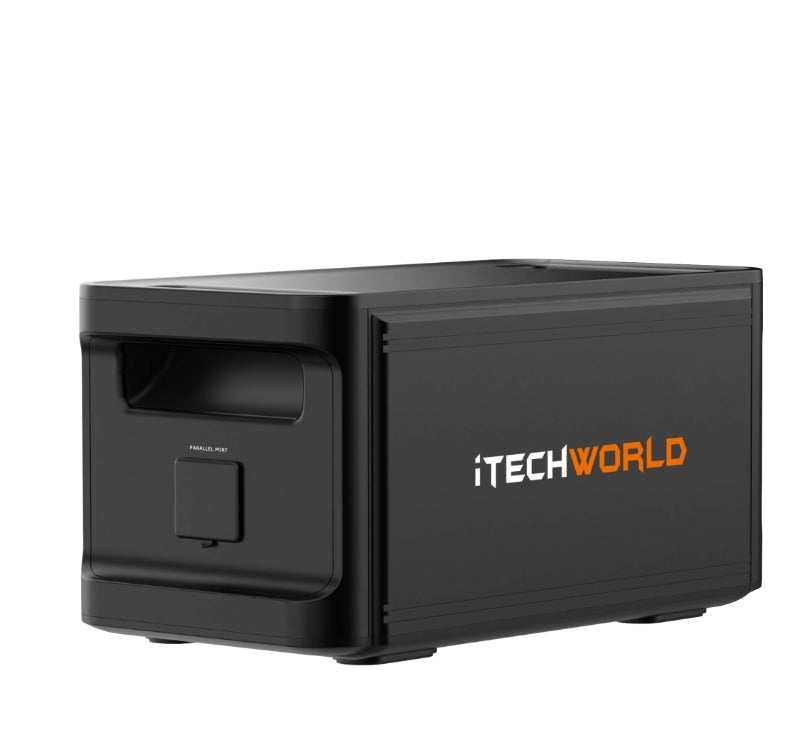

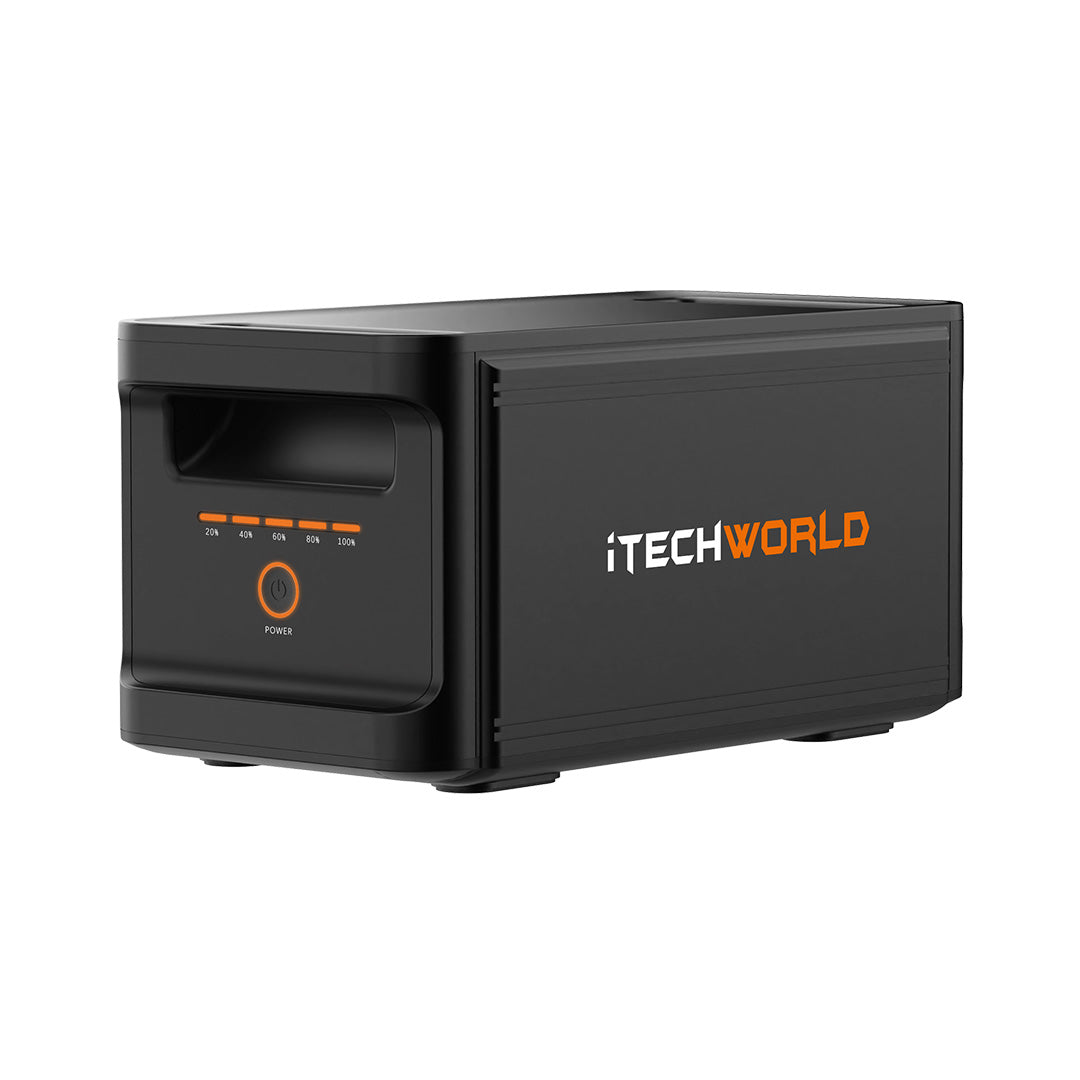

EB1536 Expansion Battery 120Ah

Regular price $1,600 Sale price $1,099 Save $501
/
Tax included. Shipping calculated at checkout.


ACCESSORIES

PRODUCT DETAILS


Quick facts about the EB1536 Expansion Battery:

Note: This battery is ONLY suitable for use with the 1800W PRO Power Station.

  • 1800W Pure Sine Wave AC 240V output
  • Designed to support home backup and off-grid applications
  • 5 ways to charge – 240V AC mains (home, car socket, solar, generator or additional battery)
  • 10ms UPS switch system to ensure seamless power transfer
  • Pass through charging functionality
  • In-built Battery Management System (BMS)
  • Durable design for long-lasting performance


AUSTRALIAN DESIGN

The EB1536 Expansion Battery has been designed and developed in Australia to provide additional peace of mind when travelling and using your 1800W PRO. It can extend the runtime of your power station and allows up to two expansion batteries to increase the overall capacity of your setup!

MORE POWER, MORE PERFORMANCE

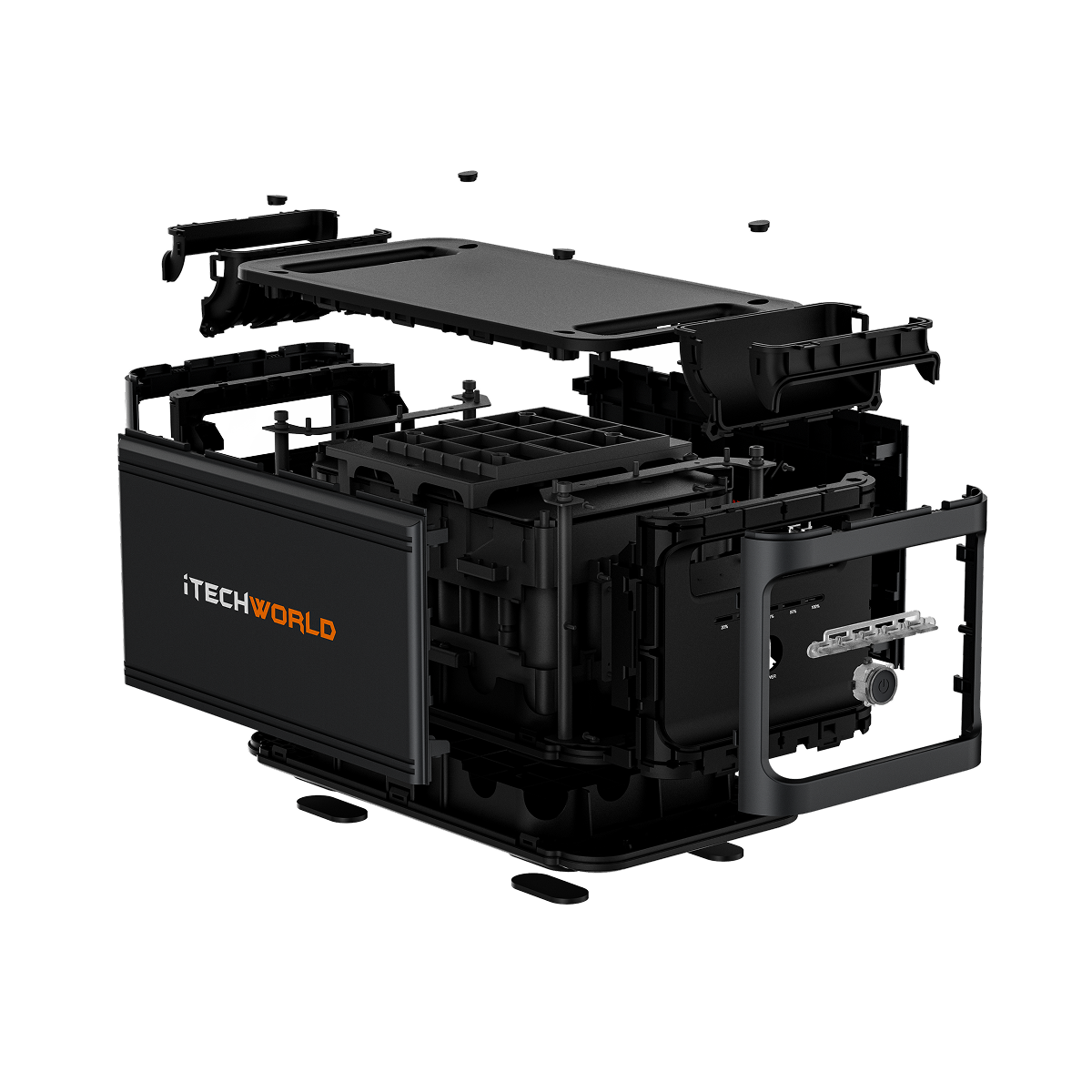

This expansion battery has been designed to extend and increase the performance of your 1800W PRO. An inbuilt Battery Management System (BMS) safeguards you and your investment (ensuring no short circuits or overloads!) while allowing you to connect up to 2 expansion units to bring your station to the next level—for a massive maximum parallel capacity of 4608Wh.

NO EXPERTISE NECESSARY

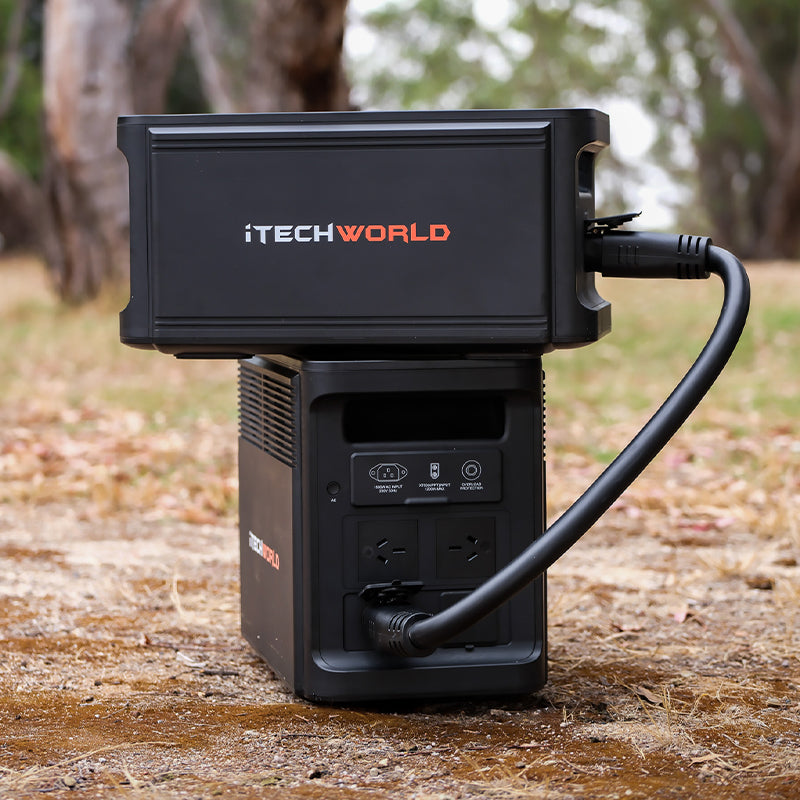

The expansion battery is intentionally designed for easy installation. It can be connected easily and without fuss – wire them in parallel and away you go! Its design, developed alongside the 1800W PRO, ensures you have a piece of gear tailor-made for your power station. You can connect a maximum of 2 EB1536s to your 1800W PRO.

PACKAGE CONTENTS

  • 1 x EB1536 Expansion Battery
  • 1 x Parallel cable
  • 1 x Cable storage bag
  • 1 x User Guide HERE



SUPPORT

The statutory warranty is 24 months from the date of purchase. Keep out of direct sunlight. Keep away from moisture and water.

GENERAL

Dimensions: 218 x 403 x 205mm (LxWxH)
Weight:  13.5kg
Capacity: 1536Wh
Max parallel capacity: 4608Wh
Power off current: <500μA
Operating temperature:  -10°C ~ 40°C
Environment humidity: ≤90%RH
Cycle life: >4000 times
Cigarette lighter output:   12V/10A
Power off current:   <500uA
Operating temperature:  -10°C ~ 40°C
Environment humidity:  ≤90%RH
Cycle life:   >4000 times
 BATTERY
Battery type: LiFePO4
Single cell rated voltage:  3.2V
Single cell rated capacity:   20Ah
Battery pack rated voltage: 38.4V
Battery pack output voltage: 35V-43V
Battery pack rated capacity:  1536Wh
Maximum parallel capacity: 4608Wh
