PRODUCT DETAILS

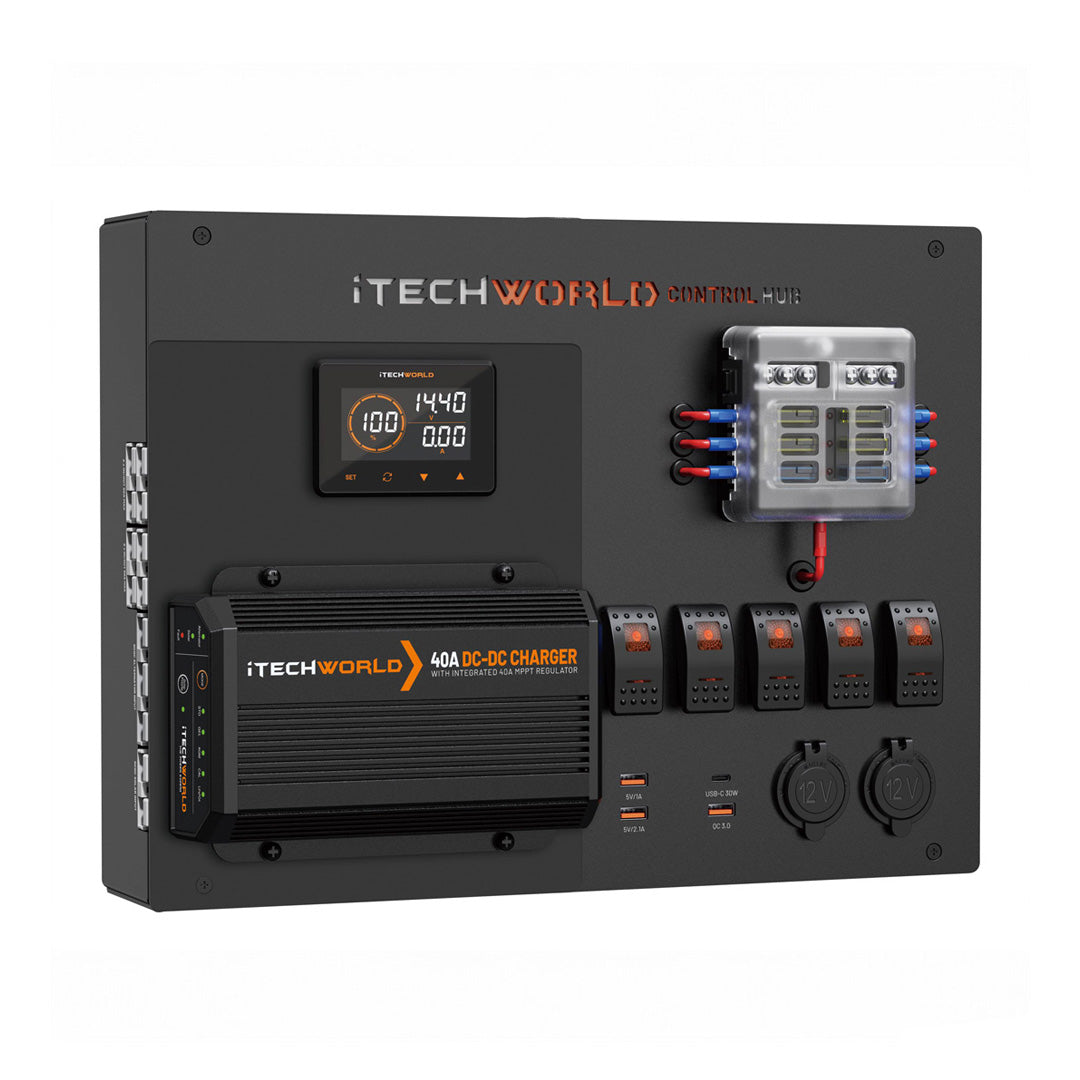

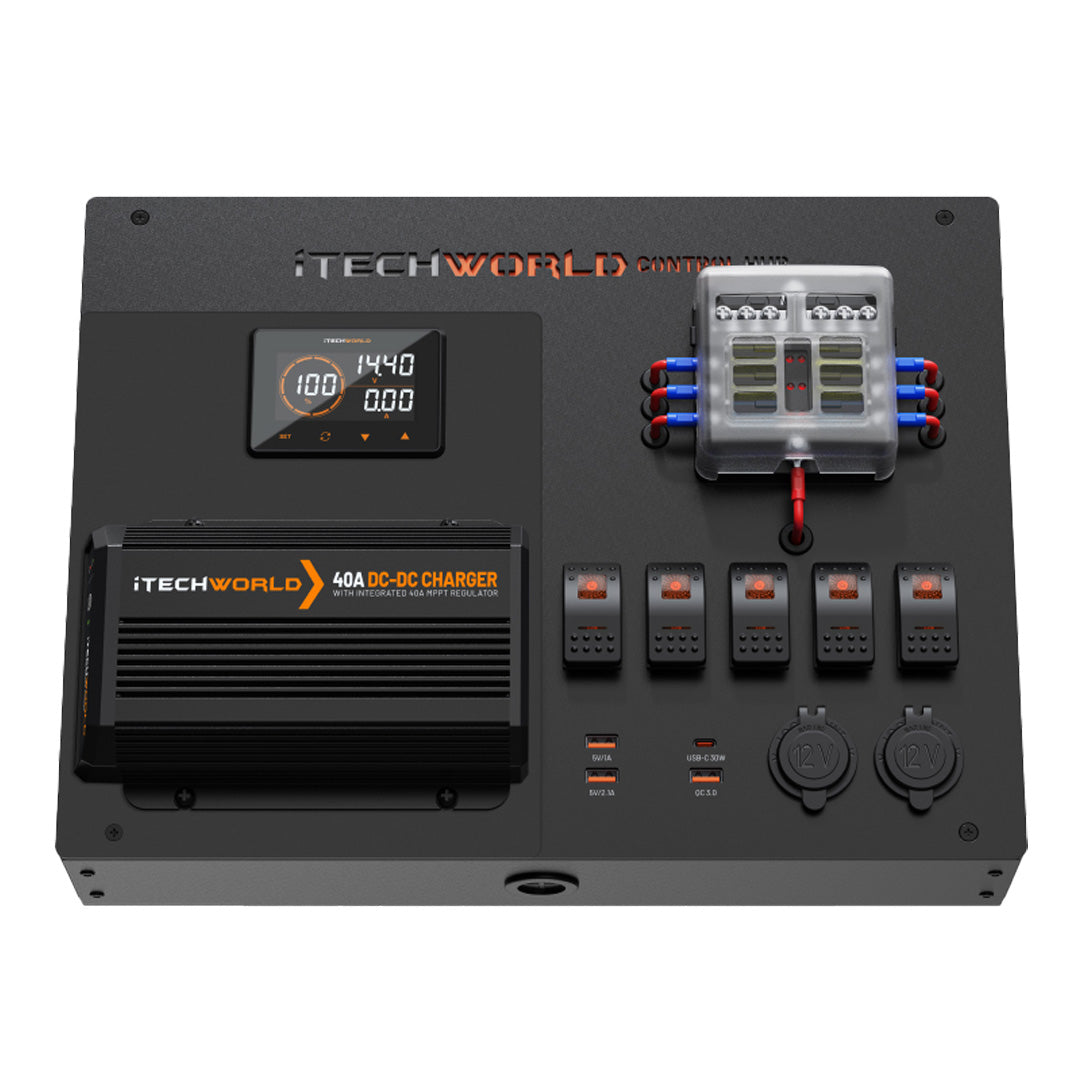

Quick facts about the Premium Control Hub with Integrated iTECHDCDC40
- Advanced battery monitor with precision shunt
- Dual 12V 15A cigarette sockets for versatility
- Three fast-charge USB outputs for efficient charging
- 30W USB-C output to power modern electronics
- Four 50A Anderson plugs for solar compatibility
- Six output fuses for safety and circuit protection
- External fuse box for quick and easy maintenance
- Heavy-duty aluminium casing for durability
AUSTRALIAN DESIGN
The iTechworld Control Hub is the ultimate solution for 12V system management. Our expert engineers have tailored it for versatility, utilising only the highest-quality inputs. It's the ultimate power management system, designed specifically for the Australian environment and climate. A standout feature of this unit is the integrated precision shunt, which provides advanced, real-time battery monitoring capabilities, giving you unmatched accuracy and control over your power system.
HEAVY-DUTY CONSTRUCTION

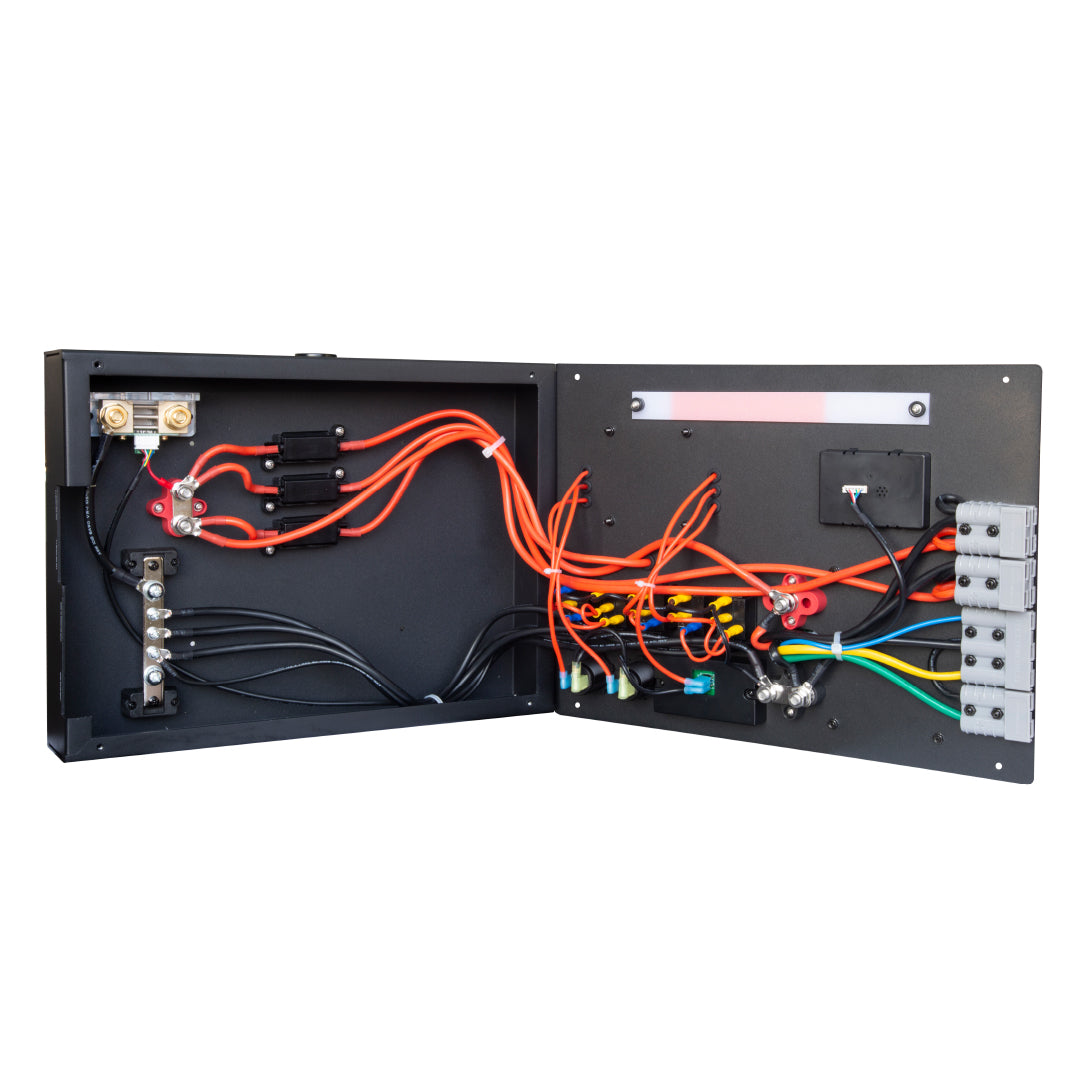

The iTechworld Control Hub features a robust, powder-coated aluminium casing and five illuminated rocker switches that hold replaceable fuses. Internally, thick copper wiring reinforces the pre-fused connections, protecting against harmful vibrations and ensuring dependable power delivery.
EFFORTLESS CONTROL
The five switches, visible day or night, make managing all of your accessories easy. The included 6-way external fuse panel is easily accessible for hassle-free replacement. Equipped with LED indicators, it instantly displays when a fuse is blown, streamlining the fault-finding process. Additionally, your battery is safeguarded by integrated battery protection, with an audible low-voltage alarm when your battery drops below 11V.
Note: Installation cables for this product are sold separately. Stock will be available early January.
PACKAGE CONTENTS
- 1 x Control Hub with Integrated iTECHDCDC40
- 1 x iTECHBM500 w/ shunt
- 1 x User Guide HERE
SUPPORT
- The statutory warranty is 12 months from the date of purchase.
Control Hub
Dimensions (LxWxH): | 400 x 120 x 300mm |
Outputs: | 2 x 12V 15A cigarette lighter outputs |
USB-C output | |
3 x USB QC3.0 outputs | |

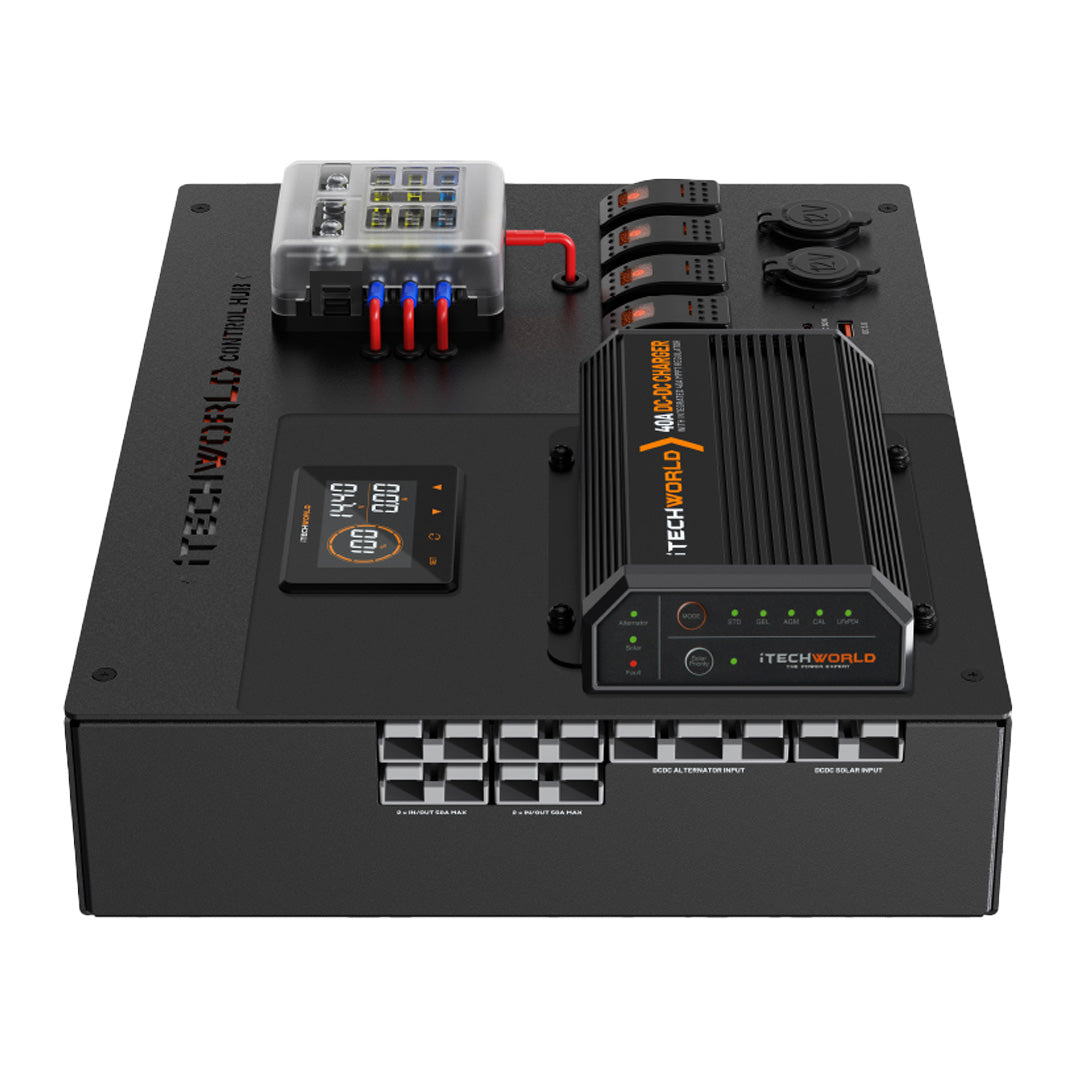

Inputs/outputs: | 1 x 175A Anderson plug |
4 x 50A Anderson plug | |
Inputs: | 1 x 3-pin Anderson plug (DCDC alternator input) |
1 x 50A Anderson plug (DCDC solar input) | |
Switches: | 5 x 20A backlit rocker switches |
Fuses: | 6 x pre-wired fuses |
Battery Monitor
Supply voltage: | 10V-100V |
Battery Capacity: | 10Ah-999Ah |
Maximum measured current: | 500A |
Power consumption (screen off) | <2mA |
Power consumption (screen brightness 10%) | <20mA |
Power consumption (screen brightness 100%) | <20mA |
Voltage accuracy: | ±1% |
Current accuracy: | ±1% |
Operating temperature: | -20°C ~ 80°C |
Exterior bracket dimensions (LxWxH): | 106 x 81 x 18mm |
Mounting bracket points (L x H): | 95 x 70mm |
Mounting backing dimensions (LxWxH): | 80 x 59 x 16mm |
IP rating: | IP20 |
DCDC40 Battery Charger
Vehicle input voltage: | 9V-32V |
Solar input voltage: | 10V-32V |
Maximum input current: | 45A |
Input fuse rating: | 60A |
Continuous output current: | Up to 40A |
Output fuse rating: | 60A |
Minimum auxiliary battery charge start voltage: | 4V |
Standby current: | <10mA |
Operating temperature: | Lithium LiFeP04, lead-acid, gel, AGM, calcium |
IP rating: | -20°C ~ 80°C |
Weight: | 950g |
Dimensions (LxWxH): | 188 x 127 x 39mm |
Battery Capacity: | 80Ah-800Ah |
