170W
6mm Hard Frame Solar Panel
22V
-
Massive 9.41A output
-
HPX PRO Technology
- Regular price
- $219
- Sale price
- $219
- Regular price
-
$249
Tax included.
Shipping calculated at checkout.
12% OFF
or 4 x $54.75
Australian Family Owned & Operated
Established in 2006, powering Aussies since.
LEGENDARY SUPPORT
Need help? Speak to an Aussie Power Expert.
Need Help Deciding?
Pickup not available
Product Features
Overview
Our 22V 170W 6mm Hard Frame Panels are proudly designed and developed in Australia. Built with advanced technology, these panels deliver superior power output and durability to meet your energy needs.
Introducing the all-new 22V 170W 6mm Hard Frame Panels — a product crafted from Australian innovation and precision. Engineered to stringent standards, these panels offer not just reliable energy but a benchmark in quality and performance, all at an incredibly thin profile of 6mm.
Designed by locals to ensure the highest standards and a tailored understanding of Australian needs, these panels incorporate cutting-edge technology into their design, maximising power efficiency and reducing energy loss, even in less-than-ideal weather conditions.
Constructed with reinforced material, it offers enhanced durability and a modern, sleek aesthetic that complements caravans, 4WD vehicles, and other outdoor applications.
Whether you’re adventuring off-grid or seeking dependable power for your setup, the 22V 170W Hard Frame Panels are your trusted energy companion, delivering consistent performance wherever you go.
Our 22V 170W 6mm Hard Frame Panels are proudly designed and developed in Australia. Built with advanced technology, these panels deliver superior power output and durability to meet your energy needs.
Introducing the all-new 22V 170W 6mm Hard Frame Panels — a product crafted from Australian innovation and precision. Engineered to stringent standards, these panels offer not just reliable energy but a benchmark in quality and performance, all at an incredibly thin profile of 6mm.
Designed by locals to ensure the highest standards and a tailored understanding of Australian needs, these panels incorporate cutting-edge technology into their design, maximising power efficiency and reducing energy loss, even in less-than-ideal weather conditions.
Constructed with reinforced material, it offers enhanced durability and a modern, sleek aesthetic that complements caravans, 4WD vehicles, and other outdoor applications.
Whether you’re adventuring off-grid or seeking dependable power for your setup, the 22V 170W Hard Frame Panels are your trusted energy companion, delivering consistent performance wherever you go.
If you’re installing the panel on a vehicle roof or in a high vibration environment, we recommend using 2 x sets of mounting brackets to achieve a secure 6 point mounting system for improved stability and longevity.
Product Info
- Designed forRoof and external mounting
- Cell laminationTempered glass
- Slimmest-ever design6mm thin
- Warranty1 year

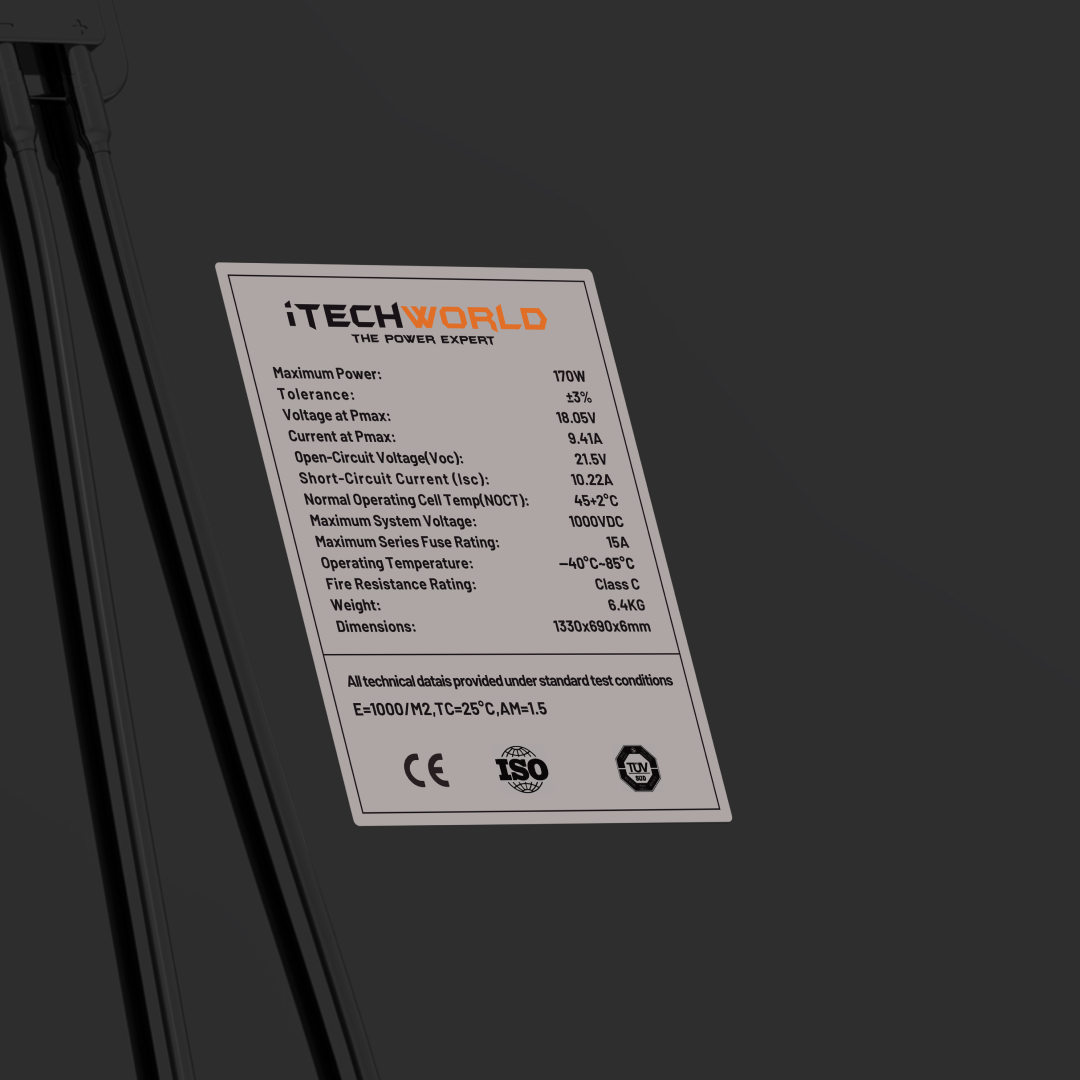

| General | |
|---|---|
| Rated maximum power (Pm): | 170W |
| Power tolerance: | ±3% |
| Voltage at Pmax (Vmp): | 18.05V |
| Current at Pmax (Imp): | 9.41A |
| Open-circuit voltage (Voc): | 21.5V |
| Short circuit current: | 10.22A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Dimensions (LxWxH): | 1330 x 690 x 6mm |
| Weight: | 6.4kg |

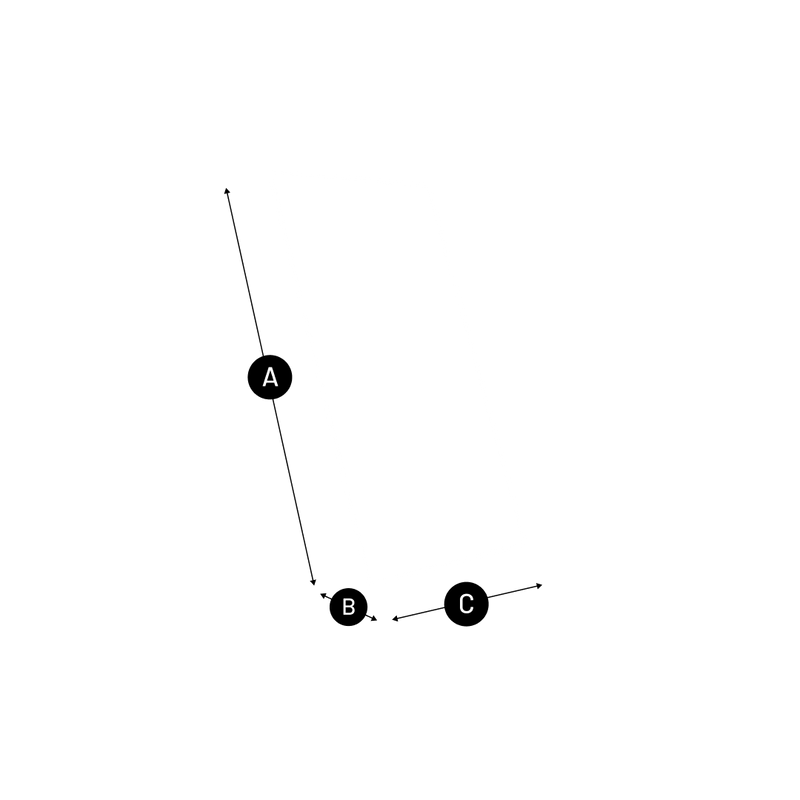

- A: Length: 1330mm
- B: Width: 6mm
- C: Height: 690mm
