iTechworld

Anderson Plug

175A

Regular price: $29
Sale price: $29
Regular price

Tax included. Shipping calculated at checkout.

or 4 x $7.25

Product variants:

Australian Family Owned & Operated

Established in 2006, powering Aussies since.

LEGENDARY SUPPORT

Need help? Speak to an Aussie Power Expert.

Need Help Deciding?

1300 483 249 Email

Overview

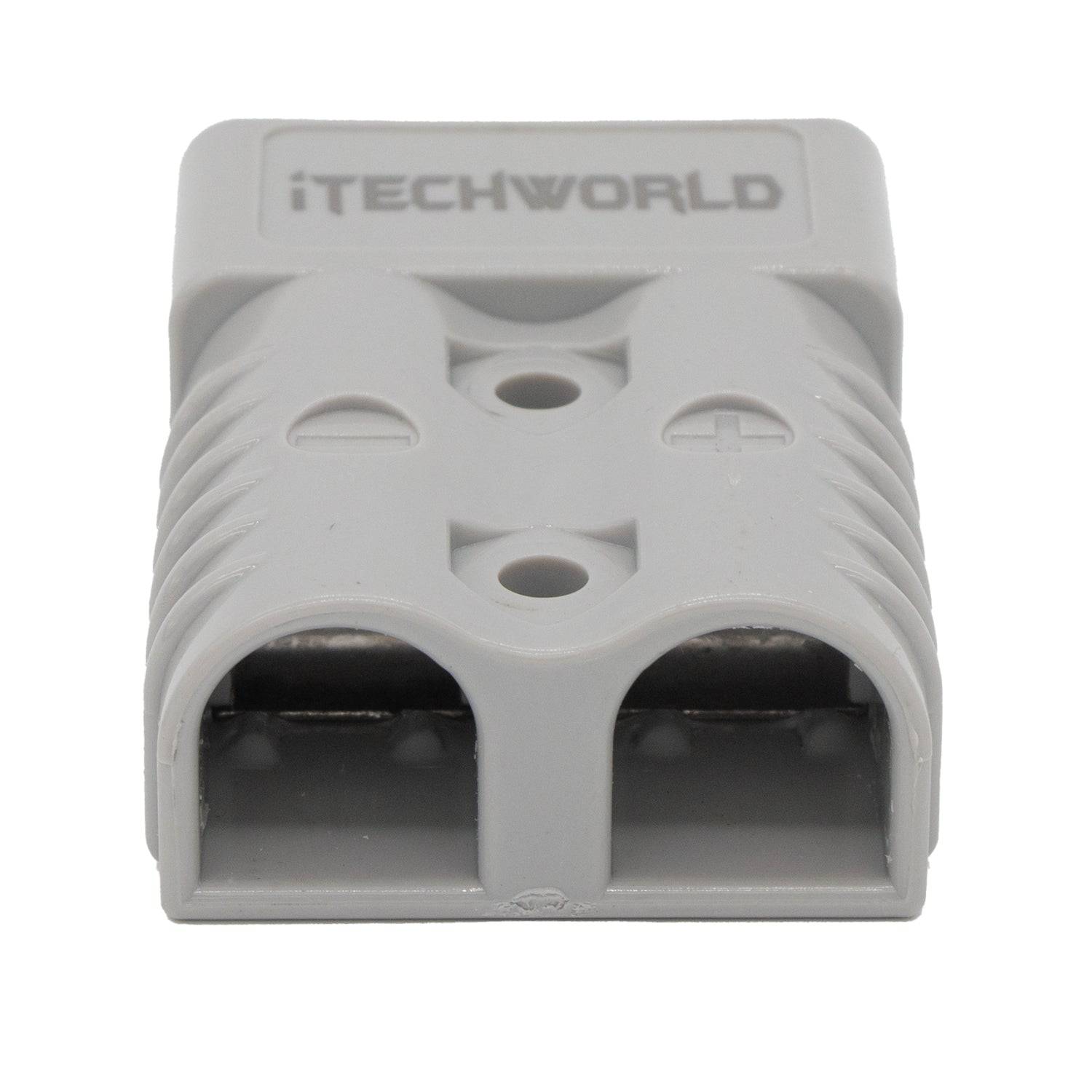

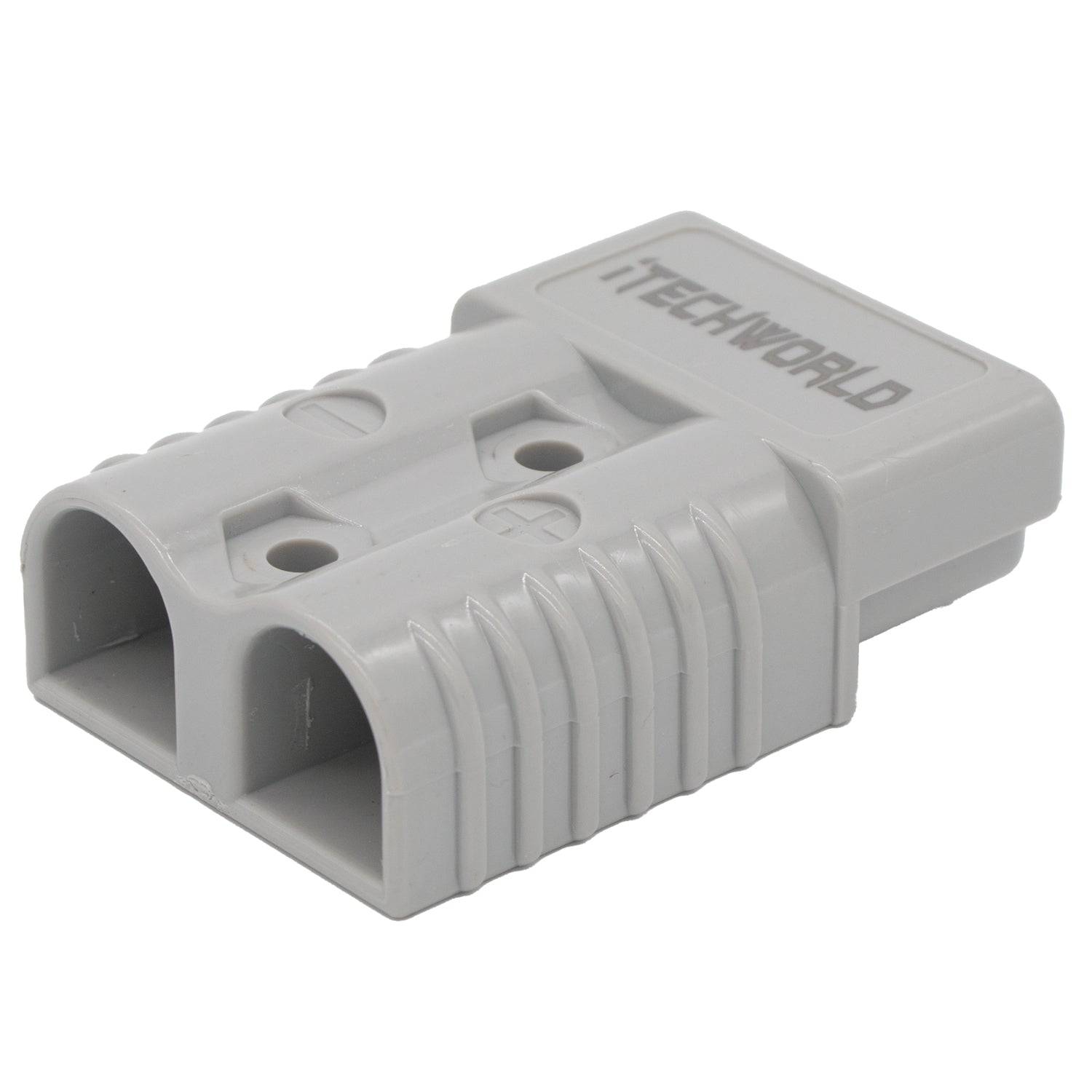

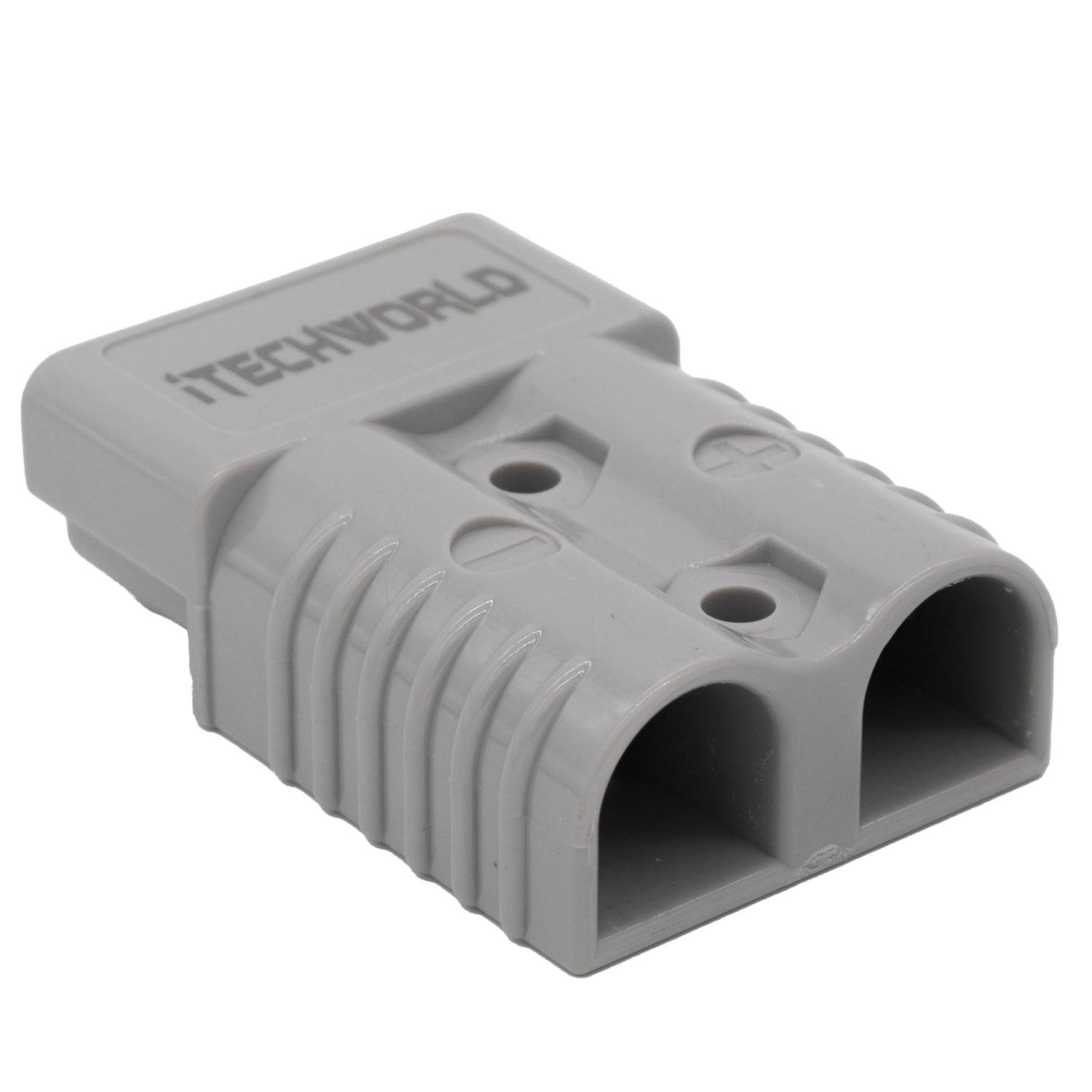

This 175Amp Anderson plug is commonly used across the domestic and industrial sectors in many 4WD applications, boating, automotive and other industries, supplied individually with a pair of contact pins.

General
Contact wire size:	53.5mm² (1/0AWG)
Maximum wire insulation diameter:	19mm
Contact retention force:	137kg
Operating temperature:	-20°C ~ 125°C

Frequently Asked Questions about the iTechworld Anderson Plug 175A

What tools are required to properly crimp or install the 175 amp Anderson plug contacts?

Our specialists recommend you always use a heavy-duty cable crimper that’s made for large-gauge wiring. A hydraulic or bench crimper will give you the strongest, safest connection, giving your 175Amp Anderson plug what it needs to handle those high-current loads.

Can the 175Amp Anderson plug be safely used for solar power setups in addition to 4WD and boating?

Yes. The 175Amp Anderson plug is a great fit for solar, 4WD, camping, marine, and off-grid installations. The durable build and high-current capability means it fits with a wide range of power systems.

How do I ensure the correct polarity when connecting multiple Anderson plugs?

Always confirm the cable polarity before installation and make sure to match positive to positive and negative to negative. The gender-neutral design allows for a flexible connection, but a quick visual check minimises risk of reversal.

Is this connector compatible with other Anderson plug sizes, or does it only work with 175A plugs?

It only mates with another 175Amp Anderson plug. Different sizes are intentionally not cross-compatible to stop unsafe or incorrect electrical connections.

What is the best way to protect the plug from dirt and water in outdoor applications?

Use protective dust caps, covers, or store the plug in a canopy or weather-resistant compartment. The rugged materials already resist dust, UV, and moisture, so they’re ready for any outdoor or marine adventures you have in mind.

Can this plug handle continuous high current loads, or is it better suited for intermittent use?

The 175Amp Anderson plug is designed for continuous high-current transfer if it’s correctly crimped and paired with the right cable size. This is what makes it a great fit for off-grid adventurers, vehicle owners, maintenance teams, and DIY installers who depend on steady, reliable power.
