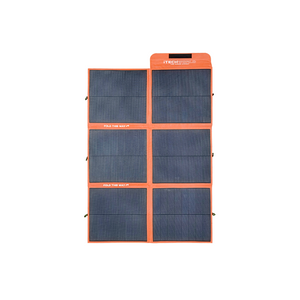

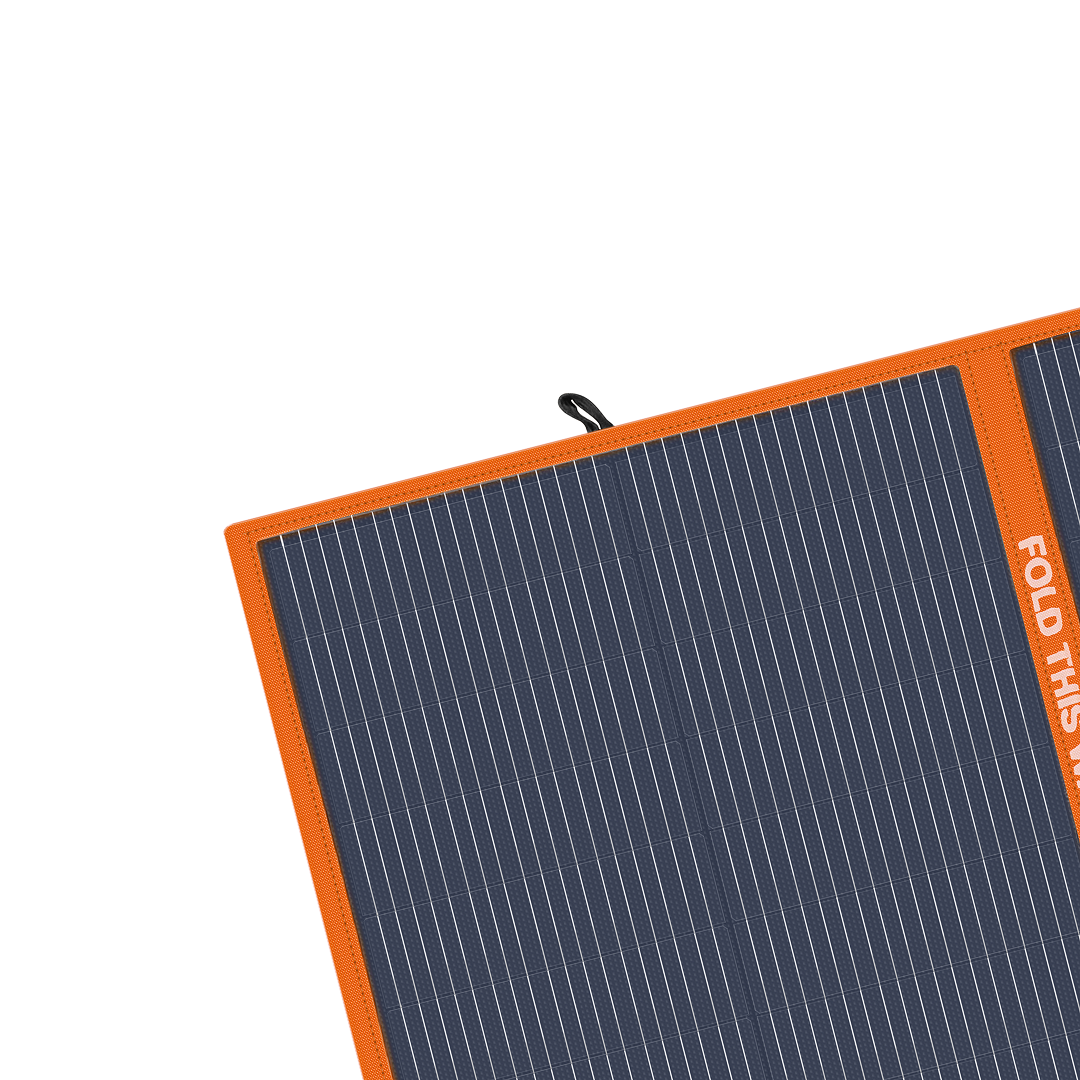

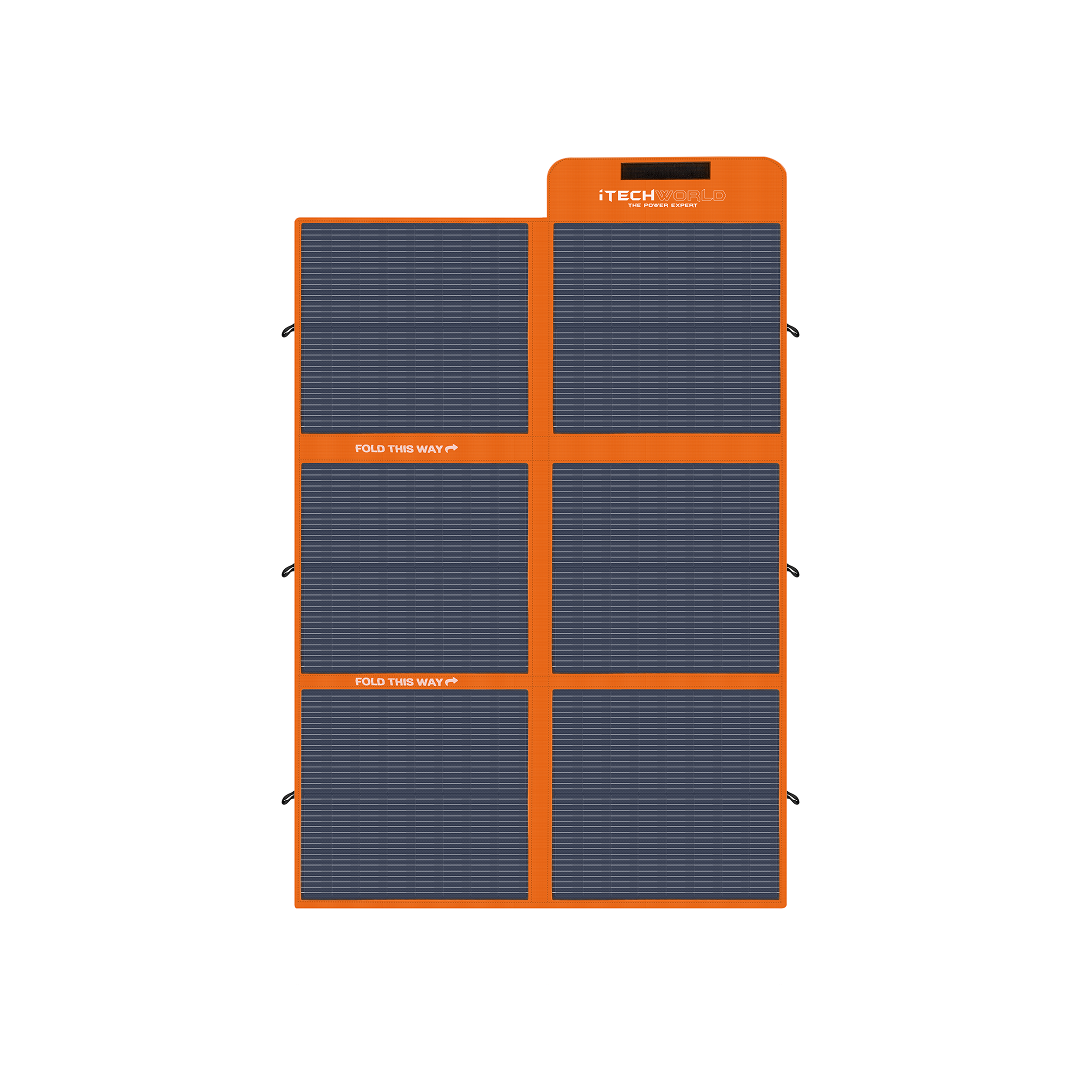

200W

Solar Mat

with Raptor Skin

Under full sunlight, the 200W Solar Mat can generate up to 11.1A. The actual time depends on your battery, sun conditions, and controller efficiency.

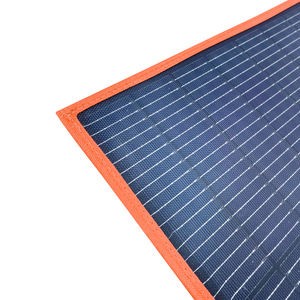

Raptor Skin is an ETFE lamination developed by iTechworld that offers high UV resistance, non-yellowing properties, self-cleaning micro-texture that prevents dirt buildup, as well as more heat resistance and impact durability.

Like all solar panels, partial shading will significantly reduce output, because individual cells in a series string limit current. The mat will still produce power, but output can drop by over 50% or more if one section is shaded. Always reposition your mat to receive full sunlight.

Yes. Multiple iTechworld solar panels can be connected in parallel to increase total current output, provided each mat uses its own regulator (or all connected to a single MPPT controller rated for the total combined current.

Raptor Skin offers 98% light transmittance, an anti-reflective and self-cleaning surface, as well as thermal expansion resistance.

The 600D ballistic nylon is the same material used in military and adventure gear. The backing resists abrasion, tearing, and punctures from ground contact, while also offering water resistance and UV protection.

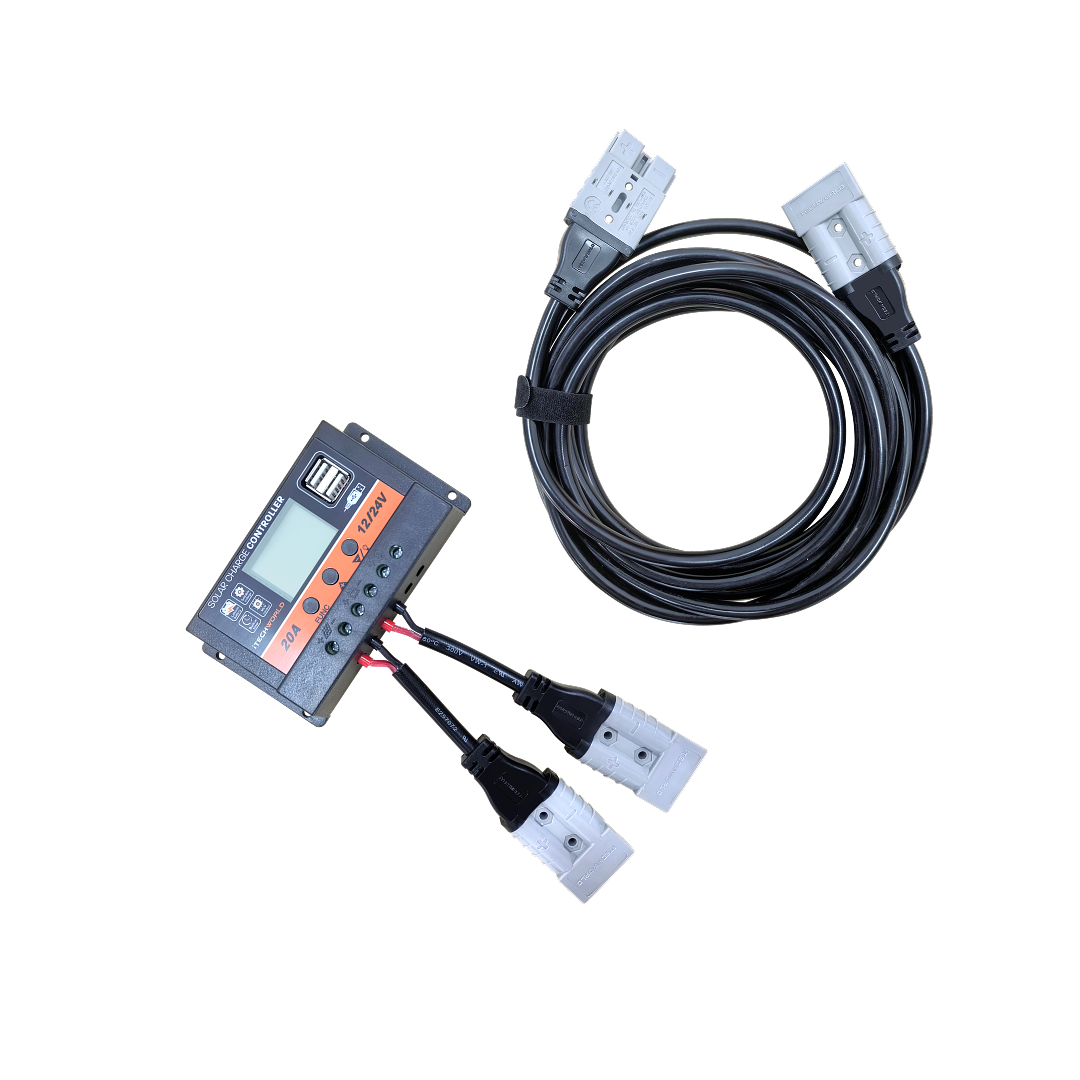

The PWM solar regulator prevents overcharging, reverse polarity and short circuits, as well as supporting multiple battery chemistries.

Yes. The panel itself operates efficiently even below 0°C. However, the battery being charged may not accept input below 0°C. The mat is weather-tolerant, but connected electronics and batteries must be as well.

Clean regularly with water and a soft cloth; avoid using solvents or detergents. Keep the mat and connections dry and corrosion-free.

The mat is weather-resistant, not waterproof. Water on the surface can reduce light capture slightly, but won't damage the cells. Dry the connectors after exposure to rain or salt to prevent corrosion.

The mat is compatible with most 12V systems via its controller. However, you cannot connect appliances directly to the solar output; you must always go through a battery or regulated system. It is not suitable for 24V systems unless paired with a 24V compatible controller.

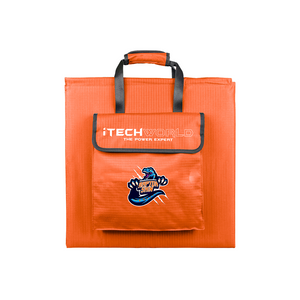

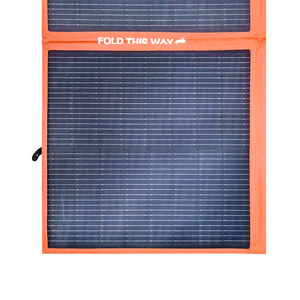

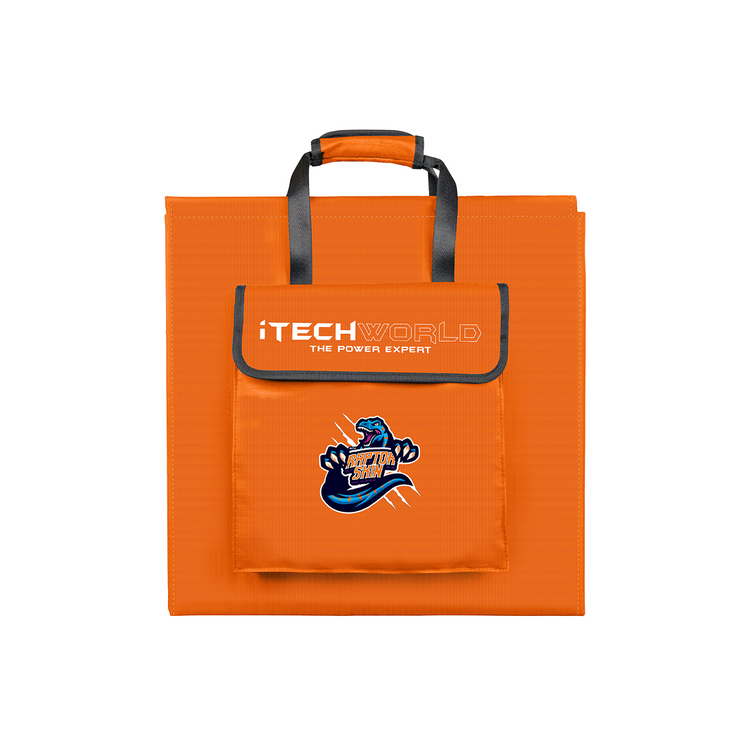

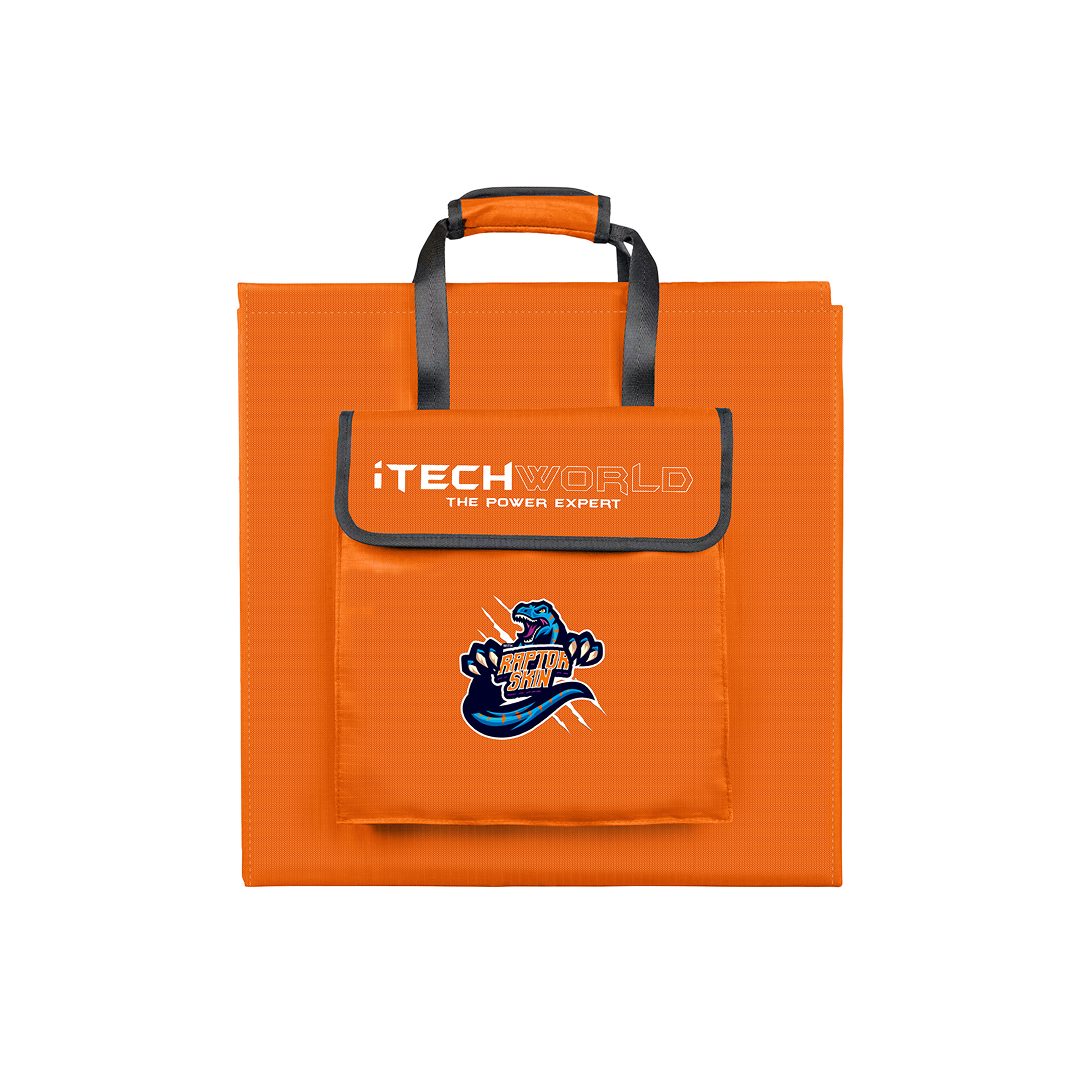

The folding design aids portability but can catch the wind when deployed. To stabilise the mat, use the eyelets or grommets to tie it down.
