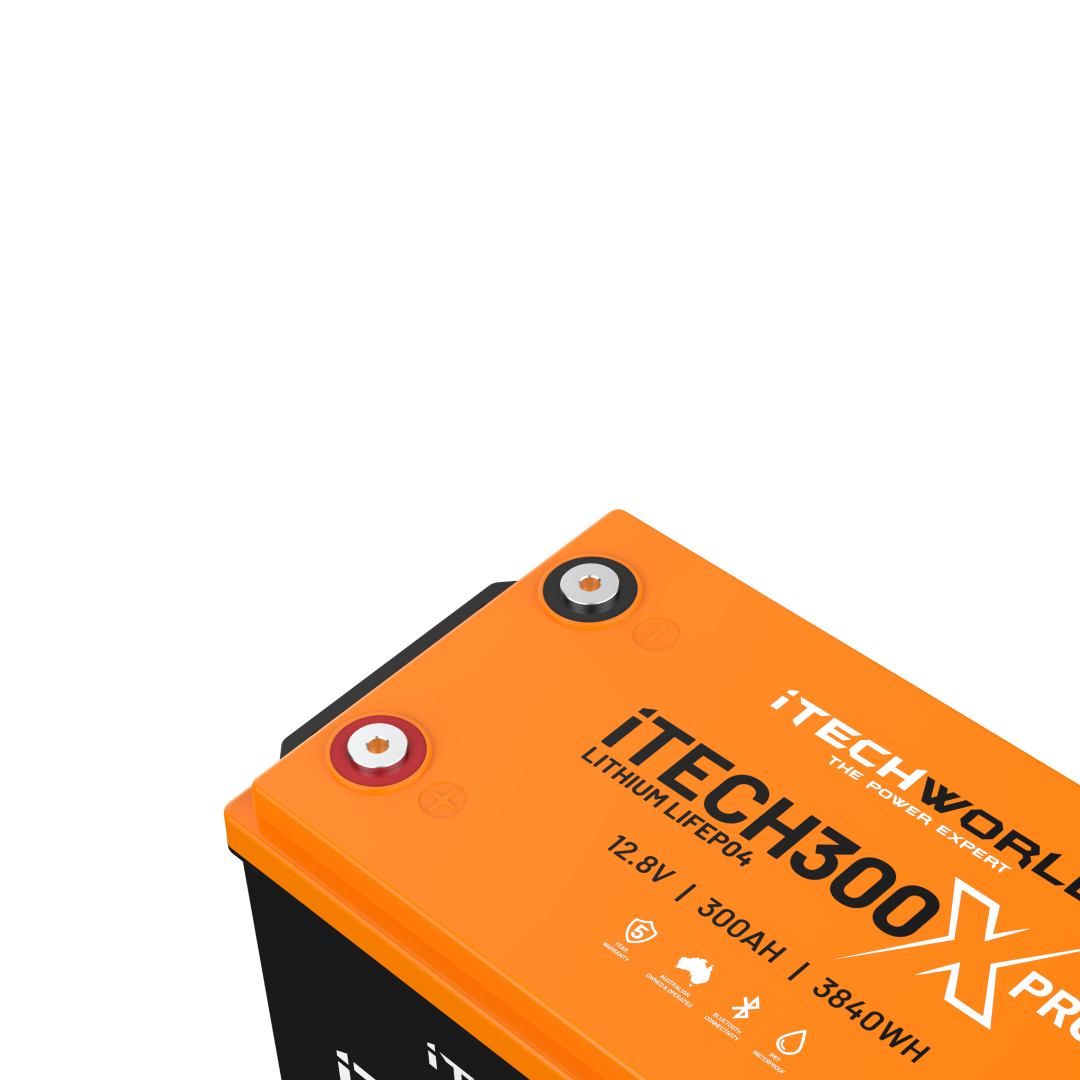

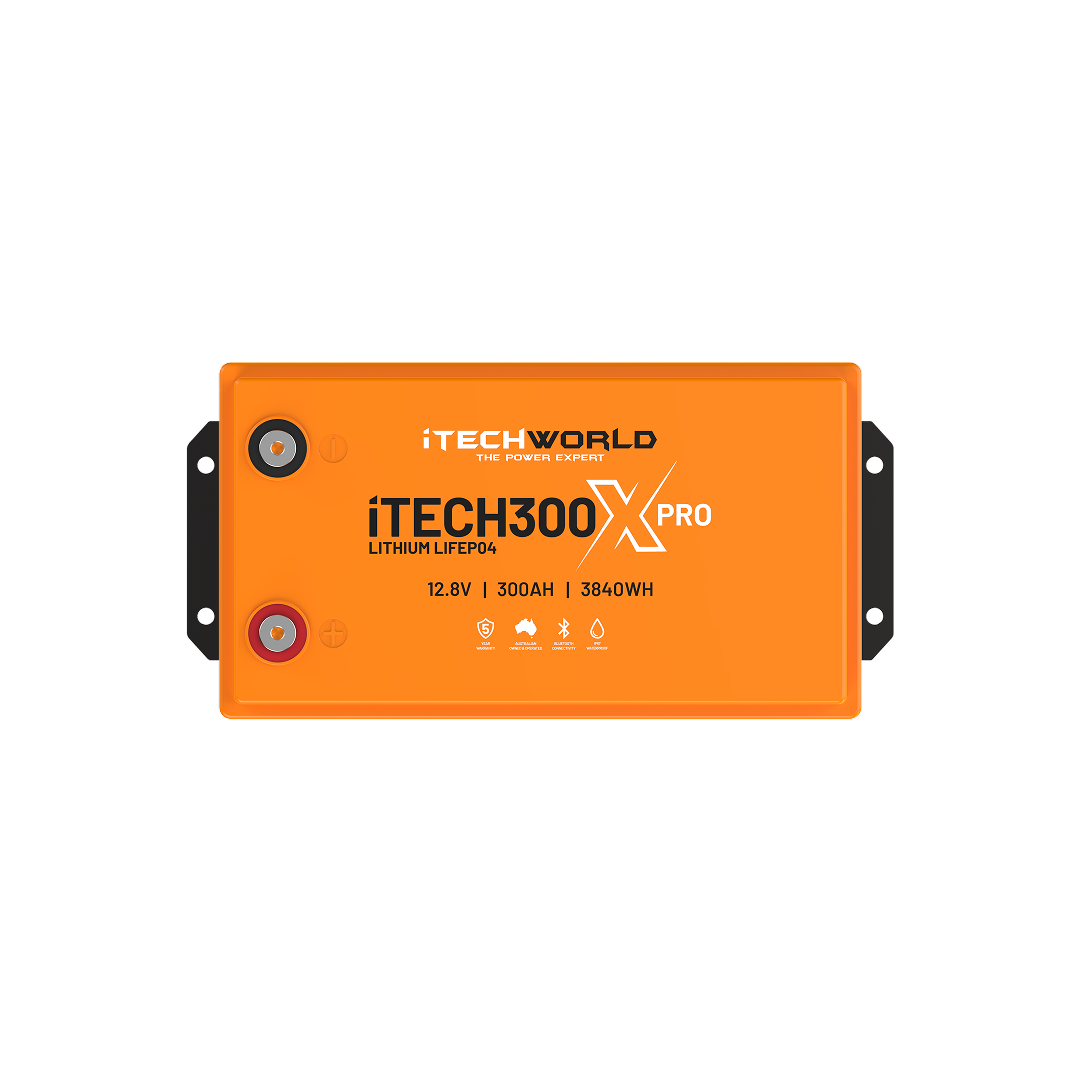

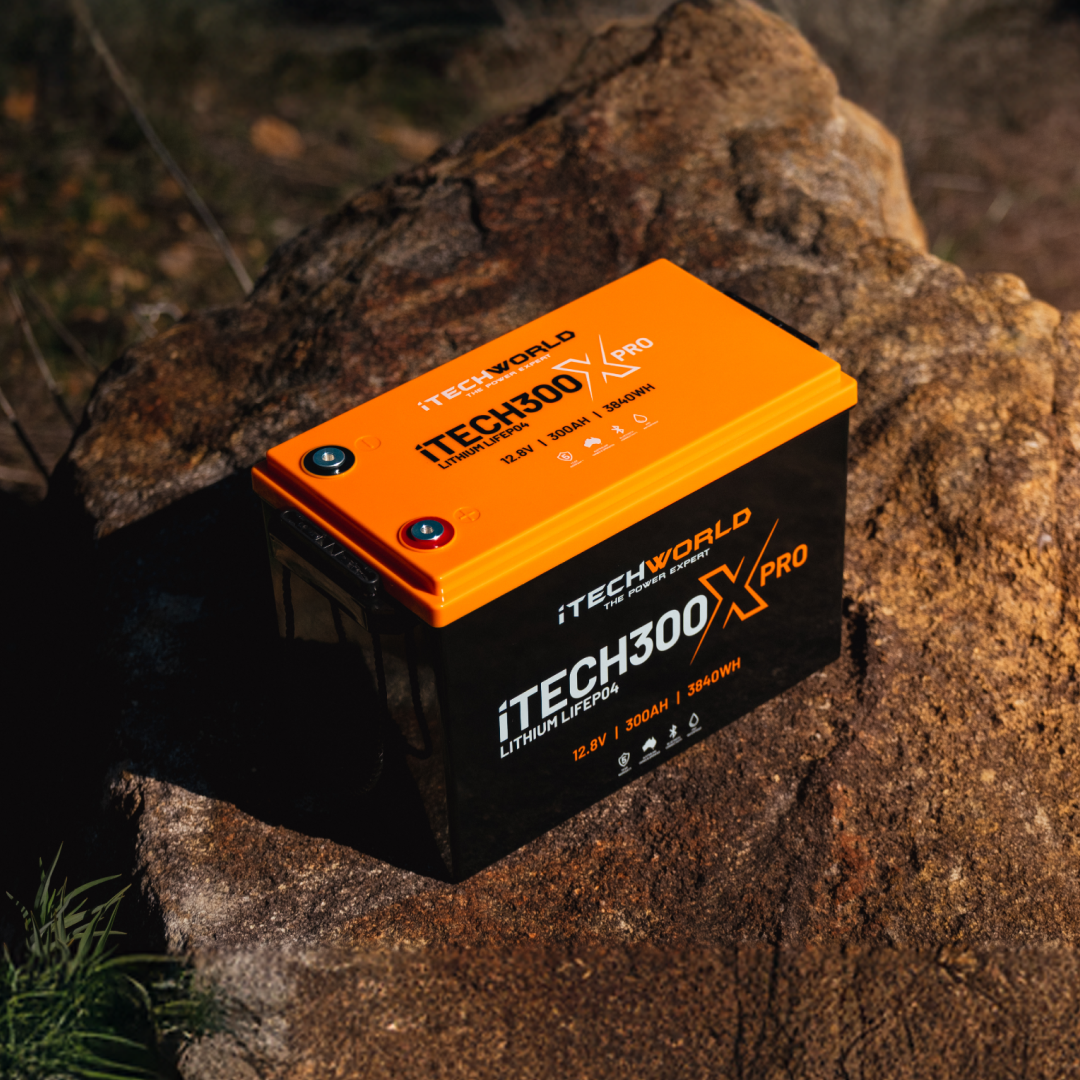

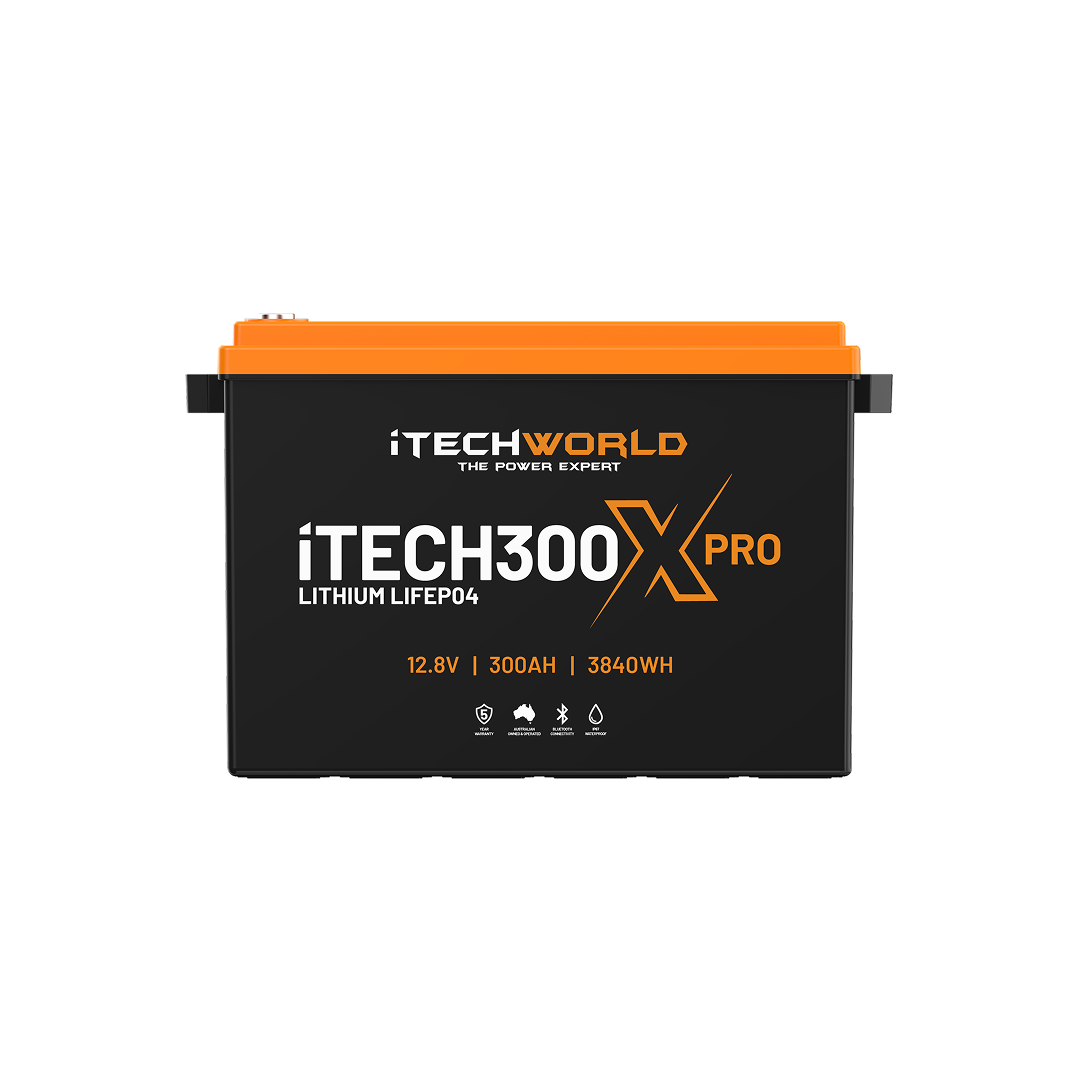

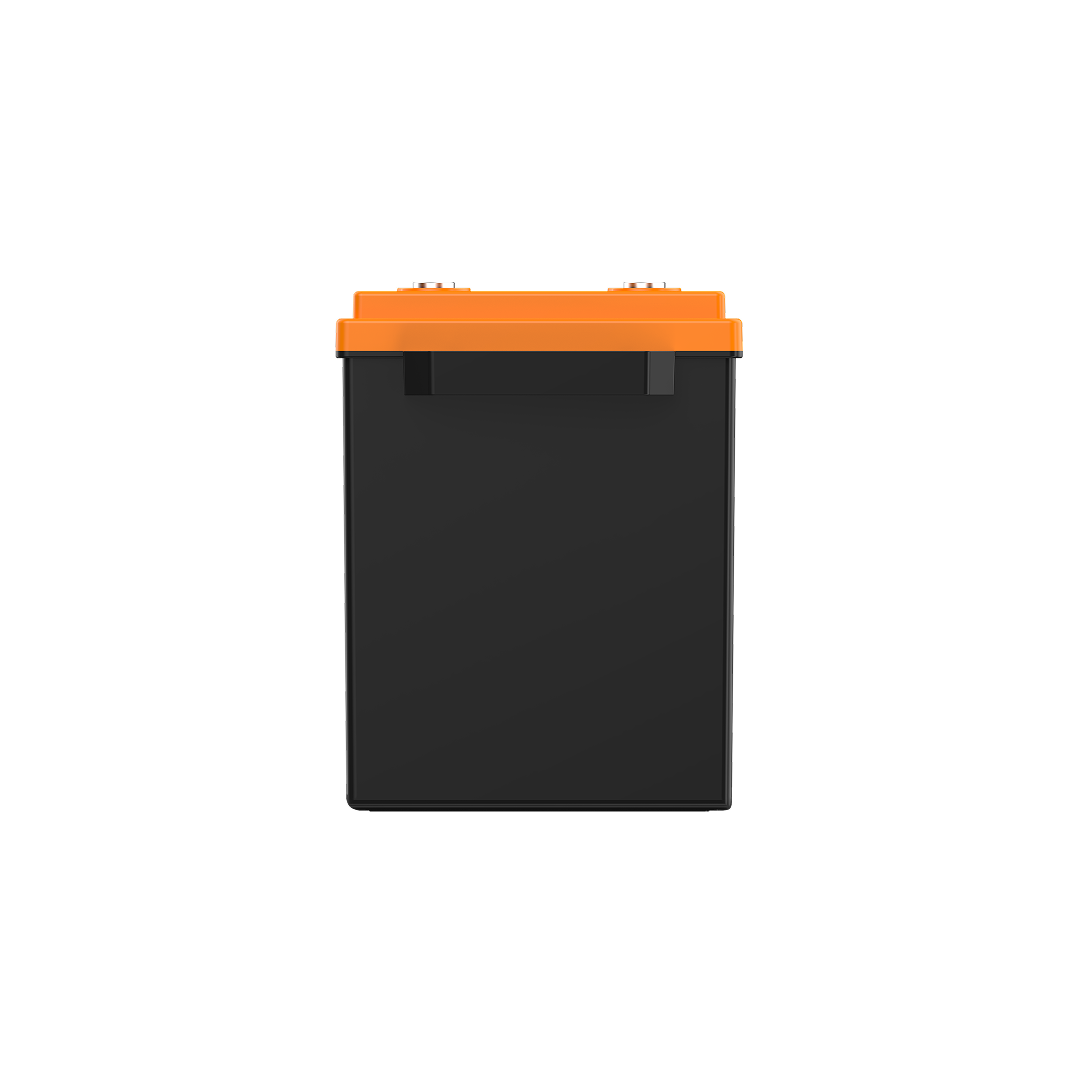

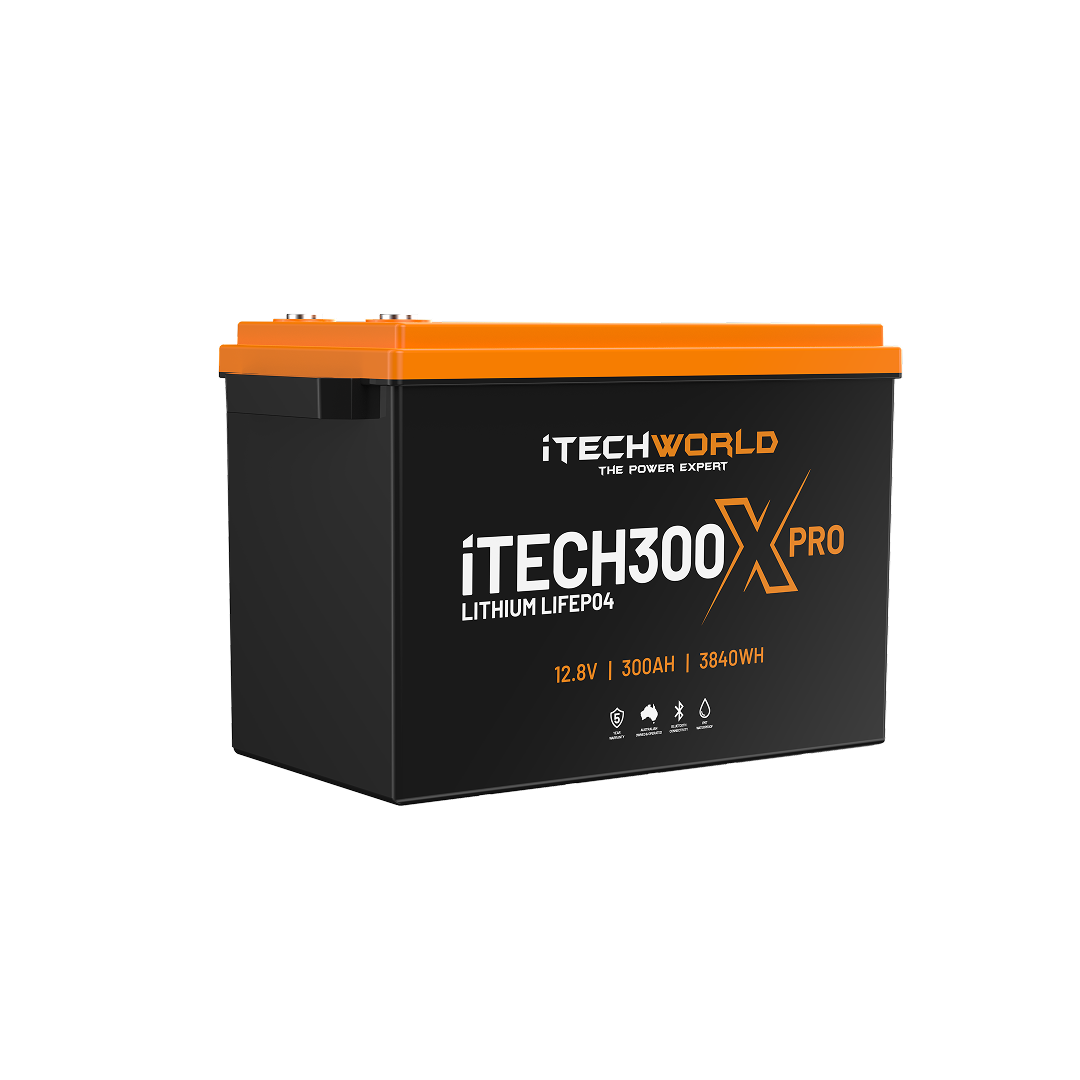

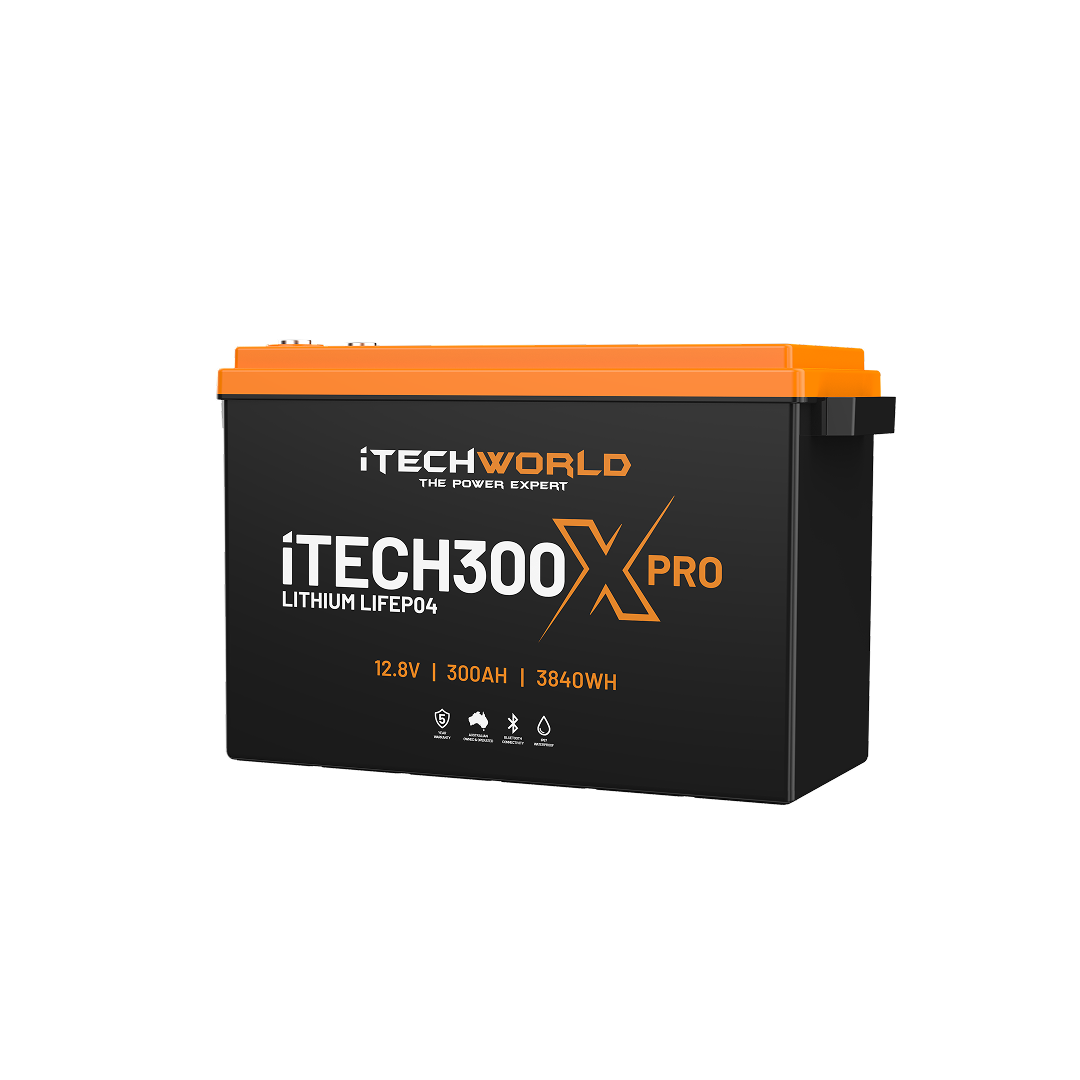

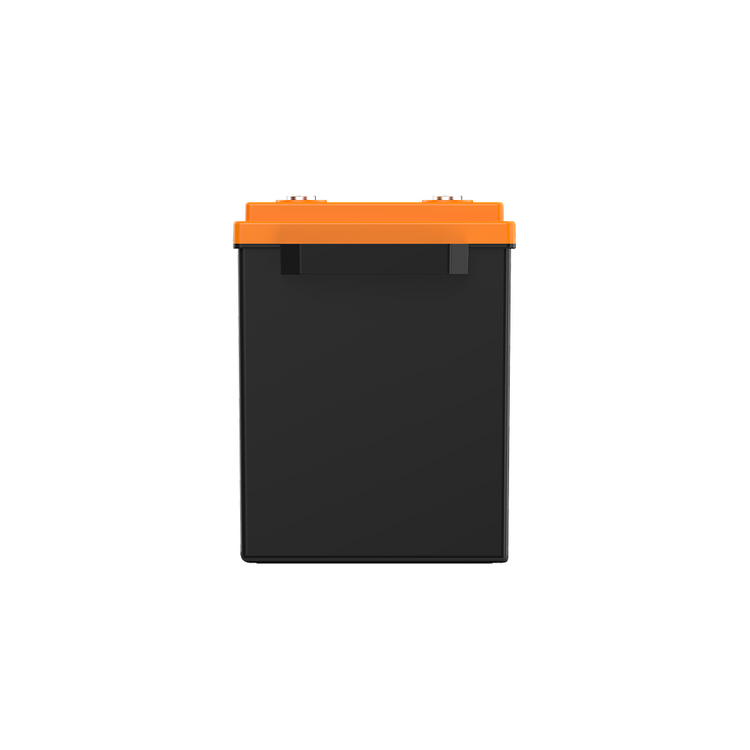

iTECH300X PRO Deep Cycle Lithium Battery with Bluetooth LiFePO4 300Ah

Name: iTECH300X PRO | Deep Cycle Lithium Battery | with Bluetooth LiFePO4 300Ah
Brand: iTechworld
Price: 1799.0 AUD
Availability: InStock

General
Dimensions (LxWxH):	384 x 194 x 252mm
Weight:	26.3kg
Capacity:	300Ah
Battery type:	Lithium LiFePO4
Cell type:	Prismatic
Voltage:	12V
Nominal voltage:	12.8V
Battery operating temperature:	5°C ~ 60°C
BMS operating temperature:	-40°C ~ 80°C
Series:	Up to 48V
Parallel:	Unlimited
Life cycles @ 80%DoD:	5,000+
Life cycles @ 40% DoD:	10,000+
Terminals:	M8
Case material:	ABS
Charging
Bulk:	14.4V
ABS:	14.4V
Float:	13.5V
Current:	1A-150A
High-voltage cutoff:	15V
Discharging
Constant:	200A
Maximum:	640A (5 seconds)
Cutoff voltage:	10V

{"id":8760968413433,"title":"iTECH300X PRO | Deep Cycle Lithium Battery | with Bluetooth LiFePO4 300Ah","handle":"itech300x-pro-deep-cycle-lithium-battery-with-bluetooth-lifepo4-300ah","description":"\u003cp class=\"MsoNormal\"\u003ePurpose-built for caravans, 4WDs, boats, and off-grid setups where space is limited, this battery delivers massive power in a compact footprint—just 40% larger than a standard 100Ah AGM but offering up to six times the usable capacity.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eUltra-Lightweight Design\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eWeighing only 26.3kg, this lithium battery saves over 190kg compared to equivalent AGM setups. Ideal for mobile installations where every kilogram counts.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eReinforced for Harsh Environments\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eInternally reinforced and engineered for high-vibration conditions—perfect for off-road, marine, or mobile setups where durability is key.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eRapid Recharge Capability\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eRecharge from 0–100% in just 2 hours using a compatible 150A charger, making it ideal for solar, alternator, or mains recharging on the go.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eScalable for Any System\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eNo limits on performance or flexibility, it allows unlimited parallel expansion and series configuration up to 48V, giving you complete control over your power setup.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eSmart Bluetooth Monitoring\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eConnect via the iTechworld Connect App to monitor charge levels, voltage, temperature, and more: all in real time, straight from your phone.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eIP67 Rated for Full Protection\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eDustproof, waterproof, and built for rugged outdoor use. Perfect for marine applications, off-grid cabins, and mobile energy systems.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eDesigned and Developed in Australia\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eWith years of experience in the portable power industry, we understand what it takes to deliver reliable, efficient, and user-friendly power solutions. From energy storage to solar and generation, every product we develop is built with real-world performance in mind.\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003eWhether you're brewing coffee off-grid, powering tools on the job site, or running a mobile business, iTechworld provides dependable, quiet, and efficient power, without compromises.\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e \u003c\/p\u003e\n\u003ch4\u003ePACKAGE CONTENTS\u003c\/h4\u003e\n\u003cul type=\"disc\" style=\"margin-top: 0cm;\"\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\u003cspan style=\"mso-ascii-font-family: Aptos; mso-fareast-font-family: 'Times New Roman'; mso-hansi-font-family: Aptos; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ligatures: none; mso-fareast-language: EN-GB;\"\u003eiTECH300X PRO\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\n\u003cdiv class=\"ewa-rteLine\"\u003e2 x M8 bolts\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\n\u003cspan style=\"mso-ascii-font-family: Aptos; mso-fareast-font-family: 'Times New Roman'; mso-hansi-font-family: Aptos; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ligatures: none; mso-fareast-language: EN-GB;\"\u003eUser Guide \u003ca rel=\"noopener\" href=\"https:\/\/itechworld.com.au\/cdn\/shop\/files\/X_Range_Batteries_User_Guide.pdf?v=11126918987408827646\" target=\"_blank\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. \u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-07-03T09:37:14+08:00","created_at":"2025-03-26T09:24:28+08:00","vendor":"iTechworld","type":"Lithium Batteries","tags":["Lithium Batteries","new"],"price":179900,"price_min":179900,"price_max":179900,"available":true,"price_varies":false,"compare_at_price":179900,"compare_at_price_min":179900,"compare_at_price_max":179900,"compare_at_price_varies":false,"variants":[{"id":46364232515833,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"BT-300XPRO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"iTECH300X PRO | Deep Cycle Lithium Battery | with Bluetooth LiFePO4 300Ah","public_title":null,"options":["Default Title"],"price":179900,"weight":27400,"compare_at_price":179900,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-1.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-2.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-3.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-4.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-5.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-6.png?v=1751419400","\/\/itechworld.com.au\/cdn\/shop\/files\/300x_PRO_-_7.png?v=1751443981"],"featured_image":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-1.png?v=1751419400","options":["Title"],"media":[{"alt":null,"id":38161483923705,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-1.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-1.png?v=1751419400","width":1080},{"alt":null,"id":38161483956473,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-2.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-2.png?v=1751419400","width":1080},{"alt":null,"id":38161483989241,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-3.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-3.png?v=1751419400","width":1080},{"alt":null,"id":38161484022009,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-4.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-4.png?v=1751419400","width":1080},{"alt":null,"id":38161484054777,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-5.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-5.png?v=1751419400","width":1080},{"alt":null,"id":38161484087545,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-6.png?v=1751419400"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300xPRO-6.png?v=1751419400","width":1080},{"alt":null,"id":38165135130873,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300x_PRO_-_7.png?v=1751443981"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/itechworld.com.au\/cdn\/shop\/files\/300x_PRO_-_7.png?v=1751443981","width":1080}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp class=\"MsoNormal\"\u003ePurpose-built for caravans, 4WDs, boats, and off-grid setups where space is limited, this battery delivers massive power in a compact footprint—just 40% larger than a standard 100Ah AGM but offering up to six times the usable capacity.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eUltra-Lightweight Design\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eWeighing only 26.3kg, this lithium battery saves over 190kg compared to equivalent AGM setups. Ideal for mobile installations where every kilogram counts.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eReinforced for Harsh Environments\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eInternally reinforced and engineered for high-vibration conditions—perfect for off-road, marine, or mobile setups where durability is key.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eRapid Recharge Capability\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eRecharge from 0–100% in just 2 hours using a compatible 150A charger, making it ideal for solar, alternator, or mains recharging on the go.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eScalable for Any System\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eNo limits on performance or flexibility, it allows unlimited parallel expansion and series configuration up to 48V, giving you complete control over your power setup.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eSmart Bluetooth Monitoring\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eConnect via the iTechworld Connect App to monitor charge levels, voltage, temperature, and more: all in real time, straight from your phone.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eIP67 Rated for Full Protection\u003cbr\u003e\n\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eDustproof, waterproof, and built for rugged outdoor use. Perfect for marine applications, off-grid cabins, and mobile energy systems.\u003c\/p\u003e\n\u003ch4 class=\"MsoNormal\"\u003eDesigned and Developed in Australia\u003c\/h4\u003e\n\u003cp class=\"MsoNormal\"\u003eWith years of experience in the portable power industry, we understand what it takes to deliver reliable, efficient, and user-friendly power solutions. From energy storage to solar and generation, every product we develop is built with real-world performance in mind.\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003eWhether you're brewing coffee off-grid, powering tools on the job site, or running a mobile business, iTechworld provides dependable, quiet, and efficient power, without compromises.\u003c\/p\u003e\n\u003cp class=\"MsoNormal\"\u003e \u003c\/p\u003e\n\u003ch4\u003ePACKAGE CONTENTS\u003c\/h4\u003e\n\u003cul type=\"disc\" style=\"margin-top: 0cm;\"\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\u003cspan style=\"mso-ascii-font-family: Aptos; mso-fareast-font-family: 'Times New Roman'; mso-hansi-font-family: Aptos; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ligatures: none; mso-fareast-language: EN-GB;\"\u003eiTECH300X PRO\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\n\u003cdiv class=\"ewa-rteLine\"\u003e2 x M8 bolts\u003c\/div\u003e\n\u003c\/li\u003e\n\u003cli style=\"mso-list: l0 level1 lfo1; tab-stops: list 36.0pt;\" class=\"MsoNormal\"\u003e\n\u003cspan style=\"mso-ascii-font-family: Aptos; mso-fareast-font-family: 'Times New Roman'; mso-hansi-font-family: Aptos; mso-bidi-font-family: 'Times New Roman'; mso-font-kerning: 0pt; mso-ligatures: none; mso-fareast-language: EN-GB;\"\u003eUser Guide \u003ca rel=\"noopener\" href=\"https:\/\/itechworld.com.au\/cdn\/shop\/files\/X_Range_Batteries_User_Guide.pdf?v=11126918987408827646\" target=\"_blank\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. \u003c\/li\u003e\n\u003c\/ul\u003e"}

iTECH300X PRO Deep Cycle Lithium Battery with Bluetooth LiFePO4 300Ah

ULTRA-LIGHTWEIGHT

DESIGN

REINFORCED

INTERNAL STRUCTURE

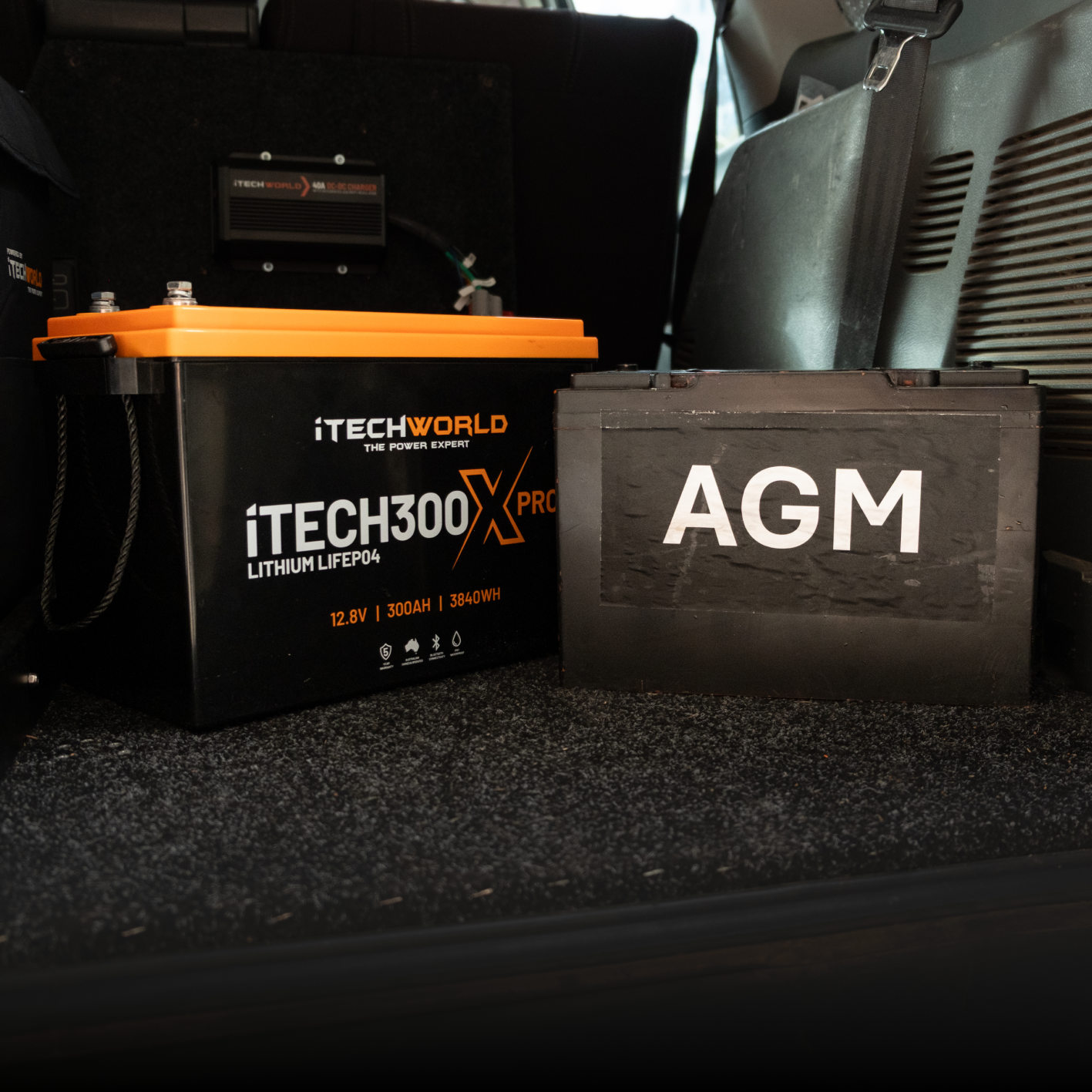

COMPACT FOOTPRINT

BLUETOOTH CONNECTIVITY

SCALABLE

FOR ANY SYSTEM

IP67

WATERPROOF

& DUSTPROOF

Ultra-Lightweight Design

Reinforced for Harsh Environments

Rapid Recharge Capability

Scalable for Any System

Smart Bluetooth Monitoring

IP67 Rated for Full Protection

Designed and Developed in Australia

PACKAGE CONTENTS

Frequently Asked Questions

How does the Bluetooth feature on the iTECH300X PRO help with monitoring the battery?

What is the expected lifespan of the iTECH300X PRO under regular use?

Can the iTECH300X PRO be used for off-grid applications like solar power systems?

What is the recommended charging cycle for the iTECH300X PRO to maintain optimal performance?

How do I know when the iTECH300X PRO is fully charged?

Is the iTECH300X PRO suitable for use in high-temperature environments?

What type of devices or appliances can the iTECH300X PRO run?

Can the iTECH300X PRO be used in parallel with other batteries for greater capacity?

Does the iTECH300X PRO come with overcharge or over-discharge protection?

How does the iTECH300X PRO compare to traditional lead-acid deep cycle batteries in terms of performance and longevity?

quick stats

product dimensions

X Range Batteries User Guide
