iTECHBM500
Battery Monitor with Shunt
500A
-
500A current shunt
-
Compatible with all battery types
- Regular price
- $149
- Sale price
- $149
- Regular price
-
$149
Tax included.
Shipping calculated at checkout.
or 4 x $37.25
Australian Family Owned
Established in 2006, powering Aussies since.
Free 30-day returns
Shop risk-free with easy returns.
Need Help Deciding?
Pickup not available
Product Features
Overview

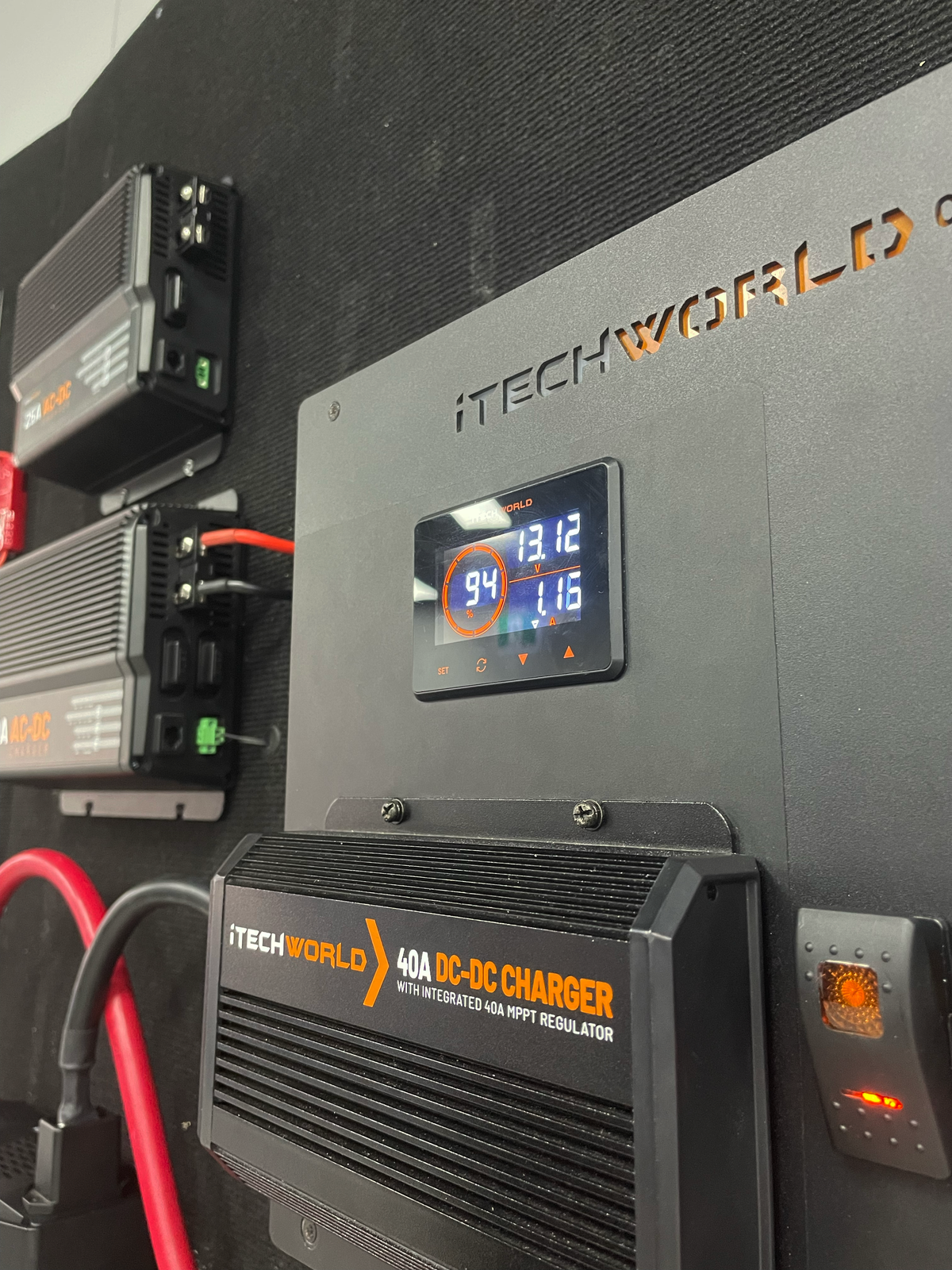

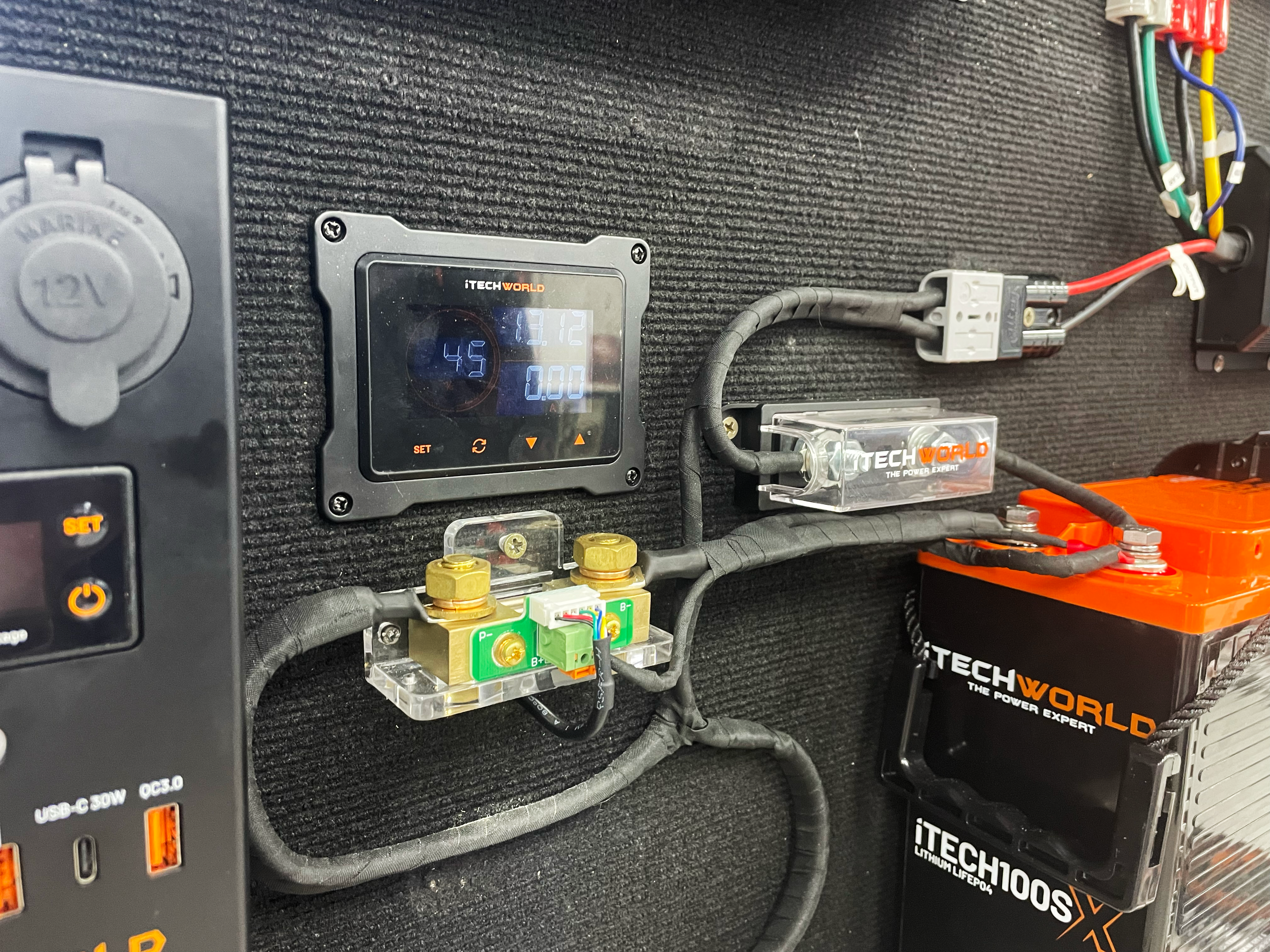

The iTECHBM500 Battery Monitor delivers real-time, high-precision insights into your battery’s performance. Using a 500A current shunt, it accurately tracks both charging and discharging currents, calculating Amp-hours (Ah) flowing in and out of the battery. A field-installed sense wire enables precise, live voltage readings. Designed for versatility, the iTECHBM500 is compatible with lithium, lead-acid, and nickel-metal hydride batteries.
Package Contents
- 1 x iTECHBM500 Battery Monitor
- 1 x Shielded wire (3m)
- 1 x 500A shunt
- 1 x Plastic bracket
- 4 x Screws
- 1 x Shunt holder
- 1 x B+ Sense wire 22AWG (1m)
- 1 x Instructions
Support
Product Info
- Warranty1 year
| General | |
|---|---|
| Supply voltage: | 10-100V |
| Battery capacity: | 10-999Ah |
| Maximum measured current: | 500A |
| Power consumption (screen off): | <2mA |
| Power consumption (screen brightness @ 10%): | <20mA |
| Power consumption (screen brightness @ 100%): | <60mA |
| Voltage accuracy: | ±1% |
| Current accuracy: | ±1% |
| Operating temperature: | -20°C ~ 80°C |
| Exterior bracket dimensions (LxWxH): | 106 x 81 x 18mm |
| Mounting bracket points (LxW): | 95 x 70mm |
| Monitor backing dimensions (LxWxH): | 80 x 59 x 16mm |
| IP rating: | IP20 |
- A: Length: 106mm
- B: Width: 81mm
- C: Height: 18mm
