Mini Power Core + Super Slim 100Ah
- Regular price
- $1,599
- Sale price
- $1,599
- Regular price
-
Tax included.
Shipping calculated at checkout.
Pickup not available
Australian Family Owned
Shop risk-free with easy returns.
Free 30-day returns
Shop risk-free with easy returns.
Bundle Contents

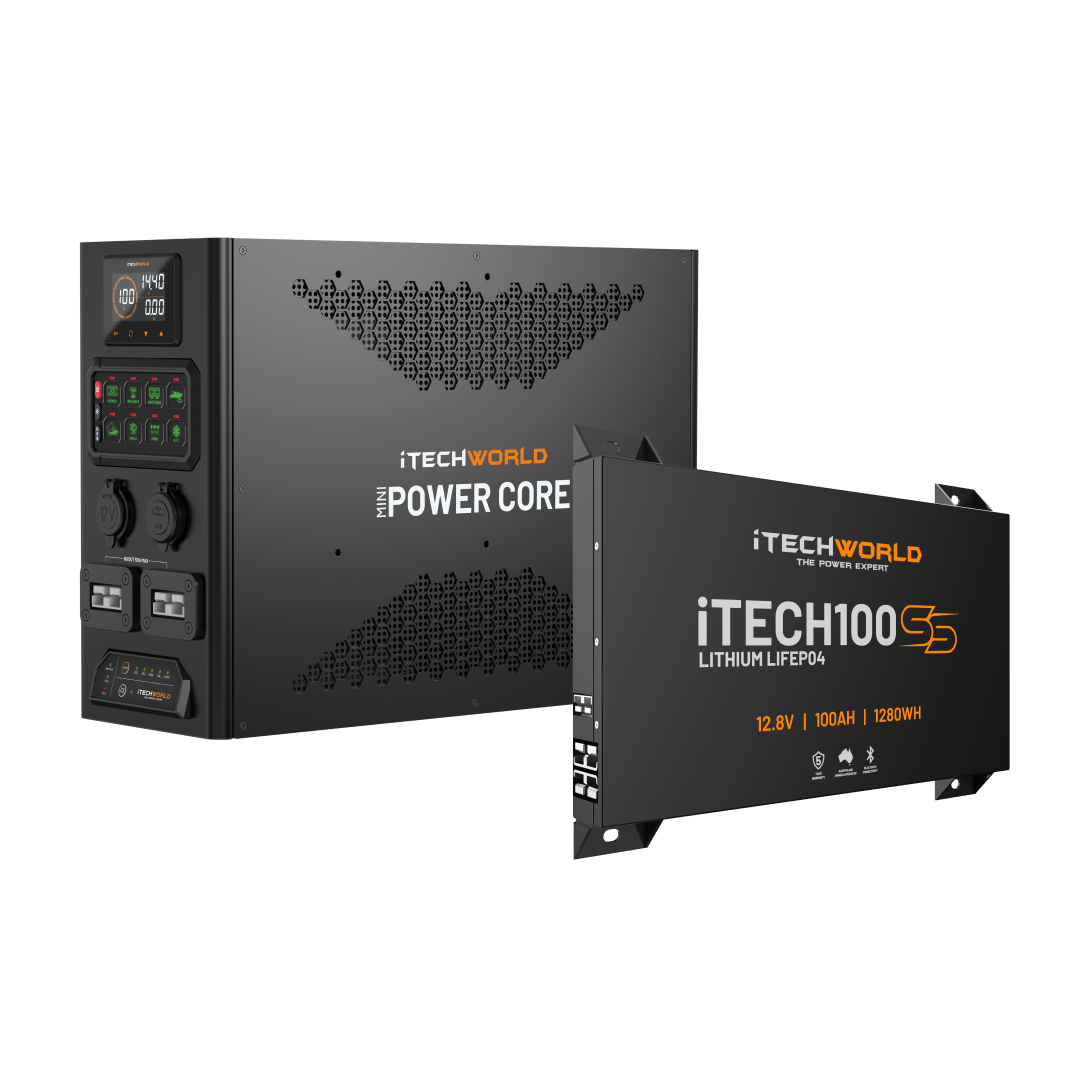

The iTechworld Mini Power Core is a compact, all-in-one 12V power distribution system purpose built for canopies, ute trays, and touring setups. Prewired and ready to go, it brings together everything you need to run a full accessory setup without the time, cost, or complexity of a custom install. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit for vehicle side wiring, and your 12V system is ready to run.
ALL-IN-ONE PLUG AND PLAY SOLUTION
The Mini Power Core combines a 40A DCDC charger, 8-gang switch panel, advanced battery monitor, and 500A shunt into a single, pre-wired industrial-grade unit. No custom internal wiring, no separate components to mount inside your setup, no guesswork. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit handles the vehicle side connections your 12V system is ready to run.
BUILT-IN 40A DCDC CHARGING
The integrated iTECHDCDC40 charges your auxiliary battery from your alternator while you drive and automatically switches to solar input when the vehicle stops. Compatible with 12V and 24V standard alternators, smart alternators (with ignition cable), and unregulated solar panels up to 32V so your battery is always being replenished from the best available source.
500A ADVANCED BATTERY MONITOR
The built-in iTECHBM500 provides real time state of charge (SOC) and power usage information at a glance. You can see exactly how much power you have left and monitor system performance under load, ensuring you always know your battery's status and can plan your activities in advance.
8-GANG SWITCH PANEL WITH RGB BACKLIGHT
Take full control of your accessories with the built-in 8-gang switch panel. Each line is individually fused with customisable RGB backlighting and adjustable brightness, making it easy to use in any conditions day or night, at camp or on arrival.
100W USB-C OUTPUT
With a 100W USB-C output, the Mini Power Core can power a Starlink Mini, charge a laptop, or run any high-draw USB-C device directly.
POWER UP TO 17 DEVICES AT ONCE
Eight switched accessory lines, five 50A Anderson outputs, positive and negative terminals, a 12V cigarette lighter, USB, and USB-C give you the flexibility to run a full accessory setup from one unit. Heavy gauge copper wiring and auto-resettable fuse protection keep everything running safely.
THREE MOUNTING ORIENTATIONS
The Mini Power Core supports upright, left-side, and right-side mounting to suit any canopy or vehicle configuration. All mounting hardware is included in the box, and three cable routing grommets (top and rear) keep your install clean and protected.
OPTIONAL AC CHARGING, NEATLY INTEGRATED
Pre-drilled mounting points on the side of the unit allow the optional iTECHBC40 40A AC charger to bolt directly onto the Mini Power Core with no external bracket required.
PACKAGE CONTENTS
- Mini Power Core
- User Guide
- Mounting Kit (4 x Brackets, 16 x M6 + 4 x M4 Combination Screws)
- Spare Fuse Set ( 2 x 30A, 2 x 20A, 2 x 15A, 2 x 10A)
- 2 x Switch Panel Labels
quick stats
- PowerPower up to 17 devices
- Battery Connection17SA Anderson, 2 x M8 Terminals
- Battery CompatibilityLead Acid, GEL, AGM, Calcium & LiFePO4
product dimensions
- Length: 440mm
- Width: 160mm
- Height: 320mm
Mini Power Core User Guide
Mini Power Core User Guide

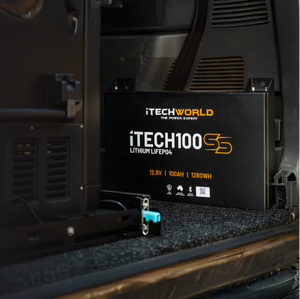

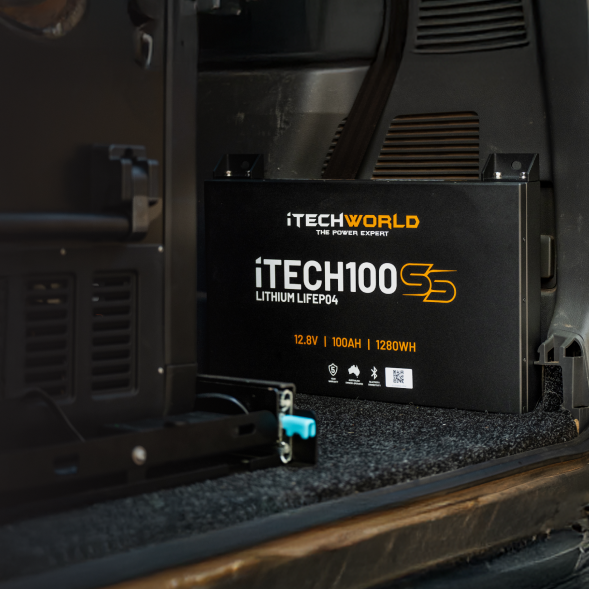

The new and improved iTECH100SS 100Ah Super Slim Lithium Battery with Bluetooth is small but packs a punch! Measuring at only 55mm wide and weighing in at 14.3kg, the iTECH100SS has been designed to be the ultimate ultra slim lithium battery for those with small space. Still it gives maximum power to Utes, 4WD's and Canopies. Designed and developed in Australia, the iTECH100SS Slimline Battery is suited to thrive in our harsh Australian conditions, with 100% useable capacity, Bluetooth monitoring, suitable for high heat conditions, certified to IEC 62619 and backed by a 5-year Aussie warranty.
With a 100% useable capacity, you are able to draw the full 100Ah from the battery. This ultra slim lithium battery features the latest in prismatic cell technology allowing for its small form factor and lightweight nature. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.
Never guess your batteries health again. The iTECH100SS Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.
For almost 20 years iTechworld has been at the forefront of Australian lithium battery design and development. Our relentless pursuit of improvement and rigorous testing insures all our batteries surpass the highest standards. Certified to the Australian standard IEC:62619, our ultra slim lithium batteries are amongst the safest and most reliable options in the Australian market.
Designed to be a true drop-in replacement for existing systems, the iTECH100SS is the ideal choice for those wanting to upgrade their current heavy AGM or lead-acid systems to lightweight lithium technology. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH100SS Lithium Battery. It's really that simple!
Utilising A-grade prismatic lithium LiFePO4 cells, the iTECH100SS offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space. The prismatic cells offer a minimum of 4000 cycles for long-term reliability.
To super-charge the iTECH100SS performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.
iTech100SS features 2 x 120A and 1 x 50A Anderson plugs for flexible input/output options.
PACKAGE CONTENTS
-
1 x iTECH100SS 100Ah Lithium 12v Ultra Slim Lithium Battery
-
1 x User Guide
-
1 x Bluetooth App User Guide HERE
WARRANTY & SUPPORT
As a testament to the toughness and performance of our iTECH100SS lithium batteries, we have backed them up with a full 5-year Australian warranty (3 years full replacement, 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
quick stats
- Maximum Discharge Rate (5 seconds)250 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian Warranty
- Super slimOnly 55mm wide
- Lightweight at 14.3kgEquivalent AGM weighs approx. 80kg
product dimensions
- A: Length: 487mm
- B: Width: 55mm
- C: Height: 290mm (358mm H including brackets)
Slimline Batteriers User Guide
