Power Core
Installation Cable
000AWG 250A Fuse
-
250A MEGA fuse pre-installed
-
Factory-crimped M8 and M10 lugs
- Regular price
- $179
- Sale price
- $179
- Regular price
-
Tax included.
Shipping calculated at checkout.
or 4 x $44.75
Australian Family Owned & Operated
Established in 2006, powering Aussies since.
LEGENDARY SUPPORT
Need help? Speak to an Aussie Power Expert.
Need Help Deciding?
Pickup not available
Overview

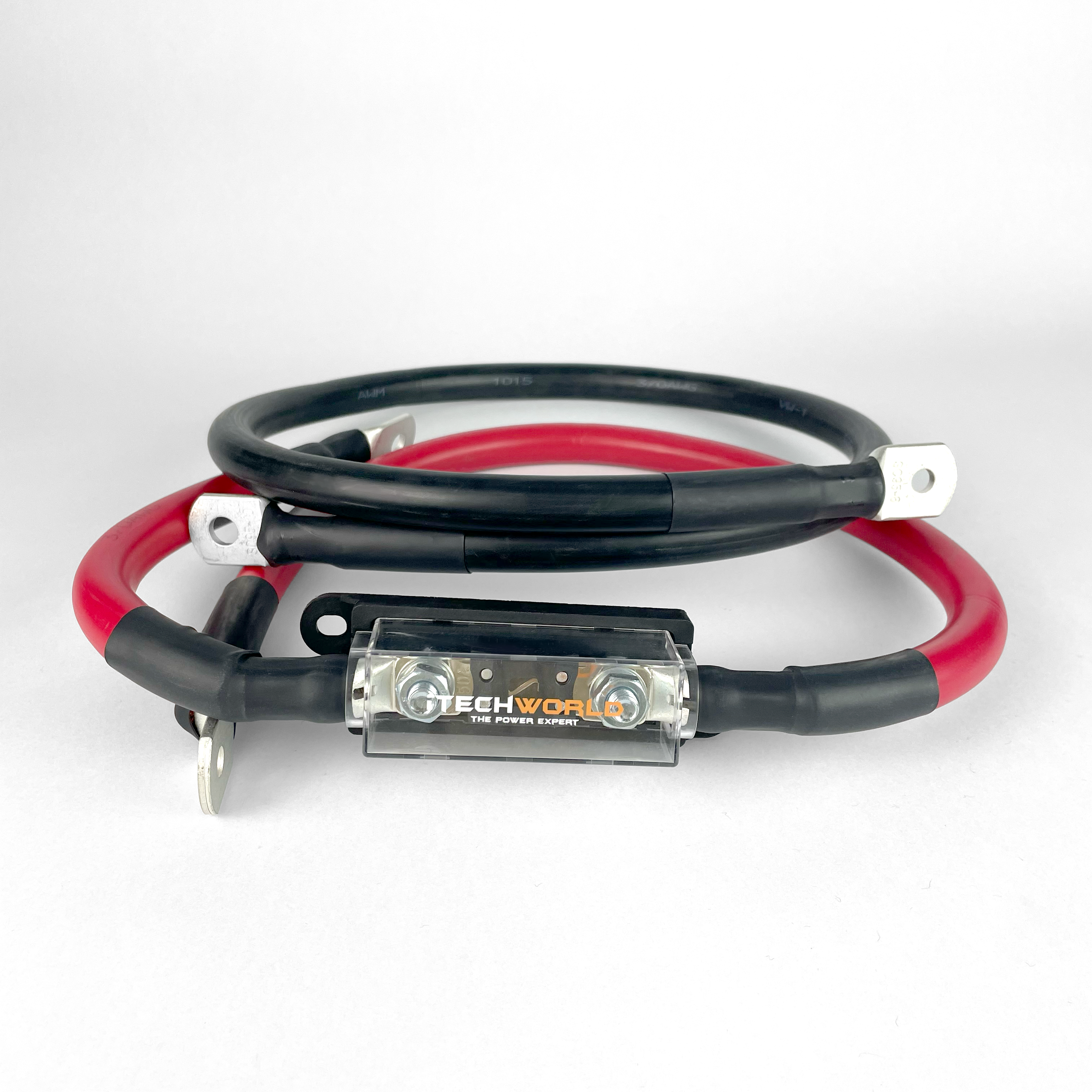

A pre-made 000AWG (90mm²) cable pair for connecting your battery to the Power Core, sized to carry the unit's full continuous output without heat build-up or voltage drop.
At 12V, high-output systems pull serious current, and current is what dictates cable size. Undersized cable on a run like this doesn't just cost you performance — it gets hot. 000AWG is the gauge the job calls for, and both leads come cut to 1m and terminated ready to bolt down.

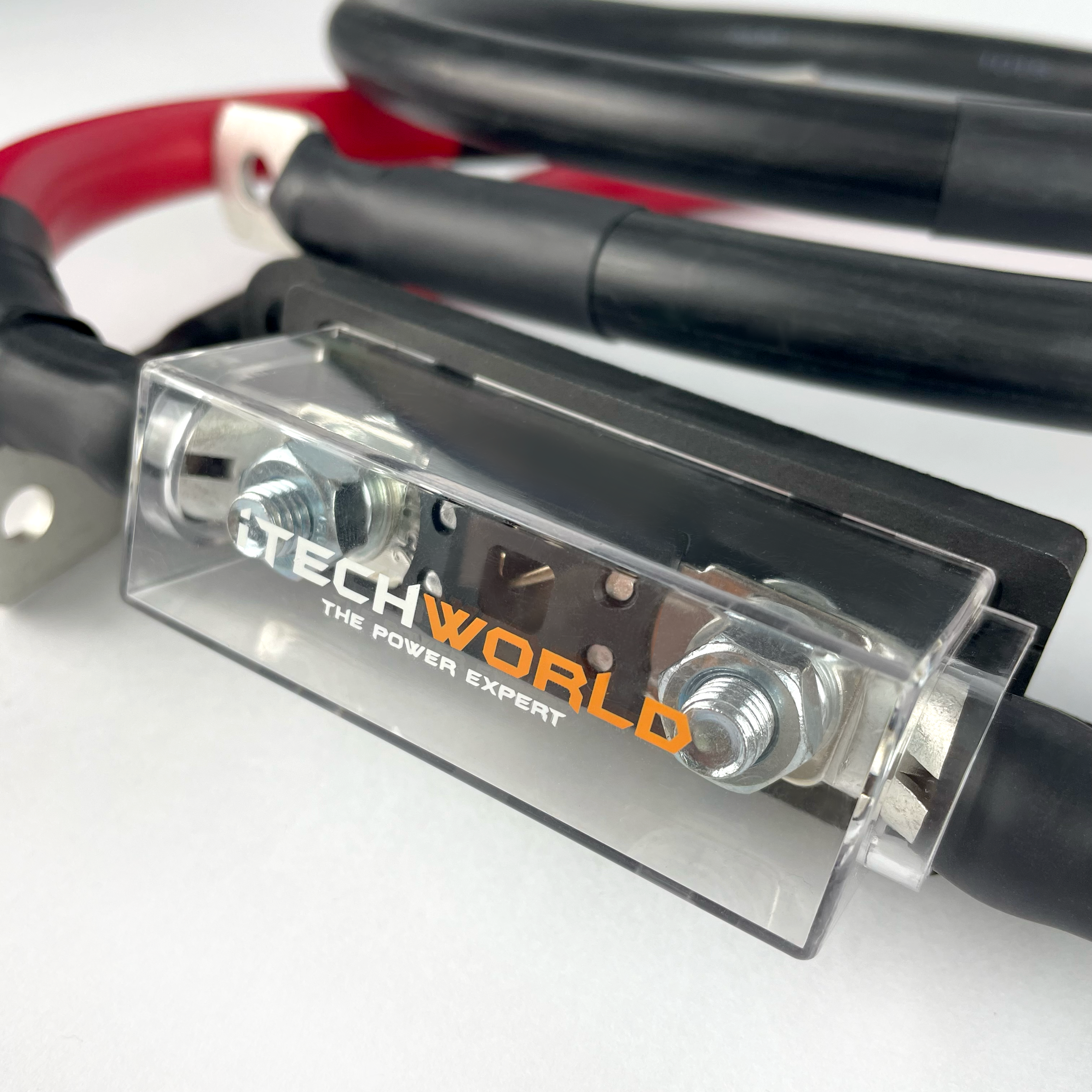

A 250A MEGA fuse comes pre-installed on the positive lead. That fuse protects the cable itself: if a fault ever drew more current than the cable can safely carry, the fuse opens before the cable becomes the weak point.

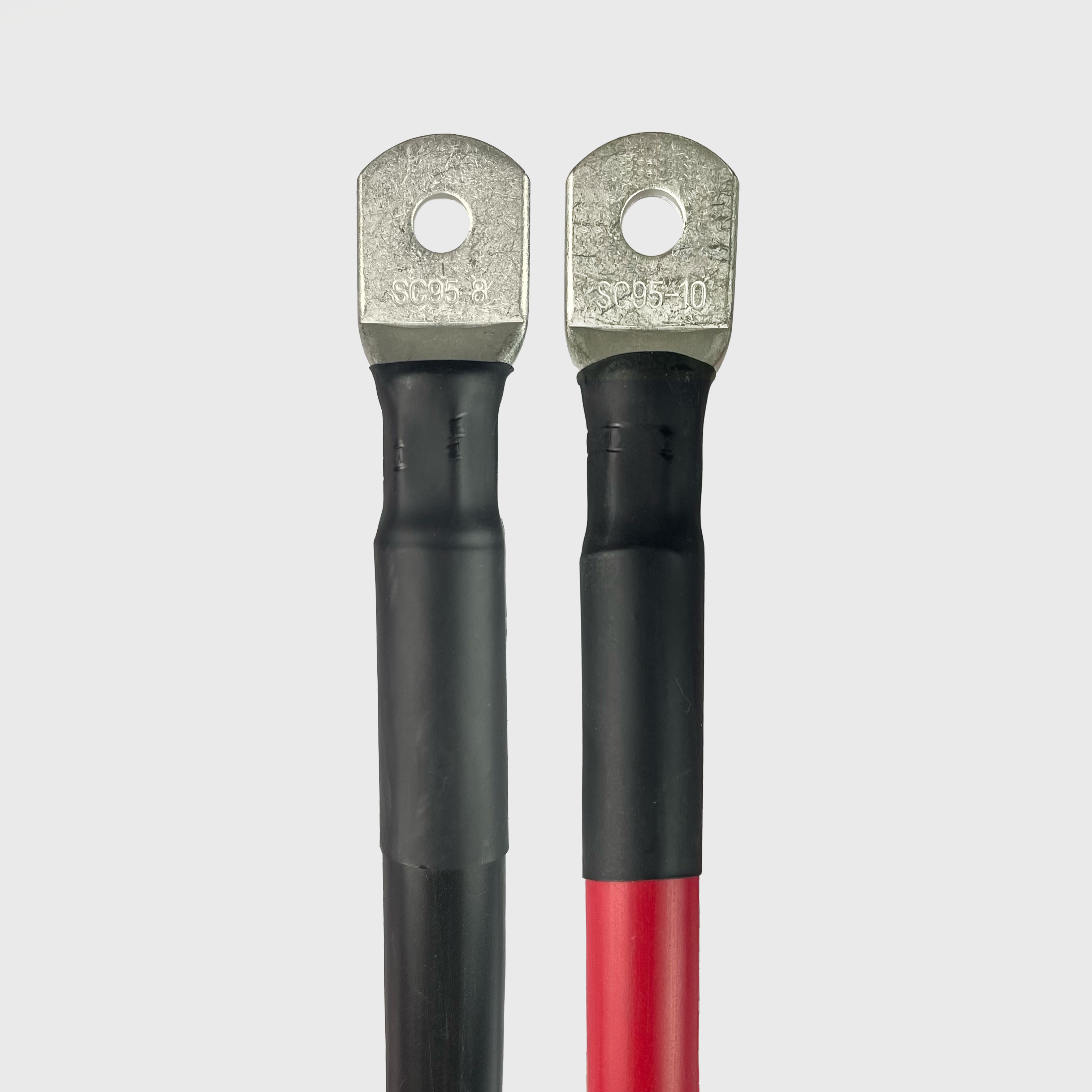

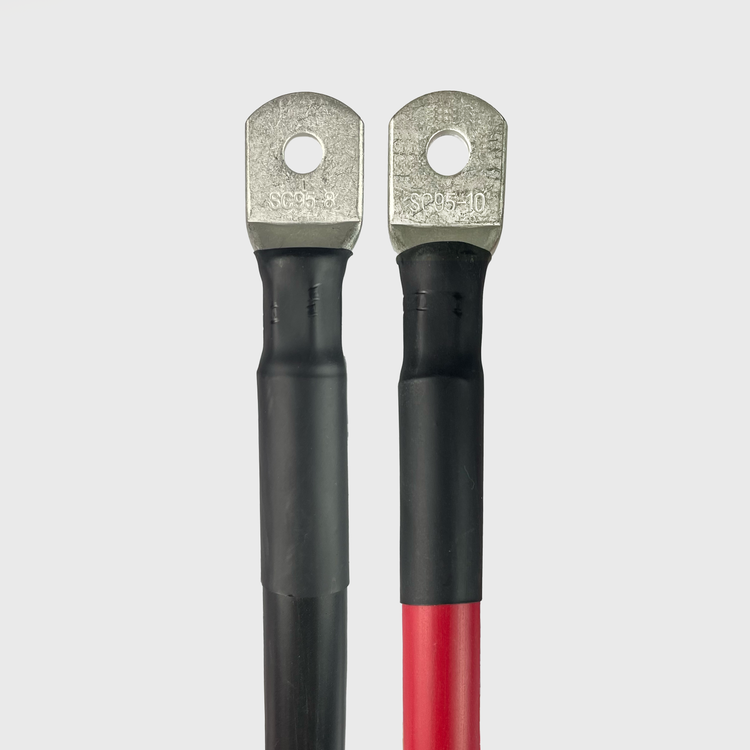

The practical advantage here is the termination. Crimping 90mm² cable properly needs a hydraulic crimper and the right dies — not something most people have in the shed, and a poor crimp on a cable this size is a genuine hazard. These arrive with M10 lugs at one end and M8 at the other, factory-crimped and ready to connect.
What's included:
• 1 × Positive cable (1m, 250A MEGA fuse pre-installed)
• 1 × Negative cable (1m)
A pre-made 000AWG (90mm²) cable pair for connecting your battery to the Power Core, sized to carry the unit's full continuous output without heat build-up or voltage drop.
At 12V, high-output systems pull serious current, and current is what dictates cable size. Undersized cable on a run like this doesn't just cost you performance — it gets hot. 000AWG is the gauge the job calls for, and both leads come cut to 1m and terminated ready to bolt down.
A 250A MEGA fuse comes pre-installed on the positive lead. That fuse protects the cable itself: if a fault ever drew more current than the cable can safely carry, the fuse opens before the cable becomes the weak point.
The practical advantage here is the termination. Crimping 90mm² cable properly needs a hydraulic crimper and the right dies — not something most people have in the shed, and a poor crimp on a cable this size is a genuine hazard. These arrive with M10 lugs at one end and M8 at the other, factory-crimped and ready to connect.
What's included:
• 1 × Positive cable (1m, 250A MEGA fuse pre-installed)
• 1 × Negative cable (1m)
Installation should be carried out with the battery isolated, and terminals torqued to the Power Core's specification. If you're unsure, have it done by a qualified auto electrician.
Product Info
- Designed ForConnecting your battery to the Power Core
- Cable Gauge000AWG (90mm²), sized for the unit's full continuous output
- Circuit Protection250A MEGA fuse pre-installed on the positive lead
- TerminationsFactory-crimped M10 and M8 lugs — no crimping tools needed
- In The BoxPositive and negative cables, 1m each
| General | |
|---|---|
| Application: | Battery to Power Core connection |
| Kit contents: | 1 x positive cable, 1 x negative cable |
| Cable length: | 1m each |
| Cable gauge: | 000AWG (90mm²) |
| Terminals: | M10 lug one end, M8 lug other end |
| Fuse: | 250A MEGA, pre-installed on positive lead |
| Compatibility: | iTechworld Power Core Units |
