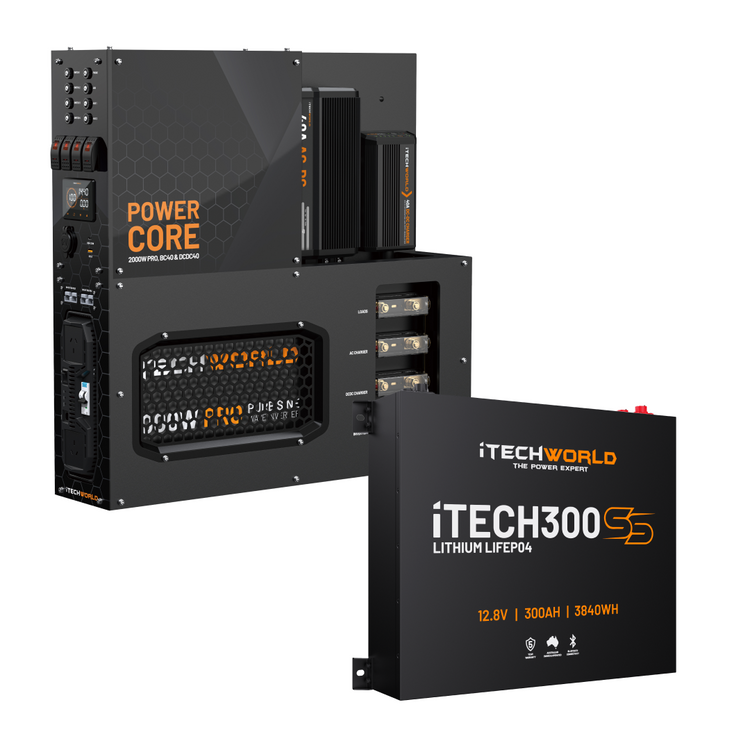

300Ah Super Slim Power Core
All-in-One Complete System
-
300Ah / 3,840Wh usable
-
Super slim, only 126mm wide
-
2,000W pure sine inverter
- Regular price
- $4,129.65
- Sale price
- $4,129.65
- Regular price
-
$6,398
Tax included.
Shipping calculated at checkout.
35% OFF
or 4 x $1,032.41
Australian Family Owned & Operated
Established in 2006, powering Aussies since.
LEGENDARY SUPPORT
Need help? Speak to an Aussie Power Expert.
Need Help Deciding?
Pickup not available
Bundle Contents

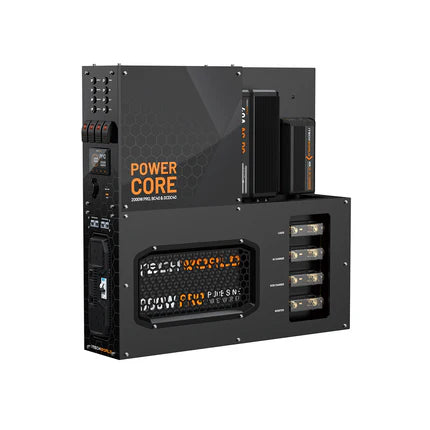

The iTechworld Power Core is a powerful all-in-one 12V system, ideal for 4WD canopies, touring vehicles or off-grid living. It delivers reliable, high-performance power without the time, cost, or complexity of traditional installations.
Four separate components come pre-wired in one industrial-grade case: a 2000W PRO pure sine inverter with ATS and RCD, a 40A DC-DC charger, a 40A AC charger, and a 500A battery monitor. Instead of mounting, wiring and fusing each one individually, the work is already done. Heavy gauge copper wiring, resettable circuit breakers and pre-fitted ANL fuses throughout.
What's inside
iTECH2000WPRO inverter — 2000W continuous, 4000W peak, 240V pure sine wave output. Safe for laptops, TVs, CPAP machines and other sensitive electronics. Built-in ATS switches to mains power within 30ms when you pull into a powered site, so you can run from 240V without unplugging anything.
iTECHDCDC40 charger — 40A of charging from your alternator while you drive, or from an unregulated solar panel up to 32V. Selectable profiles for LiFePO4, AGM, GEL, Calcium and standard lead acid.
iTECHBC40 charger — 40A of 240V mains charging. Run both chargers together for up to 80A into the battery.
iTECHBM500 battery monitor — 500A shunt with a display showing state of charge, Ah remaining, time remaining, voltage, amperage and wattage. You know exactly what's left, not a rough guess from voltage.
Four ways to charge
Alternator while driving, unregulated solar direct to the DC-DC input, regulated solar via the Anderson inputs, or 240V mains using the included AC input cable. Most people use two or three depending on where they are.
Power and accessory outputs
Four backlit 20A rocker switches for lights, pumps and switched circuits. Two 50A IN/OUT Anderson plugs, a 12V 15A cigarette socket, an 18W QC3.0 USB port and a 30W USB-C port. Unswitched loads like a fridge wire directly to the circuit breaker interface.

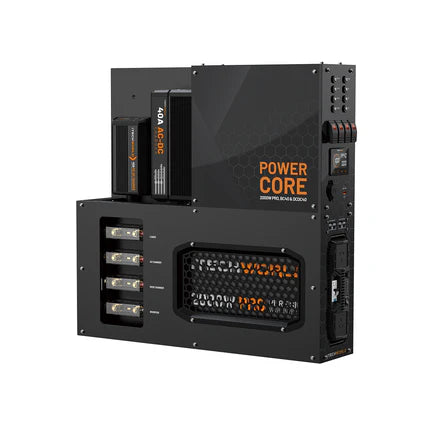

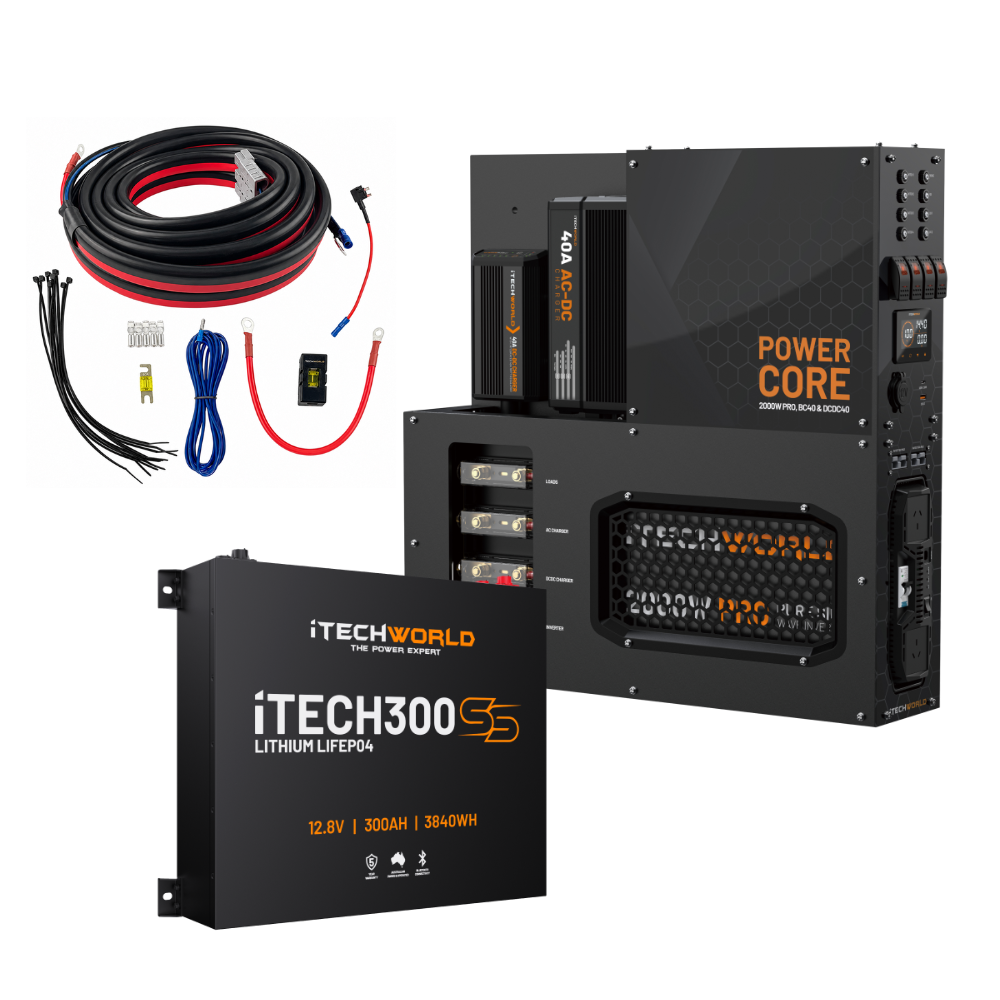

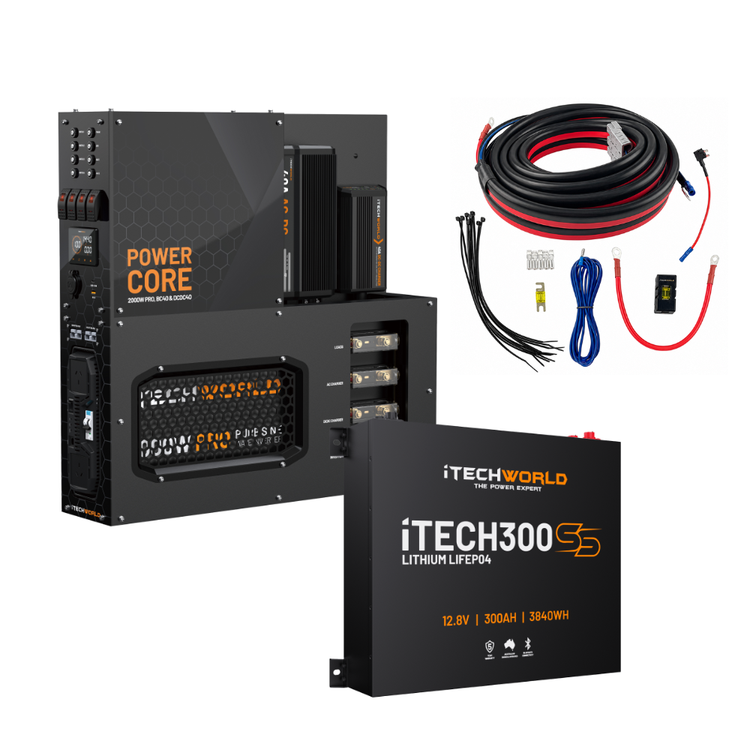

Left or right orientation
Choose the variant that suits your build. The orientation determines which side the charger inputs and terminals sit on, so pick the one that puts your cable entry closest to your battery and vehicle wiring.
Installation
The Power Core mounts upright on a flat, stable surface such as a canopy wall, vehicle frame or timber backing panel. Allow at least 100mm clearance on the DC-DC input side and around the fuse access panel. Connect the battery before final mounting, as the terminals are accessed from underneath.
iTechworld recommends installation by a certified technician, and a licensed electrician for the 240V AC input connection.
What's in the box
- 1 x Power Core unit
- 1 x iTECHBC40 AC input cable
- 12 x spare ANL fuses
- 35 x M4 combination screws
- 4 x M3 tapping screws
- 10 x terminal spades
- 20 x terminal rings
- 1 x user guide
What you'll also need
The Power Core is the system, not the storage. A battery is required and sold separately.
- Battery — 300Ah or larger recommended, and within the iTECH2000WPRO inverter specifications
- Power Core Installation Cable 000AWG 250A Fuse — connects the battery to the unit
- DC-DC install kit — if charging from your alternator
- Solar panel — unregulated up to 32V for the DC-DC input, or regulated via Anderson
- RC3 PRO remote — optional, for controlling the inverter from elsewhere in the build
quick stats
- Inverter2000W Pure Sine
- Charging40A DC-DC + 40A AC
- Battery Monitor500A Shunt
- Dimensions660 x 131 x 641mm
- Warranty1 year
product dimensions
- A: Length: 660mm
- B: Width: 131mm
- C: Height: 641mm
Power Core User Guide
Power Core User Guide
The iTECH300SS Super Slim battery is a small but powerful workhorse! At just 126mm wide, thIS 300Ah lithium battery was specifically developed for those seeking maximum power in a small package. Designed and developed in Australia, for Australia, the iTECH300SS has been constructed to thrive in the Australian climate and conditions.
This lithium powerhouse uses A-grade prismatic LiFePO4 cells, which offer significant advantages over other cell types — they’re thinner, lighter, longer-lasting, and more space-efficient. Our 300Ah lithium battery is 100% usable, delivering an impressive amount of power in a slim profile. Despite its size, the iTECH300SS can confidently support high-demand setups, including systems running 3000W inverters.
Never second-guess your battery’s health again! The 300 amp lithium battery from iTechworld is integrated with full Bluetooth compatibility, allowing you to monitor your battery’s status in real-time via the iTechworld Connect Battery Management app. Not only can you check your battery’s vitals in real-time, but you can also rest easy knowing your battery is Australian-certified to IEC:62619 standards.
PACKAGE CONTENTS
-
1 x iTECH300SS 300Ah Lithium 12v Battery
-
1 x User Guide
-
1 x Bluetooth App User Guide HERE
SUPPORT
The warranty is 5 years from the date of purchase (3 years full replacement, 2 years pro-rata).
quick stats
- Max Discharge Rate (5 seconds)640A
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian Warranty
- Super SlimOnly 126mm wide
- Heavy-duty metal casePerfect for mounting in tight spaces
product dimensions
- A: Length (with brackets): 578mm
- A: Length (without brackets): 526mm
- B: Width: 126mm
- C: Height (with brackets): 470.3mm
- C: Height (without brackets): 450mm
Slimline Batteriers User Guide
Heavier 6AWG cable and a 60A midi fuse mean less voltage drop and more protection at full 40A load. The included fuse tap makes ignition wire routing clean and simple no splicing into factory wiring.
Six metres of cable plus a 3m ignition extension. Three-pin Anderson connector. Clips straight on.
What's upgraded:
- 6AWG cable (thicker, less voltage drop)
- 60A midi fuse replaces blade fuse
- Fuse tap included
- Same plug-and-play Anderson connector you know
Everything you need to get your dual battery system wired properly, the first time.
Note: This wiring kit is suitable only for the DCDC40
