iTECH200SS (New 2025 Model) 200Ah 12v Super Slim Deep Cycle Lithium Battery with Bluetooth
Regular price $2,999 Sale price $1,899 Save $1,100
Tax included.
Shipping calculated at checkout.
300W Solar Blanket Kit with Raptor Skin
3000W 12v Pure Sine Wave Power Inverter 12V to 240V AC
- DETAILS
- SPECIFICATIONS
- FAQ
DETAILS
PRODUCT DETAILS
Quick facts about the iTECH200SS 12v 200Ah Super Slim Lithium Battery:
- Bluetooth compatibility
- True drop-in replacement - no need to change chargers or equipment
- Only weighs 25.5 kg
- 200Ah of 100% usable capacity
- 5-year Australian warranty
- Australian designed and developed
- Australian certified including IEC:62619
The new and improved iTECH200SS 200Ah Super Slim Lithium Battery is small but packs a punch! Measuring at only 126mm wide and weighing in at 25.5kg, the iTECH200SS has been designed to be the ultimate Super Slim battery those with small spaces but wanting maximum power in their Utes, 4WD's and Canopies. Designed and developed in Australia, the new iTECH200SS Slimline Battery is suited to thrive in our harsh Australian conditions, with 100% useable capacity, Bluetooth monitoring, dust-proof, suitable for high heat conditions, certified to IEC 62619 and backed by a 5-year Aussie warranty.
Bluetooth Compatibility & BMS
Never guess your batteries health again. The iTECH200SS Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.
100% Useable Capacity
With a 100% useable capacity, the iTECH200SS features the latest in prismatic cell technology allowing for its small form factor and lightweight nature.
Certified Safety
iTechworld has been designing and developing Lithium Batteries for over 10 years, constantly improving and testing our designs. The iTechworld Lithium Batteries are Australian standard certified to IEC:62619 to create the safest and highest-quality lithium batteries available in the Australian market.
Drop in replacement
Designed to be a true drop-in replacement for existing systems, the iTECH200SS is the ideal choice for those wanting to upgrade their current sleepy AGM or lead-acid systems to lightweight lithium technology. With the iTECH200SS, simply pull out your old AGM or lead-acid batteries and drop in the iTECH200SS Lithium Battery. It's really that simple!
Connect in Parallel

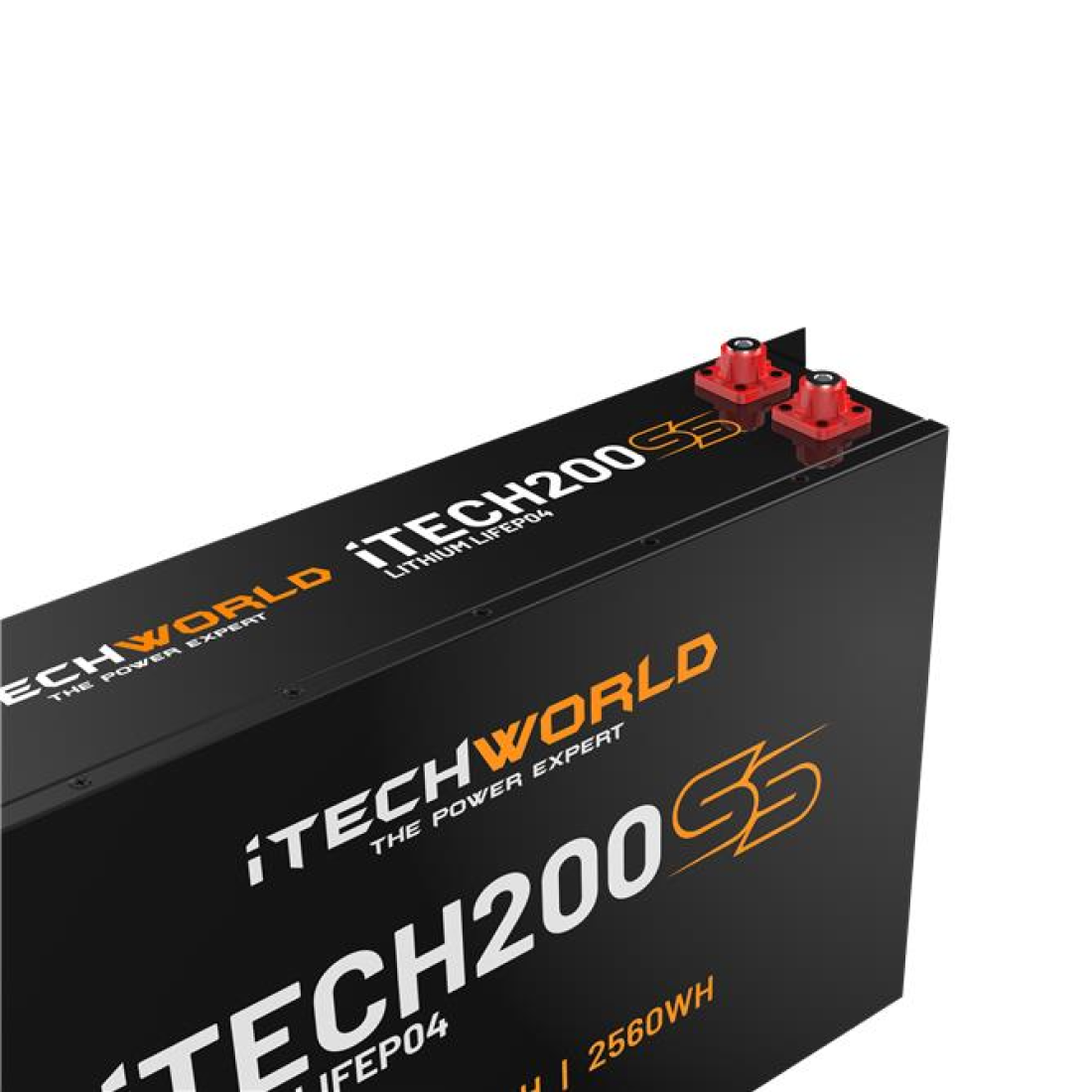

Unique to the iTECH200SS is the addition of a pair of terminals on each side of the battery (positive & negative), allowing you to run two cables, one off each pair of terminals for large inverters, or to add multiple iTECH200SS' in parallel.
Prismatic Cells

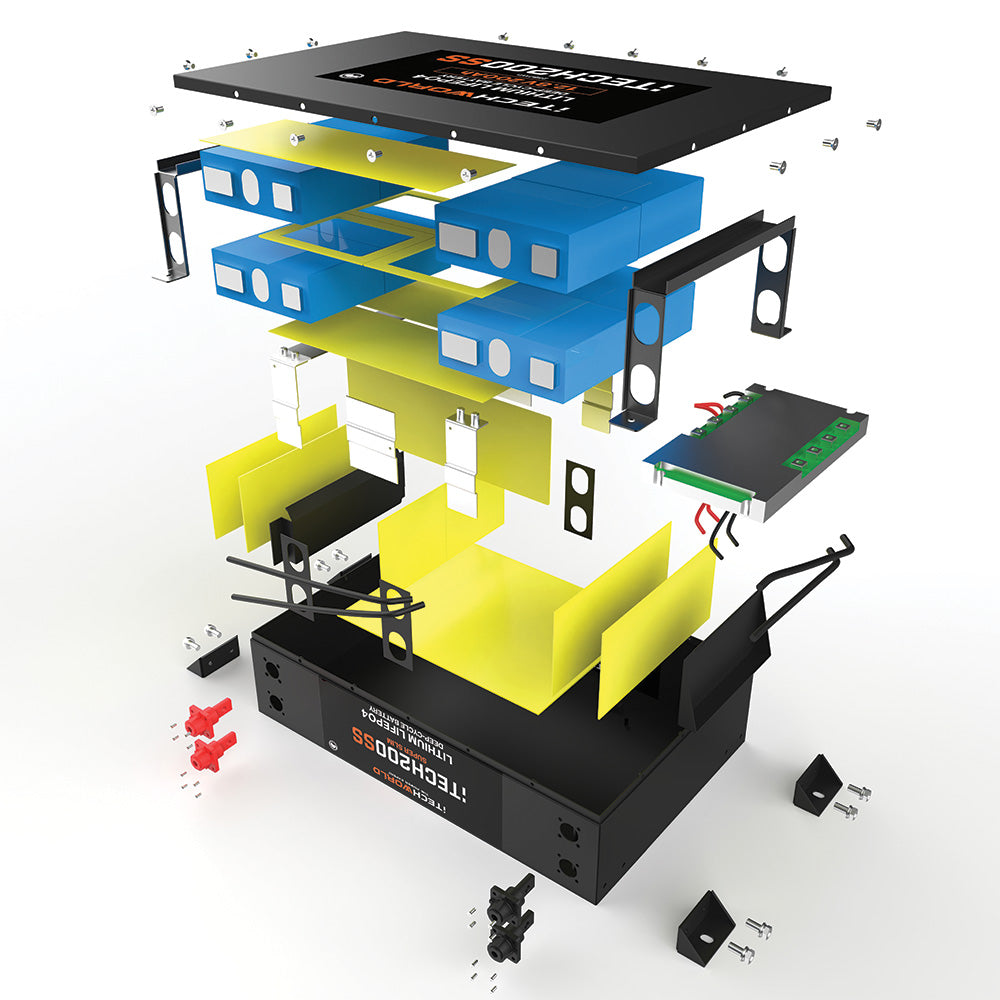

Utilising A-grade prismatic lithium LiFePO4 cells, the iTECH200SS offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.
Warranty
As a testament to the toughness and performance of our iTECH200SS lithium batteries, we have backed them up with a full 5-year Australian warranty.
PACKAGE CONTENTS
- 1x iTECH200SS 200Ah Lithium 12v Battery
- 1x User Guide
WARRANTY & SUPPORT
The iTECH200SS warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
If your iTechworld battery enters safe mode, please follow the instructions HERE
SPECIFICATIONS
SPECIFICATIONS
| Nominal Voltage: | 12.8V |
| C20 Rating usable amps 10v: | 200Ah |
| Standard Discharge Current | 250A |
| Max Discharge Current | 500A (5 seconds) |
| Standard Charge Current | 1A-100A |
| Maximum Charge Current | 200A |
| Short Circuit Protection: | Yes |
| Optimum Temperature Range: | +5 to +60°C |
| BMS Operational Temperature Range: | -40 to 80°C |
| Safety Protection Isolator: | 80°C |
| BMS Charge Cut Off Voltage | 15V |
| Recommended Charge Voltage: | 14.4V |
| BMS Charge Cut Off Voltage: | 15V |
| BMS Low Voltage Cut Off: | 8.5 - 9V |
| Life Cycles 100%: | 5000+ |
| Life Cycles 50%: | 10000 |
| Dimensions (LxWxH): |
514x126x327mm( 580 L with brackets & 350 H including terminals) |
| Weight: | 25.5Kg |
| Terminal Type: | M8 |
| Case Material: | Metal |
| Safety Certifications: | IEC:62619 Certified |
FAQ
Frequently asked questions about the iTECH200SS 200Ah Lithium 12v Battery with Bluetooth
1. How long will a 200Ah lithium battery last (how many hours)?
A 200Ah lithium 12-volt battery can last an extended period, providing continuous power for various devices. Unlike AGM batteries, which typically have a lower usable capacity, lithium batteries utilise 100% of their power capacity.
This means you can rely on the full 200Ah to power your devices, ensuring longer runtimes and enhanced performance.
2. How does the Bluetooth monitoring feature work?
The iTECH200SS has an internal battery monitoring system with Bluetooth, and is compatible with the iTechConnect Battery Management App. The iTechConnect app allows you to access real time key information on the current status of your battery including voltage, current capacity and temperature. For more information, download the Bluetooth App manual here.
3. How much solar (number of solar panels) do you need to charge a 200Ah lithium 12v battery?
To charge a 200Ah lithium deep cycle battery effectively, we recommend a 2:1 ratio of solar panels to battery capacity. In this case, for every 200Ah battery, we suggest using approximately 400 watts of solar power.
Our range of solar panels, including 150-watt hard frame panels, 200-watt flexi panels, and 300-watt solar blankets, offers versatile options to meet your charging needs efficiently.
4. What size charger is best for a 400Ah lithium battery?
For charging a 400Ah lithium battery, we recommend using either the iTECHBC40 40-amp AC charger or the iTECHDCDC40 40-amp DC charger. These chargers are designed to provide fast and reliable charging, ensuring your battery is replenished quickly and efficiently.
5. What can a 400Ah lithium battery power?
A 400Ah lithium 12v battery offers ample power to run various devices and appliances, making it ideal for off-grid and mobile applications. With its large capacity and high energy density, it can power a 12V fridge for weeks.
Additionally, it has enough usable capacity to support a significant inverter, allowing you to run AC appliances such as a coffee machine, air fryer, toaster, kettle, induction hot plates and everything in between.
The iTECH400X PRO could power a modern caravan air conditioner via an inverter for extended periods, typically exceeding 10 hours of runtime.
Built for the tough Australian environment, the iTECH400X PRO is IP67 Waterproof rated, allowing the battery to be submerged under one (1) metre of water for up to 30 minutes - perfect for marine applications or outdoor storage boxes. The iTECH400X PRO utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology.
After almost 20 years of extensive design, development, and testing, we are proud to present the 2024 iTECH400X PRO as our new flagship battery, backed by an extensive 5-year Australian Warranty. Upgrade to the iTECH400X PRO today and experience the ultimate in power and performance.
