iTechworld

Off Grid System

18.43kWh

Regular price: $10,107
Sale price: $10,107
Regular price: ~~$20,178~~

Tax included. Shipping calculated at checkout.

1140Ah Off Grid System
Optional Solar Panels

Solar:

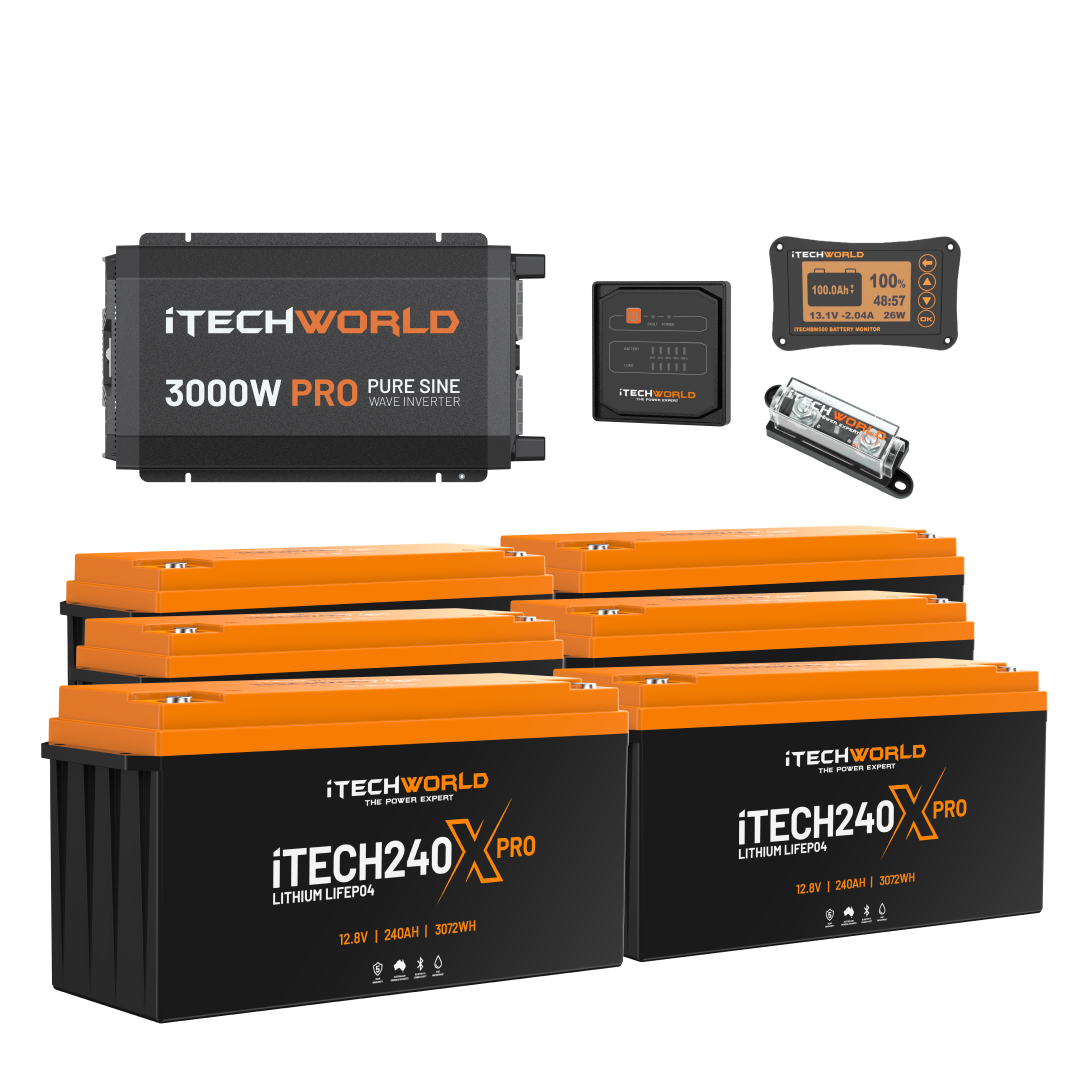

No Solar $10,107 iTechworld | Off Grid System | 18.43kWh

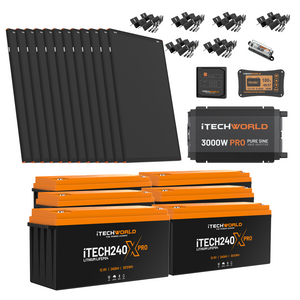

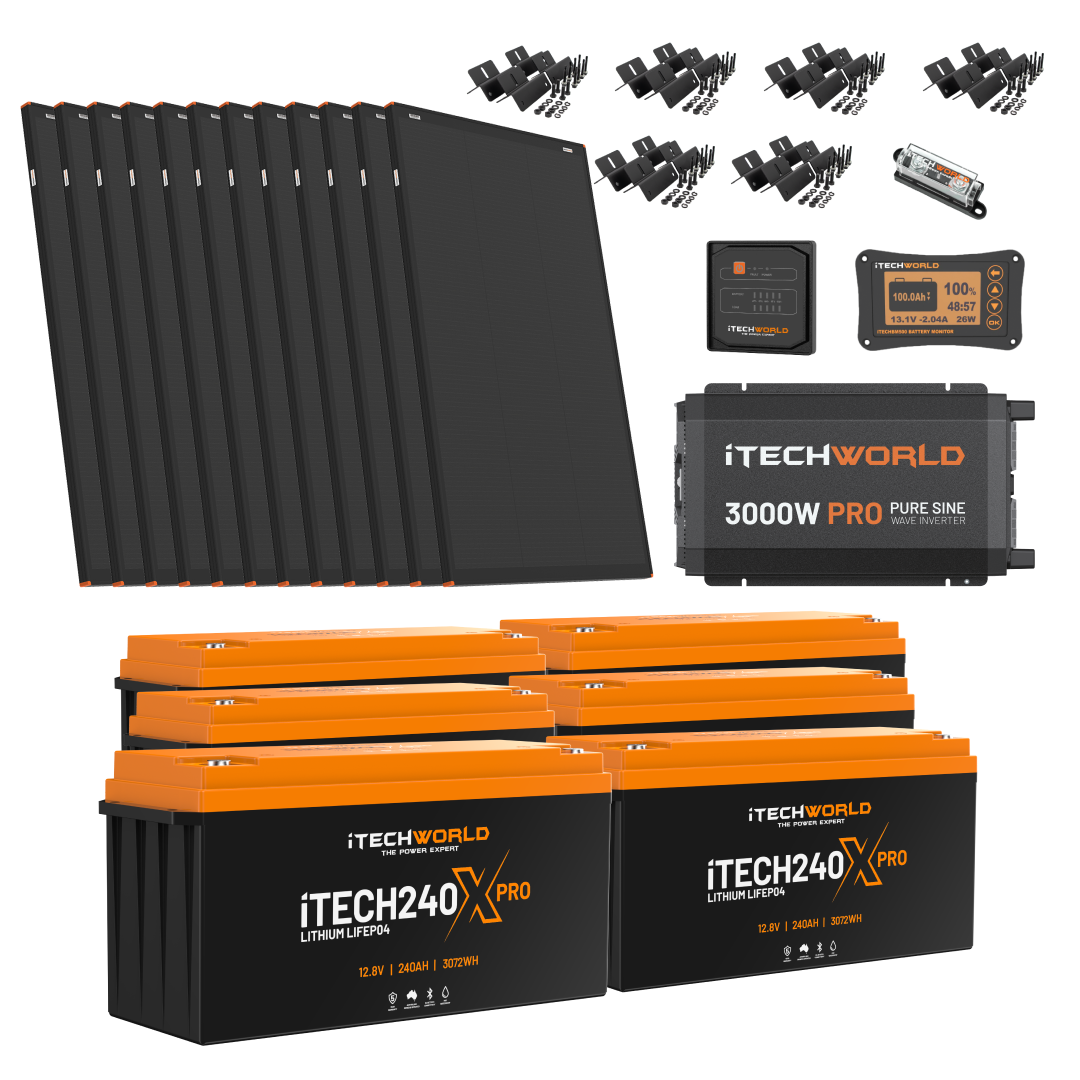

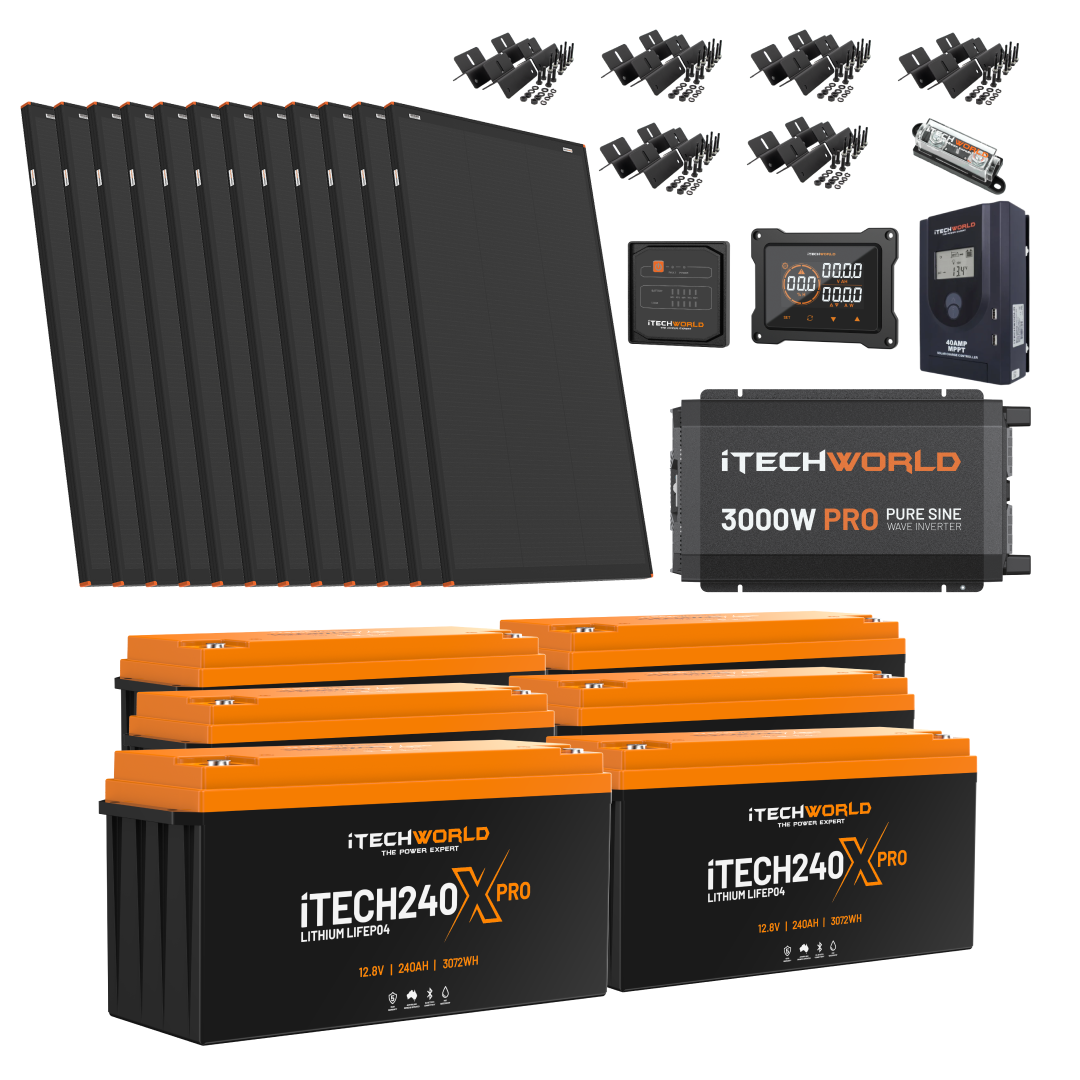

12 x 150W Panels $13,340 iTechworld | Off Grid System | 18.43kWh

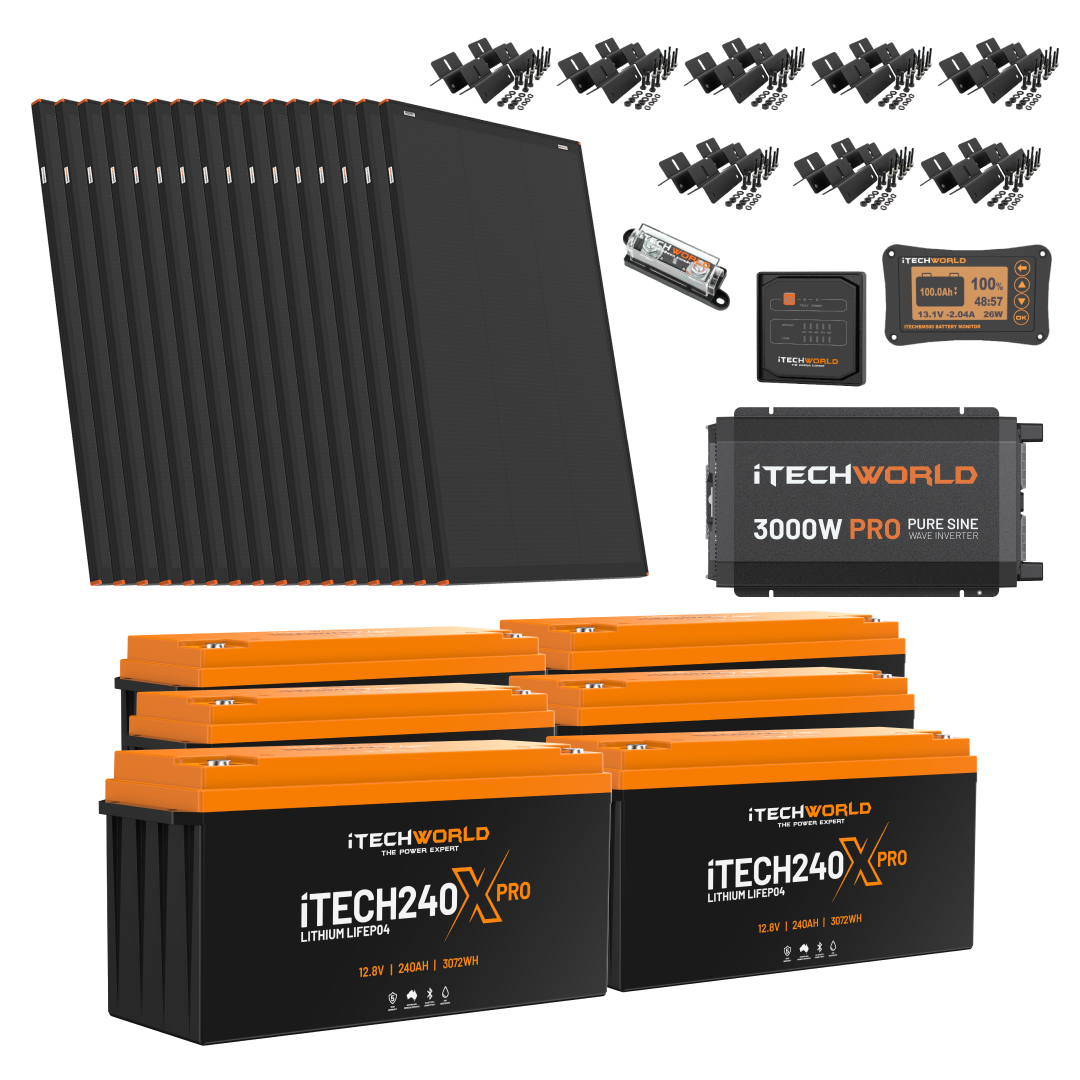

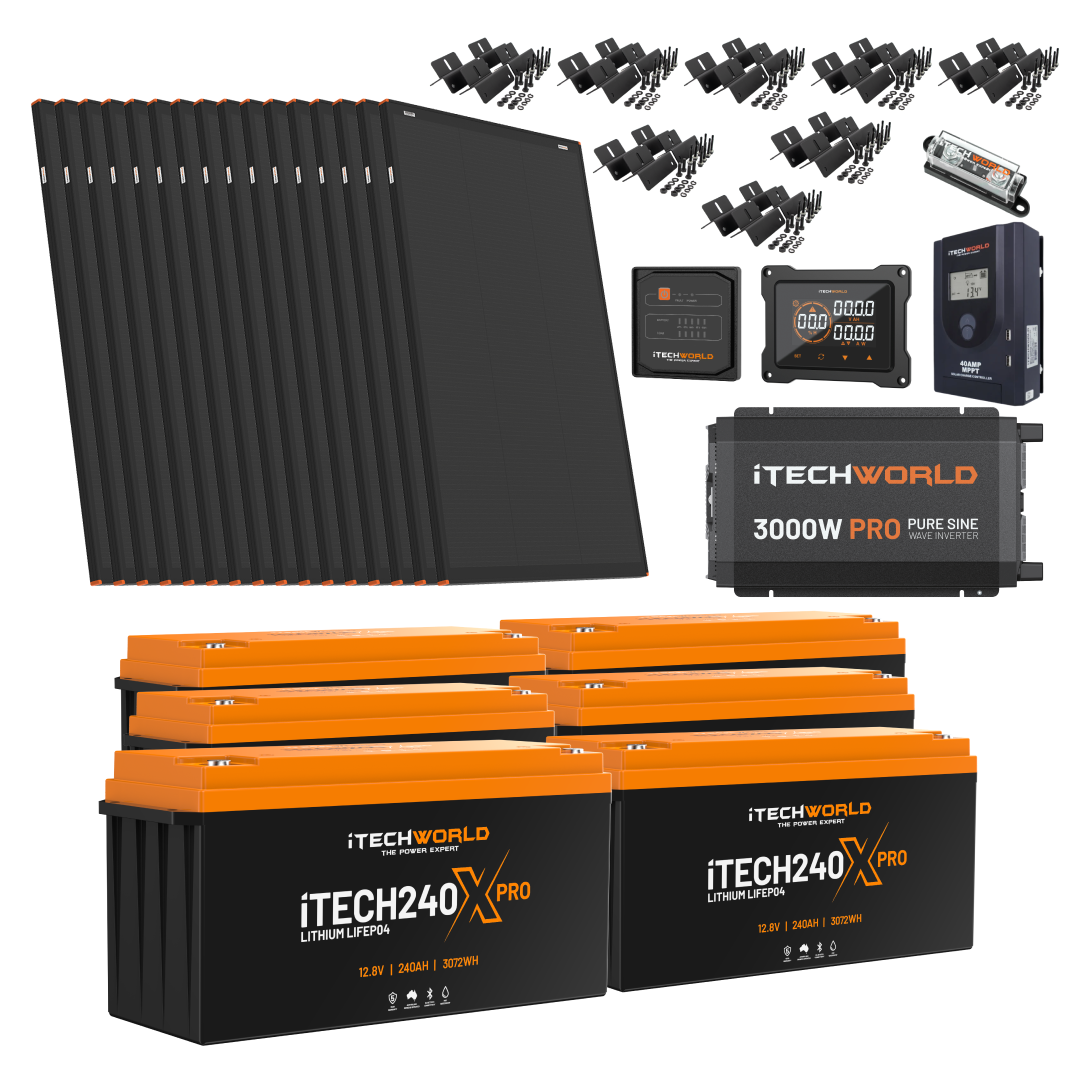

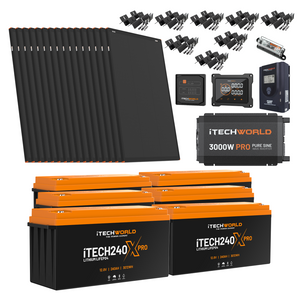

16 x 150W Panels $14,418

Product variants:

POWER YOUR

WHOLE SETUP

RUN VIA

AC, DC OR SOLAR

3000W INVERTER WITH

WITH ATS AND RCD

OPTIONAL SOLAR

THICK INVERTER

CABLE AND FUSE SUPPLIED

RC3 REMOTE

AND BM500

FOR SYSTEM MONITORING

Empower your off-grid lifestyle with the ultimate lithium power solution from iTechworld. Powered by the popular iTECH240X PRO lithium batteries, these

Looking for something slightly different? Our team of power experts are able to put together your dream 12v build to best suit your power needs and budget. Call us to build a custom kit : 1300 483 249

In this iTechworld 18.43 KWH Off Grid System Elite kit you will receive:

6 x iTECH240X PRO Lithium Batteries

1 x iTECHBM500 battery monitor with shunt

1 x 40 Amp MPPT Solar Charge Controller

1 x iTechworld 3000w pure sine wave inverter with ATS and RCD

1 x RC2 Inverter Remote Switch

1 x iTechworld 450A Maxi Fuse with Fuse Holder

1 x Bluetooth App User Guide

OPTIONAL: 42v Solar Panels

iTECH240X PRO
Nominal voltage:	12.8V
C20 rating usable Amps:	240Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-5°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge current:	1-100A
Maximum charge current:	200A
Recommended charge voltage:	14.4V
BMS charge cutoff voltage:	15V
BMS low voltage cutoff:	8.5-9V
Continuous discharge:	250A
Peak discharge:	500A (5 seconds)
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 100%:	5000+
Life cycles @ 50%:	10,000+
Dimensions (LxWxH):	485 x 170 x 239mm (245 H including terminals)
Weight:	23.6kg
Terminals:	M8
Case material:	ABS

3000W PRO inverter
Maximum continuous output:	3000W
Peak output:	6000W
Battery compatibility:	Standard lead-acid, AGM, Gel or LiFePO4
Input voltage range:	10.5-15.5V
Output plug rating:	15A
Output voltage & current:	240V - 50Hz
No load draw:	<1.6A
Efficiency:	89-92%
Output waveform:	Pure Sine Wave
Total Harmonic Distotion (THD):	<3%
IP rating:	IP22
Operating temperature:	-10°C ~ 50°C
Storage temperature:	-30°C ~ 70°C
Over voltage protection:	15.5±0.2V DC
Under voltage protection:	10.5±0.2V DC
Short circuit protection:	1 second
Dimensions (LxWxH):	494 x 289 x 105mm
AC transfer switch:	30ms
Remote terminal:	RJ12
Remote dimensions (LxWxH):	86 x 86 x 19mm
Safety certifications:	The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations

iTECHBM500
Supply voltage:	10-100V
Battery capacity:	10-999Ah
Maximum measured current::	500A
Power consumption (screen off):	<2mA
Power consumption (screen brightness @ 10%):	<20mA
Power consumption (screen brightness @ 100%)	<60mA
Voltage accuracy:	±1%
Current accuracy:	±1%
Capacity accuracy:	±1%
Operating temperature:	-20°C ~ 80°C
Exterior bracket dimensions (LxWxH):	106 x 81 x 18mm
Mounting bracket dimensions (LxW):	95 x 70mm
Monitor backing dimensions (LxWxH):	80 x 59 x 16mm
IP rating:	IP20

000AWG inverter cable w/ 450A fuse
Cable gauge:	000AWG/90mm²
Cable length:	1m
Fuse type:	450A ANS
Terminals:	M8

Optional 40A MPPT Solar Charge Controller
System rated voltage:	12/24V DC automatic sensing
Maximum open voltage of solar panel:	100V DC (at the lowest temperature) 92V DC (at standard temperature of 25°C)
Maximum solar input power:	12V DC system	520W
	24V DC system	1040W
Battery voltage range:	8 - 32V DC
Rated charge current:	40A
Battery types:	Sealed lead-acid, flooded lead-acid, gel, LiFePO4, LiNiMnCoO₂
Static loss:	≤50mA
Temperature compensation coefficient:	-4mV/°2V(25°C)
LCD temperature:	-20° ~ 70°C
Operating temperature:	-20°C + 55°C
Storage temperature:	-30°C ~ 80°C
Working humidity:	≤90% non-condensing
Grounding:	Common positive
Dimensions (LxWxH):	215 x 145 x 75mm
Wire terminal size:	16mm²/6AWG
Weight:	1.3kg

Optional 150W Solar Panel
Rated maximum power (Pm):	150W
Power tolerance:	±3%
Voltage at Pmax (Vmp):	18.28V
Current at Pmax (Imp):	8.207A
Open-circuit voltage (Voc):	22.407V
Short circuit current:	8.721A
Normal Operating Cell Temperature (NOCT):	45+2°C
Maximum system voltage:	1000VDC
Maximum series fuse rating:	15A
Operating temperature:	-40°C ~ 85°C
Dimensions (LxWxH):	1160 x 670 x 30mm
Weight:	9.32kg
