iTechworld

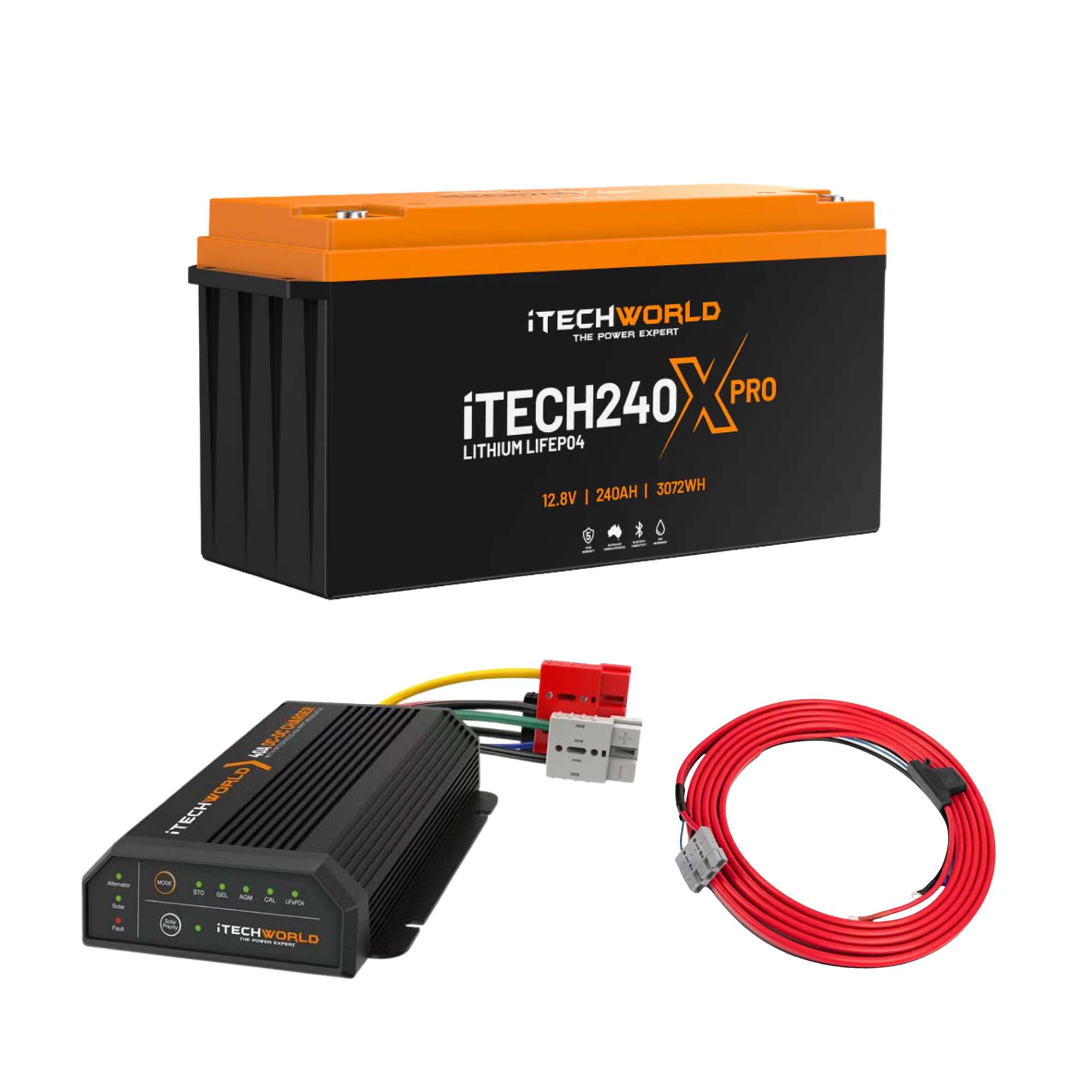

Base 4WD Dual Battery Kit
240Ah Lithium
- Regular price
- $1,640.65
- Sale price
- $1,640.65
- Regular price
-
$2,198
Tax included.
Shipping calculated at checkout.
Pickup not available
Power your next adventure with the iTechworld Base 4WD Power System. Featuring the iTECH240X PRO 240Ah Lithium LiFePO₄ Battery and the iTECHDCDC40 40A DCDC + MPPT Charger, this system delivers efficient, reliable energy for touring, canopy and off-grid applications.
The iTECHDCDC40 provides fast, smart charging from both your vehicle alternator and solar panels, ensuring your lithium battery is always ready to perform. The Plug & Play Wiring Kit (No Fitting) makes installation simple and professional — ideal for tight or custom canopy setups.
Perfect for caravans, camper trailers, 4WD canopies and touring builds, the iTechworld Base 4WD Power System offers dependable lithium power, efficient dual-source charging, and long service life — built tough for Australian conditions.
Australian Family Owned
Shop risk-free with easy returns.
Free 30-day returns
Shop risk-free with easy returns.
Bundle Contents
The all-new iTECH240X PRO 240Ah Lithium Battery is the result of years of design and development. Featuring a 100% useable capacity, the iTECH240X PRO is the ultimate power solution for all your energy needs.
With its sleek and compact design, the iTECH240X PRO is a true drop-in replacement for your existing system. No changing of systems, chargers, or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH240X PRO. It's that easy!
Inside, you’ll find an all-new, patent-pending prismatic cell type paired with a supercharged Battery Management System (BMS). This advanced combination ensures reduced cell degradation and a longer lifespan, even under high current loads, making the iTECH240X PRO fully capable of supporting larger inverter systems, including those with a 3000W capacity.
Built for the tough Australian environment, the iTECH240X PRO is IP67 Waterproof rated, allowing for the battery to be submerged under 1 meter of water for up to 30 minutes - perfect for marine applications or outdoor storage boxes. The iTECH240X PRO utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology.
Upgrade to the iTECH240X PRO today and experience the ultimate in power and performance.
Package Contents
- 1x iTECH240X PRO 240Ah 12V Lithium Battery
- 1x User Guide
Support
The iTECH240X PRO warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
If your iTechworld battery enters safe mode, please follow the instructions HERE
quick stats
- Maximum Discharge Rate (5 seconds)640 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian Warranty
- Safety CertificationsIncluding IEC:62619
- Lightweight at 24.8kgEquivalent AGM weighs approx. 140kg
product dimensions
- A: Length: 485mm
- B: Width: 170mm
- C: Height: 239mm
(245mm including terminals)
X Range User Guide
X Range Batteries User Guide
The iTECHDCDC40 keeps your battery charged no matter the battery type or size.
The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).
Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC40 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.
Designed and developed in Australia for Australia, the iTECHDCDC40 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC40 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.
Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC40 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.
If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.
A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.
The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.
Package Contents
- 1x iTECHDCDC40
- 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
- 1x Instruction manual also found HERE
quick stats
- Compatible withMost battery types
- Warranty1 year
product dimensions
- A: Length: 188mm
- B: Width: 127mm
- C: Depth: 39mm
DCDC25 40 User Guide
DCDC25/40 User Guide
Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.
Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.
The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.
The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.
The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.
