iTechworld

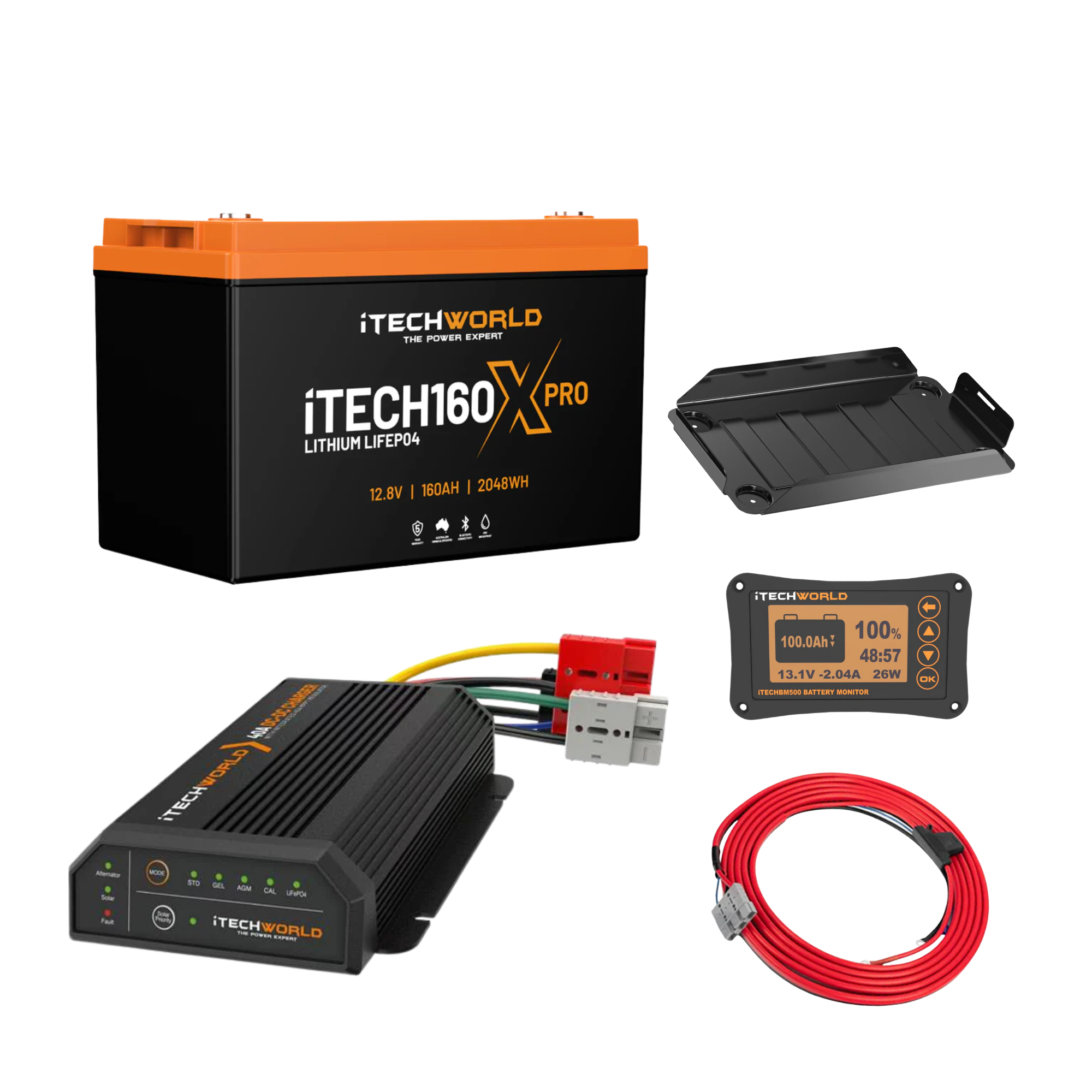

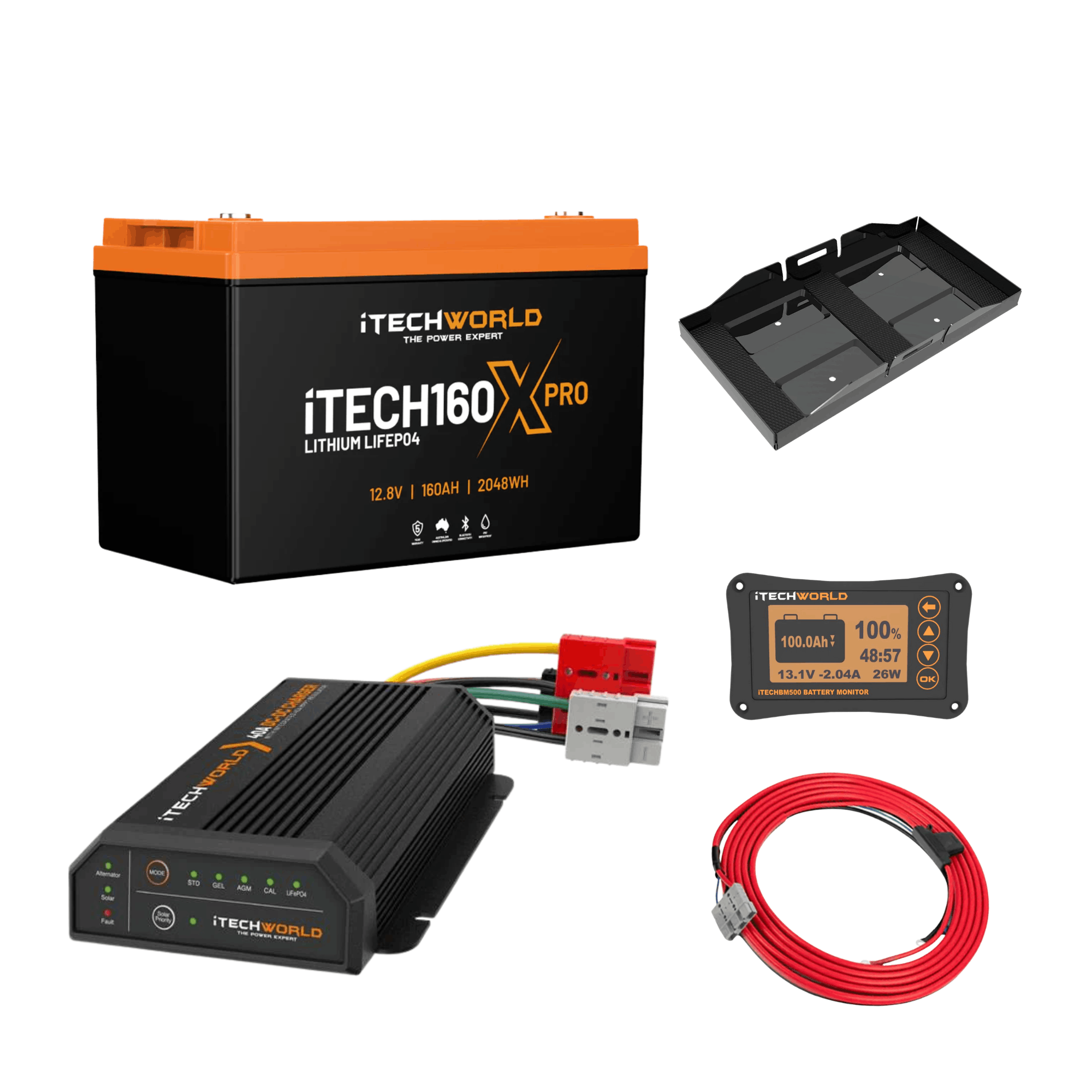

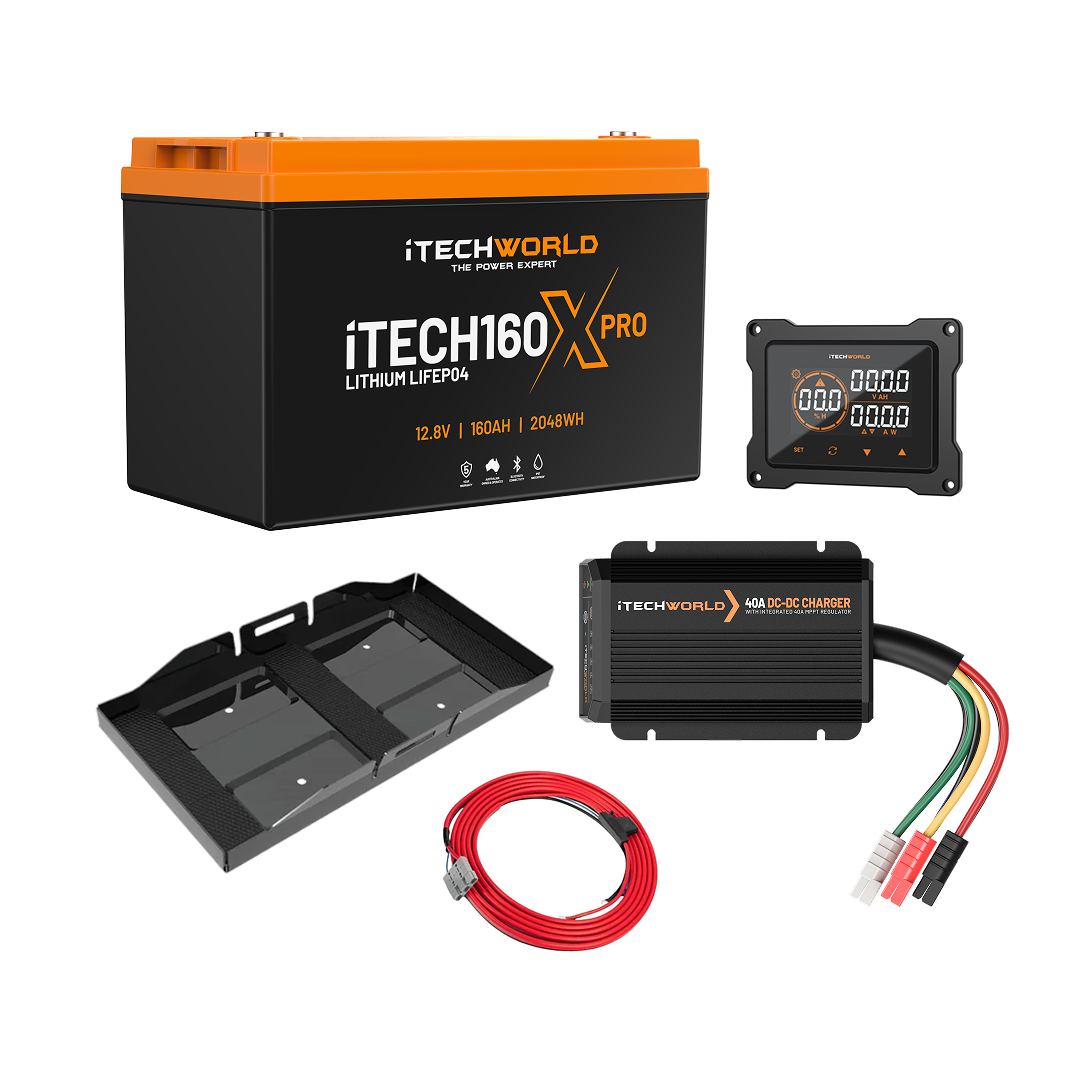

Premium Canopy Dual Battery Kit
160Ah Lithium
- Regular price
- $1,391.75
- Sale price
- $1,391.75
- Regular price
-
$1,936
Tax included.
Shipping calculated at checkout.
Pickup not available
Power your canopy or 4WD setup with the iTechworld Premium Canopy Dual Battery Kit — the perfect balance of capacity, charging speed and smart monitoring. Built around the iTECH160X PRO 160Ah Lithium LiFePO₄ Battery, this system combines rugged reliability with advanced DCDC charging and real-time performance visibility.
The iTECH160X PRO delivers 100% usable 160Ah in a compact, 16kg housing built to IP67 waterproof standards. Its A-grade prismatic lithium cells and Bluetooth connectivity make it the ideal foundation for touring and off-grid power setups. Keep your system charged while driving or parked with the iTECHDCDC40 — a 40A charger featuring integrated MPPT solar input and Solar Power Priority mode for automatic switching between alternator and solar charging.
Monitor performance in real time with the iTECHBM500 500A Shunt Monitor, displaying live voltage, current and consumption data so you always know your system status. The Plug & Play DCDC Wiring Kit (No Fitting) ensures quick and tidy installation, while the dedicated Battery Tray keeps your system secure on any terrain.
Perfect for canopy builders, weekend tourers and remote professionals, the Premium Canopy Dual Battery Kit offers a tough, efficient, and smart power solution — ready for solar integration or future inverter expansion.
Australian Family Owned
Shop risk-free with easy returns.
Free 30-day returns
Shop risk-free with easy returns.
Bundle Contents
The iTECH160X PRO lithium battery sets a new standard. It has been specifically engineered for those seeking a power solution that can withstand whatever you throw at it.
Designed and developed in Australia, for Australia, the iTECH160X PRO has been constructed to thrive in rough climates and conditions – and thanks to its IP67 water and dust-proof rating, it can be mounted nearly anywhere!
The iTECH160X PRO uses A-grade prismatic lithium LiFePO4 cells, which offer considerable advantages over other cell types. Prismatic cells are thinner in profile, deliver higher discharge, have a longer life expectancy, are much lighter and utilise space more efficiently than traditional cell types.
The advanced lithium technology offers a 100% useable 160Ah capacity, allowing for impressive power storage. Not to mention the minute weight of 16kg, which is comparison to an equivalent AGM battery would be 90kg, saving you and your system important weight.
No need to change any systems, equipment, or do any re-wiring. With the iTECH160X PRO, you simply pull out your old heavy AGM batteries, and drop-in your new iTECH160X PRO.
The iTECH160X PRO has been designed and developed to fit the same space as the standard 100Ah AGM batteries so it is a simple drop in replacement for your system, reading dimensions of 330 x 173 x 215mm (230mm including terminals).
Never second-guess your battery’s health again! The iTECH160X PRO is integrated with full Bluetooth compatibility, allowing you to monitor your battery’s status in real-time via the iTechworld Connect Battery Management app, available through the App Store or the Google Play Store.
You can check your battery’s vitals in real-time and rest easy knowing that it is Australian-certified to IEC:62619 standards.
PACKAGE CONTENTS
- 1 x iTECH160X 160Ah Lithium 12V Battery
- 1 x User Guide
WARRANTY & SUPPORT
The iTECH160X warranty is 5 years (3 years full replacement, 2 years pro-rata).
If your iTechworld battery enters Safe Mode, please follow the instructions HERE
*Storage deep cycle battery only. It cannot be used as a cranking battery.
quick stats
- Max Discharge Rate (5 seconds)430 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian warranty
- Safety certificationsIncluding IEC:62619
- Lightweight at 16kgEquivalent AGM weighs approx. 90kg
product dimensions
- A: Length: 330mm
- B: Width: 173mm
- C: Height: 215mm
(230mm including terminals)
X Range User Guide
X Range Batteries User Guide
The iTECHDCDC40 keeps your battery charged no matter the battery type or size.
The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).
Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC40 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.
Designed and developed in Australia for Australia, the iTECHDCDC40 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC40 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.
Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC40 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.
If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.
A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.
The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.
Package Contents
- 1x iTECHDCDC40
- 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
- 1x Instruction manual also found HERE
quick stats
- Compatible withMost battery types
- Warranty1 year
product dimensions
- A: Length: 188mm
- B: Width: 127mm
- C: Depth: 39mm
DCDC25 40 User Guide
DCDC25/40 User Guide
The iTECHBM500 is a high-precision battery monitor that captures instantaneous and integrated values in real-time. The iTECHBM500 utilises a 500A current shunt, the iTECHBM500 measures the discharge/ recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. The monitor provides real-time, high-precision voltage measurements through a field-installed sense wire. It is compatible with Lithium-ion, lead-acid, and nickel-metal hydride batteries.
Package Contents
- 1 x iTECHBM500 Battery Monitor
- 1 x Shielded wire (8m)
- 1 x 500 Amp Shunt
- 1 x Plastic bracket
- 4 x Screws
- 1 x Shunt holder
- 1 x B+ Sense wire 22AWG (1m)
- 1 x Instructions
Support
quick stats
- Warranty1 year
product dimensions
- A: Depth: 17mm
- B: Length: 113mm
- C: Width: 69mm
Current BM500 User Guide
iTECHBM500 User Guide
Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.
Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.
The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.
The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.
The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.
iTECH120X PRO & iTECH160X PRO Lithium Battery Tray - Battery Mounting Tray
Keep your iTECH120X or iTECH160X PRO firmly in place with iTechworld's battery tray. Coming with a sturdy tie-down strap, it ensures that your battery remains stable and secure.
The tray boasts a sturdy metal build and is provided with four mounting holes, making it adaptable to a variety of installations. This makes it an ideal choice for those looking to safely mount their lithium battery, whether it's behind the rear seats of contemporary 4WDs or within the canopy.
This tray is specifically designed to accommodate the iTECH120X PRO & iTECH160X PRO batteries.
