iTechworld
200Ah Super Slim Power Core
All-in-One Complete System
-
200Ah / 2,560Wh usable
-
Super slim, only 126mm wide
-
2,000W pure sine inverter
- Regular price
- $3,844.65
- Sale price
- $3,844.65
- Regular price
-
$5,799
Tax included.
Shipping calculated at checkout.
33% OFF
or 4 x $961.16
Australian Family Owned & Operated
Established in 2006, powering Aussies since.
LEGENDARY SUPPORT
Need help? Speak to an Aussie Power Expert.
Need Help Deciding?
Pickup not available
Bundle Contents

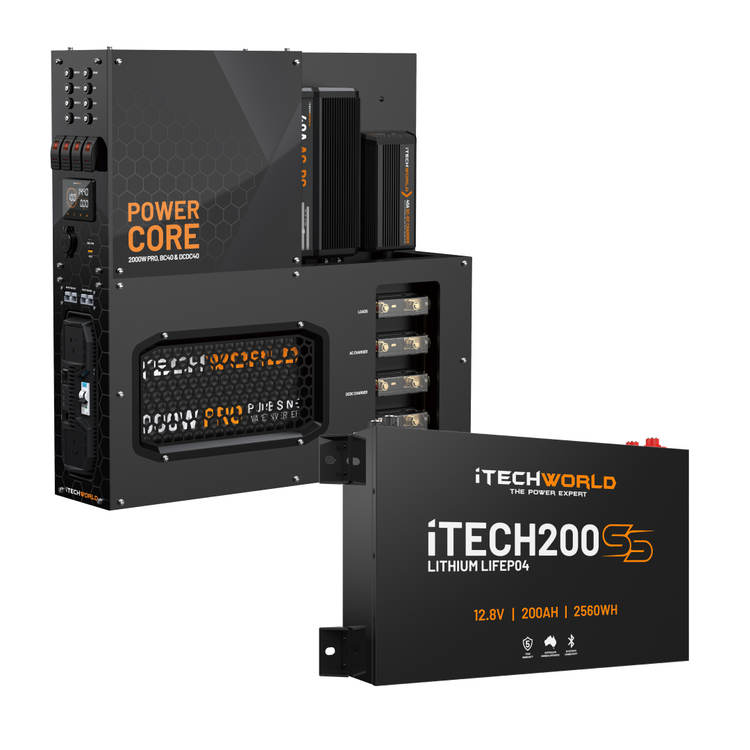

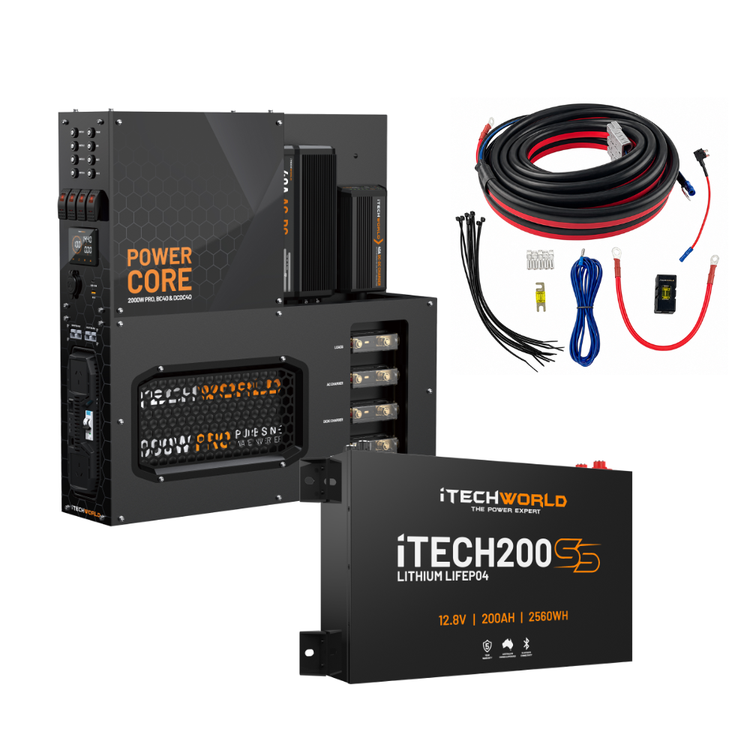

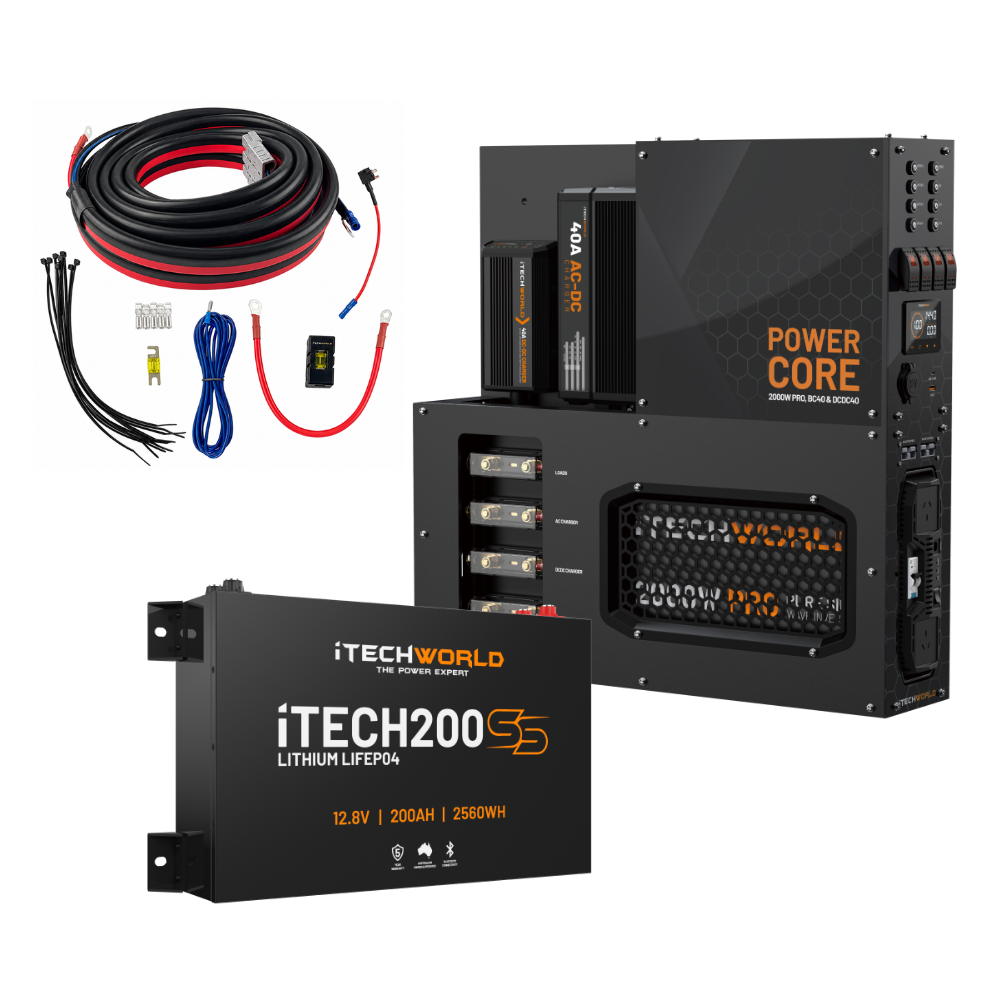

The iTechworld Power Core is a powerful all-in-one 12V system, ideal for 4WD canopies, touring vehicles or off-grid living. It delivers reliable, high-performance power without the time, cost, or complexity of traditional installations.
Four separate components come pre-wired in one industrial-grade case: a 2000W PRO pure sine inverter with ATS and RCD, a 40A DC-DC charger, a 40A AC charger, and a 500A battery monitor. Instead of mounting, wiring and fusing each one individually, the work is already done. Heavy gauge copper wiring, resettable circuit breakers and pre-fitted ANL fuses throughout.
What's inside
iTECH2000WPRO inverter — 2000W continuous, 4000W peak, 240V pure sine wave output. Safe for laptops, TVs, CPAP machines and other sensitive electronics. Built-in ATS switches to mains power within 30ms when you pull into a powered site, so you can run from 240V without unplugging anything.
iTECHDCDC40 charger — 40A of charging from your alternator while you drive, or from an unregulated solar panel up to 32V. Selectable profiles for LiFePO4, AGM, GEL, Calcium and standard lead acid.
iTECHBC40 charger — 40A of 240V mains charging. Run both chargers together for up to 80A into the battery.
iTECHBM500 battery monitor — 500A shunt with a display showing state of charge, Ah remaining, time remaining, voltage, amperage and wattage. You know exactly what's left, not a rough guess from voltage.
Four ways to charge
Alternator while driving, unregulated solar direct to the DC-DC input, regulated solar via the Anderson inputs, or 240V mains using the included AC input cable. Most people use two or three depending on where they are.
Power and accessory outputs
Four backlit 20A rocker switches for lights, pumps and switched circuits. Two 50A IN/OUT Anderson plugs, a 12V 15A cigarette socket, an 18W QC3.0 USB port and a 30W USB-C port. Unswitched loads like a fridge wire directly to the circuit breaker interface.
Left or right orientation
Choose the variant that suits your build. The orientation determines which side the charger inputs and terminals sit on, so pick the one that puts your cable entry closest to your battery and vehicle wiring.
Installation
The Power Core mounts upright on a flat, stable surface such as a canopy wall, vehicle frame or timber backing panel. Allow at least 100mm clearance on the DC-DC input side and around the fuse access panel. Connect the battery before final mounting, as the terminals are accessed from underneath.
iTechworld recommends installation by a certified technician, and a licensed electrician for the 240V AC input connection.
What's in the box
- 1 x Power Core unit
- 1 x iTECHBC40 AC input cable
- 12 x spare ANL fuses
- 35 x M4 combination screws
- 4 x M3 tapping screws
- 10 x terminal spades
- 20 x terminal rings
- 1 x user guide
What you'll also need
The Power Core is the system, not the storage. A battery is required and sold separately.
- Battery — 300Ah or larger recommended, and within the iTECH2000WPRO inverter specifications
- Power Core Installation Cable 000AWG 250A Fuse — connects the battery to the unit
- DC-DC install kit — if charging from your alternator
- Solar panel — unregulated up to 32V for the DC-DC input, or regulated via Anderson
- RC3 PRO remote — optional, for controlling the inverter from elsewhere in the build
quick stats
- Inverter2000W Pure Sine
- Charging40A DC-DC + 40A AC
- Battery Monitor500A Shunt
- Dimensions660 x 131 x 641mm
- Warranty1 year
product dimensions
- A: Length: 660mm
- B: Width: 131mm
- C: Height: 641mm
Power Core User Guide
Power Core User Guide
The new and improved iTECH200SS 200Ah Super Slim Lithium Battery is small but packs a punch! Measuring at only 126mm wide and weighing in at 25.5kg, our 200Ah battery has been designed to be the ultimate Super Slim battery for small spaces that still need maximum power. Designed and developed in Australia, the new iTECH200SS Slimline Battery is suited to thrive in our harsh Australian conditions, with 100% usable capacity, Bluetooth monitoring, dust-proof, suitable for high heat conditions, certified to IEC 62619 and backed by a 5-year Aussie warranty.
Never guess your batteries health again. The iTECH200SS Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.
With a 100% useable capacity, our 200Ah battery features the latest in prismatic cell technology allowing for its small form factor and lightweight nature.
iTechworld has been designing and developing Lithium Batteries for over 10 years, constantly improving and testing our designs. The iTechworld Lithium Batteries are Australian standard certified to IEC:62619 to create the safest and highest-quality lithium batteries available in the Australian market.
Designed to be a true drop-in replacement for existing systems, the iTECH200SS is the ideal choice for those wanting to upgrade their current sleepy AGM or lead-acid systems to lightweight lithium technology. With the iTECH200SS, simply pull out your old AGM or lead-acid batteries and drop in the iTECH200SS Lithium Battery. It's really that simple!
What sets the iTECH200SS apart is its dual-terminal design, with positive and negative posts on both sides of the battery. This enables easy installation in space-restricted setups and supports high-current applications, such as 3000W inverters or multi-battery parallel configurations.
Utilising A-grade prismatic lithium LiFePO4 cells, our 200Ah battery offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.
PACKAGE CONTENTS
WARRANTY & SUPPORT
The iTECH200SS warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.
If your iTechworld battery enters safe mode, please follow the instructions HERE
quick stats
- Maximum Discharge Rate (5 seconds)640 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian Warranty
- Super slimAt only 126mm wide
- Lightweight at 25.5kgEquivalent AGM weighs approx. 140kg
product dimensions
- Length (with brackets): 580mm
- Length (without brackets): 514mm
- Width: 126mm
- Height (with brackets): 350mm
- Height (without brackets): 327mm
Slimline Batteriers User Guide
Heavier 6AWG cable and a 60A midi fuse mean less voltage drop and more protection at full 40A load. The included fuse tap makes ignition wire routing clean and simple no splicing into factory wiring.
Six metres of cable plus a 3m ignition extension. Three-pin Anderson connector. Clips straight on.
What's upgraded:
- 6AWG cable (thicker, less voltage drop)
- 60A midi fuse replaces blade fuse
- Fuse tap included
- Same plug-and-play Anderson connector you know
Everything you need to get your dual battery system wired properly, the first time.
Note: This wiring kit is suitable only for the DCDC40
