Flexi Off-Grid

Solar Generator Kit

PS2000 Power Station and 200W Solar Mat

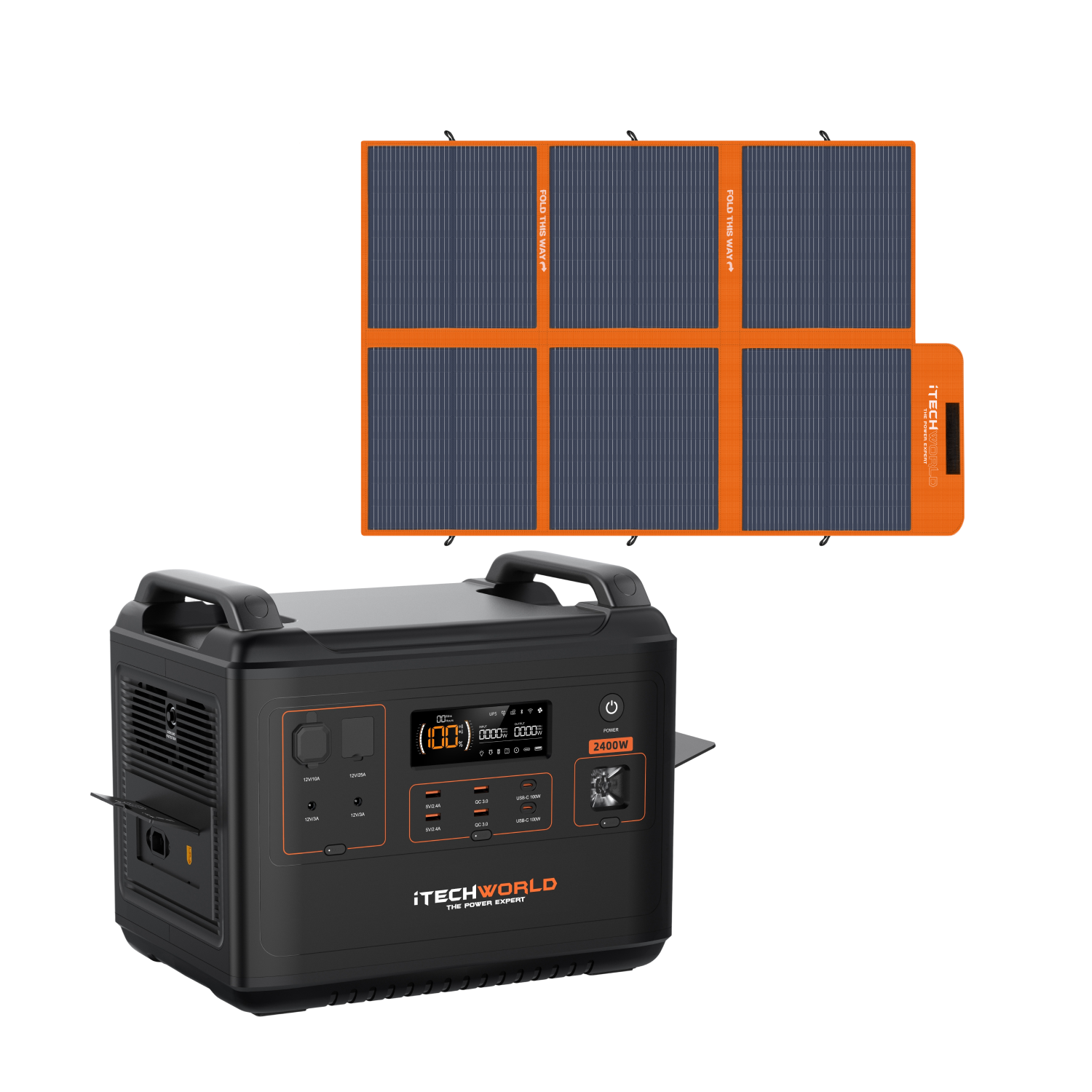

The Flexi Off-Grid Solar Generator Kit

A power station and a solar mat that work as one system. The PS2000 stores 2048Wh and runs 240V appliances off a 2400W pure sine wave inverter. The 200W Solar Mat tops it back up during the day. Together that's a setup you can run indefinitely off-grid rather than one you have to drive home to recharge.

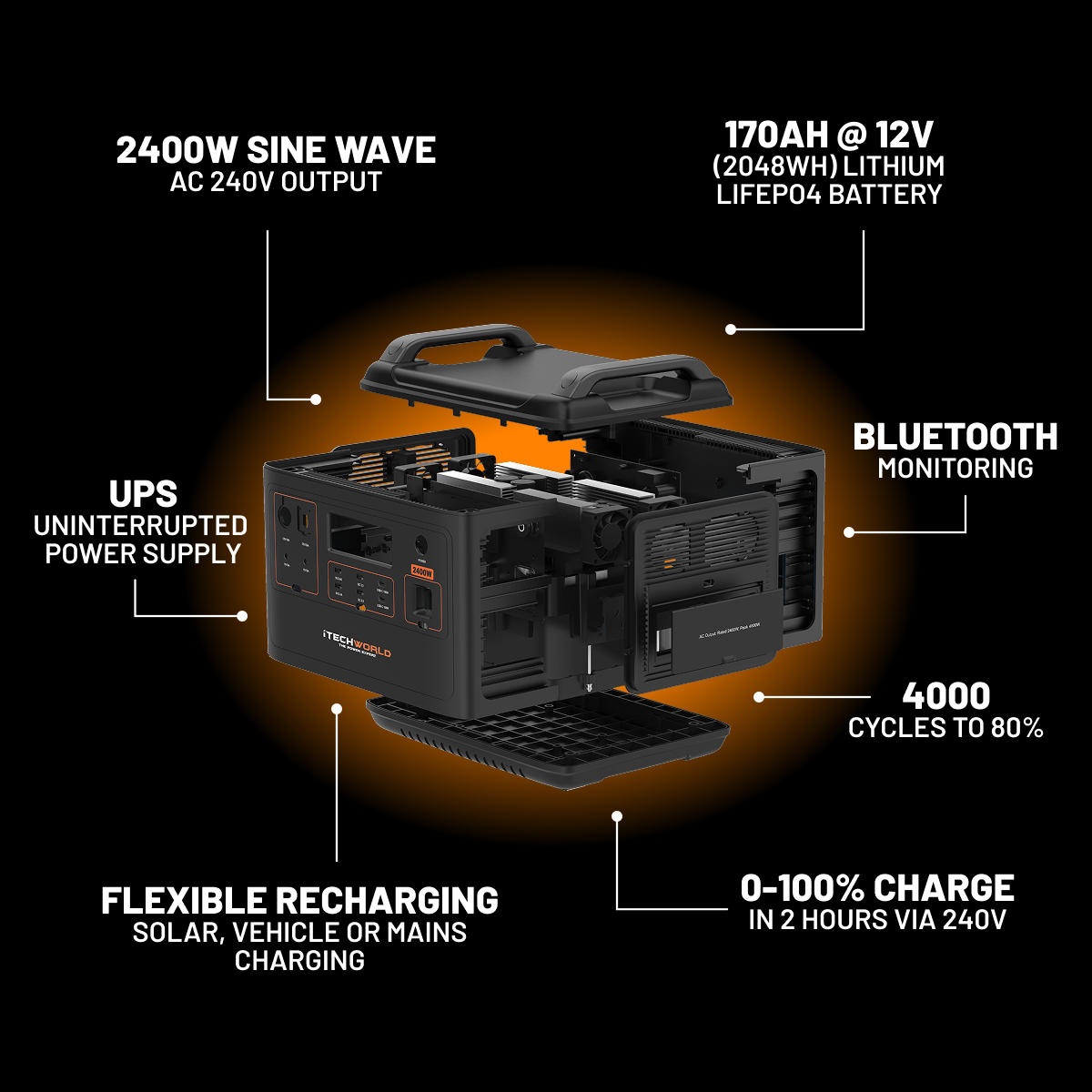

2400W Pure Sine Wave Output

Enough to run an induction cooktop, a coffee machine, a microwave, a hair dryer or power tools. Pure sine wave output means it's also safe for the sensitive gear: laptops, cameras, CPAP machines and anything with a motor or a compressor.

2048Wh LiFePO4 Battery

2048Wh (170Ah at 12V) of A-grade LiFePO4, rated for over 4000 cycles. That runs a 12V fridge drawing 0.8A for roughly 8 days, while still charging phones, lights, laptops and a CPAP off the same unit.

200W Solar Mat with Raptor Skin

Up to 200W and 11.09A of charging current from A-grade monocrystalline cells, wrapped in an ETFE Raptor Skin laminate over 600D ballistic nylon. It folds down to 480 x 490mm and weighs 7.5kg, so it packs flat behind a seat and sets up in under a minute.

Connecting the Mat to the Power Station

The mat's 5m Anderson lead connects to the PS2000's XT90 solar input using the XT90 to 50A Anderson adapter supplied with the power station. Connect the mat directly, without the mat's solar regulator in the circuit, as the PS2000 manages solar charging internally. Keep the regulator with the kit if you ever want to run the mat straight to a 12V battery instead.

Room to Add More Solar

The PS2000's XT90 input accepts 11.5V to 50V and up to 500W. The mat uses 200W of that, so there's headroom to add a second panel or blanket later without changing anything else in the system.

Three Ways to Recharge

0 to 100% in 2 hours from a standard 240V wall plug, from the vehicle's 12V socket while you drive, or from solar. All the adapters are in the box.

Bluetooth Monitoring

Integrated Bluetooth gives you real-time battery health, charge level and system performance through the iTechworld app, available on the App Store and Google Play. The digital display gives you the same readout at the press of the power button.

Uninterruptible Power Supply

Pass-through charging with UPS switch-over keeps connected devices running through a mains outage, so the kit doubles as home backup between trips.

Built-In Protection

Over-charge, over-discharge, over-current, over-load, short-circuit and over-temperature protection are all built into the PS2000, as across the iTechworld power station range.

Warranty

The PS2000 Power Station carries a 2 year warranty from date of purchase. The 200W Solar Mat carries a 1 year warranty from date of purchase. Both are in addition to your rights under the Australian Consumer Law. Keep the power station out of direct sunlight and away from moisture. Support is handled here in Australia, on 1300 483 249, Monday to Friday 8:30am to 5pm AWST.

What's in the Box

PS2000 Power Station

• 1 x PS2000 Lithium Portable Power Station
• 1 x Wall charger
• 1 x Car charge cable
• 1 x XT90 to 50A Anderson connector
• 1 x Cable storage bag

200W Solar Mat

• 1 x 200W Solar Mat with Raptor Skin
• 1 x 5m cabling with Anderson plugs (13AWG)
• 1 x Alligator clamp to Anderson plug for battery connection
• 1 x Solar regulator / charge controller
