iTECH120X & Control Hub + iTECHDCDC40 Dual Battery System - iTechworld

iTECH120X & Control Hub + iTECHDCDC Battery System - iTechworld

5.0

iTECH120X and Control Hub with iTECHDCDC40/25

Lithium 4WD Kit

105Ah

Name: iTECH120X and Control Hub with iTECHDCDC40/25 | Lithium 4WD Kit | 105Ah
Brand: iTechworld
SKU: BT-120X+CH12V-40+CHINS+DCDCINS-KIT
Price: 1412.32 AUD
Availability: InStock
Rating: 5.0 (3 reviews)

Regular price: $1,412
Sale price: $1,412
Regular price: ~~$2,370~~

Tax included. Shipping calculated at checkout.

Pay in 4 months from $293 per month with or

DCDC Charger:

iTECH120X and Control Hub with iTECHDCDC40/25 | Lithium 4WD Kit | 105Ah

iTECHDCDC40 $1,412 iTECH120X & Control Hub + iTECHDCDC Battery System - iTechworld

iTECHDCDC25 $1,170

Product variants:

Call us to build a custom kit : 1300 483 249

Our team of power experts are able to put together your dream 12v build to best suit your power needs and budget.

Never has it been so easy to install a dual battery system in your vehicle! Please see below the contents of each kit, for a full plug-and-play installation Kit 2 is preferred as it includes the DCDC Charger installation kit:

Kit 1 includes:

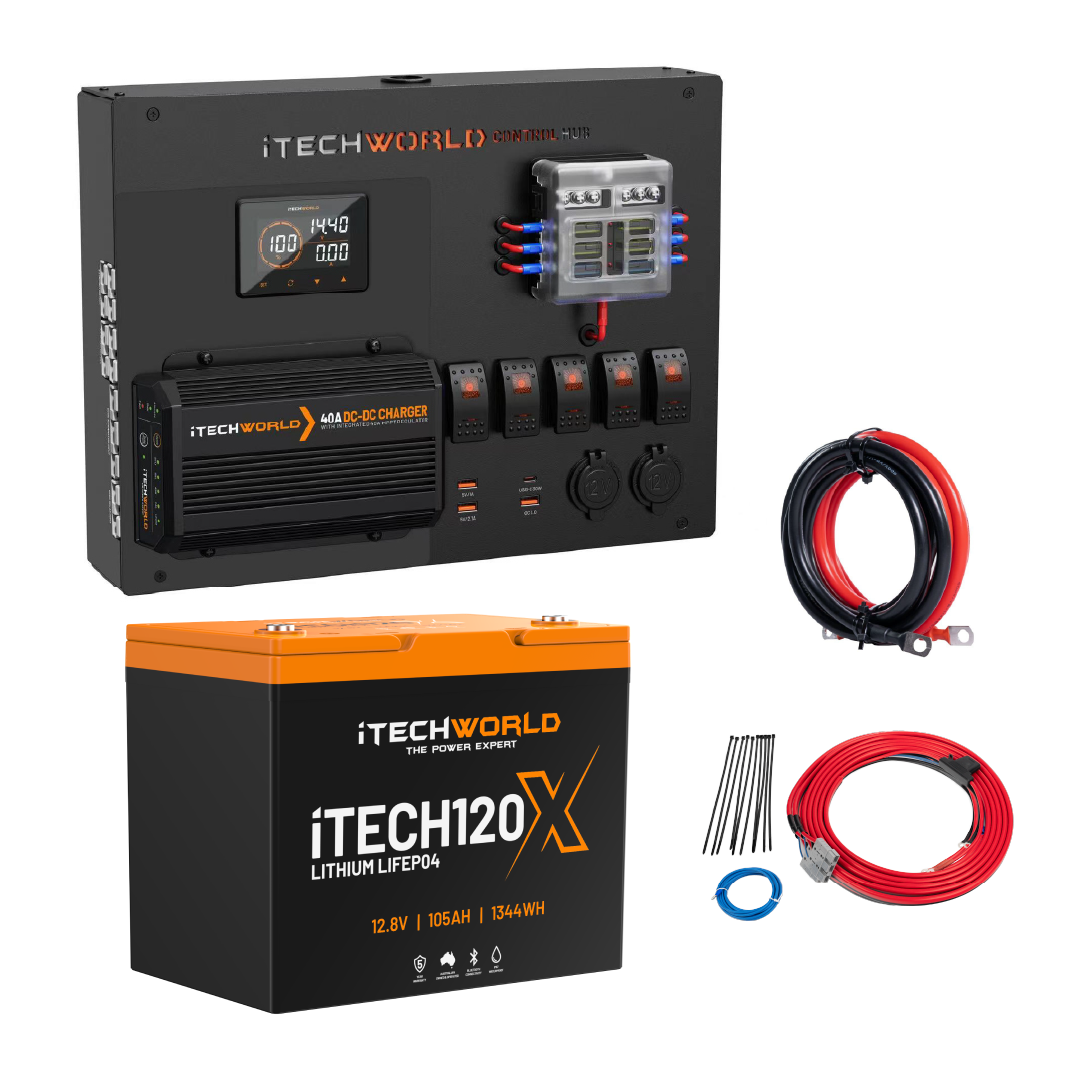

iTECH120X, iTechworld control hub with iTECHDCDC40 + Installation Cable

Kit 2 includes:

iTECH120X, iTechworld control hub with iTECHDCDC40 + Installation cable + DCDC wiring kit

Kit 3 includes:

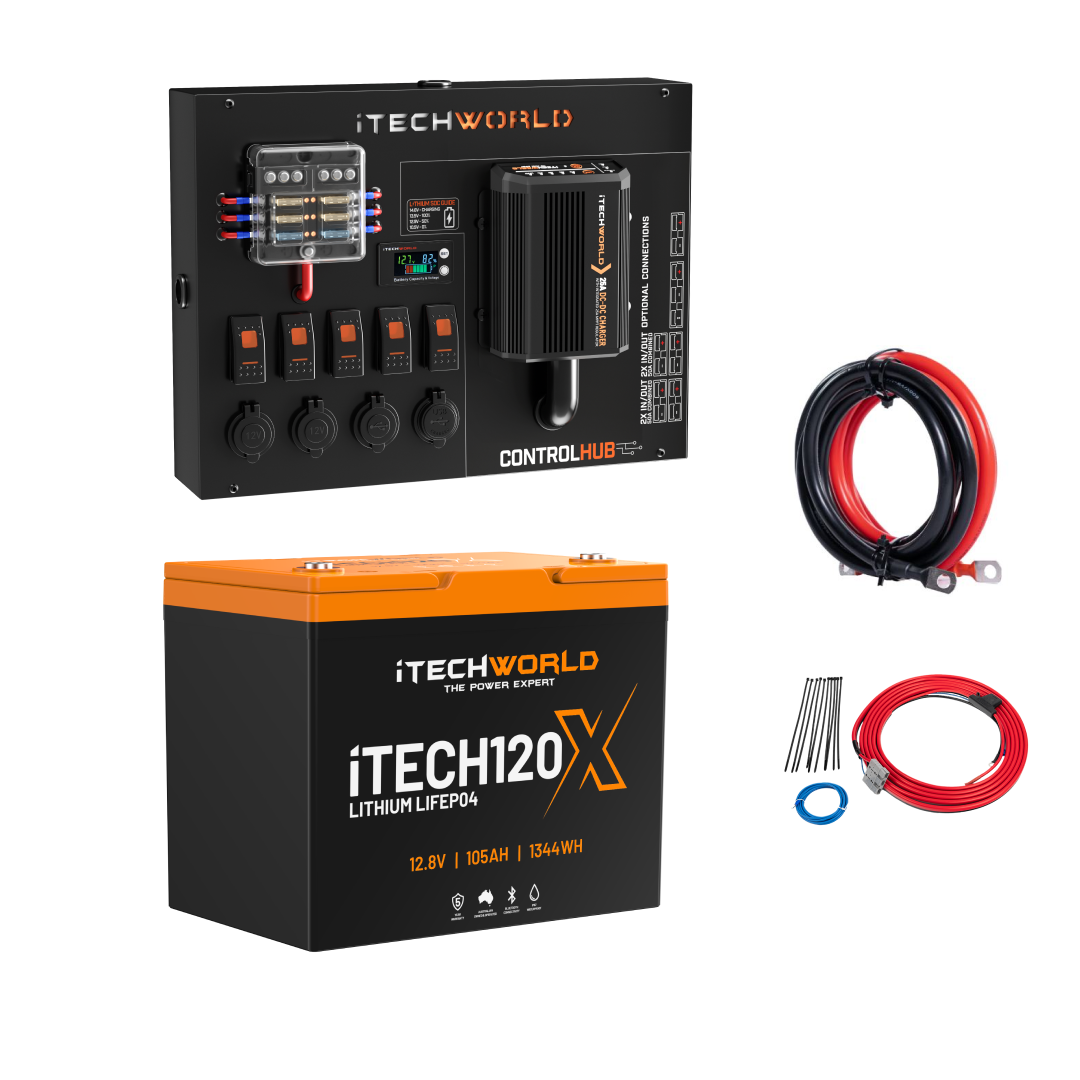

iTECH120X, iTechworld control hub with iTECHDCDC25 + Installation Cable

Kit 4 includes:

iTECH120X, iTechworld control hub with iTECHDCDC25 + Installation cable + DCDC wiring kit

Bluetooth App User Guide HERE

PRE ORDER - The DCDC wiring kit is pre order and will be available for despatch / pickup 2nd week of June.

iTECH120X
Nominal voltage:	12.8V
C20 rating usable Amps:	105Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge current:	1-50A
Maximum charge current:	100A
Recommended charge voltage:	14.4V
BMS charge cutoff voltage:	15V
BMS low voltage cutoff:	8.5-9V
Continuous discharge:	150A
Peak discharge:	270A (5 seconds)
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 100%:	5000+
Life cycles @ 50%:	10,000+
Dimensions (LxWxH):	255 x 170 x 215mm (225 H including terminals)
Weight:	10kg
Terminals:	M8
Case material:	ABS

DCDC40 Charger
Battery capacity:	80-800Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	45A
Input fuse rating:	60A
Continuous output current:	Up to 40A
Output fuse rating:	60A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	188 x 127 x 39mm
Weight:	950g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V

DCDC25 Charger
Battery capacity:	50-500Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	25A
Input fuse rating:	40A
Continuous output current:	Up to 25A
Output fuse rating:	40A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	150 x 127 x 39mm
Weight:	670g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V
