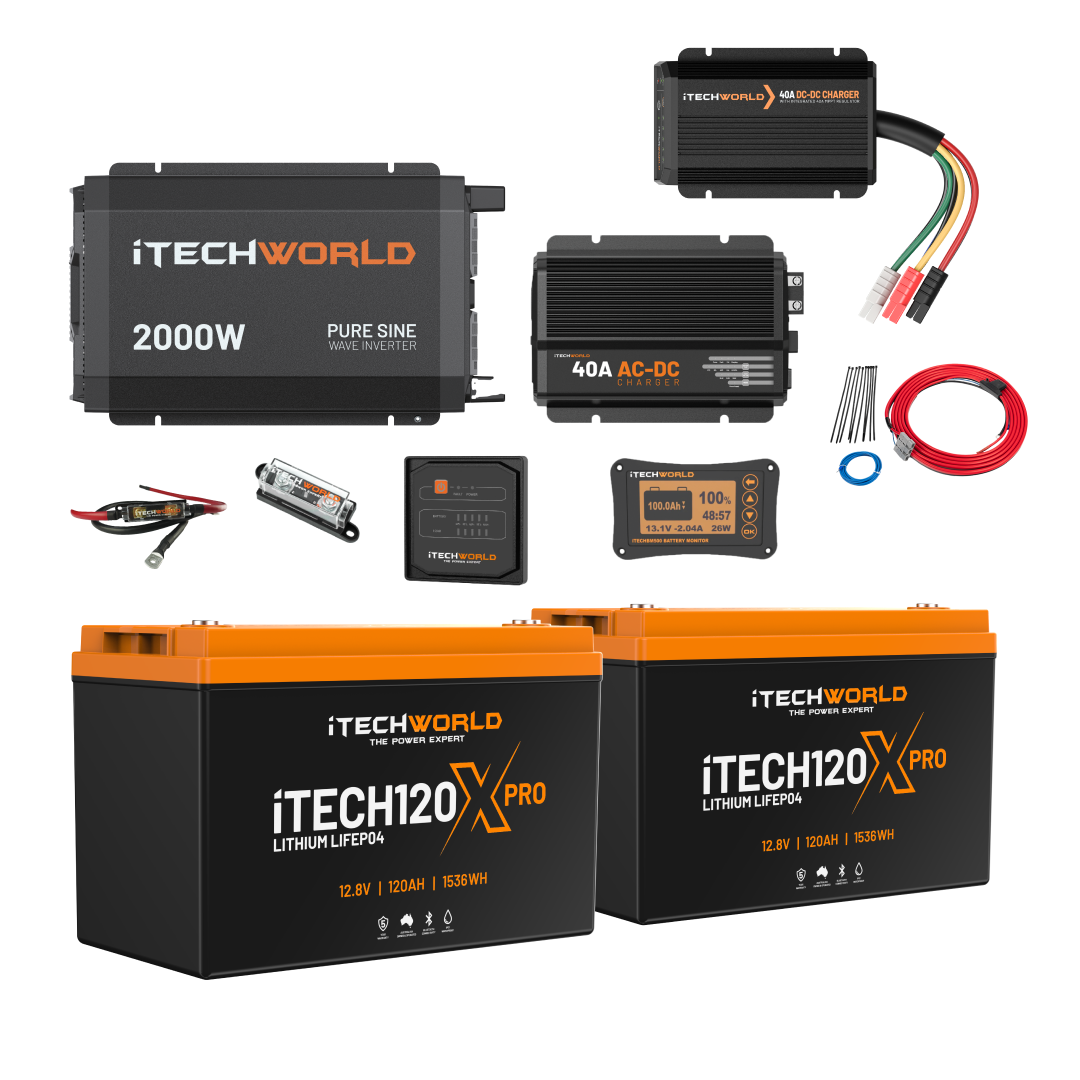

The Complete | Lithium 4WD/Caravan Kit | 240Ah features two lithium batteries, a 2000W inverter, a 40A DC charger, cables, and battery monitors—ideal for any 12V setup, all arranged on a white background.

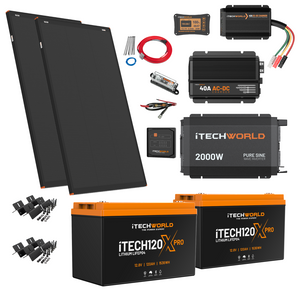

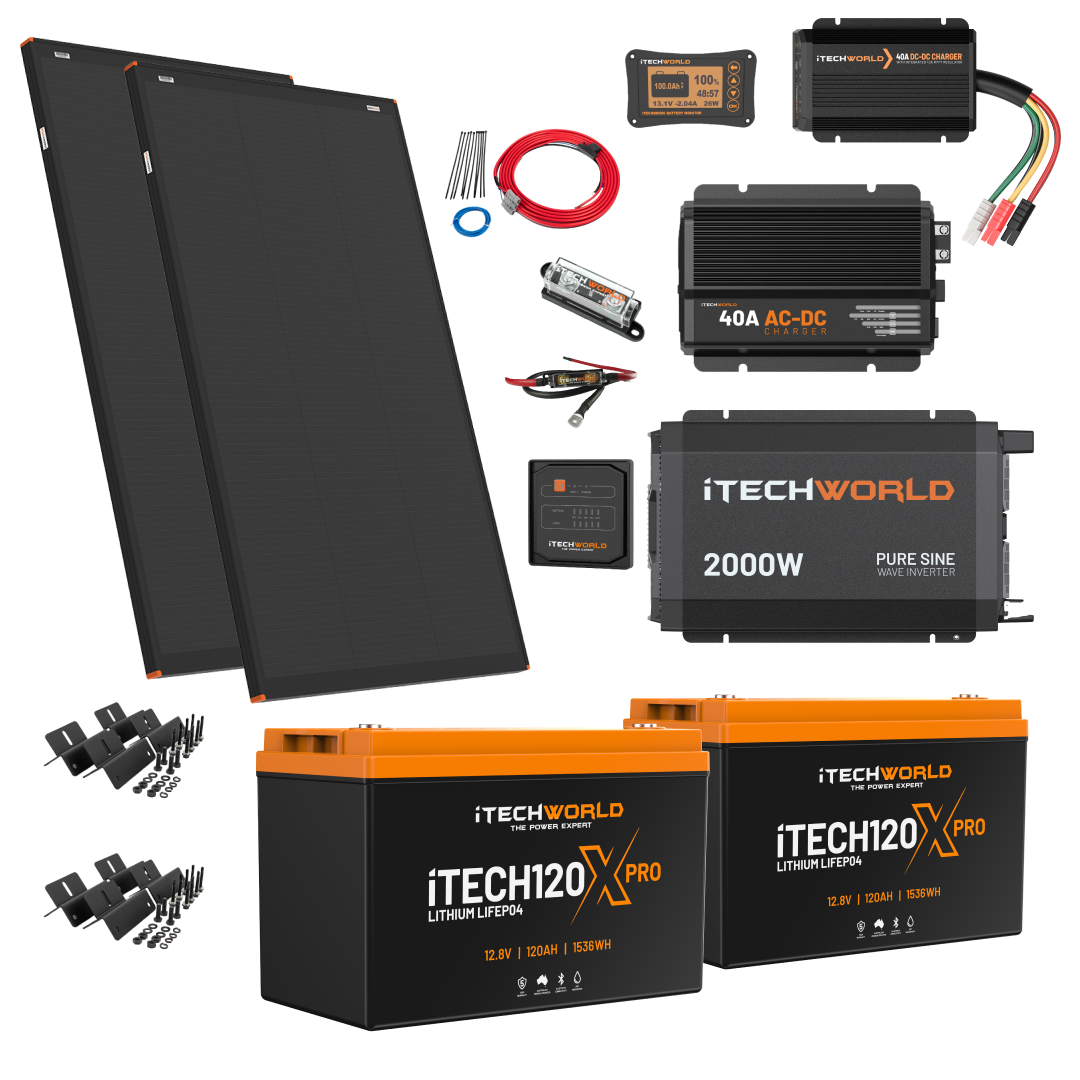

The Complete | Lithium 4WD/Caravan Kit | 240Ah features two solar panels, two lithium batteries, a 12V setup with 2000W inverter, charge controller, cables, brackets, and accessories—all organized on a white background.

Complete | Lithium 4WD/Caravan Kit | 240Ah - iTechworld

4.9

Complete

Lithium 4WD/Caravan Kit

240Ah

Name: Complete | Lithium 4WD/Caravan Kit | 240Ah
Brand: iTechworld
Price: 2866.35 AUD
Availability: InStock
Rating: 4.9 (19 reviews)

Regular price: $2,866.35
Sale price: $2,866.35
Regular price: ~~$3,921~~

Tax included. Shipping calculated at checkout.

240ah dual battery system
Bluetooth BMS

Solar:

No Solar $2,866.35 The Complete | Lithium 4WD/Caravan Kit | 240Ah features two solar panels, two lithium batteries, a 12V setup with 2000W inverter, charge controller, cables, brackets, and accessories—all organized on a white background.

2x 150W Solar Panels & Mounting Brackets $3,028.04

Product variants:

IEC:62619

Internationally Certified

100%

Usable Capacity

120Ah

LiFePO4 Lithium Battery

Bluetooth
Connectivity

5 Year

Warranty

IP67

Waterproof

& Dustproof

Call us now to build a custom 12 volt electrical setup for you: 1300 483 249.

Based on your power requirements, you can choose between our iTECH120X or iTECH120X PRO lithium batteries. You can also select a solar panel option where you will receive 2 x 150W Hard Frame Solar Panels with mounting brackets included.

Contents:

This kit listed above can also include 2 x 150W Hard Frame Solar Panels with mounting brackets included.

Support

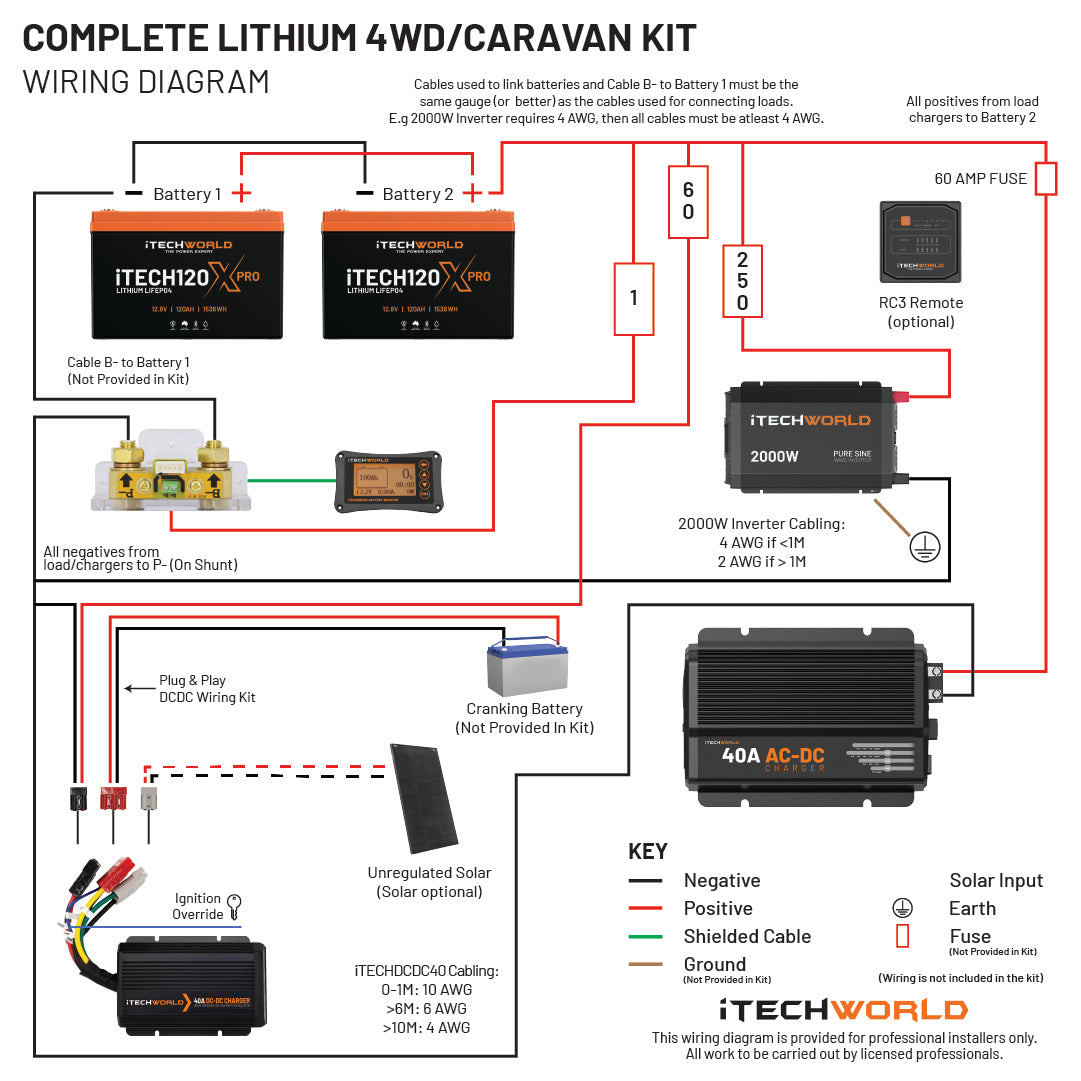

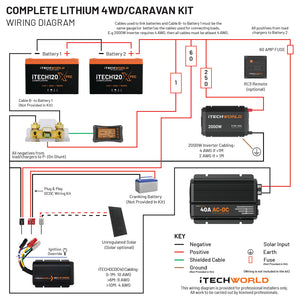

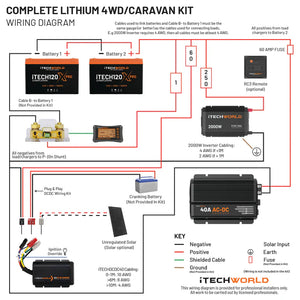

Wiring Diagram HERE.

iTECH120X PRO
Voltage:	12V
Nominal voltage:	12.8V
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge voltage:	14.4V
Recommended charge current:	1-60A
BMS charge cutoff:	15V
BMS low voltage cutoff:	8.5-9V
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 100% depth of discharge:	5,000+
Life cycles @ 50% depth of discharge:	10,000+
Terminal type:	M8
Case material:	ABS
Dimensions (LxWxH):	330 x 173 x 215mm (230 H including terminals)
Weight:	12.5kg

DCDC40 Charger
Battery capacity:	80-800Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	45A
Input fuse rating:	60A
Continuous output current:	Up to 40A
Output fuse rating:	60A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	188 x 127 x 39mm
Weight:	950g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V

iTECHBC40
AC input voltage:	220-240V
AC input frequency:	50-60Hz
Maximum input current:	4.8A
Maximum input power:	700W
Continuous output current:	Up to 40A
Output fuse rating:	60A (2 x 30A)
Minimum auxiliary battery charge start voltage	0V
Standby current:	<2mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 60°C
IP rating:	IP20
Dimensions	275 x 190 x 72mm
Weight:	2kg
Output
Charge type:	4-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Bulk:	40A
Absorption:	14.4V	14.1V	14.7V	15.5V	14.4V
Float voltage:	13.4V	13.5V	13.4V	13.6V

Battery Monitor
Model:	iTECHBM500
Supply voltage:	10-100V
Battery capacity:	10-999Ah
Maximum measured current::	500A
Power consumption (screen off):	<2mA
Power consumption (screen brightness @ 10%):	<20mA
Power consumption (screen brightness @ 100%)	<60mA
Voltage accuracy:	±1%
Current accuracy:	±1%
Capacity accuracy:	±1%
Operating temperature:	-20°C ~ 80°C
Exterior bracket dimensions (LxWxH):	106 x 81 x 18mm
Mounting bracket dimensions (LxW):	95 x 70mm
Monitor backing dimensions (LxWxH):	80 x 59 x 16mm
IP rating:	IP20

2000W Inverter
Maximum continuous output:	2000W
Peak output:	4000W
Battery compatibility:	Standard lead-acid, AGM, Gel or LiFePO4
Input voltage range:	10.5-15.5V
Output plug rating:	10A
Output voltage & current:	240V - 50Hz
No load draw:	<1.3A
Efficiency:	89% ~ 92%
Output waveform:	Pure Sine Wave
Total Harmonic Distotion (THD):	<3%
IP rating:	IP22
Operating temperature:	-10°C ~ 50°C
Storage temperature:	-30°C ~ 70°C
Over voltage protection:	15.5±0.2V DC
Under voltage protection:	10.5±0.2V DC
Short circuit protection:	1 second
Dimensions (LxWxH):	440 x 265 x 97mm
Remote terminal:	RJ12
Remote dimensions (LxWxH):	86 x 86 x 19mm
Safety certifications:	The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations

00AWG inverter cable w/ 250A fuse
Cable gauge:	00AWG/70mm²
Cable length:	1m
Fuse type:	250A ANS
Terminals:	M8

Optional 150W Solar Panel
Rated maximum power (Pm):	150W
Power tolerance:	±3%
Voltage at Pmax (Vmp):	18.28V
Current at Pmax (Imp):	8.207A
Open-circuit voltage (Voc):	22V
Short circuit current:	8A
Normal Operating Cell Temperature (NOCT):	45+2°C
Maximum system voltage:	1000VDC
Maximum series fuse rating:	15A
Operating temperature:	-40°C ~ 85°C
Dimensions (LxWxH):	1160 x 670 x 30mm
Weight:	9.32kg
