iTechworld

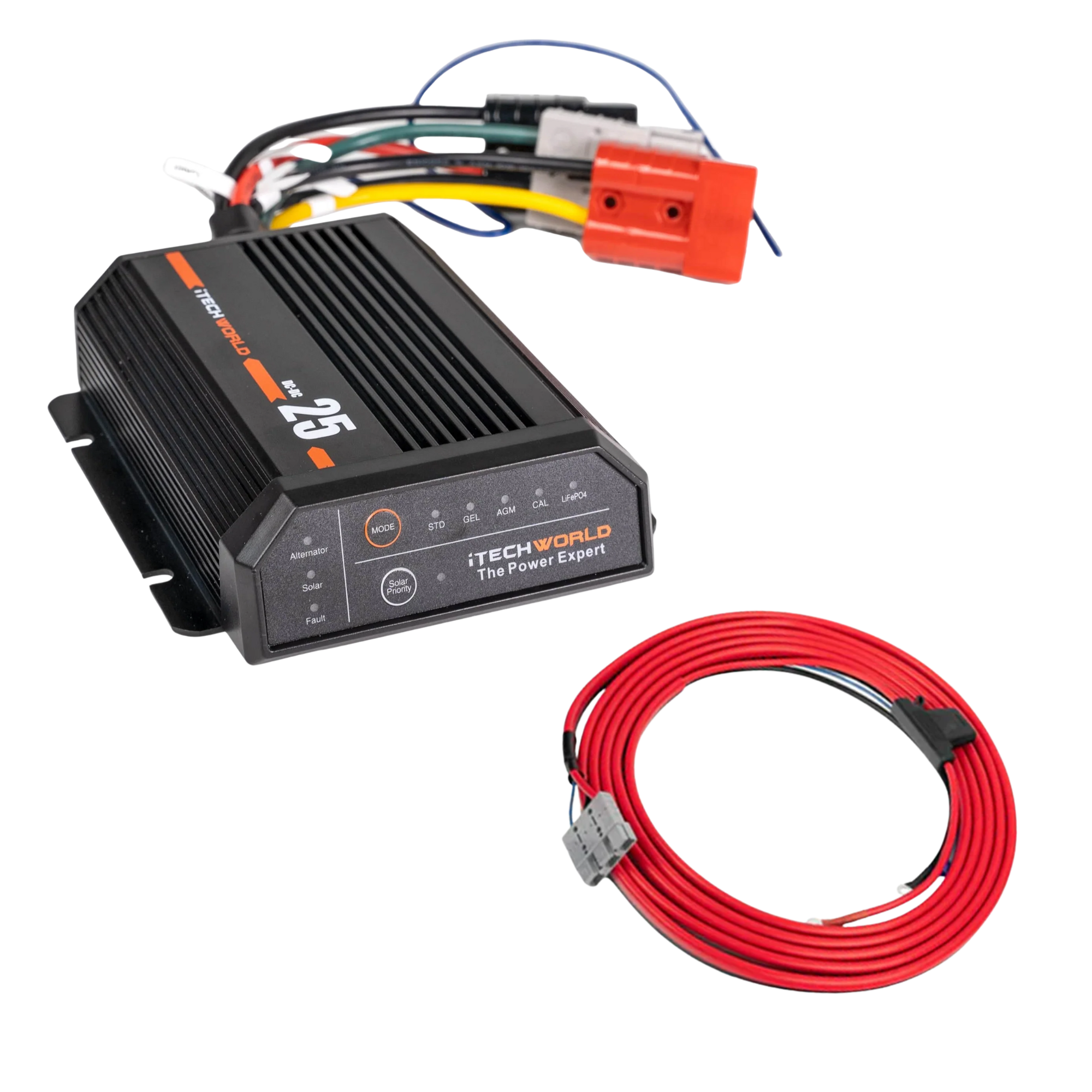

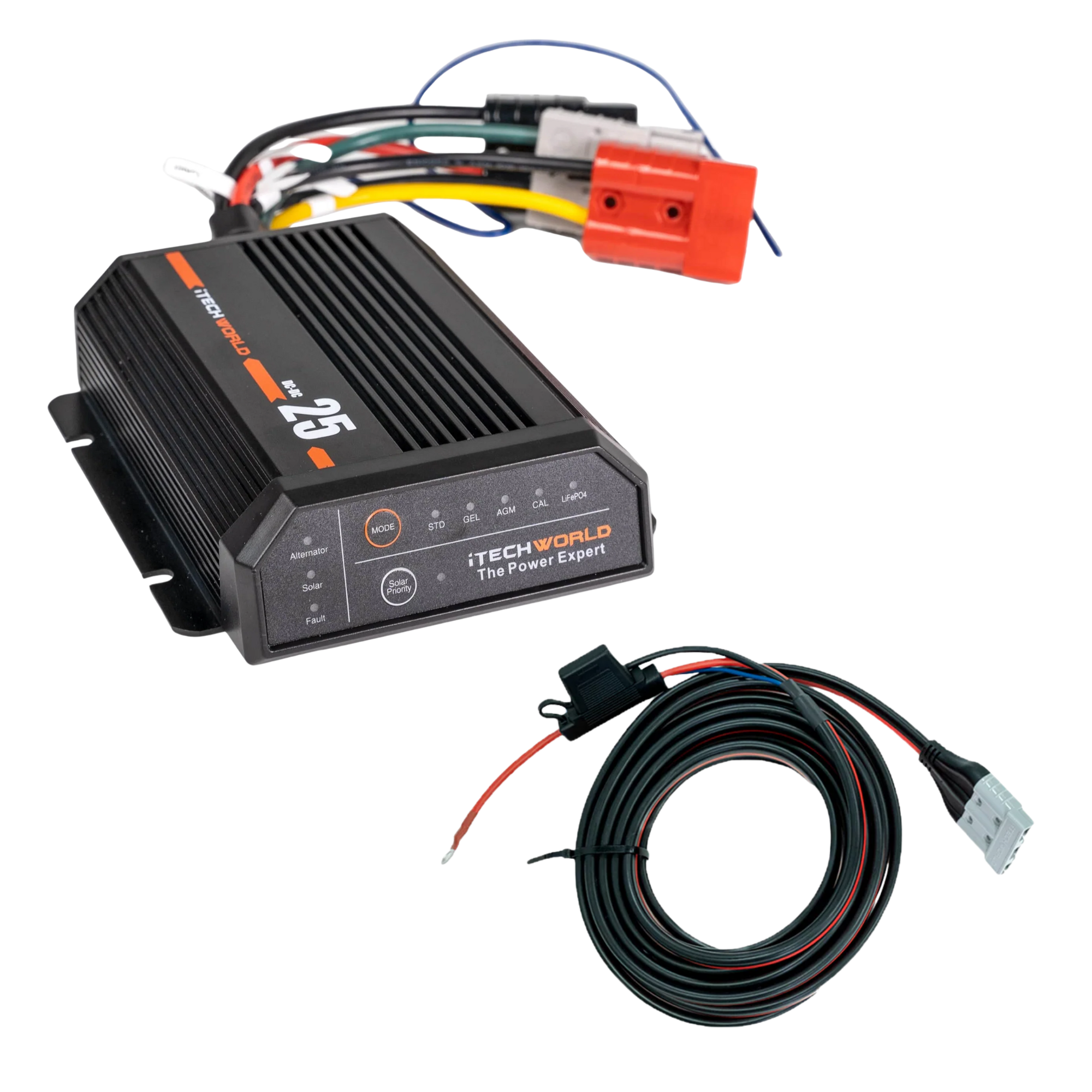

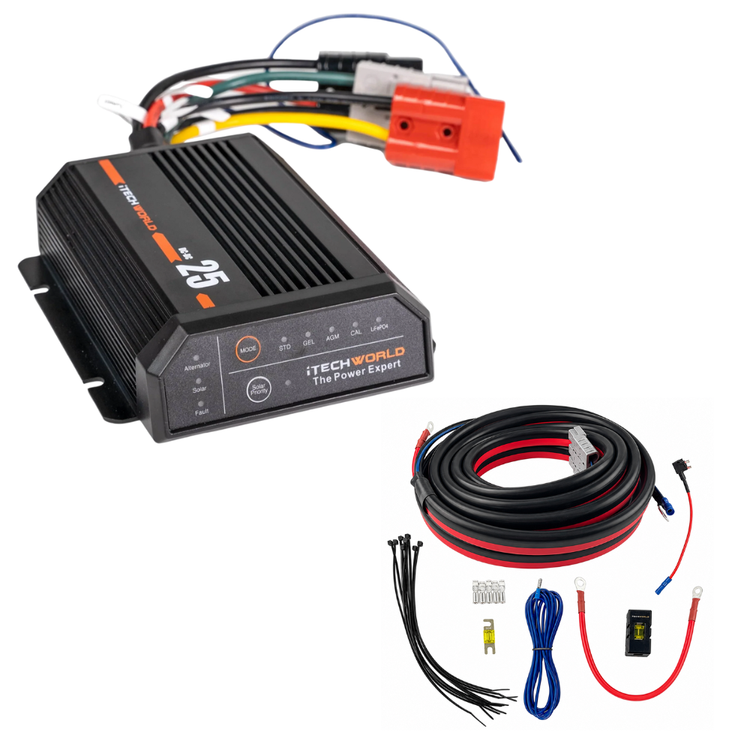

25A DCDC + MPPT Battery Charger Bundle

with Wiring Kit

Frequently Asked Questions

1. How does the Solar Power Priority (SPP) feature in the iTECHDCDC25 work, and when should I use it over alternator input?

   SPP allows you to choose to have the charger use solar power first, even while driving, so your alternator does less work. Use it when you have good sun and want to save fuel and reduce engine load.

2. What are the benefits of using the iTECHDCDC25 with solar panels instead of relying solely on the vehicle's alternator for charging?

   Charging from solar cuts engine run‑time, lowers fuel use, and reduces wear on your alternator, plus it keeps you topped up when parked or idling.

3. Can the iTECHDCDC25 handle a 24V solar panel setup, and how does it manage the input from both the vehicle and solar panels simultaneously?

   It accepts solar input from 10–32V, making it compatible with 12V or 24V panels. When both alternator and solar are present, it charges from whichever you’ve set as priority (whether you're using SPP) and falls back automatically if one source drops out.

4. What is the maximum solar input voltage supported by the iTECHDCDC25, and does it support larger residential solar panels?

   Solar inputs must stay between 10V and 32V. Most small to mid‑size caravan panels fit, but residential‑scale panels with open-circuit voltage (Voc) above 32V aren’t supported.

5. How does the iTECHDCDC25 automatically bring iTechworld lithium batteries out of safe mode if the voltage drops below 10V?

   If a LiFePO4 battery goes into "safe mode", simply remove any load, and the charger will apply the correct “wake‑up” voltage, bringing the battery back online without manual intervention.

6. What happens if I connect the iTECHDCDC25 to a battery that isn't compatible, and how can I avoid potential damage?

   The iTECHDCDC25 will still attempt to charge using the selected profile. If that profile doesn’t match your battery chemistry, incorrect voltages may be applied, potentially damaging the battery or creating a fire risk. ALWAYS use the appropriate charging profile.

7. How does the iTECHDCDC25's waterproof and dustproof design make it suitable for installation in harsh environments?

   With an IP67 rating, it’s entirely dust protected and can survive brief immersion, ideal for under‑bonnet, marine, or dusty off‑road conditions.

8. What is the significance of the iTECHDCDC25’s ability to accept input from both 12V and 24V systems?

   It works seamlessly in both 12V and 24V vehicles and solar setups, no separate models needed, so you can swap it between cars, trucks, or solar arrays without hassle.

9. How do I install the iTECHDCDC25 under the bonnet, and are there any specific installation requirements to ensure optimal performance?

   Mount it upright on a flat surface with good airflow, away from direct water spray. Use the supplied Anderson connectors and a 40A fuse on each positive lead near the battery.

10. What types of solar panels are recommended for use with the iTECHDCDC25, and what specifications should I look for?

    Choose 12V or 24V panels with an open‑circuit voltage (Voc) under 32V and total current under 25A.

11. How does the iTECHDCDC25 prevent overcharging and ensure the safety of my battery, especially in extreme weather conditions?

    It utilises a three-stage MPPT charge profile, comprising bulk, absorption, and float stages, which automatically adjusts voltage and current.

12. How can I ensure that the iTECHDCDC25 is configured correctly for the type of battery I am using (e.g., LiFePO4, AGM)?

    Press and hold the Mode button to cycle through five profiles. The LED flashes confirm the chosen battery type. Pick the matching profile before you connect.

13. What are the recommended fuse sizes for the iTECHDCDC25’s input and output connections, and how do they affect the charger’s performance?

    Use a 40A fuse on both alternator and solar input lines, and another 40A fuse on the output to your battery.

14. How does the iTECHDCDC25 improve fuel efficiency when used with solar power rather than relying solely on the vehicle’s alternator?

    By prioritising solar when SPP is enabled, your engine runs less, and the alternator load drops, resulting in lower fuel consumption and reduced engine wear.

15. Can I use the iTECHDCDC25 with a setup that includes both solar and vehicle charging sources simultaneously, and how does it prioritize them?

    Yes. With SPP off, it will use the alternator first, then the solar panel if the alternator voltage falls. With SPP on, it operates in the reverse order—solar first, then the alternator as backup.

16. What is the maximum power output of the iTECHDCDC25, and how does it affect charging times for large batteries?

    It delivers up to 25A. Larger batteries simply take longer to charge at a fixed current.

17. How does the iTECHDCDC25 handle extended charging periods when the vehicle is off, especially in remote locations without access to grid power?

    When the engine is off and solar power is available, it automatically switches to MPPT solar charging, keeping your battery topped up throughout the day without draining your starter battery.

18. What maintenance does the iTECHDCDC25 require to ensure it remains in good working condition over time?

    Very little! Just keep the case clean, check the Anderson connections for corrosion, and verify that the fuses are intact. Its IP67 design means it’s built for long-term outdoor use.

19. If my solar input voltage falls below the required level, how does the iTECHDCDC25 handle switching to vehicle input or switching off charging?

    If solar voltage drops under 10V, charging pauses. If the engine is running and SPP is off, it then picks up alternator charging. If neither source meets the minimum voltage, the charger remains in standby until voltage returns.
