iTechworld

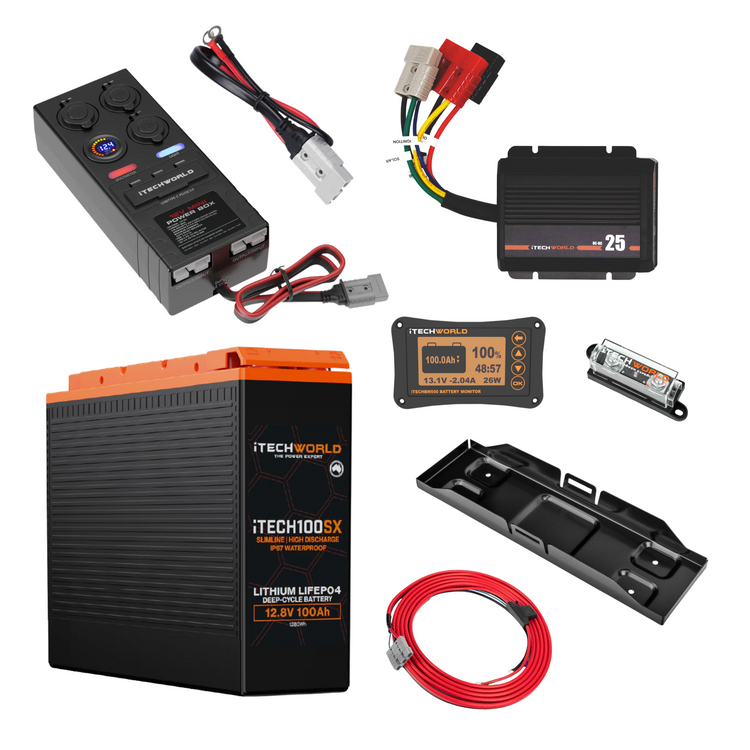

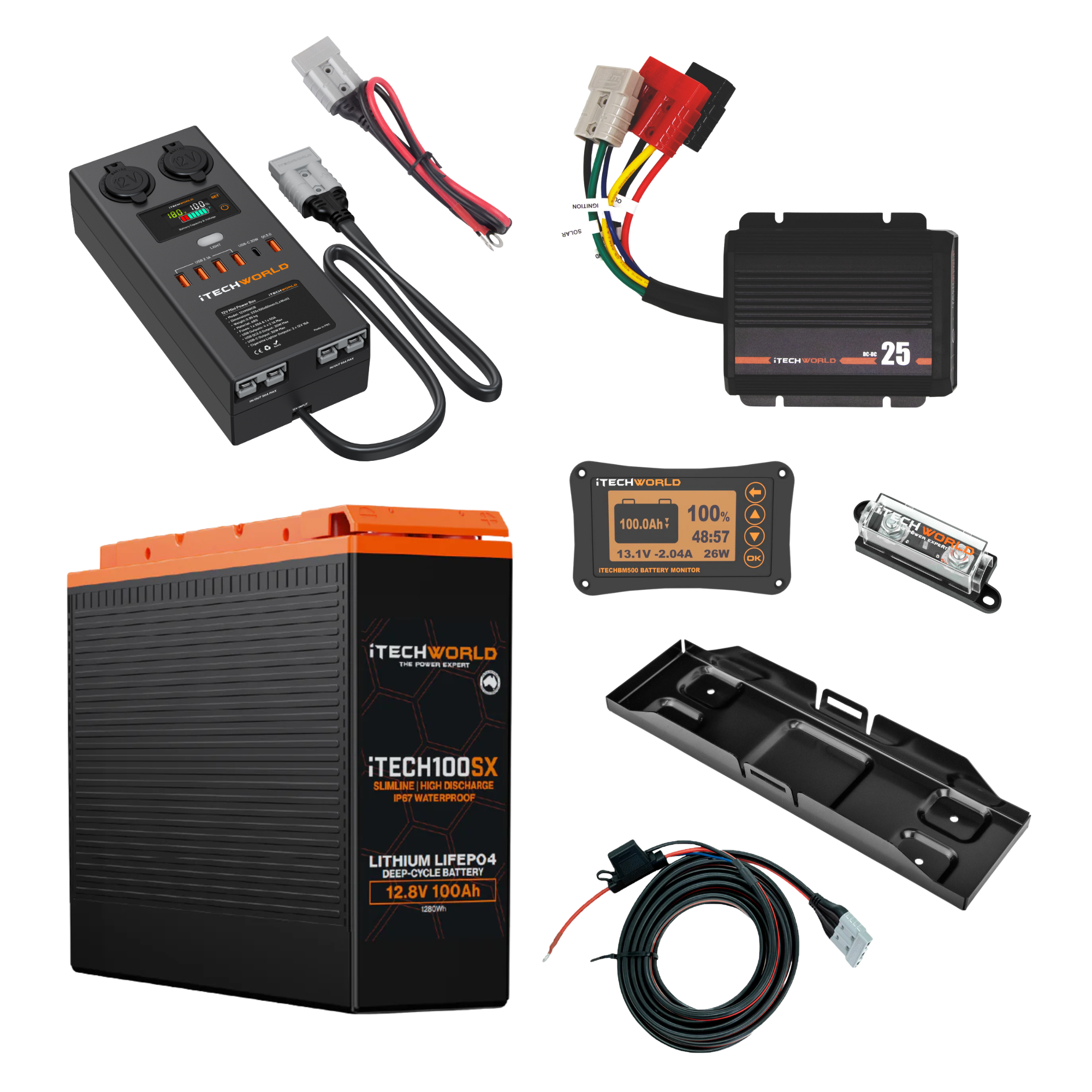

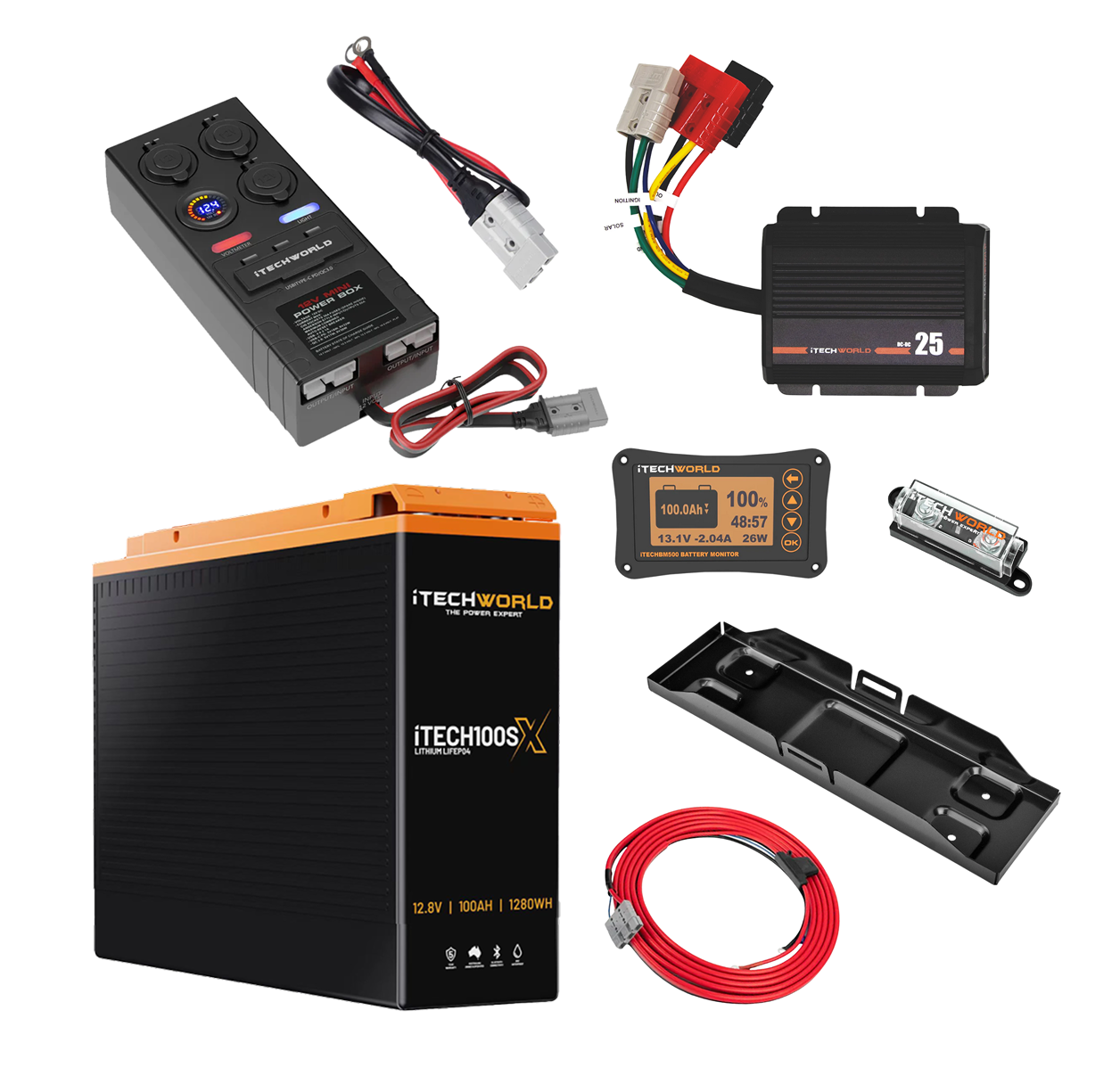

Premium Slimline 4WD Dual Battery Kit

100Ah Lithium

The iTECHDCDC25 keeps your battery charged no matter the battery type or size.

The all-new iTECHDCDC25 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC25 will continue charging via your solar panels/blankets (if added).

Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC25 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.

Designed and developed in Australia for Australia, the iTECHDCDC25 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC25 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.

Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC25 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.

A unique feature of the new iTECHDCDC25 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC25 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.

The new iTECHDCDC25 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v.

There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC25 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC25 will take care of the rest, it's that simple.

Package Contents:

1 x iTECHDCDC25

6 x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC25)

1 x Instruction manual also found HERE

Embrace the great outdoors with the ultimate 12V Mini Control Box , designed for adventure enthusiasts who love caravanning, camping, 4WDing, and exploring the outback. The compact size is ideal for portability, providing exactly what you require to power all your small appliances.

The iTechworld 12V Mini Control Box is effortlessly powered by a battery through a 50A Anderson plug.

Optional 50 Amp Anderson to Eyelets adapter will allow you to seamlessly connect the iTechworld 12V Mini Control Box to a battery if an Anderson connection is not available.

Our expert engineers have handpicked the essentials for your 12V system, making the iTechworld Mini Control Box perfect for setting up your canopy, van, 4WD, caravan or anything in between. Utilising the highest quality outputs including, 6 USB Ports, 3 12V Cig Sockets and 2 Anderson-style input/outputs. Power a variety of appliances including smartphones, tablets, 12V fridges, lights, drones, TVs, heated blankets, fans, projectors, and more!

At iTechworld, we prioritise exceptional quality in our products. The iTechworld Mini Control Box features pre-wired internal cables, enhanced to create a fully fused and vibration-resistant system. With the use of thick, 1 metre long cabling, the mini control box ensures a steadfast connection between your battery and accessories, delivering dependable power wherever your adventures take you.

Our iTechworld Mini Control Box is designed with user convenience in mind, featuring an internal fuse that is easily accessible for hassle-free fuse replacement.

Pre-designed holes and integrated brackets make it easy to install the iTechworld Mini Control Box.

The iTechworld Mini Control Box's matte black, ABS plastic design not only looks great but is built to withstand your rugged adventures.

Equip your caravan, camper, or 4WD with the iTechworld Mini Control Box and experience unparalleled power and convenience on your next outdoor adventure!

The iTechworld Mini Control Box is equipped with a 50A automatically resettable circuit breaker, it also includes a seperate 30A fuse designed specifically for the female cigarette sockets.

The iTECHBM500 Battery Monitor with Shunt is a high-precision, real-time monitoring system for complete control over your power usage. Using a 500A current shunt, it accurately measures discharge and recharge currents while calculating the total Ampere-hours (Ah) flowing in and out of your battery. This level of precision monitoring gives you insight into the true state of your battery’s health and performance.

The field-installed sense wiring delivers real-time, high-accuracy voltage measurements to prevent over-discharge and maximise battery life. Just like all iTechworld power solutions, our battery monitors with shunts are durable, making them ideal for use in caravans, 4WDs, campers, marine environments, and off-grid setups and compatible with lithium-ion, lead-acid, and nickel-metal hydride batteries.

The Key Benefits at a Glance:

• Real-time monitoring: Accurately tracks voltage, current, power and amp-hours for complete visibility.

• High-precision battery monitor with shunt: Promises reliable and consistent data.

• Battery protection: Helps prevent over-discharge and supports longer battery life.

• Easy installation: Includes all required wiring and mounting hardware.

• Rugged design: Built for the harsh Australian outdoors; resistant to vibration, dust and moisture.

• Broad compatibility: Works with lithium (LiFePO4), AGM, gel, and lead-acid batteries.

Package Contents

• 1 x iTECHBM500 Battery Monitor

• 1 x Shielded Wire (8m)

• 1 x 500A Shunt

• 1 x Plastic Bracket

• 4 x Screws

• 1 x Shunt Holder

• 1 x B+ Sense Wire 22AWG (1m)

• 1 x Instructions

Support

iTECHBM500 Wiring Diagram

Download the User Guide

Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.

Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.

The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.

The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.

The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.

Secure your iTECH100SX Slimline Battery with iTechworld's battery tray; equipped with a heavy duty tie down strap your battery will sit nice and secure.

Including four mounting holes and durable metal construction, it's suitable for a range of installations, making it the perfect solution for those who wish to mount their slimline battery securely behind the rear seats of modern 4WDs or in its canopy.

Suitable for batteries with the dimensions (LxWxH): 394x110x286mm

For use with iTechworld DCDC Chargers, please read your instruction manual to confirm what size fuse is suitable for you.

iTECHDCDC25: 40 Amp

iTECHDCDC40: 60 Amp

iTECHDCDC60: 80 Amp

Package contents

• 1x Fuse holder

• 1x Fuse of your selected size
