iTechworld

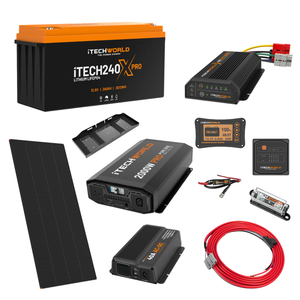

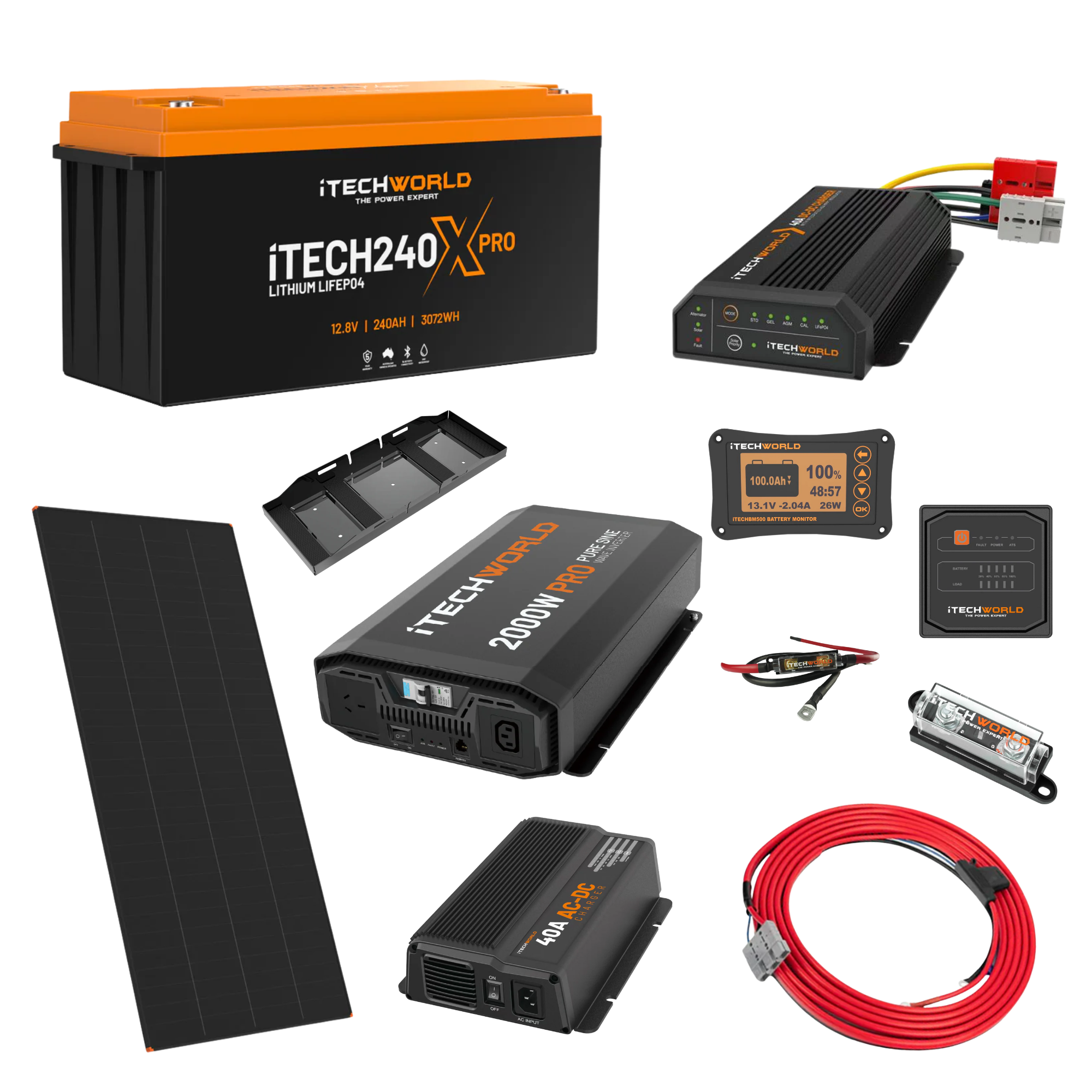

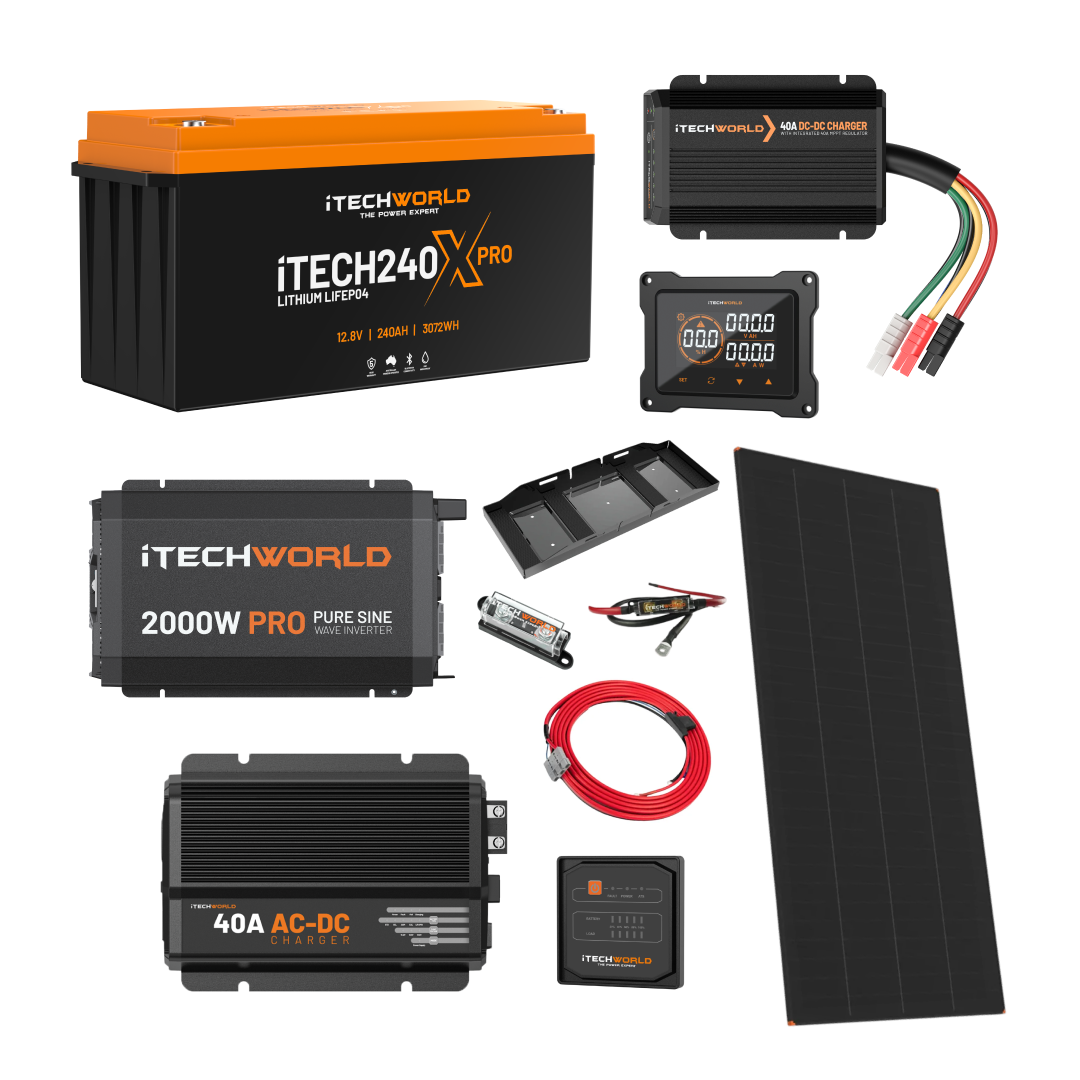

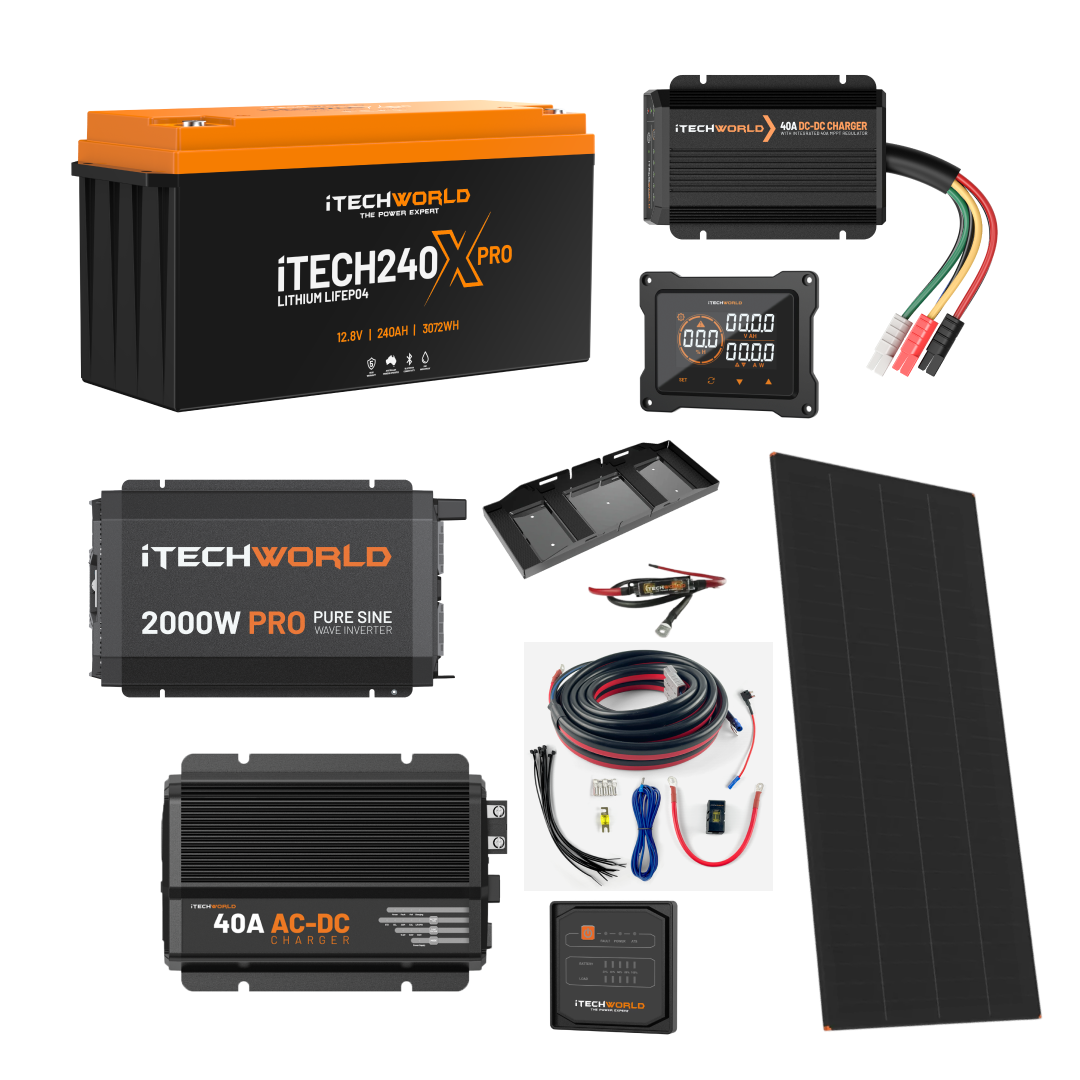

Ultimate 4WD Dual Battery Kit

240Ah Lithium

The iTechworld PRO Inverter range was designed and developed to convert your 12V power from your battery system into safe and reliable 240V power. This allows you to operate appliances you’d typically have to stay at home to use, from the comfort of your caravan, camper, or 4WD. The PRO range comes with an inverter with RCD and automatic transfer switch as standard.

• Pure sine wave output for clean and stable power delivery.
• Vibration-proof technology, built for corrugated tracks and roads

• Load-controlled cooling fan for optimal temperature management.
• Enjoy smoother and more efficient appliance operation, minimising heat and noise.
• Power any 240V equipment, opening a world of possibilities for your adventures.
• Take all the comforts of home with you on your travels, confident in the safety and reliability of your power supply.
• RC3 PRO Intelligent On/Off Remote Control For iTechworld Pure Sine Wave Inverters With RCD and ATS and 00 gauge with installed 250 Amp Fuse sold separately.

With its pure sine wave output, our 2000W 12V inverter ensures seamless and efficient operation of your appliances, reducing heat and noise for optimised performance. Designed with robustness in mind, it can withstand the harshest Australian conditions.

Utilising an Australian standard 240V 3-pin outlet, you can easily run high-draw appliances on the go. To achieve maximum output the iTechworld 2000W PRO also has the option of being hardwired via the terminal block into your electrical system; this will allow for loads of 10A or more to be powered via the iTechworld 2000W PRO inverter safely and efficiently.

Safety is paramount with the iTechworld 2000W PRO inverter, featuring multiple levels of protection against overload, short circuits, and over-temperature. The load-controlled cooling fan maintains optimal operating conditions by engaging at specific power consumption levels.

The built-in Automatic Transfer Switch (ATS) enables smooth switching between your primary power source and the inverter, making it ideal for various applications, such as caravans, motorhomes, and off-grid setups. Additionally, because this is an inverter with an RCD (Residual Current Device), you get an extra layer of protection by instantly disconnecting the power during a fault for utmost safety.

For added convenience, consider our optional remote on/off switch (RC3), sold separately, which allows you to control the inverter remotely from up to 5 metres away. With the RC2, conveniently manage your 240V power supply even when the inverter is out of sight.

Experience the freedom and assurance of reliable power with the iTechworld 2000W PRO Pure Sine Wave Inverter. Embrace your journey with confidence, knowing you have a reliable and safe power source.

PACKAGE CONTENTS

• 1x iTECHWORLD 2000w PRO Pure Sine Wave Inverter with RCD
• 1x User Guide

00 Gauge with installed 250 Amp Fuse sold separately.

WARRANTY

Statutory warranty is 12 months from date of purchase.

The iTECHDCDC40 keeps your battery charged no matter the battery type or size.

The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).

Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC40 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.

Designed and developed in Australia for Australia, the iTECHDCDC40 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC40 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.

Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC40 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.

If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.

A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.

The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.

Package Contents

• 1x iTECHDCDC40
• 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
• 1x Instruction manual also found HERE

The iTECHBC40 40A AC Intelligent Battery Charger is a fully automatic "set and forget" charger. It has been designed and developed to charge Lithium LiFEPO4 batteries fast, efficient and effective, with unique algorithms that help maximise your battery's service life. The iTECHBC40 is a smart multistage battery charger that utilises the latest switch-mode battery charging technology, allowing your charger to be permanently connected to your battery bank.

The multistage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. Using charge algorithms that are tailor-made for Lithium LiFePO4 batteries, the iTECHBC40 not only charges the battery but looks after it. The iTECHBC40 is unlike any other battery charger on the market; with lithium LiFePO4 batteries as the focus, it will maximise and extend your battery's service life.

The iTECHBC40 has an innovative boost charge feature; this helps activate an iTechworld lithium battery from safe mode.

Designed and developed in Australia, the iTECHBC40 is built for the harsh Australian climate. The iTECHBC40 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.

The iTECHBC40 battery charger uses a micro control system to manage the battery charging process.

Package Contents

• 1x iTechworld iTECHBC40 40A Battery Charger
• 1x Power lead
• 1x Set of 12v 800mm heavy duty battery leads with M8 eyelets/ring terminals
• 1x Instruction manual HERE

Support

The statutory warranty is 24 months from the date of purchase.

Download the user manual HERE

Heavier 6AWG cable and a 60A midi fuse mean less voltage drop and more protection at full 40A load. The included fuse tap makes ignition wire routing clean and simple no splicing into factory wiring.

Six metres of cable plus a 3m ignition extension. Three-pin Anderson connector. Clips straight on.

What's upgraded:

• 6AWG cable (thicker, less voltage drop)
• 60A midi fuse replaces blade fuse
• Fuse tap included
• Same plug-and-play Anderson connector you know

Everything you need to get your dual battery system wired properly, the first time.

Note: This wiring kit is suitable only for the DCDC40

iTechworld is proud to present the 22V Hard Frame Solar Panel – designed and developed in Australia, for Australia. These 200W solar panels utilise advanced HPX PRO technology that offers unparalleled efficiency and durability. These panels also come with an IP67 waterproof rating to withstand the rigours of the Australian outback. At just 17mm thin, the 200W 22V Hard Frame panel is lighter than conventional panels.

The benefit of a 200W solar panel is that you can access power wherever you can access the sun! The 200W 22V Hard Frame Solar Panel has been constructed robustly to withstand the Aussie outback. This ensures that you can mount your panel anywhere and power up your devices no matter where you're parked—keeping you off-grid for longer!

The 200W 22V Hard Frame Solar Panel can be mounted on your car, caravan or even your boat, utilising our custom-made mounting brackets. Its design ensures optimal energy absorption, keeping your system powered no matter what adventure you’re on.

To help secure your solar panels, we offer easy-to-use mounting brackets, sold separately. These brackets are designed for hassle-free installation, ensuring your solar panels are securely mounted on your caravan or 4WD.
Click here to purchase the mounting brackets.

Package Contents

• 1 x 200W 22V Hard Frame Solar Panel

Support

The statutory warranty is 12 months from the date of purchase.

The 00AWG Inverter Cable - 250A Fuse comes with two 70mm2 cables and a 250A maxi fuse used for connecting your 2000w inverter and battery.

CONTENTS

• 00AWG cable w 250A Maxi Fuse (red);

• 00AWG cable (black);

The iTECHBM500 Battery Monitor with 500A Shunt

Guessing at battery voltage tells you almost nothing about how much power you've actually got left. The BM500 puts a 500A shunt in the negative line and counts every amp-hour going in and out, so the display shows real state of charge rather than a rough voltage reading.

Real-Time Amp-Hour Counting

The 500A shunt tracks charging and discharging current and calculates the amp-hours flowing in and out of the battery. A separate field-installed sense wire reads voltage directly at the battery, so what you see on screen is what the battery is actually doing — not an estimate taken from somewhere down the circuit.

Accurate to 1%

Voltage and current are both measured to within ±1%. That accuracy is what makes the state-of-charge figure worth trusting when you're deciding whether to run the fridge another night or start the generator.

Works Across the Range

Compatible with lithium, lead-acid and nickel-metal hydride batteries, with a supply voltage range of 10–100V and a capacity range of 10–999Ah. That covers a single 100Ah 12V house battery through to a large 24V or 48V off-grid bank.

Digital LCD Display

Everything on one screen, with adjustable brightness. The monitor itself draws under 2mA with the screen off, under 20mA at 10% brightness and under 60mA at full brightness, so it isn't meaningfully adding to your overnight draw.

Mounting and Installation

The display mounts through a 106 x 81 x 18mm bracket with 95 x 70mm fixing points, and connects to the shunt via the supplied 3m shielded cable so you can put the screen where you'll actually see it. Bracket, screws, shunt holder and sense wire are all in the box. The monitor is rated IP20, so mount it inside the van, canopy or cabin where it's protected from moisture.

Warranty

Covered by a 12-month statutory warranty from date of purchase, in addition to your rights under the Australian Consumer Law. Support is handled here in Australia — speak to a Power Expert on 1300 483 249, Monday to Friday 8:30am to 5pm AWST.

What's in the Box

• 1 x iTECHBM500 Battery Monitor
• 1 x 500A shunt
• 1 x Shunt holder
• 1 x Shielded wire (3m)
• 1 x B+ sense wire, 22AWG (1m)
• 1 x Plastic bracket
• 4 x Screws
• 1 x Instructions

The iTECH240XPRO Battery Tray is built to house the iTECH240X PRO securely, whether it's mounted in a canopy setup, a caravan battery bay, or bolted into the back of a 4WD running a larger-capacity battery.

Fitted specifically to the footprint of the iTECH240X PRO, this tray takes the guesswork out of mounting a larger battery. There's no cutting, packing, or improvising a fit — the tray is sized to the battery from the outset, so it sits flush with no rattling or shifting in transit, even with the added weight of a higher-capacity cell.

Constructed from coated steel with a 1.4mm wall thickness, the tray is built to take the daily knocks of off-road tracks, corrugated roads, and general camping and trade use. M8 mounting holes make for a straightforward bolt-down install to your vehicle, canopy, or battery box.

Every iTECH240XPRO Battery Tray ships with a cam-buckle tie-down strap, so the battery is held firmly in place against the tray without needing to source a separate strap. Tension it down, and the battery stays put — no matter how rough the road gets.

This tray is specifically designed to accommodate the iTECH240X PRO Lithium Battery.

What's in the Box

• 1 x iTECH240XPRO Battery Tray
• 1 x Tie-Down Strap (cam-buckle style)

Warranty Note

This battery tray is covered by a 1-year warranty. For warranty enquiries or support, contact the iTechworld Power Experts team on 1300 483 249 or via itechworld.com.au.

For use with iTechworld pure sine wave inverters, please read your instruction manual to confirm what size maxi fuse is suitable for you.

iTechworld 1000W/2000W pure sine wave inverter: 175Amp

iTechworld 2000W/4000W pure sine wave inverter: 250Amp

iTechworld 3000W/6000W pure sine wave inverter: 450Amp

Package contents

• 1x High current fuse holder

• 1x Maxi fuse of your selected size
