iTechworld

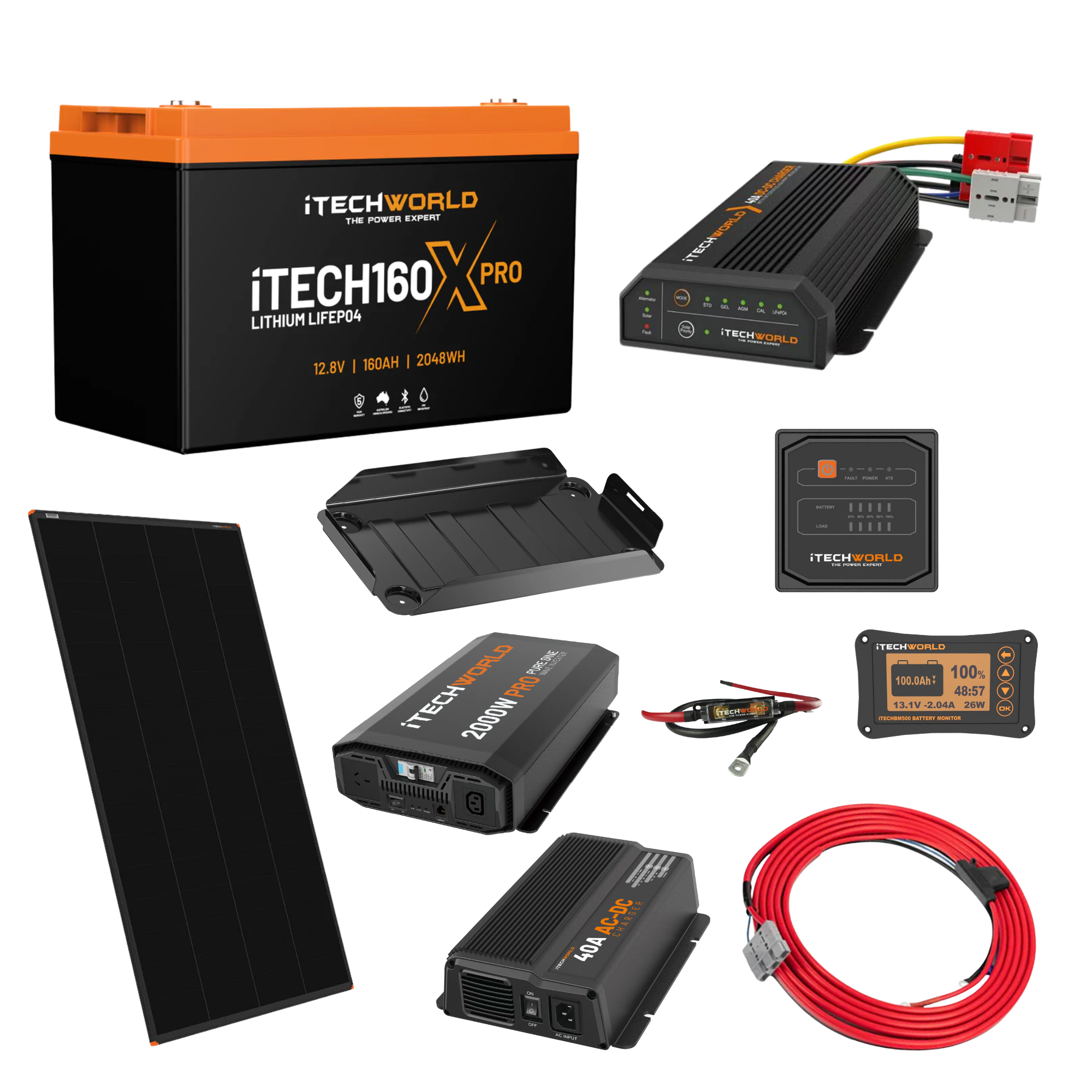

Ultimate Canopy Dual Battery Kit
160Ah Lithium
- Regular price
- $2,684.70
- Sale price
- $2,684.70
- Regular price
-
$3,791
Tax included.
Shipping calculated at checkout.
Pickup not available
Build a premium canopy system with the iTechworld Ultimate Canopy Dual Battery Kit. Centred on the iTECH160X PRO 160Ah Lithium LiFePO₄ Battery, this setup delivers pure sine wave power, fast AC/DC charging, solar input and precision monitoring — all engineered for Australian conditions and ready to expand with a second battery when you are.
The iTECH160X PRO packs 100% usable 160Ah in an IP67 housing with A-grade prismatic cells and Bluetooth app visibility — lightweight, space-efficient and built to last. Keep it charged on the move with the iTECHDCDC40 40A DCDC + MPPT Charger, and top up at camp with the iTECHBC40 40A AC Charger.
Run high-draw appliances through the 2000W PRO Pure Sine Wave Inverter with integrated ATS and RCD for safe 240V output, managed from the RC3 PRO Remote. Heavy-duty 00AWG inverter cabling with a 250A fuse ensures reliable current delivery, while the Plug & Play DCDC Wiring Kit (No Fitting) streamlines installation in tight canopy spaces. A dedicated Battery Tray secures your system on rough tracks.
Perfect for 4WD canopies, touring rigs and mobile worksites, the iTechworld Ultimate Canopy Dual Battery Kit combines serious lithium capacity with clean 240V power, fast charging and solar flexibility — with a clear upgrade path to a true dual-battery bank.
Australian Family Owned
Shop risk-free with easy returns.
Free 30-day returns
Shop risk-free with easy returns.

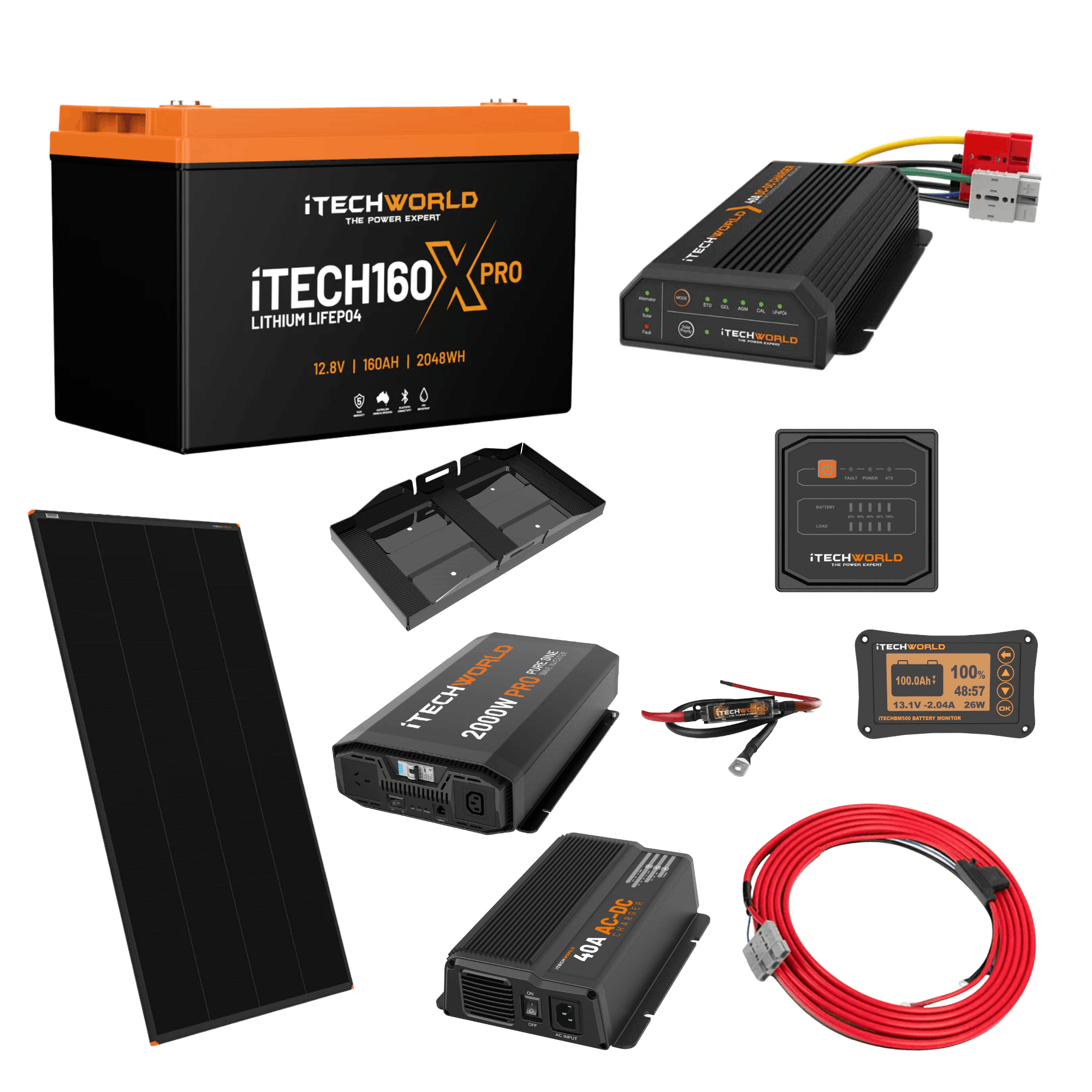

Bundle Contents
The iTECH160X PRO lithium battery sets a new standard. It has been specifically engineered for those seeking a power solution that can withstand whatever you throw at it.
Designed and developed in Australia, for Australia, the iTECH160X PRO has been constructed to thrive in rough climates and conditions – and thanks to its IP67 water and dust-proof rating, it can be mounted nearly anywhere!
The iTECH160X PRO uses A-grade prismatic lithium LiFePO4 cells, which offer considerable advantages over other cell types. Prismatic cells are thinner in profile, deliver higher discharge, have a longer life expectancy, are much lighter and utilise space more efficiently than traditional cell types.
The advanced lithium technology offers a 100% useable 160Ah capacity, allowing for impressive power storage. Not to mention the minute weight of 16kg, which is comparison to an equivalent AGM battery would be 90kg, saving you and your system important weight.
No need to change any systems, equipment, or do any re-wiring. With the iTECH160X PRO, you simply pull out your old heavy AGM batteries, and drop-in your new iTECH160X PRO.
The iTECH160X PRO has been designed and developed to fit the same space as the standard 100Ah AGM batteries so it is a simple drop in replacement for your system, reading dimensions of 330 x 173 x 215mm (230mm including terminals).
Never second-guess your battery’s health again! The iTECH160X PRO is integrated with full Bluetooth compatibility, allowing you to monitor your battery’s status in real-time via the iTechworld Connect Battery Management app, available through the App Store or the Google Play Store.
You can check your battery’s vitals in real-time and rest easy knowing that it is Australian-certified to IEC:62619 standards.
PACKAGE CONTENTS
- 1 x iTECH160X 160Ah Lithium 12V Battery
- 1 x User Guide
WARRANTY & SUPPORT
The iTECH160X warranty is 5 years (3 years full replacement, 2 years pro-rata).
If your iTechworld battery enters Safe Mode, please follow the instructions HERE
*Storage deep cycle battery only. It cannot be used as a cranking battery.
quick stats
- Max Discharge Rate (5 seconds)430 amps
- Prismatic Cell Technology10,000+ cycles @ 40% DoD
- Warranty5 year Australian warranty
- Safety certificationsIncluding IEC:62619
- Lightweight at 16kgEquivalent AGM weighs approx. 90kg
product dimensions
- A: Length: 330mm
- B: Width: 173mm
- C: Height: 215mm
(230mm including terminals)
X Range User Guide
X Range Batteries User Guide
The iTechworld PRO Inverter range was designed and developed to convert your 12V power from your battery system into safe and reliable 240V power. This allows you to operate appliances you’d typically have to stay at home to use, from the comfort of your caravan, camper, or 4WD. The PRO range come equipped with an automatic transfer switch and external RCD.
- Pure sine wave output for clean and stable power delivery.
- Vibration-proof technology, built for corrugated tracks and roads
- Load-controlled cooling fan for optimal temperature management.
- Enjoy smoother and more efficient appliance operation, minimising heat and noise.
- Power any 240V equipment, opening a world of possibilities for your adventures.
- Take all the comforts of home with you on your travels, confident in the safety and reliability of your power supply.
-
RC3 PRO Intelligent On/Off Remote Control For iTechworld Pure Sine Wave Inverters With ATS and RCD and 00 gauge with installed 250 Amp Fuse sold separately.
With its pure sine wave output, our 2000W 12V inverter ensures seamless and efficient operation of your appliances, reducing heat and noise for optimised performance. Designed with robustness in mind, it can withstand the harshest Australian conditions.
Utilising an Australian standard 240V 3-pin outlet, you can easily run high-draw appliances on the go. To achieve maximum output the iTechworld 2000W PRO also has the option of being hardwired via the terminal block into your electrical system; this will allow for loads of 10A or more to be powered via the iTechworld 2000W PRO inverter safely and efficiently.
Safety is paramount with the iTechworld 2000W PRO inverter, featuring multiple levels of protection against overload, short circuits, and over-temperature. The load-controlled cooling fan maintains optimal operating conditions by engaging at specific power consumption levels.
The built-in Automatic Transfer Switch (ATS) enables smooth switching between your primary power source and the inverter, making it ideal for various applications, such as caravans, motorhomes, and off-grid setups. Additionally, the Residual Current Device (RCD) offers an extra layer of protection by instantly disconnecting the power during a fault, ensuring utmost safety.
For added convenience, consider our optional remote on/off switch (RC3), sold separately, which allows you to control the inverter remotely from up to 5 metres away. With the RC2, conveniently manage your 240V power supply even when the inverter is out of sight.
Experience the freedom and assurance of reliable power with the iTechworld 2000W PRO Pure Sine Wave Inverter. Embrace your journey with confidence, knowing you have a reliable and safe power source.
PACKAGE CONTENTS
- 1x iTECHWORLD 2000w PRO Pure Sine Wave Inverter
- 1x Instruction Manual
00 Gauge with installed 250 Amp Fuse sold separately.
WARRANTY
Statutory warranty is 12 months from date of purchase.
quick stats
- Warranty1 year
product dimensions
- A: Length: 459mm
- B: Width: 265mm
- C: Depth: 97mm
Inverter PRO User Guide
Inverter PRO User Guide
The iTECHBC40 40A AC Intelligent Battery Charger is a fully automatic "set and forget" charger. It has been designed and developed to charge Lithium LiFEPO4 batteries fast, efficient and effective, with unique algorithms that help maximise your battery's service life. The iTECHBC40 is a smart multistage battery charger that utilises the latest switch-mode battery charging technology, allowing your charger to be permanently connected to your battery bank.
The multistage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. Using charge algorithms that are tailor-made for Lithium LiFePO4 batteries, the iTECHBC40 not only charges the battery but looks after it. The iTECHBC40 is unlike any other battery charger on the market; with lithium LiFePO4 batteries as the focus, it will maximise and extend your battery's service life.
The iTECHBC40 has an innovative boost charge feature; this helps activate an iTechworld lithium battery from safe mode.
Designed and developed in Australia, the iTECHBC40 is built for the harsh Australian climate. The iTECHBC40 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.
The iTECHBC40 battery charger uses a micro control system to manage the battery charging process.
Package Contents
- 1x iTechworld iTECHBC40 40A Battery Charger
- 1x Power lead
- 1x Set of 12v 800mm heavy duty battery leads with M8 eyelets/ring terminals
- 1x Instruction manual HERE
Support
The statutory warranty is 24 months from the date of purchase.
Download the user manual HERE
quick stats
- Multistage chargingFully automatic multistage battery charger
- Inbuilt protection featuresLow-voltage, over-voltage, over-temperature and reverse polarity
- Additional featuresAdjustable float voltage, switch mode charging, boost charge
- Warranty2 years
product dimensions
- A: Length: 275mm
- B: Width: 187mm
- C: Height: 70mm
BC40 User Guide
BC40 User Guide
The iTECHDCDC40 keeps your battery charged no matter the battery type or size.
The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).
Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC40 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.
Designed and developed in Australia for Australia, the iTECHDCDC40 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC40 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.
Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC40 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.
If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.
A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.
The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.
Package Contents
- 1x iTECHDCDC40
- 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
- 1x Instruction manual also found HERE
quick stats
- Compatible withMost battery types
- Warranty1 year
product dimensions
- A: Length: 188mm
- B: Width: 127mm
- C: Depth: 39mm
DCDC25 40 User Guide
DCDC25/40 User Guide
iTechworld is proud to present the 200W 22V Hard Frame Solar Panel – designed and developed in Australia, for Australia. These panels utilise advanced HPX PRO technology that offers unparalleled efficiency and durability. These panels also come with an IP67 waterproof rating to withstand the rigours of the Australian outback. At just 17mm thin, the 200W 22V Hard Frame panel is lighter than conventional panels.
The benefit of a solar panel is that you can access power wherever you can access the sun! The 200W 22V Hard Frame Solar Panel has been constructed robustly to withstand the Aussie outback. This ensures that you can mount your panel anywhere and power up your devices no matter where you're parked—keeping you off-grid for longer!
The 200W 22V Hard Frame Solar Panel can be mounted on your car, caravan or even your boat, utilising our custom-made mounting brackets (coming soon!). Its design ensures optimal energy absorption, keeping your system powered no matter what adventure you’re on.
To help secure your solar panels, we offer easy-to-use mounting brackets, sold separately. These brackets are designed for hassle-free installation, ensuring your solar panels are securely mounted on your caravan or 4WD.
Click here to purchase the mounting brackets.
Package Contents
- 1 x 200W 22V Hard Frame Solar Panel
Support
The statutory warranty is 12 months from the date of purchase.
quick stats
- Designed forRoof and external mounting
- Cell laminationRaptor Skin coating
- Ultra-thin designOnly 17mm thick
- Warranty1 year
product dimensions
- A: Length 1460mm
- B: Width: 670mm
- C: Height: 17mm
The 00AWG Inverter Cable - 250A Fuse comes with two 70mm2 cables and a 250A maxi fuse used for connecting your 2000w inverter and battery.
CONTENTS
- 00AWG cable w 250A Maxi Fuse (red);
- 00AWG cable (black);
The iTECHBM500 is a high-precision battery monitor that captures instantaneous and integrated values in real-time. The iTECHBM500 utilises a 500A current shunt, the iTECHBM500 measures the discharge/ recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. The monitor provides real-time, high-precision voltage measurements through a field-installed sense wire. It is compatible with Lithium-ion, lead-acid, and nickel-metal hydride batteries.
Package Contents
- 1 x iTECHBM500 Battery Monitor
- 1 x Shielded wire (8m)
- 1 x 500 Amp Shunt
- 1 x Plastic bracket
- 4 x Screws
- 1 x Shunt holder
- 1 x B+ Sense wire 22AWG (1m)
- 1 x Instructions
Support
quick stats
- Warranty1 year
product dimensions
- A: Depth: 17mm
- B: Length: 113mm
- C: Width: 69mm
Current BM500 User Guide
iTECHBM500 User Guide
Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.
Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.
The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.
The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.
The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.
The iTechworld RC3 PRO Intelligent On/Off Inverter Remote Control is perfect for caravans, motorhomes, campers, 4WDs and anywhere else you want easy access to your iTechworld PRO pure sine wave inverter.
This remote control is compatible with the Late 2024 Models 3000W PRO Pure Sine Wave Inverter with ATS and RCD and 2000W PRO Pure Sine Wave Inverter with ATS and RCD. A 5m extension cable is also available, giving you the flexibility to install your inverter wherever it’s most convenient while still being able to monitor and control its on/off function.
Installation is a breeze, with 4x screw holes on the outer casing the iTechworld inverter remote can be mounted anywhere desired.
PACKAGE CONTENTS
- RC3 PRO Remote Control
- 5m installation cable
product dimensions
- A: Length: 86mm
- B: Width: 86mm
- C: Depth: 19mm
iTECH120X PRO & iTECH160X PRO Lithium Battery Tray - Battery Mounting Tray
Keep your iTECH120X or iTECH160X PRO firmly in place with iTechworld's battery tray. Coming with a sturdy tie-down strap, it ensures that your battery remains stable and secure.
The tray boasts a sturdy metal build and is provided with four mounting holes, making it adaptable to a variety of installations. This makes it an ideal choice for those looking to safely mount their lithium battery, whether it's behind the rear seats of contemporary 4WDs or within the canopy.
This tray is specifically designed to accommodate the iTECH120X PRO & iTECH160X PRO batteries.
