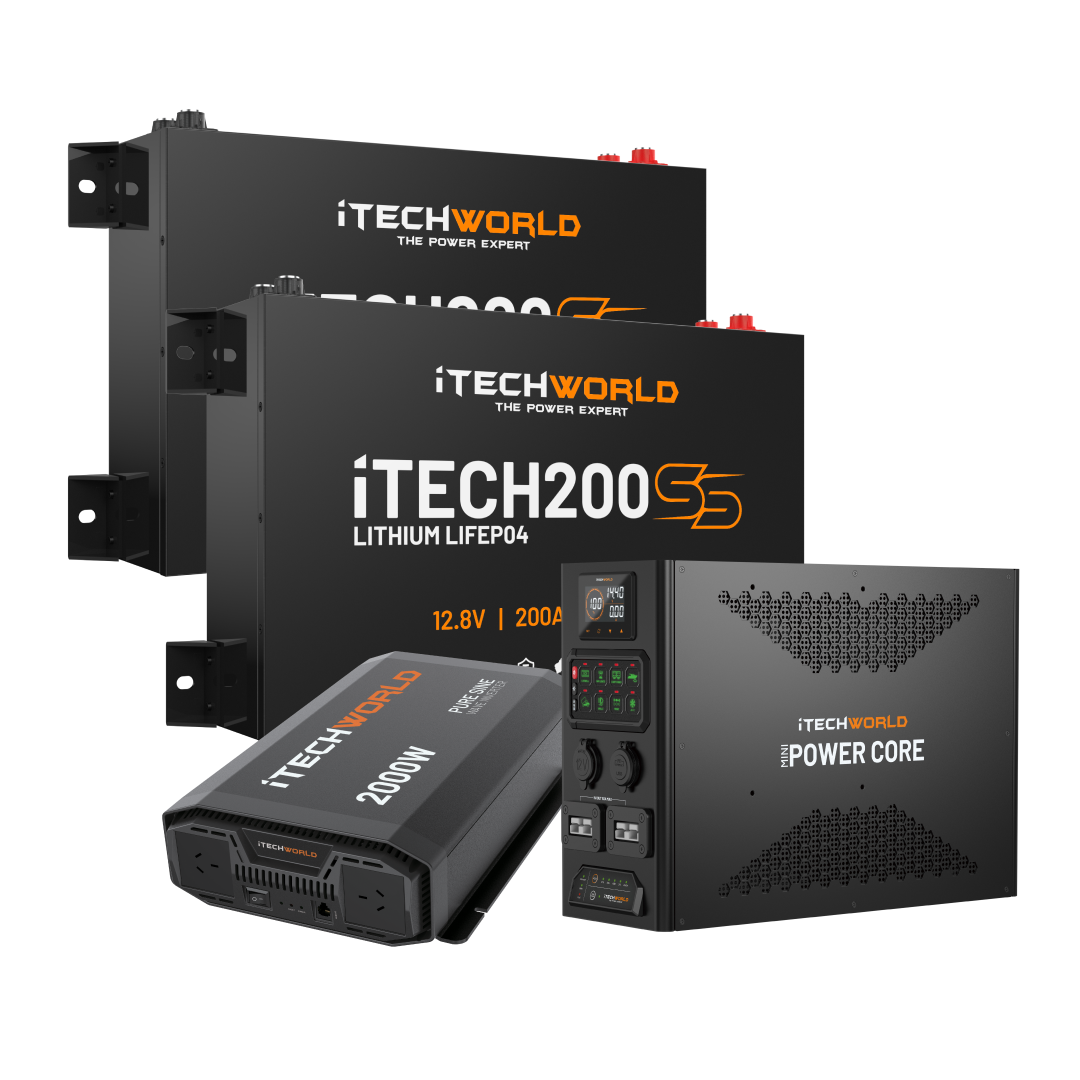

2000W inverter + Mini Power Core + x2 200SS

The iTechworld Mini Power Core is a compact, all-in-one 12V power distribution system purpose built for canopies, ute trays, and touring setups. Prewired and ready to go, it brings together everything you need to run a full accessory setup without the time, cost, or complexity of a custom install. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit for vehicle side wiring, and your 12V system is ready to run.

ALL-IN-ONE PLUG AND PLAY SOLUTION

The Mini Power Core combines a 40A DCDC charger, 8-gang switch panel, advanced battery monitor, and 500A shunt into a single, pre-wired industrial-grade unit. No custom internal wiring, no separate components to mount inside your setup, no guesswork. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit handles the vehicle side connections your 12V system is ready to run.

BUILT-IN 40A DCDC CHARGING

The integrated iTECHDCDC40 charges your auxiliary battery from your alternator while you drive and automatically switches to solar input when the vehicle stops. Compatible with 12V and 24V standard alternators, smart alternators (with ignition cable), and unregulated solar panels up to 32V so your battery is always being replenished from the best available source.

500A ADVANCED BATTERY MONITOR

The built-in iTECHBM500 provides real time state of charge (SOC) and power usage information at a glance. You can see exactly how much power you have left and monitor system performance under load, ensuring you always know your battery's status and can plan your activities in advance.

8-GANG SWITCH PANEL WITH RGB BACKLIGHT

Take full control of your accessories with the built-in 8-gang switch panel. Each line is individually fused with customisable RGB backlighting and adjustable brightness, making it easy to use in any conditions day or night, at camp or on arrival.

100W USB-C OUTPUT

With a 100W USB-C output, the Mini Power Core can power a Starlink Mini, charge a laptop, or run any high-draw USB-C device directly.

POWER UP TO 17 DEVICES AT ONCE

Eight switched accessory lines, five 50A Anderson outputs, positive and negative terminals, a 12V cigarette lighter, USB, and USB-C give you the flexibility to run a full accessory setup from one unit. Heavy gauge copper wiring and auto-resettable fuse protection keep everything running safely.

THREE MOUNTING ORIENTATIONS

The Mini Power Core supports upright, left-side, and right-side mounting to suit any canopy or vehicle configuration. All mounting hardware is included in the box, and three cable routing grommets (top and rear) keep your install clean and protected.

OPTIONAL AC CHARGING, NEATLY INTEGRATED

Pre-drilled mounting points on the side of the unit allow the optional iTECHBC40 40A AC charger to bolt directly onto the Mini Power Core with no external bracket required.

PACKAGE CONTENTS

• Mini Power Core
• User Guide
• Mounting Kit (4 x Brackets, 16 x M6 + 4 x M4 Combination Screws)
• Spare Fuse Set ( 2 x 30A, 2 x 20A, 2 x 15A, 2 x 10A)
• 2 x Switch Panel Labels

The iTechworld PRO Inverter range was designed and developed to convert your 12V power from your battery system into safe and reliable 240V power. This allows you to operate appliances you’d typically have to stay at home to use, from the comfort of your caravan, camper, or 4WD. The PRO range comes with an inverter with RCD and automatic transfer switch as standard.

• Pure sine wave output for clean and stable power delivery.
• Vibration-proof technology, built for corrugated tracks and roads

• Load-controlled cooling fan for optimal temperature management.
• Enjoy smoother and more efficient appliance operation, minimising heat and noise.
• Power any 240V equipment, opening a world of possibilities for your adventures.
• Take all the comforts of home with you on your travels, confident in the safety and reliability of your power supply.
• RC3 PRO Intelligent On/Off Remote Control For iTechworld Pure Sine Wave Inverters With RCD and ATS and 00 gauge with installed 250 Amp Fuse sold separately.

With its pure sine wave output, our 2000W 12V inverter ensures seamless and efficient operation of your appliances, reducing heat and noise for optimised performance. Designed with robustness in mind, it can withstand the harshest Australian conditions.

Utilising an Australian standard 240V 3-pin outlet, you can easily run high-draw appliances on the go. To achieve maximum output the iTechworld 2000W PRO also has the option of being hardwired via the terminal block into your electrical system; this will allow for loads of 10A or more to be powered via the iTechworld 2000W PRO inverter safely and efficiently.

Safety is paramount with the iTechworld 2000W PRO inverter, featuring multiple levels of protection against overload, short circuits, and over-temperature. The load-controlled cooling fan maintains optimal operating conditions by engaging at specific power consumption levels.

The built-in Automatic Transfer Switch (ATS) enables smooth switching between your primary power source and the inverter, making it ideal for various applications, such as caravans, motorhomes, and off-grid setups. Additionally, because this is an inverter with an RCD (Residual Current Device), you get an extra layer of protection by instantly disconnecting the power during a fault for utmost safety.

For added convenience, consider our optional remote on/off switch (RC3), sold separately, which allows you to control the inverter remotely from up to 5 metres away. With the RC2, conveniently manage your 240V power supply even when the inverter is out of sight.

Experience the freedom and assurance of reliable power with the iTechworld 2000W PRO Pure Sine Wave Inverter. Embrace your journey with confidence, knowing you have a reliable and safe power source.

PACKAGE CONTENTS

• 1x iTECHWORLD 2000w PRO Pure Sine Wave Inverter with RCD
• 1x User Guide

00 Gauge with installed 250 Amp Fuse sold separately.

WARRANTY

Statutory warranty is 12 months from date of purchase.
