iTechworld

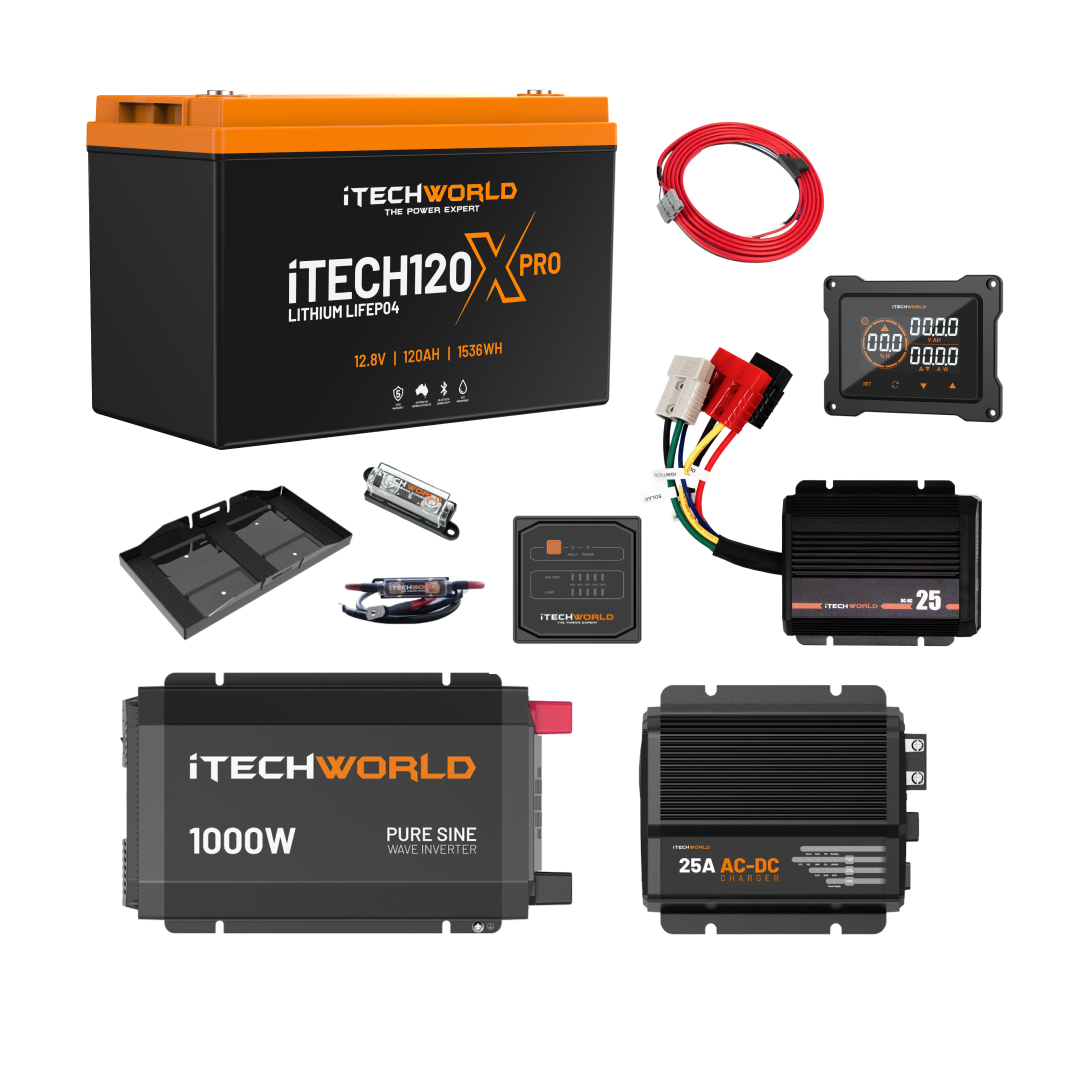

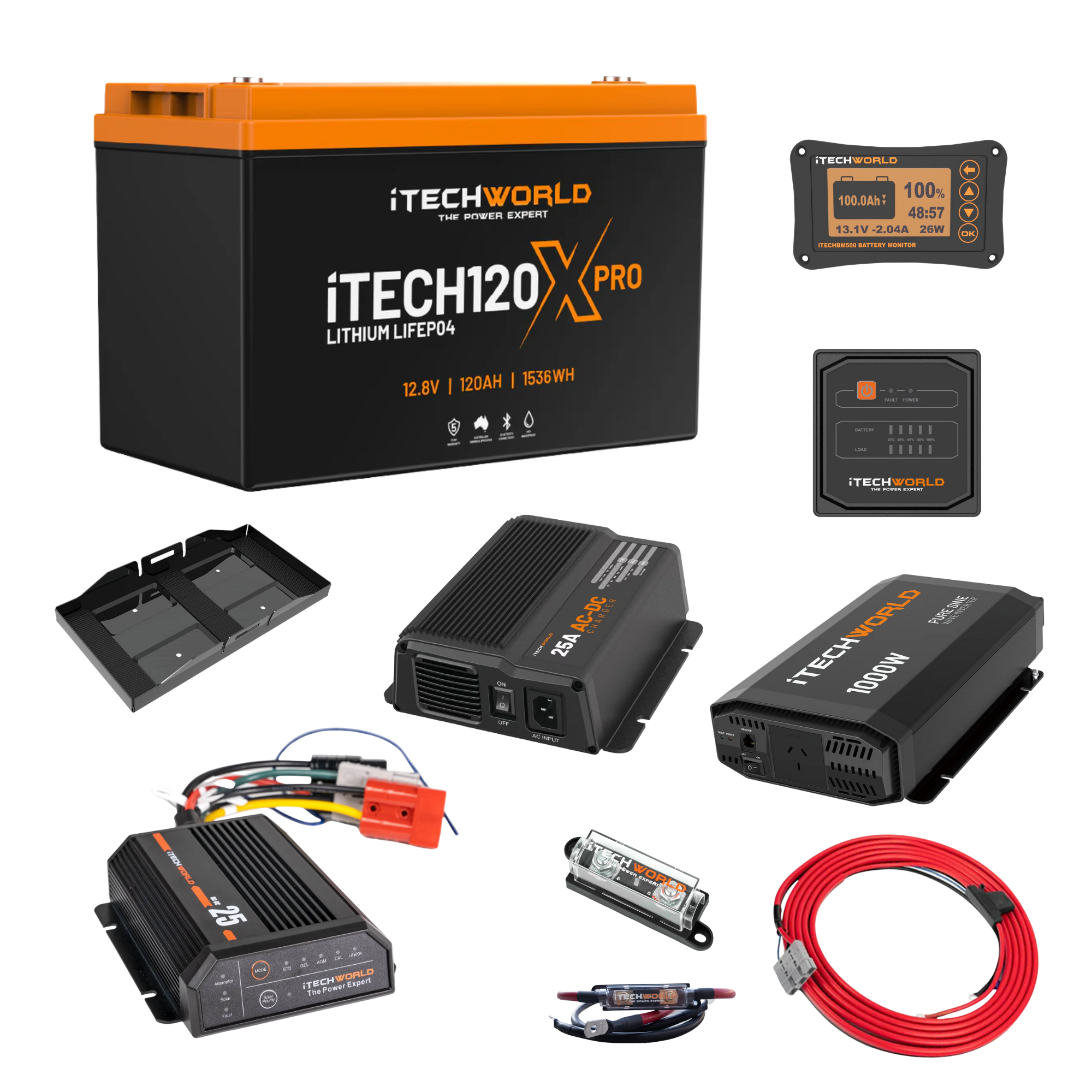

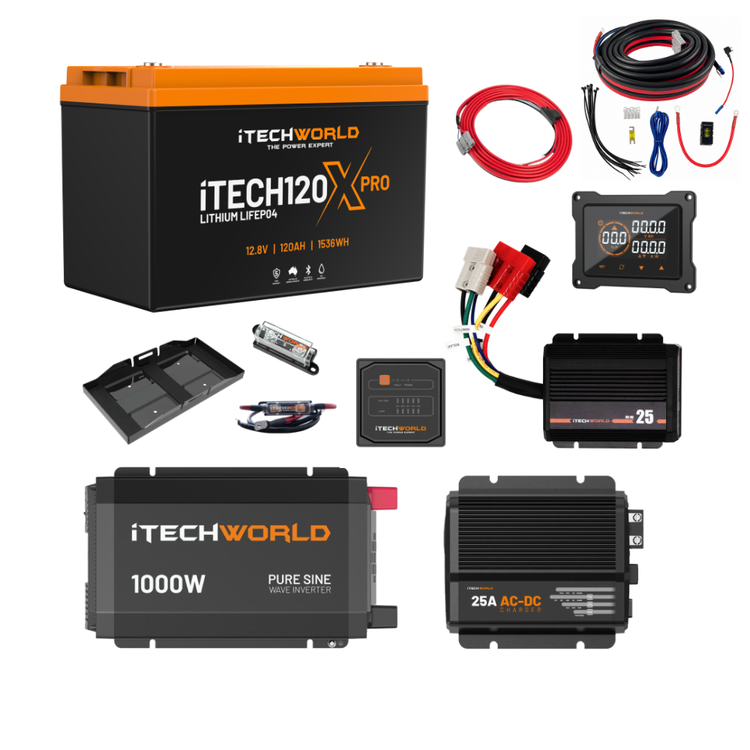

Complete Ute Dual Battery Kit

120Ah Lithium

Introducing the iTECHBC25 Intelligent Battery Charger, a smart and multi-stage lithium battery charger that incorporates the latest switch-mode battery charging technology. Engineered for 12-Volt batteries, this charger ensures rapid and efficient charging through a multi-stage algorithm, delivering fast, consistent charging without voltage drop.

The iTECHBC25 not only enhances the longevity of battery cells but also acts as a safeguard against premature battery failure. Additionally, it features an innovative power supply function designed to awaken and recharge a battery with low voltage, effectively revitalising weak or flat batteries. Welcome to the cutting-edge technology of the iTECHBC25, your reliable partner for effective and intelligent battery charging.

The iTECHBC25 25A AC Battery Charger is a fully automatic "set and forget" charger. It has been designed and developed to charge Lithium LiFEPO4 batteries fast, efficient and effective, with unique algorithms that help maximise your battery's service life. The iTECHBC25 is a smart multistage battery charger that utilises the latest switch-mode battery charging technology, allowing your charger to be permanently connected to your battery bank.

The multistage charging algorithm delivers a fast, efficient and consistent charge with no voltage drop. Using charge algorithms that are tailor-made for Lithium LiFePO4 batteries, the iTECHBC25 not only charges the battery but looks after it. The iTECHBC25 is unlike any other battery charger on the market; with lithium LiFePO4 batteries as the focus, it will maximise and extend your battery's service life.

The iTECHBC25 has an innovative boost charge feature; this helps activate an iTechworld lithium battery from safe mode.

Designed and developed in Australia, the iTECHBC25 is built for the harsh Australian climate. The iTECHBC25 has a thermally cooling fan that automatically switches on and off based on the internal charger temperature to handle extreme conditions.

Package Contents

• 1 x iTechworld iTECHBC25 25A Battery Charger
• 1 x Power lead
• 1 x Set of 12V 800mm heavy duty battery leads with M8 eyelets/ring terminals
• 1 x User Guide

Support

The statutory warranty is 24 months from the date of purchase.

Designed for caravans, 4WDs, boats, and off-grid setups, this inverter delivers a reliable 1000W of continuous pure sine wave power in a compact, easy-to-install unit: perfect for running essential appliances, tools, and electronics wherever you are.

1000W Continuous, 2000W Surge

Delivering a true 1000W of continuous pure sine wave output, this inverter provides reliable, stable power for sensitive electronics, appliances, and tools, ensuring the same high-quality performance you would expect from household mains electricity, even in remote or off-grid setups.

Pure Sine Wave Technology

With true pure sine wave output, this inverter provides clean, stable power that’s suitable for sensitive electronics, ensuring reliable performance for kettles, TVs, induction cookers, lights and fans.

Complete Protection

Equipped with comprehensive safeguards including over-voltage, under-voltage, overload, short-circuit, and over-temperature protection, this inverter helps keep both your devices and the unit itself safe, allowing you to operate with confidence in any environment.

Aluminium Housing

The durable aluminium casing is designed to withstand harsh Australian conditions, offering long-lasting, heat-dissipating protection that ensures consistent performance even in challenging off-road or outdoor scenarios.

Smart Cooling System

A temperature and load dependent fan provides efficient, quiet cooling, reducing wear on internal components and maintaining safe operating temperatures during extended use.

Remote Ready

Supports the optional RC3 remote, allowing you to control your inverter from up to 5 metres away. With this convenient feature, you can control your 240V power supply without needing to access it directly, adding flexibility and ease to your setup.

PACKAGE CONTENTS

• iTechworld 1000W Standard Inverter
• User Guide HERE

The iTECHDCDC25 keeps your battery charged no matter the battery type or size.

The all-new iTECHDCDC25 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC25 will continue charging via your solar panels/blankets (if added).

Exclusive to iTechworld DCDC chargers is a function known as Solar Power Priority (SPP) which represents the preference for solar input. This allows you to set your iTECHDCDC25 to use solar input over the vehicle alternator's input at the push of a button. Solar Power Priority places less load on the alternator, is better for the environment and helps to reduce fuel consumption.

Designed and developed in Australia for Australia, the iTECHDCDC25 is IP67 Waterproof, Dustproof and vibration-proof. Built with a heavy-duty metal case uniquely designed to help with heat dispersion, the iTECHDCDC25 is suited and warranted for under-bonnet installation. Mounting brackets are included in the case design, allowing for easy installation in your setup.

Many vehicles now have smart alternators that do not produce a high enough voltage to charge auxiliary batteries; the iTECHDCDC25 works by enhancing the voltage to the auxiliary battery regardless of the alternator type; the enhancement of voltage is also valuable for overcoming voltage drop from long cable runs to caravans and camper trailers.

A unique feature of the new iTECHDCDC25 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC25 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.

The new iTECHDCDC25 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v.

There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC25 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC25 will take care of the rest, it's that simple.

Package Contents:

1 x iTECHDCDC25

6 x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC25)

1 x Instruction manual also found HERE

The 0AWG Inverter Cable is designed to provide a secure and efficient connection between your battery system and 1000W inverter. With a 55mm² cross section, complete with a 175A fuse, it helps protect your setup while maintaining reliable power delivery. Ideal for off-grid, vehicle, or mobile solar systems, this cable allows for clean, organised wiring and easy integration into your existing setup.

PACKAGE CONTENTS:

• 0AWG Inverter Cable with 175A Fuse (red)
• 0AWG Inverter Cable (black)

The iTECHBM500 is a high-precision battery monitor that captures instantaneous and integrated values in real-time. The iTECHBM500 utilises a 500A current shunt, the iTECHBM500 measures the discharge/ recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. The monitor provides real-time, high-precision voltage measurements through a field-installed sense wire. It is compatible with Lithium-ion, lead-acid, and nickel-metal hydride batteries.

Package Contents

• 1 x iTECHBM500 Battery Monitor
• 1 x Shielded wire (8m)
• 1 x 500 Amp Shunt
• 1 x Plastic bracket
• 4 x Screws
• 1 x Shunt holder

• 1 x B+ Sense wire 22AWG (1m)
• 1 x Instructions

Support

iTECHBM500 Wiring Diagram

Download the User Guide

Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.

Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.

The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.

The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.

The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.

The iTechworld RC3 Intelligent On/Off Inverter Remote Control is perfect for caravans, motorhomes, campers, 4WDs and anywhere else you want easy access to your iTechworld pure sine wave inverter.

This remote control is compatible with the 3000W Pure Sine Wave Inverter and 2000W Pure Sine Wave Inverter, and 1000W Pure Sine Wave Inverter. A 5m extension cable is also available, giving you the flexibility to install your inverter wherever it’s most convenient while still being able to monitor and control its on/off function.

Installation is a breeze, with 4x screw holes on the outer casing the iTechworld inverter remote can be mounted anywhere desired.

PACKAGE CONTENTS

• RC3 Remote Control
• 5m installation cable

iTECH120X PRO & iTECH160X PRO Lithium Battery Tray - Battery Mounting Tray

Keep your iTECH120X or iTECH160X PRO firmly in place with iTechworld's battery tray. Coming with a sturdy tie-down strap, it ensures that your battery remains stable and secure.

The tray boasts a sturdy metal build and is provided with four mounting holes, making it adaptable to a variety of installations. This makes it an ideal choice for those looking to safely mount their lithium battery, whether it's behind the rear seats of contemporary 4WDs or within the canopy.

This tray is specifically designed to accommodate the iTECH120X PRO & iTECH160X PRO batteries.

For use with iTechworld pure sine wave inverters, please read your instruction manual to confirm what size fuse is suitable for you.

iTechworld 1000W/2000W pure sine wave inverter: 175Amp

iTechworld 2000W/4000W pure sine wave inverter: 250Amp

iTechworld 3000W/6000W pure sine wave inverter: 450Amp

Package contents

• 1x High current fuse holder

• 1x Fuse of your selected size
