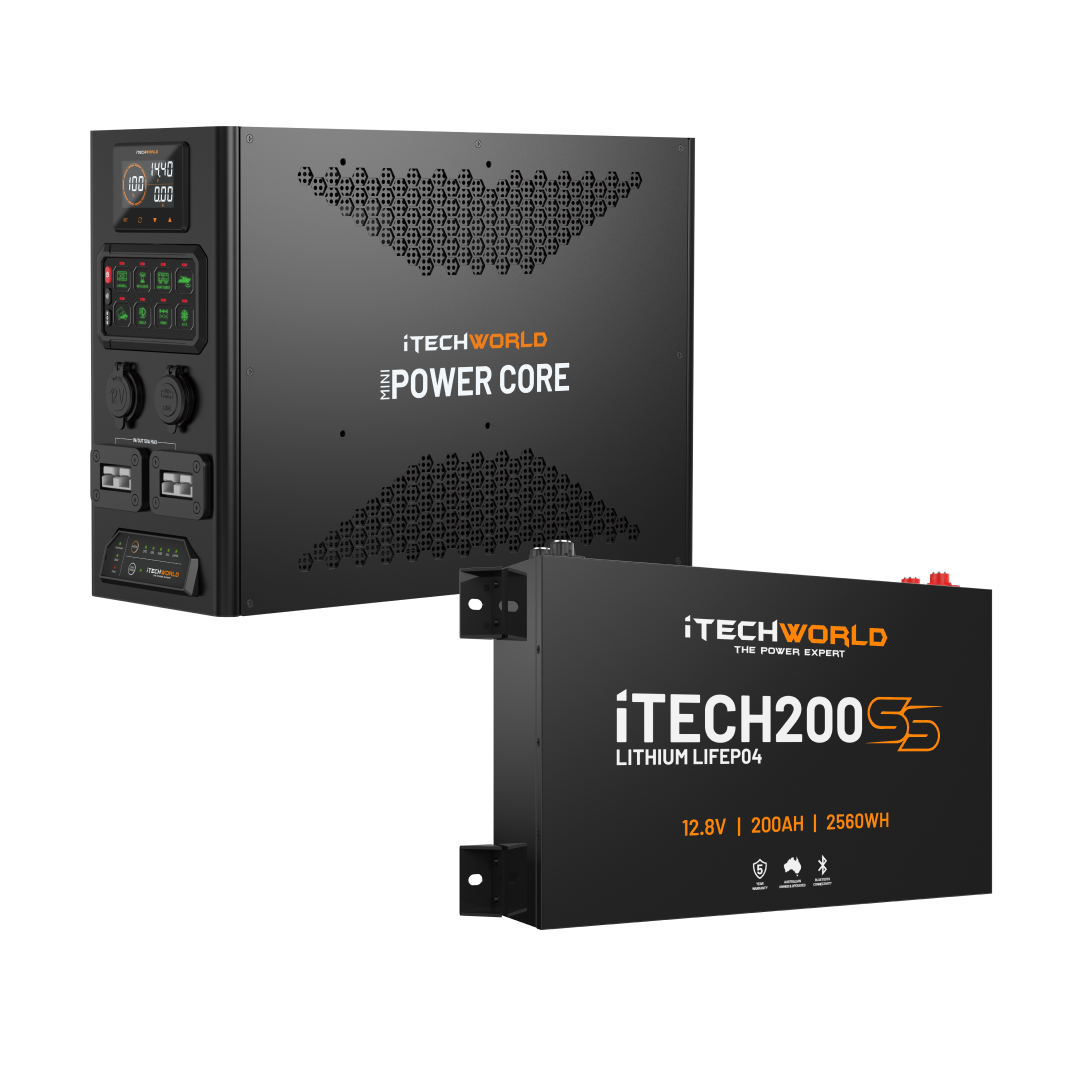

Mini Power Core + Super Slim 200Ah

Regular price: $1,945.60
Sale price: $1,945.60
Regular price

Tax included. Shipping calculated at checkout.

Product variants:

Australian Family Owned

Shop risk-free with easy returns.

Free 30-day returns

Shop risk-free with easy returns.

Bundle Contents

IEC:62619

Internationally Certified

100%

Useable Capacity

200Ah

LiFePO4 Lithium Battery

Bluetooth
Connectivity

5 Year

Warranty

Super

Slim Design

at 126mm

The new and improved iTECH200SS 200Ah Super Slim Lithium Battery is small but packs a punch! Measuring at only 126mm wide and weighing in at 25.5kg, our 200Ah battery has been designed to be the ultimate Super Slim battery for small spaces that still need maximum power. Designed and developed in Australia, the new iTECH200SS Slimline Battery is suited to thrive in our harsh Australian conditions, with 100% usable capacity, Bluetooth monitoring, dust-proof, suitable for high heat conditions, certified to IEC 62619 and backed by a 5-year Aussie warranty.

Never guess your batteries health again. The iTECH200SS Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.

With a 100% useable capacity, our 200Ah battery features the latest in prismatic cell technology allowing for its small form factor and lightweight nature.

iTechworld has been designing and developing Lithium Batteries for over 10 years, constantly improving and testing our designs. The iTechworld Lithium Batteries are Australian standard certified to IEC:62619 to create the safest and highest-quality lithium batteries available in the Australian market.

Designed to be a true drop-in replacement for existing systems, the iTECH200SS is the ideal choice for those wanting to upgrade their current sleepy AGM or lead-acid systems to lightweight lithium technology. With the iTECH200SS, simply pull out your old AGM or lead-acid batteries and drop in the iTECH200SS Lithium Battery. It's really that simple!

What sets the iTECH200SS apart is its dual-terminal design, with positive and negative posts on both sides of the battery. This enables easy installation in space-restricted setups and supports high-current applications, such as 3000W inverters or multi-battery parallel configurations.

Utilising A-grade prismatic lithium LiFePO4 cells, our 200Ah battery offers drastic advantages over other cell types. Prismatic cells are thin in profile, deliver higher discharge, have a longer life expectancy, are extraordinarily light and utilise a more effective use of space.

PACKAGE CONTENTS

1 x iTECH200SS 200Ah Lithium 12v Battery
1 x User Guide HERE
1 x Bluetooth App User Guide HERE

WARRANTY & SUPPORT

The iTECH200SS warranty is 5 years (3 years full replacement 2 years pro-rata).

*Storage deep cycle battery only. It cannot be used as a cranking battery.

If your iTechworld battery enters safe mode, please follow the instructions HERE

General
Voltage:	12V
Nominal voltage:	12.8V
C20 rating usable capacity:	200Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	-40°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge voltage:	14.4V
Maximum charge current:	150A
BMS charge cutoff:	15V
BMS low voltage cutoff:	8.5-9V
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 80% depth of discharge:	5,000+
Life cycles @ 40% depth of discharge:	10,000+
Continuous Discharge Rate:	200A
Maximum Discharge Rate (5 Seconds):	640A
Dimensions (LxWxH):	514 x 327 x 126mm (580 L with brackets and 350 H including terminals)
Weight:	25.5kg
Terminal type:	M8
Case material:	Stainless steel

quick stats

Maximum Discharge Rate (5 seconds)640 amps
Prismatic Cell Technology10,000+ cycles @ 40% DoD
Warranty5 year Australian Warranty
Super slimAt only 126mm wide
Lightweight at 25.5kgEquivalent AGM weighs approx. 140kg

product dimensions

A: Length: 514mm
(580mm L with brackets)
B: Width: 126mm
C: Height: 327mm
(350mm H including brackets)

Slimline Batteriers User Guide

download

40A DCDC

ALTERNATOR & SOLAR CHARGER

BATTERY

MONITOR & SMART

ALL-IN-ONE

PLUG & PLAY SOLUTION

POWER UP TO
17 DEVICES

PLUG

& PLAY

FUSED 8 GANG
SWITCH PANEL

The iTechworld Mini Power Core is a compact, all-in-one 12V power distribution system purpose built for canopies, ute trays, and touring setups. Prewired and ready to go, it brings together everything you need to run a full accessory setup without the time, cost, or complexity of a custom install. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit for vehicle side wiring, and your 12V system is ready to run.

ALL-IN-ONE PLUG AND PLAY SOLUTION

The Mini Power Core combines a 40A DCDC charger, 8-gang switch panel, advanced battery monitor, and 500A shunt into a single, pre-wired industrial-grade unit. No custom internal wiring, no separate components to mount inside your setup, no guesswork. Connect your auxiliary battery via the 175A Anderson plug and the DCDC INS Kit handles the vehicle side connections your 12V system is ready to run.

BUILT-IN 40A DCDC CHARGING

The integrated iTECHDCDC40 charges your auxiliary battery from your alternator while you drive and automatically switches to solar input when the vehicle stops. Compatible with 12V and 24V standard alternators, smart alternators (with ignition cable), and unregulated solar panels up to 32V so your battery is always being replenished from the best available source.

500A ADVANCED BATTERY MONITOR

The built-in iTECHBM500 provides real time state of charge (SOC) and power usage information at a glance. You can see exactly how much power you have left and monitor system performance under load, ensuring you always know your battery's status and can plan your activities in advance.

8-GANG SWITCH PANEL WITH RGB BACKLIGHT

Take full control of your accessories with the built-in 8-gang switch panel. Each line is individually fused with customisable RGB backlighting and adjustable brightness, making it easy to use in any conditions day or night, at camp or on arrival.

100W USB-C OUTPUT

With a 100W USB-C output, the Mini Power Core can power a Starlink Mini, charge a laptop, or run any high-draw USB-C device directly.

POWER UP TO 17 DEVICES AT ONCE

Eight switched accessory lines, five 50A Anderson outputs, positive and negative terminals, a 12V cigarette lighter, USB, and USB-C give you the flexibility to run a full accessory setup from one unit. Heavy gauge copper wiring and auto-resettable fuse protection keep everything running safely.

THREE MOUNTING ORIENTATIONS

The Mini Power Core supports upright, left-side, and right-side mounting to suit any canopy or vehicle configuration. All mounting hardware is included in the box, and three cable routing grommets (top and rear) keep your install clean and protected.

OPTIONAL AC CHARGING, NEATLY INTEGRATED

Pre-drilled mounting points on the side of the unit allow the optional iTECHBC40 40A AC charger to bolt directly onto the Mini Power Core with no external bracket required.
