How does the Control Hub Kit handle power fluctuations during off-road adventures or in extreme weather conditions?

The kit is built with thick copper wiring, fully fused outputs, vibration-resistant pre-wired cabling and a robust aluminium enclosure. These elements protect against transient loads and help the system react to alternator/solar fluctuations while you’re on the move.

What is the process for configuring the Control Hub to switch between solar and alternator charging modes?

For chargers with solar capabilities, the models feature Solar Power Priority mode, which prioritises available inputs. When the vehicle is running, the DCDC uses alternator input; when the alternator voltage falls, solar power takes over.

Are there any specific installation requirements or recommendations for maximizing the performance of the iTechworld Control Hub Kit in a caravan setup?

Install the hub per the user guide: disconnect battery power before wiring, route positive and negative cables through the specified grommets, secure and support cables (avoid rubbing), fasten the lid and screws, and use the external fuse panel for accessible fuse replacement.

How does the built-in audible low-voltage alarm in the Control Hub Kit work, and can it be customized for different voltage thresholds?

The Control Hub includes an audible low-voltage alarm, and the battery monitor in the hub allows you to set undervoltage thresholds via its SET menu.

What are the potential advantages of using a parallel connection with multiple iTECH240X PRO batteries in my power system?

Paralleling increases the total capacity (runtime) and, when done per the manuals, raises the system’s maximum continuous discharge capabilities.

How does the Control Hub Kit ensure the longevity of the lithium batteries when used in high-demand power scenarios?

The kit protects battery life by combining controlled charging, a battery monitor with adjustable over/under-voltage and overcurrent settings, replaceable fusing on every switched circuit, and heavy, vibration-resistant wiring to minimise losses and heat.

What measures should be taken to protect the Control Hub Kit from potential water damage during river crossings?

While the batteries and DCDC charger components may carry IP ratings, the hub enclosure itself should be mounted and routed so it stays dry. The hub must not come into contact with water, rain or snow.

Can the Control Hub Kit be integrated with third-party solar panels, or is it optimized solely for iTechworld solar products?

Yes. The Control Hub/DCDC accepts solar input provided the panel(s) meet the hub/DCDC limits.

How does the pre-wired internal cable system in the Control Hub Kit contribute to ease of installation and maintenance?

The hub was designed with thick pre-wired internal cables that are fully fused and vibration-resistant; this reduces on-vehicle wiring work, simplifies plug-and-play installation, centralises fuse access (via an external fuse panel) and shortens install time while also making routine maintenance (fuse changes, visual checks) much easier.

The iTechworld Control Hub Kit with 40A DCDC Charger and iTECH120X PRO sits on a white background with red/black cables, zip ties, and blue connectors—everything needed for a 12V power system.

The iTechworld Control Hub Kit includes a 40A DCDC charger, iTECH120X PRO black and orange lithium battery, control panel with display and switches, cables, connectors, and fuse box—all branded by iTechworld.

The iTechworld Control Hub Kit includes a black power control panel, 40A DCDC charger, iTECH120X PRO 12V LiFePO4 battery, electrical cables, and connectors—everything you need for a complete 12V power system.

iTechworld

Control Hub Kit

with 40A DCDC Charger and iTECH120X PRO

Regular price: $1,321.88
Sale price: $1,321.88
Regular price: ~~$1,482~~

Tax included. Shipping calculated at checkout.

Integrated 40A DCDC Charger
Advanced monitor and shunt

Battery:

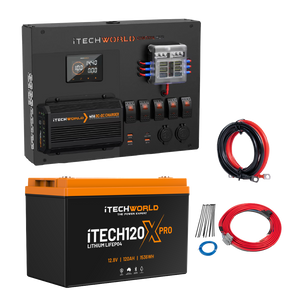

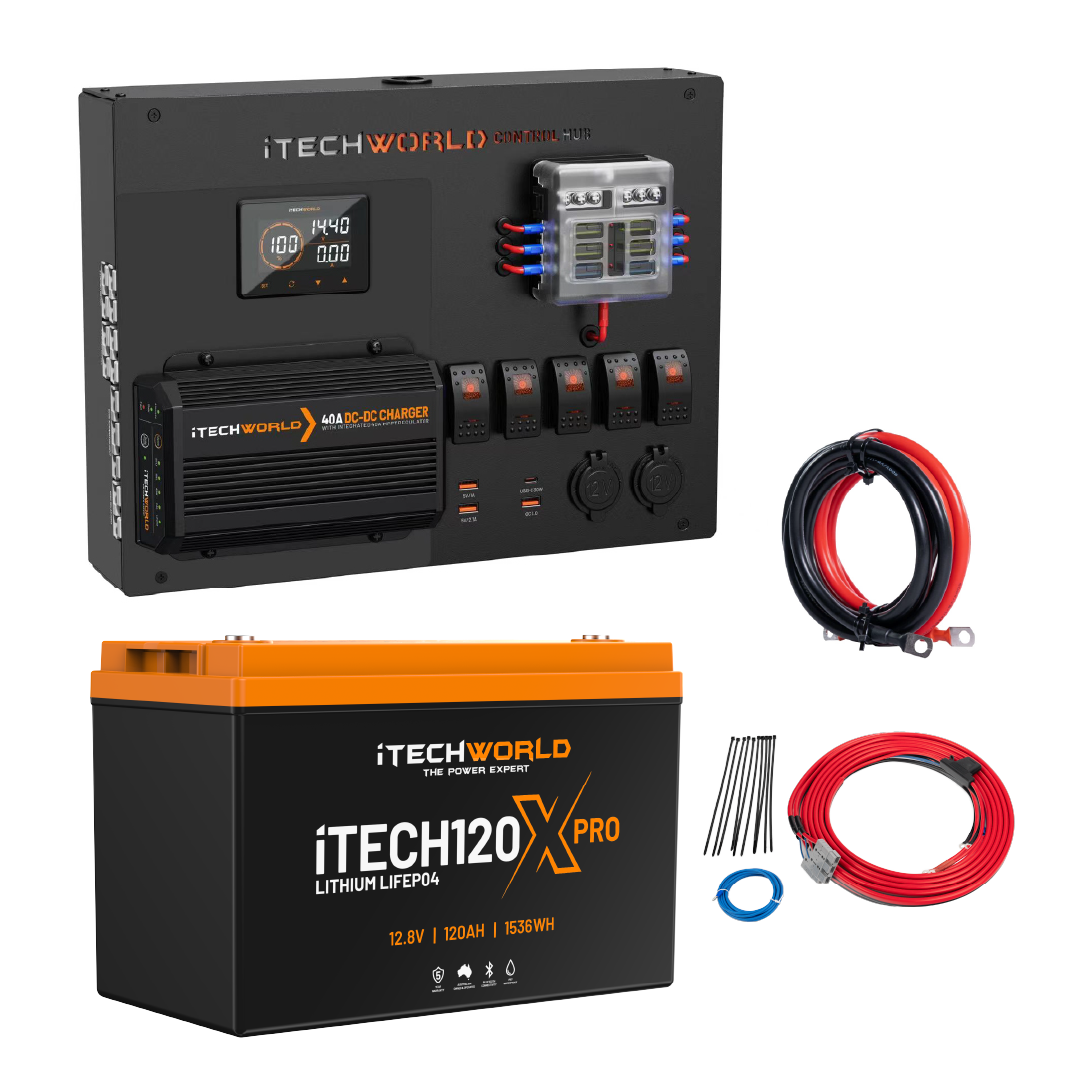

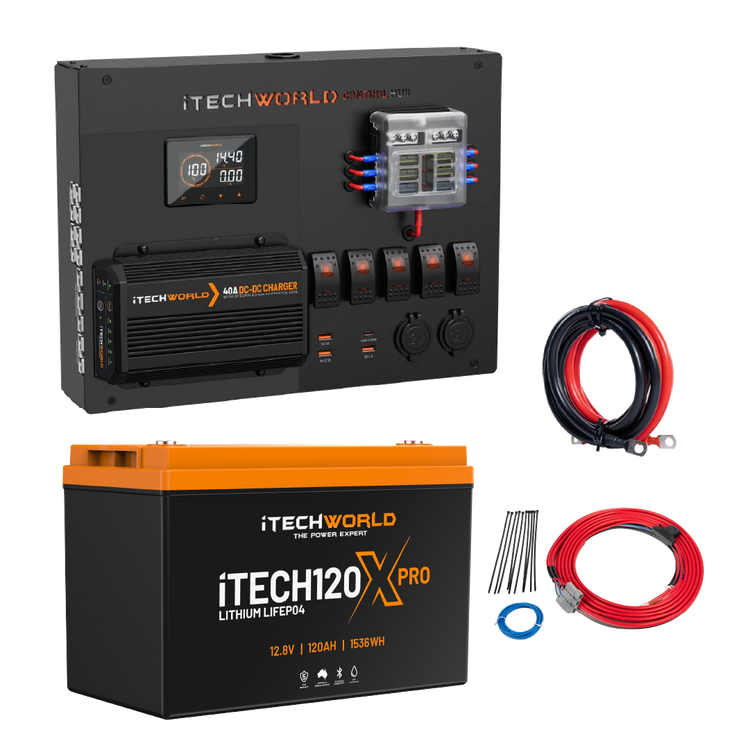

iTECH120X PRO $1,321.88 The iTechworld Control Hub Kit includes a 40A DCDC charger, iTECH120X PRO black and orange lithium battery, control panel with display and switches, cables, connectors, and fuse box—all branded by iTechworld.

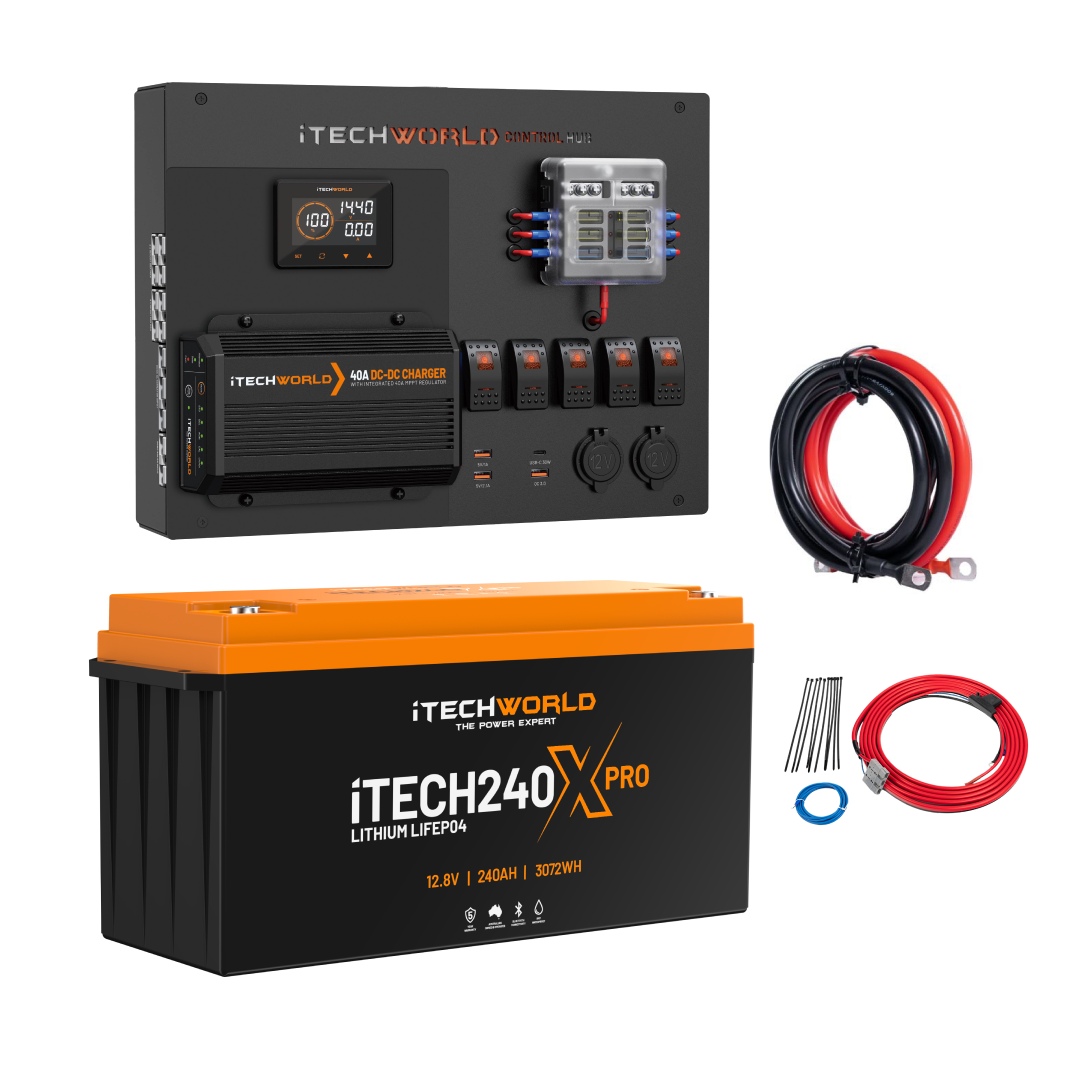

iTECH240X PRO $2,295.02 The iTechworld Control Hub Kit includes a black power control panel, 40A DCDC charger, iTECH120X PRO 12V LiFePO4 battery, electrical cables, and connectors—everything you need for a complete 12V power system.

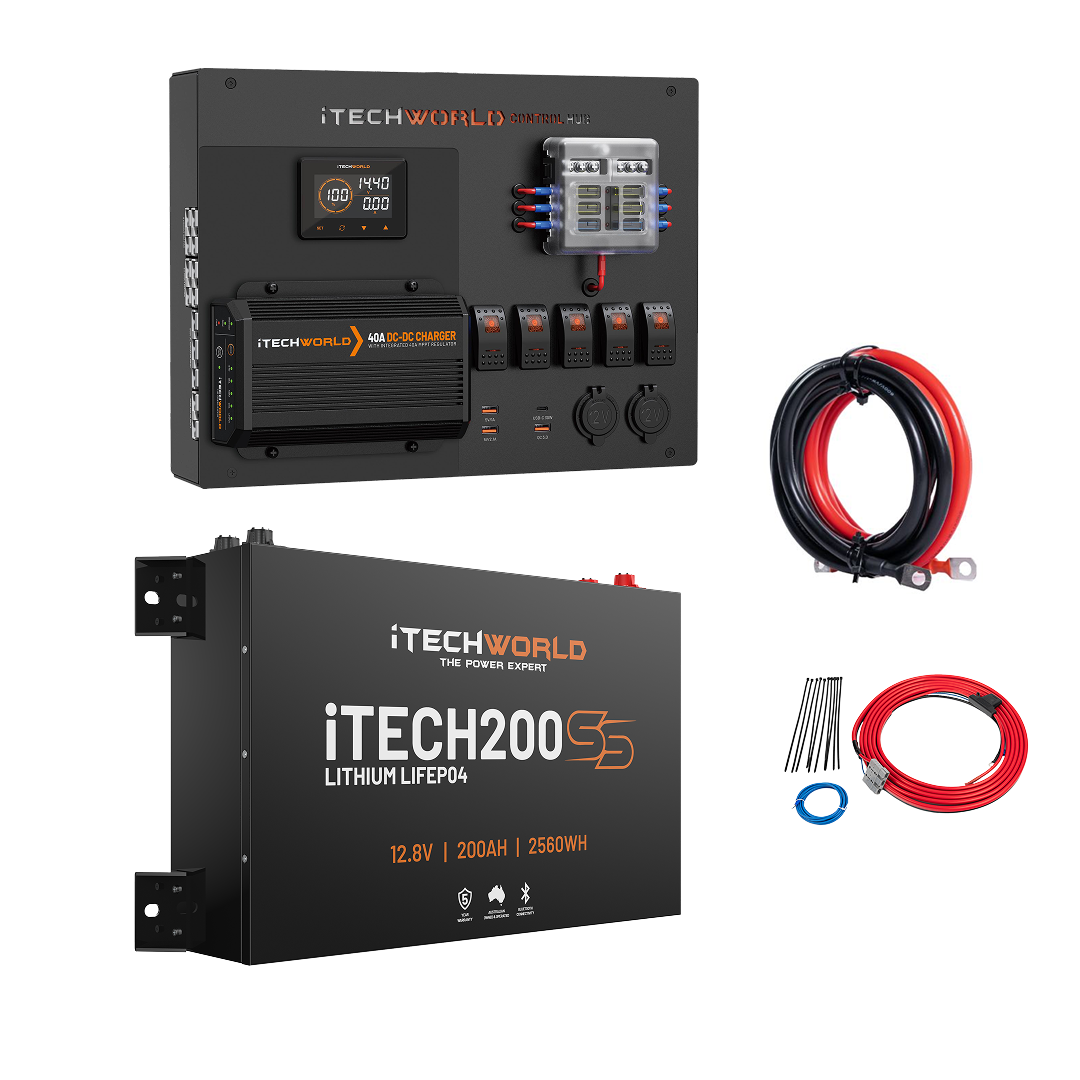

iTECH200SS $2,294.31

Product variants:

Experience unparalleled control over your 12V power system with the iTechworld Control Hub Kit. Our expert engineers have meticulously designed this revolutionary system with a state-of-the-art Control Hub, enhancing your power experience in your canopy, van, 4WD, caravan, or any adventure vehicle. The system features a high-performance DCDC charger and seamless integration of solar charging capabilities, ensuring unmatched convenience, reliability, and sustainability on all your journeys.

Customise your system to suit your power needs and adventure style. Choose from three premium lithium battery options:

iTECH120X (105Ah) - Compact and powerful for moderate power requirements.
iTECH200SS with Bluetooth (200Ah) - Optimal balance between size and capacity for extended adventures, ideal for small spaces in utes, 4WDs, or canopies.
iTECH240X PRO (240Ah) - Double the capacity for heavy-duty power demands, perfect for long expeditions.

Tailor your charging experience to your needs with the iTECHDCDC40 charger option integrated into the Control Hub, designed to deliver excellent performance for the iTECH120X battery, iTECH200SS with Bluetooth battery, or iTECH240X Pro battery.

iTECHDCDC40 - 40 Amps Per Hour: The iTECHDCDC40 is the perfect choice for rapid charging capability. Offering an impressive 40 amps per hour, this charger ensures your battery is ready for action in no time.

Whether you prioritise steady and reliable charging with the iTECHDCDC25 or opt for the rapid charging prowess of the iTECHDCDC40, you can count on iTechworld to provide the perfect solution for your power needs. With both options designed to deliver excellent performance, you can confidently rely on your battery to power your adventures.

The Control Hub is the central nervous system of your power setup, boasting a range of essential inputs and outputs. With 12v sockets, USB ports, illuminated Rocker switches and Anderson plug connections, the Control Hub becomes your system's heartbeat, enabling seamless integration and reliable power distribution to all your devices and accessories. The Control Hub is pre-equipped with designated replaceable fuses, ensuring maximum battery protection and consistent, top-notch performance.

The iTechworld Control Hub kit is designed to be sturdy and durable. It includes pre-wired internal cables that are fully fused and resistant to vibrations. The thick cabling ensures that your battery and accessories stay connected, providing reliable power no matter where your adventures take you.

The batteries and DCDC charger are equipped with an IP67 waterproof rating, which means they are resistant to water and dust ingress. This feature ensures their sustained performance and longevity even in harsh environmental conditions.

Enjoy quick and hassle-free fuse replacement with the 6-way external fuse panel, equipped with LED indicators for instant fault detection. Spend less time troubleshooting and more time exploring the great outdoors.

Our Control Hub includes a built-in audible low-voltage alarm, safeguarding your battery from draining below 11V. The dedicated on/off switch allows you to mute the alarm when needed, ensuring your battery remains protected and ready for action.

The Control Hub system is designed with both style and durability; the matte black, powder-coated aluminium Control Hub will withstand rugged adventures, while the four pre-drilled holes and four cable entry points offer flexible mounting options to suit your specific setup.

Equip your camper or fourby with the iTechworld Lithium Dual Battery System and Control Hub, and elevate your outdoor adventures with unmatched power and convenience. Embrace the freedom to roam, explore, and conquer confidently, knowing you have a reliable, efficient, and sustainable power solution at your fingertips.

Power your journey with iTechworld, where innovation meets adventure. Let the iTechworld Lithium Dual Battery System be your ultimate power solution!

Call us to build a custom kit: 1300 483 249

Our power experts can assemble your dream 12v build to best suit your power needs and budget.

Choose your Control Hub Kit setup to have a complete dual battery system with or without solar.

If you want something more custom, please contact us at 1300 483 249 to speak to a Power Expert about creating your customised bundle today.

Australian Family Owned

Shop risk-free with easy returns.

Free 30-day returns

Shop risk-free with easy returns.

Bundle Contents

IEC:62619

Internationally Certified

100%

Usable Capacity

120Ah

LiFePO4 Lithium Battery

Bluetooth
Connectivity

5 Year

Warranty

IP67

Waterproof

& Dustproof

The new and improved iTECH120X PRO 120Ah Lithium Battery with Bluetooth: a lightweight, 100% usable capacity solution with Bluetooth monitoring, IP67 waterproofing, and a 5-year Australian warranty.

The iTECH120X PRO is a true drop-in replacement for your existing system. This means no changing of systems, chargers or equipment is required in most cases. Simply pull out your old AGM or lead-acid batteries and drop in the iTECH120X PRO.

Our 120Ah lithium battery features a fully 100% usable capacity, allowing the full 120Ah to be drawn from the iTECH120X PRO. Our redesign of the new iTECH120X PRO includes an all-new patent pending prismatic cell type, as well as an all-new supercharged BMS allowing for less cell degradation and a longer lifespan with high current use.

The iTECH120X PRO with bluetooth utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology. To super-charge the 120Ah lithium battery performance, we have equipped it with a new Battery Management System (BMS) specially programmed by iTechworld engineers to auto cell-balance and squeeze every ounce of performance from this deep cycle battery.

Built for the tough Australian environment, this is the best 120Ah lithium battery if you need a solution that can be submerged under 1 metre of water for up to 30 minutes. The IP67 waterproof rating makes it perfect for marine applications or outside caravan storage boxes. The iTECH120X PRO utilises the latest prismatic cell design offering more vibration resistance and stability for big bumps with vibration-dampening technology; the iTECH120X PRO is also suitable for under-bonnet applications.

Never guess your battery's health again. The iTECH120X PRO Lithium Battery now comes integrated with Bluetooth compatibility to monitor your battery's status via the iTechworld app. Download the iTechworld app on the App Store or Google Play Store.

PACKAGE CONTENTS

1x iTECH120X PRO with Bluetooth 120Ah Lithium 12v Battery
1x User Guide

WARRANTY & SUPPORT

The iTECH120X PRO with Bluetooth warranty is 5 years (3 years full replacement 2 years pro-rata).

*Storage deep cycle battery only. It cannot be used as a cranking battery.

If your iTechworld 120Ah lithium battery enters safe mode, please follow the instructions HERE

General
Dimensions (LxWxH):	330 x 173 x 215mm
Weight:	13.2kg
Voltage:	12V
Nominal voltage:	12.8V
C20 rating usable Amps:	120Ah
Short circuit protection:	Yes
Optimum temperature range:	5°C ~ 60°C
BMS operational temperature range:	5°C ~ 80°C
Safety protection isolator:	80°C
Recommended charge voltage:	14.4V
Maximum charge current:	100A
BMS charge cutoff:	15V
BMS low voltage cutoff:	10.5V
Series connection:	Up to 48V (4 x batteries)
Parallel connection:	Unlimited
Life cycles @ 80% depth of discharge:	5,000+
Life cycles @ 40% depth of discharge:	10,000+
Continuous Discharge Rate:	150A
Maximum Discharge Rate (5 Seconds):	430A
Terminal type:	M8
Case material:	ABS

Frequently asked questions about the iTECH120X PRO 120Ah Lithium 12v Battery with Bluetooth

Can I charge an iTECH120X PRO lithium battery and use it at the same time?
Yes, you can charge and discharge simultaneously with an iTechworld lithium battery.
How does the Bluetooth monitoring feature work?
The iTECH120X PRO has an internal battery monitoring system with Bluetooth and is compatible with the iTechConnect Battery Management App. The iTechConnect app allows you to access real-time key information on the current status of your battery, including voltage, current capacity, and temperature.
Can I use my iTechworld lithium storage battery under the bonnet?
The iTECH120X PRO, can be used under the bonnet, but we recommend wrapping the battery in a heat shield. The battery is designed to withstand harsh conditions, including vibrations and temperature variations, making it suitable for under-bonnet use.

The only time you should not mount the battery under the bonnet is if the battery is going to be situated close to the vehicle’s turbo or if the battery you are using is not waterproof.
Can I mount the iTECH120X PRO on its side?
Yes, iTechworld batteries can be mounted on their side, they cannot be mounted upside down.
How do I store my iTechworld lithium storage battery?
- Charge the battery to a resting voltage of 13.2-13.5v.
- Store the battery in a dry cool environment away from any moisture or humidity.
- Check the battery voltage (State of Charge or SOC) every 3 months and top up if required.
- Do not store the battery in direct sunlight.
Storing the battery at approx. 70% SOC charge will maintain its health and longevity. As iTechworld integrated a high-spec Battery Management System (BMS) into the battery, it manages the charge and discharge cycles, ensuring the battery maintains voltage over time.
How long will a 120Ah lithium battery last before it needs recharging?
If the iTECH120X PRO with Bluetooth has a load such as a 12V camping fridge, it will run for up to 150 hours, depending on the fridge's efficiency and power consumption (typically around 0.8-2 amps per hour). If the battery has no load, it can hold its voltage for an impressive length of time, as all iTechworld lithium batteries have a low self-discharge rate, usually around 2-3% per month, losing minimal charge when not in use.

What appliances and equipment can a 120Ah battery run?

Appliance	Power Consumption (A)	Expected Run Time (Hours)
12V camping fridge (e.g. iFROST):	0.8-2A	60-150 hours
LED lights:	0.5A	240 hours
12V TV:	3-4A	30-40 hours
Mobile phone charger:	1A	120 hours
Water pump:	4-5A	24-30 hours

The iTECH120X PRO battery with Bluetooth not only supports 12V loads but also can power 240V appliances via a 12V to 240V inverter.

Appliance	Power Consumption (W)	Power Consumption (A)	Expected Run Time (Hours)
Pod coffee machine:	1100W	~86A	~1.4 hours
Microwave:	1200W	~94A	~1.3 hours
Toaster:	800W	~63A	~1.9 hours
Kettle:	1900W	~148A	~0.8 hours
Hair dryer:	1800W	~141A	~0.9 hours

The advanced Battery Management System (BMS) allows a single battery to efficiently operate large inverters, such as those with a capacity of up to 2000 watts.

When operating a 240v appliance such as a pod coffee machine via an inverter, it's important to note that while the machine typically draws around 1100 watts, its usage duration is short, generally lasting between 30 seconds to 2 minutes per use. Due to this short operational period, the overall energy consumption is minimal, placing less strain on the iTECH120X PRO battery.

In contrast, continuous-use devices such as a 12V camping fridge operate 24 hours daily, drawing a steady current of 0.8 - 2 amps. This constant load significantly depletes the battery's capacity over time. Even though a coffee machine has an initial high power draw, its intermittent use does not use as much power as a 12v camping fridge's continuous draw.

What size solar panels will charge a 120Ah battery?
A solar panel/blanket setup of at least 200 Watts is recommended. A 200-watt Solar Blanket will produce approximately ten amps an hour, taking twelve hours to charge the iTECH120X PRO with Bluetooth from flat to full. Using a 300-watt Solar Blanket will produce approximately 15 amps an hour and will take 8 hours to charge the battery from flat to full.
What size battery charger is best for a 120Ah lithium battery?
As the iTECH120X PRO with Bluetooth battery has an advanced Battery Management System (BMS) that can enable the battery to accept a high charge current, utilising a 40 amp DC-DC or AC charger will provide efficient and safe charging from your vehicle's alternator while driving or from 240v mains power, ensuring the optimal charge times. A 40-amp charger allows this battery to be charged from flat to complete in just three hours. If the battery had 50% capacity available, charging would take just one and a half hours.
What is a 120Ah lithium battery equivalent to?
Compared to lead-acid batteries:

- Lifecycle: The iTECH120X PRO with Bluetooth can achieve more than 4000 cycles at 100% depth of discharge (DoD), significantly more than lead-acid batteries, which typically last 500-800 cycles. Once the cycle is complete, it is one full discharge and then 1 full recharge.

- Discharge: This battery offers 100% usable capacity, whereas lead-acid batteries only provide about 50% usable capacity before requiring recharging. One iTECH120X PRO with Bluetooth can replace two 120-ah lead-acid batteries and still achieve the same usable capacity.

- Weight: The iTECH120X PRO with Bluetooth weighs only 12.5kg, much lighter than an equivalent AGM battery that can weigh over 30kg.

quick stats

Maximum discharge rate (5 seconds)430 amps
Prismatic Cell Technology10,000+ cycles @ 40% DoD
Warranty5 year Australian Warranty
Safety certificationsIncluding IEC:62619
Lightweight at 12.5kgEquivalent AGM weighs approx. 70kg

product dimensions

A: Length: 330mm
B: Width: 173mm
C: Height: 215mm (230mm including terminals)

X Range User Guide

X Range Batteries User Guide

download

Power up to

15 appliances simultaneously

HEAVY-DUTY

ALUMINIUM CASING

INTEGRATED

40A DCDC CHARGER

EXTERNAL FUSE BOX FOR EASY ACCESS

SIX OUTPUT FUSES

FOR CIRCUIT SAFETY

INTEGRATED

BATTERY

PROTECTIONS

Embrace the great outdoors with the ultimate 12V control hub, designed for adventure enthusiasts who love caravanning, camping, 4WDing, and exploring the outback. Simplify your installation and complete your 12V system with the ultimate power management system.

Our expert engineers have handpicked the essentials for your 12V system, making the iTechworld Control Hub perfect for setting up your canopy, van, 4WD, caravan or anything in between. Utilising the highest quality outputs, including 4 x 50A Anderson-style (in/out) connectors, 2 x Cig sockets, 2 x 2.4A USBs, 1 x QC3.0 USB, and 1 x USB-C port & 5 rocker switches, power up to 15 appliances simultaneously.

The iTechworld Control Hub comes with a pre-installed iTECHDCDC40, providing you with a seamless power solution. Professionally pre-wired and ready to use, this all-inclusive system ensures a hassle-free experience, allowing you to focus on your adventures while enjoying reliable power on the go.

Equipped with the iTECHDCDC40, the Control Hub offers a 40 Amp MPPT solar input, allowing you to tap into the abundant energy of the sun with your solar panels. This environmentally-friendly and cost-efficient charging solution enhances your outdoor adventures, providing a versatile and sustainable power source for your needs.

Easily manage all of your accessories with five illuminated rocker switches, visible day or night. Each switch features a replaceable fuse to safeguard your battery and ensure optimal performance.

At iTechworld, we prioritise exceptional quality in our products. The iTechworld Control Hub features pre-wired internal cables, enhanced to create a fully fused and vibration-resistant system. With the use of thick cabling, the control hub ensures a steadfast connection between your battery and accessories, delivering dependable power wherever your adventures take you.

Our iTechworld Control Hub is designed with user convenience in mind, featuring a 6-way external fuse panel that is easily accessible for hassle-free fuse replacement. The 6 included fuses protect the switches, plugs, and sockets lining the bottom of the control hub. Equipped with LED indicators, the panel instantly displays when a fuse is blown, streamlining the fault-finding process and saving valuable time for our customers.

Pre-drilled holes and integrated Anderson plugs make it easy to install a DCDC charger, whether you already have one or plan to purchase one. Build your 12V setup one step at a time, tailored to your specific needs.

Safeguard your battery from draining below 11V with the built-in audible low-voltage alarm. The dedicated on/off switch lets you mute the alarm and resume normal functions, ensuring your battery stays protected.

The iTechworld Control Hub's matte black, powder-coated aluminium design not only looks great but is built to withstand your rugged adventures.

The four pre-drilled holes and four different cable entry points provide versatility when deciding on the direction of your input/output cables.

Equip your caravan, camper, or 4WD with the iTechworld Control Hub and experience unparalleled power and convenience on your next outdoor adventure!

The instruction manual is found here: View the iTechworld 12V Control Hub Manual

The statutory warranty is 12 months

Control Hub
Dimensions (LxWxH):	403 x 304 x 116mm
Dimensions w/ DCDC (LxWxH):	403 x 304 x 119mm
Outputs:	2 x 12V 15A cigarette outputs USB-C output 3 x QC3.0
Inputs/outputs:	4 x 50A Anderson plugs
Inputs:	3-pin 50A Anderson plug (DCDC alternator input) 50A Anderson plug (DCDC solar input)

DCDC40 Charger
Battery capacity:	80-800Ah
Vehicle input voltage:	9-32V
Solar input voltage:	10-32V
Maximum input current:	45A
Input fuse rating:	60A
Continuous output current:	Up to 40A
Output fuse rating:	60A
Minimum auxiliary battery charge start voltage	4V
Standby current:	<10mA
Battery type:	Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature:	-20°C ~ 80°C
IP rating:	IP67
Dimensions (LxWxH):	188 x 127 x 39mm
Weight:	950g
Output
Charge type:	3-Stage
Charging profile:	STD	Gel	AGM	Calcium	LiFePO4
Absorption (maximum output voltage):	14.4V	14.1V	14.7	15.3V	14.5V
Float voltage:	13.4V	13.5V	13.4V	13.6V
Input
Input:	On		Off
12V standard alternator:	>13.2V		<12.8V
24V standard alternator:	>26.2V		<25.6V
12V smart alternator (ignition cable connected):	>12V		<11.8V
24V smart alternator (ignition cable conencted):	>24V		<23.6V
Solar:	16V & 25W		10V

quick stats

Warranty1 year

product dimensions

A: Length: 400mm
B: Width: 120mm
C: Height: 300mm

Premium Control Hub User Guide

download

Note: This wiring kit is suitable only for the iTECHDCDC25 and iTECHDCDC40.

Featuring a three-pin 50 amp Anderson-style connector with ignition wire, the Plug & Play DCDC Wiring Kit is designed with the user in mind. Our premium plug-and-play kit makes installation a breeze. The kit has been carefully crafted for easy DIY fitting and now includes a pre-installed 80amp Maxifuse for added convenience.

The new and improved wiring kit also features a three-pin 50 amp Anderson-style plug, making it completely plug-and-play for any system that uses Anderson connectors for charging input. With our 80amp Maxifuse cable pre-installed into six meters of heavy-duty 8 B&S cable, the wiring kit provides 50A of circuit protection.

The built-in ignition wire into the three-pin Anderson connector allows for even easier installation, removing the need to run multiple cables through your vehicle. This cable is pre-crimped with Anderson connector terminals, making it easy to run through holes and grommets. Once the cable is run, clip the Three Pin Anderson connector on.

The kit also includes cable ties for securing the main cables giving you everything you need for a professional wiring installation. Make connecting your 12V dual battery system hassle-free with the iTechworld Ultimate Dual Battery System Wiring Kit.

General
Length:	6m (+ 3m ignition cable extension)
Connection:	Three-pin Anderson
Thickness:	8AWG

This installation cable is a 4AWG 1.5m cable which allows you to connect your 12V Premium Control Hub to your batteries.

This is not compatible with the previous Control Hub models.
